SAXSdb — 2anw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

plasma kallikrein, light chain

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 391–631	Fragment：protease domain, enzymatically deglycosylated Mutation：C122S	BEN BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；290 K；0.5 microliter of the protein solution and 0.5 microliter of the reservoir solution (25% PEG 6000 , 0.10 M MES pH 6.5)., VAPOR DIFFUSION, HANGING DROP, temperature 290.0K	Resolution 1.85 Å R-free 0.283

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ANW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
10KZ N-Alkyl & N-Aryl Aminopyrazole Spirocarbamates: A Two-Pronged Lead Optimization Strategy to Identify Orally Bioavailable Plasma Kallikrein Inhibitors Deposited 2026-01-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 376–638（263 aa）	Not recorded	A1C6O (3'R)-1'-(1-benzyl-1H-pyrazole-4-carbonyl)-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；0.1 M HEPES, pH 7.0, 10-12% PEG8000	Resolution 1.78 Å R-free 0.197
10LR N-Alkyl & N-Aryl Aminopyrazole Spirocarbamates: A Two-Pronged Lead Optimization Strategy to Identify Orally Bioavailable PlasmaKallikrein Inhibitors complex with Compound 4 ((3'R)-1'-(5-amino-1-benzyl-1H-pyrazole-4-carbonyl)-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one) Deposited 2026-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 376–638（263 aa） Fragment：catalytic domain (UNP residues 376-638)	Mutation：C382S, C503S	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 A1C6Q (3'R)-1'-(5-amino-1-benzyl-1H-pyrazole-4-carbonyl)-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；0.1 M HEPES, pH 7.0, 10-12% PEG8000	Resolution 1.58 Å R-free 0.261
10MV N-Alkyl & N-Aryl Aminopyrazole Spirocarbamates: A Two-Pronged Lead Optimization Strategy to Identify Orally Bioavailable Plasma Kallikrein Inhibitors complex with Compound 15 ((3'R)-1'-(5-amino-1-phenyl-1H-pyrazole-4-carbonyl)-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one) Deposited 2026-01-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 376–638（263 aa） Fragment：catalytic domain (UNP residues 376-638)	Mutation：C383S, C503S	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 A1C6X (3'R)-1'-(5-amino-1-phenyl-1H-pyrazole-4-carbonyl)-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1 M MES, pH 6.5, 24% PEG8000, 5% glycerol	Resolution 1.66 Å R-free 0.226
10MW N-Alkyl & N-Aryl Aminopyrazole Spirocarbamates: A Two-Pronged Lead Optimization Strategy to Identify Orally Bioavailable Plasma Kallikrein Inhibitors compound 25 ((3'R)-1'-{(1P)-5-amino-1-[2-(trifluoromethoxy)phenyl]-1H-pyrazole-4-carbonyl}-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one) Deposited 2026-01-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 376–638（263 aa） Fragment：catalytic domain (UNP residues 376-638)	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 A1C6Z (3'R)-1'-{(1P)-5-amino-1-[2-(trifluoromethoxy)phenyl]-1H-pyrazole-4-carbonyl}-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1 M MES, pH 6.5, 24% PEG8000, 5% glycerol	Resolution 1.62 Å R-free 0.234
10QS N-Alkyl & N-Aryl Aminopyrazole Spirocarbamates: A Two-Pronged Lead Optimization Strategy to Identify Orally Bioavailable Plasma Kallikrein Inhibitors Compound 13 ((3'R)-1'-{5-amino-1-[(2S)-1,1,1-trifluorobutan-2-yl]-1H-pyrazole-4-carbonyl}-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one) Deposited 2026-02-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 376–638（263 aa） Fragment：catalytic domain (UNP residues 376-638)	Mutation：C383S. C503S	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 A1C7M (3'R)-1'-{5-amino-1-[(2S)-1,1,1-trifluorobutan-2-yl]-1H-pyrazole-4-carbonyl}-6-chloro-5-fluorospiro[[3,1]benzoxazine-4,3'-piperidin]-2(1H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.1 M MES, pH 6.5, 24% PEG8000, 5% glycerol	Resolution 1.73 Å R-free 0.259
2ANY Expression, Crystallization and the Three-dimensional Structure of the Catalytic Domain of Human Plasma Kallikrein: Implications for Structure-Based Design of Protease Inhibitors Deposited 2005-08-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 391–631（241 aa） Fragment：protease domain, enzymatically deglycosylated	Mutation：C122S, N21E, N72E, N113E	PO4 PHOSPHATE ION × 3 BEN BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；290 K；0.5 microliter of the protein solution and 0.5 microliter of the reservoir solution (25% PEG 6000, 0.10 M MES pH 6.5) , VAPOR DIFFUSION, SITTING DROP, temperature 290.0K	Resolution 1.40 Å R-free 0.213
4OGX Crystal structure of Fab DX-2930 in complex with human plasma kallikrein at 2.4 Angstrom resolution Deposited 2014-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 391–631（241 aa） Fragment：UNP residues 391-631	Mutation：N396E, N453E, N494E, C503S	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；FAB DX-2930 AND HUMAN PLASMA KALLIKREIN VCID 7481 AT 150 UM OR 11.7 MG/ML AGAINST WIZ3-4 screen condition H7, 30% MPD, 10% PEG 3350, 0.1 M imidazole pH 6.5, 0.2 M ammonium sulfate, unique puck ID QJO1-12, crystal tracking ID 242118H7 , VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.40 Å R-free 0.236
4OGY Crystal structure of Fab DX-2930 in complex with human plasma kallikrein at 2.1 Angstrom resolution Deposited 2014-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 391–631（241 aa） Fragment：UNP residues 391-631	Mutation：N396E, N453E, N494E, C503S	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；FAB DX-2930 AND HUMAN PLASMA KALLIKREIN VCID 7481 AT 150 UM OR 11.7 MG/ML AGAINST INDEX screen condition D10, 20% PEG 5000 MME, 0.1 M BisTris pH 6.5 supplemented with 20% ethylene glycol as cryo-protectant, unique puck ID qjo1-15, crystal tracking ID 242121d10, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.10 Å R-free 0.221
4OGY Crystal structure of Fab DX-2930 in complex with human plasma kallikrein at 2.1 Angstrom resolution Deposited 2014-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 391–631（241 aa） Fragment：UNP residues 391-631	Mutation：N396E, N453E, N494E, C503S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；FAB DX-2930 AND HUMAN PLASMA KALLIKREIN VCID 7481 AT 150 UM OR 11.7 MG/ML AGAINST INDEX screen condition D10, 20% PEG 5000 MME, 0.1 M BisTris pH 6.5 supplemented with 20% ethylene glycol as cryo-protectant, unique puck ID qjo1-15, crystal tracking ID 242121d10, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.10 Å R-free 0.221
5F8T The crystal structure of human Plasma Kallikrein in complex with its peptide inhibitor pkalin-2 Deposited 2015-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 391–629（239 aa） Fragment：UNP RESIDUES 391-629	Mutation：C122S	SO4 SULFATE ION × 4 MRZ piperidine-1-carboximidamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；25% PEG 3350, 0.1M Hepes, pH 7.5, 20mM (NH4)2SO4	Resolution 1.75 Å R-free 0.245
5F8X The crystal structure of human plasma kallikrein in complex with its peptide inhibitor pkalin-3 Deposited 2015-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 391–629（239 aa） Fragment：UNP RESIDUES 391-629	Mutation：C122S	SO4 SULFATE ION × 8 MRZ piperidine-1-carboximidamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；23% PEG 3350, 0.1M TRIS-HCL, PH 8.5, 20MM (NH4)2SO4, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K	Resolution 1.55 Å R-free 0.243
5F8Z The crystal structure of human Plasma Kallikrein in complex with its peptide inhibitor pkalin-1 Deposited 2015-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 391–629（239 aa） Fragment：UNP RESIDUES 391-629	Mutation：C122S	SO4 SULFATE ION × 5 MRZ piperidine-1-carboximidamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；28% PEG 3350, 0.1M TRIS-HCL PH8.5, 20MM (NH4)2SO4, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K	Resolution 1.50 Å R-free 0.217
5TJX Structure of human plasma kallikrein Deposited 2016-10-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 376–638（263 aa） Fragment：UNP residues 376-638	Mutation：N396E, N453E, N494E, C503S	GBT (8E)-3-amino-1-methyl-15-[(1H-pyrazol-1-yl)methyl]-7,10,11,12,24,25-hexahydro-6H,18H,23H-19,22-(metheno)pyrido[4,3-j][1,9,13,17,18]benzodioxatriazacyclohenicosin-23-one × 1 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；0.2 M potassium di-hydrogen phosphate, 21 % PEG 3350	Resolution 1.41 Å R-free 0.184
6I44 Allosteric activation of human prekallikrein by apple domain disc rotation Deposited 2018-11-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–638（619 aa）	Not recorded	BEN BENZAMIDINE × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 SO4 SULFATE ION × 1 CL CHLORIDE ION × 1 NA SODIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2 GOL GLYCEROL × 4 FMT FORMIC ACID × 8 ACT ACETATE ION × 6 GLY GLYCINE × 1 SER SERINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.5；293 K；0.1M carboxylic acid, 0.1M Hepes/mops pH 7.5, 12.5%MPD, 12.5%PEG1000, 12.5%PEG3350	Resolution 1.36 Å R-free 0.196
6O1G Full length human plasma kallikrein with inhibitor Deposited 2019-02-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–638（638 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 7SD N-[(6-amino-2,4-dimethylpyridin-3-yl)methyl]-1-({4-[(1H-pyrazol-1-yl)methyl]phenyl}methyl)-1H-pyrazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；0.1 M Hepes pH 7.5 0.1 M Sodium Citrate 25 % PEG 3350	Resolution 2.20 Å R-free 0.240
6O1S Structure of human plasma kallikrein protease domain with inhibitor Deposited 2019-02-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 376–638（263 aa）	Mutation：N377E, N434E, N475E, C383E, and C484S	PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 1 7SD N-[(6-amino-2,4-dimethylpyridin-3-yl)methyl]-1-({4-[(1H-pyrazol-1-yl)methyl]phenyl}methyl)-1H-pyrazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；24% PEG 3350, 0.2M potassium dihydrogen phosphate	Resolution 1.70 Å R-free 0.201
6T7P human plasmakallikrein protease domain in complex with active site directed inhibitor Deposited 2019-10-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 391–632（242 aa）	Not recorded	GSH Glutathione × 1 DMS DIMETHYL SULFOXIDE × 10 PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 1 MU8 (2~{S},4~{R})-1-[[(3~{S})-3-azanyl-2,3-dihydro-1-benzofuran-6-yl]carbonyl]-~{N}-(3-chlorophenyl)-4-phenyl-pyrrolidine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG10000, 200 mM Sodium phosphate (monobasic), corresponds to Nextal condition #87 from PEG series	Resolution 1.42 Å R-free 0.188
7N7X Crystal structure of BCX7353(ORLADEYO) in complex with human plasma kallikrein serine protease domain at 2.1 angstrom resolution Deposited 2021-06-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 391–626（236 aa） Fragment：Peptidase S1 domain	Mutation：N6E, N63E, N104E, C113S	0RI Orladeyo × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；290 K；25% PEG 6000, 0.1MES buffer	Resolution 2.10 Å R-free 0.259
7QOX Factor XI and Plasma Kallikrein apple domain structures reveals different kininogen bound complexes Deposited 2021-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–378（359 aa）	Not recorded	GOL GLYCEROL × 1 PEG DI(HYDROXYETHYL)ETHER × 3 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 PG4 TETRAETHYLENE GLYCOL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；288 K；Morpheus screen H9 condition: 0.1M amino acids, 0.1M buffer system 3 pH8.5, 30% precipitant mix 1.	Resolution 2.32 Å R-free 0.253
7QOX Factor XI and Plasma Kallikrein apple domain structures reveals different kininogen bound complexes Deposited 2021-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–378（359 aa）	Not recorded	GOL GLYCEROL × 5 PEG DI(HYDROXYETHYL)ETHER × 2 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；288 K；Morpheus screen H9 condition: 0.1M amino acids, 0.1M buffer system 3 pH8.5, 30% precipitant mix 1.	Resolution 2.32 Å R-free 0.253
8A3Q Human Plasma Kallekrein in complex with 14W Deposited 2022-06-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 376–638（263 aa）	Not recorded	A1J3F N-[(3-fluoranyl-4-methoxy-pyridin-2-yl)methyl]-3-(methoxymethyl)-1-[[4-[(2-oxidanylidenepyridin-1-yl)methyl]phenyl]methyl]pyrazole-4-carboxamide × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions COUNTER-DIFFUSION；pH 5.5；291 K；25% PEG 6K, 0.10 M MES, pH 6.5, 14 mg/mL protein including 20 mM Benzamidine. 1:1 ratio of protein to mother liquor at 1 + 1 microliters over a 500 microliter reservoir at 18 Celsius	Resolution 1.80 Å R-free 0.273
8FGX Cryo-EM structure of the STAR-0215 Fab in complex with active human plasma kallikrein Deposited 2022-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 20–638（619 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE；Grids were prepared using a ThermoFisher Vitrobot MkIV with the chamber held at 18C and 100% relative humidity. 3.5 uL of the sample was applied to an UltrAuFoil 1.2/1.3 300 mesh grid that had been freshly glow discharged, blotted for 4 seconds, and plunge frozen in liquid ethane.	Resolution 2.62 Å
9VWT The catalytic domain of human plasma kallikrein with peptide inhibitor 070 Deposited 2025-07-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 391–627（237 aa）	Mutation：C122S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；PEG 3350, TRIS-HCL, (NH4)2SO4	Resolution 1.77 Å R-free 0.210

21 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KLKB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–241； UniProt 391–631

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2anw
Deposition date deposition_date	2005-08-11
Structure title title	Expression, crystallization and three-dimensional structure of the catalytic domain of human plasma kallikrein: Implications for structure-based design of protease inhibitors
Keywords keywords	trypsin-like serine protease; enzymatically deglycosylated, BLOOD CLOTTING, HYDROLASE; BLOOD CLOTTING, HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.07 Å
Radius of gyration Rg (electron density) rg_electron	16.84 Å
Forward intensity I(0) i0	12891200.00
Molecular weight molecular_weight	26873.0 kDa
Excluded volume excluded_volume	33642 Å³
Envelope volume envelope_volume	37831 Å³
Hydration-shell volume shell_volume	18273 Å³
Envelope diameter envelope_diameter	59.3 Å
Shell Rg shell_rg	23.51 Å
Envelope Rg envelope_rg	17.22 Å
Shape Rg shape_rg	16.81 Å
Total Rg total_rg	17.93 Å
Total atoms total_atoms	2329
Residues n_residues	222
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

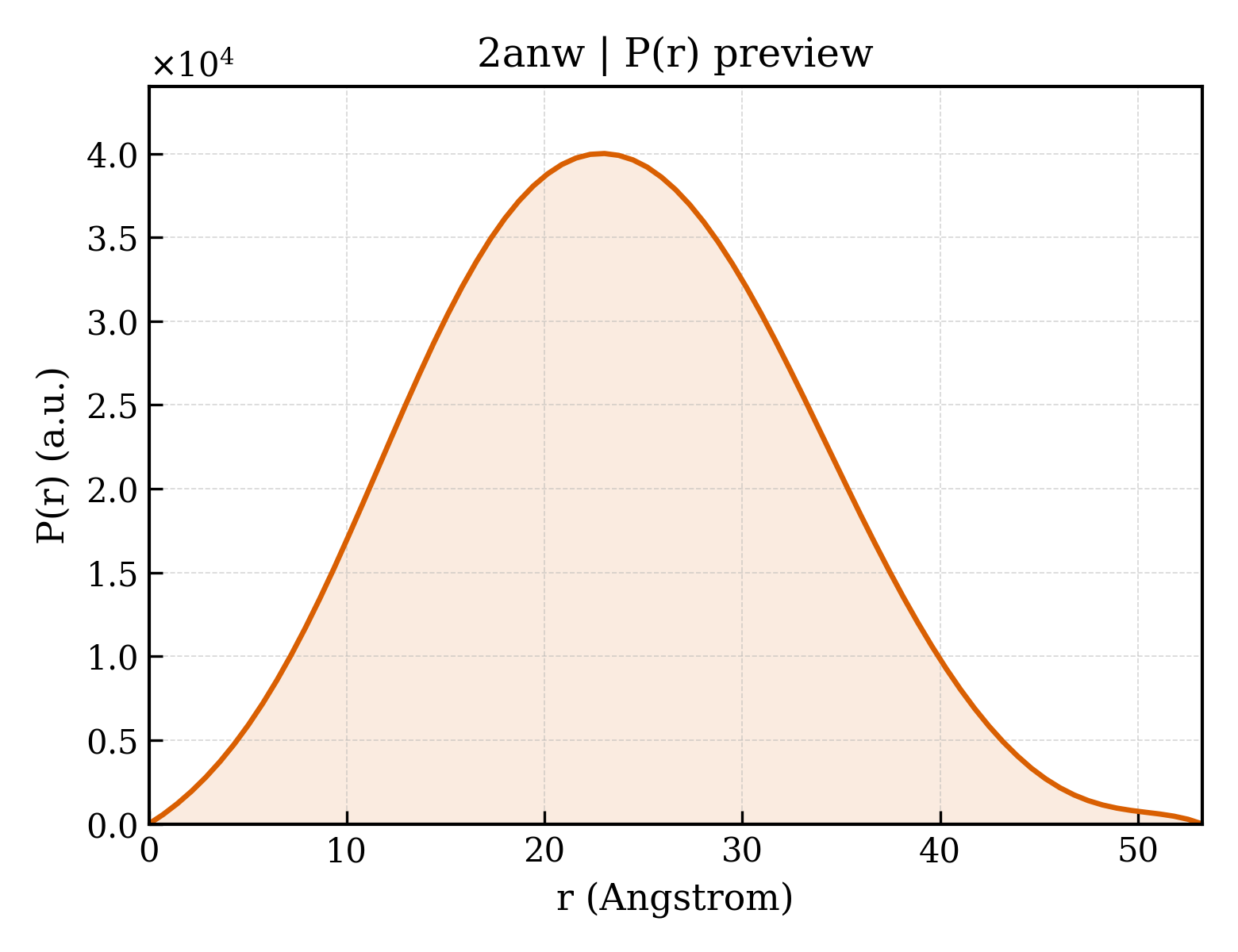

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.2 Å
Rg (real space) rg_real	17.90 Å
Rg uncertainty (real space) rg_real_error	0.06 Å
I(0) (real space) i0_real	1.2440e+07
I(0) uncertainty (real space) i0_real_error	9.7610e+04
Rg (reciprocal space) rg_reciprocal	17.94 Å
I(0) (reciprocal space) i0_reciprocal	12890000.0000
Solution quality estimate total_estimate	0.7133
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	23.0 Å
Skewness Skewness skewness	0.133
Kurtosis Kurtosis kurtosis	-0.407
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	10.7700
Highest regularization parameter α highest_alpha	3433000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.948; Stabil: 0.917; Sysdev: 0.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.718

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	plasma kallikrein, light chain
Molecular weight formula_weight	27099.8 kDa
EC 编号 ec_number	3.4.21.34
Mutation mutation	C122S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2981

IVGGTNSSWGEWPWQVSLQVKLTAQRHLCGGSLIGHQWVLTAAHCFDGLPLQDVWRIYSGILNLSDITKDTPFSQIKEIIIHQNYKVSEGNHDIALIKLQAPLNYTEFQKPISLPSKGDTSTIYTNCWVTGWGFSKEKGEIQNILQKVNIPLVTNEECQKRYQDYKITQRMVCAGYKEGGKDACKGDSGGPLVCKHNGMWRLVGITSWGEGCARREQPGVYTKVAEYMDWILEKTQSSDGK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	BENZAMIDINE
Molecular weight formula_weight	120.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	210

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2anwa_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (2 domains)

Domain ID domain_id	2anwA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2anwA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

8. Citations (1)

▶

Unit-cell length a length_a	79.886 Å
Unit-cell length b length_b	63.190 Å
Unit-cell length c length_c	50.313 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	0.2211
R_work r_work	0.2210
R_free r_free	0.2830

fit	/app/data/saxs_computation/an/2anw/2anw.fit
pddf	/app/data/pr_computation/an/2anw/2anw.pr.out
profile	/app/data/saxs_computation/an/2anw/2anw.dat
