2b5l

Crystal Structure of DDB1 In Complex with Simian Virus 5 V Protein

Method: X-RAY DIFFRACTION D_max: 179.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nonstructural protein V

Simian virus 5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–222	Not recorded	damage-specific DNA binding protein 1 × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 20000, sodium chloride, DTT, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.85 Å R-free 0.299
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 1–222	Not recorded	damage-specific DNA binding protein 1 × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 20000, sodium chloride, DTT, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.85 Å R-free 0.299

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2B5L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2HYE Crystal Structure of the DDB1-Cul4A-Rbx1-SV5V Complex Deposited 2006-08-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–222（222 aa）	Not recorded	ZN ZINC ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；100mM NaHEPES, 7-9% PEG4000, 10% iso-propanol, 5mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.10 Å R-free 0.316
4I1S Melanoma differentiation associated protein-5 Helicase domain complex with inhibitor Non-structural protein V Deposited 2012-11-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–52（52 aa） Fragment：region 55-79 replaced by SGSGSGSGSG, proteolysis by trypsin during crystallization	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100mM HEPES pH7.5 18% (w/v) PEG1500 trace amounts of trypsin , VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.29 Å R-free 0.230

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VV_SV5
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–222； UniProt 1–222 Author chain D； PDBConstruct 1–222； UniProt 1–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

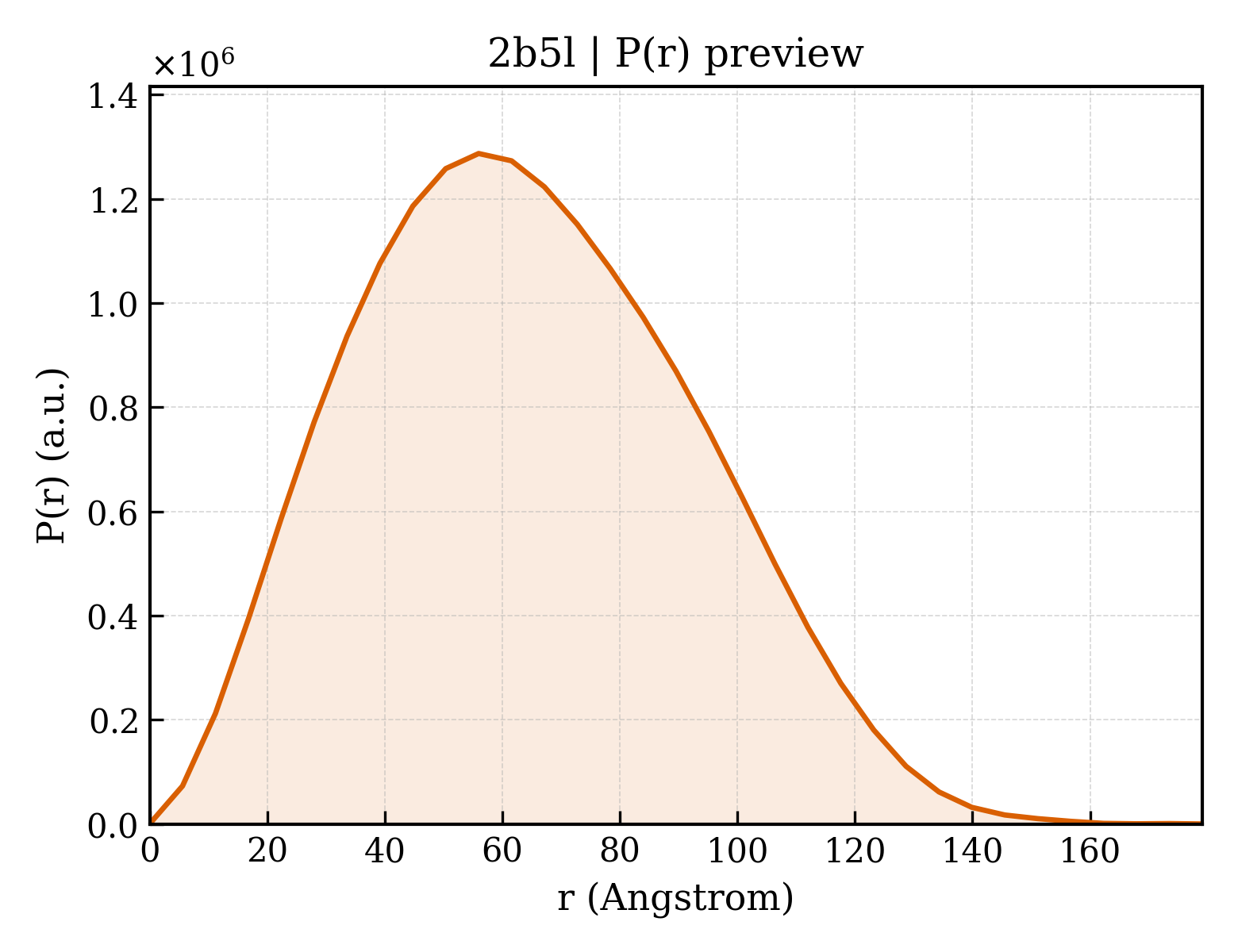

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2b5l
Deposition date deposition_date	2005-09-28
Structure title title	Crystal Structure of DDB1 In Complex with Simian Virus 5 V Protein
Keywords keywords	DDB1, SV5-V, beta propeller, propeller cluster, zinc finger, PROTEIN BINDING-VIRAL PROTEIN COMPLEX; PROTEIN BINDING/VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	49.54 Å
Radius of gyration Rg (electron density) rg_electron	49.18 Å
Forward intensity I(0) i0	1215600000.00
Molecular weight molecular_weight	290610.0 kDa
Excluded volume excluded_volume	363860 Å³
Envelope volume envelope_volume	508790 Å³
Hydration-shell volume shell_volume	85080 Å³
Envelope diameter envelope_diameter	189.4 Å
Shell Rg shell_rg	54.25 Å
Envelope Rg envelope_rg	48.24 Å
Shape Rg shape_rg	49.18 Å
Total Rg total_rg	49.38 Å
Total atoms total_atoms	20399
Residues n_residues	2615
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	179.1 Å
Rg (real space) rg_real	49.46 Å
Rg uncertainty (real space) rg_real_error	1.86 Å
I(0) (real space) i0_real	1.2160e+09
I(0) uncertainty (real space) i0_real_error	2.3800e+07
Rg (reciprocal space) rg_reciprocal	49.54 Å
I(0) (reciprocal space) i0_reciprocal	1216000000.0000
Solution quality estimate total_estimate	0.8681
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	56.0 Å
Skewness Skewness skewness	0.263
Kurtosis Kurtosis kurtosis	-0.467
Angular range angular_range	— – 0.1600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	121500000.0000
Real-space data points n_real_points	33
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.767; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.991

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	damage-specific DNA binding protein 1
Molecular weight formula_weight	127117.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	20399

MSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGIHEHASIDLPGIKGLWPLRSDPNRETYDTLVLSFVGQTRVLMLNGEEVEETELMGFVDDQQTFFCGNVAHQQLIQITSASVRLVSQEPKALVSEWKEPQAKNISVASCNSSQVVVAVGRALYYLQIHPQELRQISHTEMEHEVACLDITPLGDSNGLSPLCAIGLWTDISARILKLPSFELLHKEMLGGEIIPRSILMTTFESSHYLLCALGDGALFYFGLNIETGLLSDRKKVTLGTQPTVLRTFRSLSTTNVFACSDRPTVIYSSNHKLVFSNVNLKEVNYMCPLNSDGYPDSLALANNSTLTIGTIDEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKDVRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Nonstructural protein V
Molecular weight formula_weight	23965.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MDPTDLSFSPDEINKLIETGLNTVEYFTSQQVTGTSSLGKNTIPPGVTGLLTNAAEAKIQESTNHQKGSVGGGAKPKKPRPKIAIVPADDKTVPGKPIPNPLLGLDSTPSTQTVLDLSGKTLPSGSYKGVKLAKFGKENLMTRFIEEPRENPIATSSPIDFKRGRDTGGFHRREYSIGWVGDEVKVTEWCNPSCSPITAAARRFECTCHQCPVTCSECERDT

来源 Source

来源生物 organism	Simian virus 5
NCBI Class编号 ncbi_taxonomy_id	11207
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

▼

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (10 domains)

Domain ID domain_id	d2b5la1
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.4 — WD40 repeat-like
Family Family family	b.69.4.3 — DDB1-like

Domain ID domain_id	d2b5la2
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.4 — WD40 repeat-like
Family Family family	b.69.4.3 — DDB1-like

Domain ID domain_id	d2b5la3
Class class	a — All alpha proteins
Fold Fold fold	a.297 — DDB1 C-terminal-like
Superfamily Superfamily superfamily	a.297.1 — DDB1 C-terminal-like
Family Family family	a.297.1.1 — DDB1 C-terminal-like

Domain ID domain_id	d2b5la4
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.4 — WD40 repeat-like
Family Family family	b.69.4.3 — DDB1-like

Domain ID domain_id	d2b5lb1
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.4 — WD40 repeat-like
Family Family family	b.69.4.3 — DDB1-like

Domain ID domain_id	d2b5lb2
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.4 — WD40 repeat-like
Family Family family	b.69.4.3 — DDB1-like

Domain ID domain_id	d2b5lb3
Class class	a — All alpha proteins
Fold Fold fold	a.297 — DDB1 C-terminal-like
Superfamily Superfamily superfamily	a.297.1 — DDB1 C-terminal-like
Family Family family	a.297.1.1 — DDB1 C-terminal-like

Domain ID domain_id	d2b5lb4
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.4 — WD40 repeat-like
Family Family family	b.69.4.3 — DDB1-like

Domain ID domain_id	d2b5lc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.384 — SV5-V core-like
Superfamily Superfamily superfamily	d.384.1 — SV5-V core-like
Family Family family	d.384.1.1 — SV5-V core-like

Domain ID domain_id	d2b5ld_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.384 — SV5-V core-like
Superfamily Superfamily superfamily	d.384.1 — SV5-V core-like
Family Family family	d.384.1.1 — SV5-V core-like

CATH v4.4 (8 domains)

Domain ID domain_id	2b5lA01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2b5lA02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2b5lA03
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2b5lA04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	910 —

Domain ID domain_id	2b5lB01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2b5lB02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2b5lB03
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2b5lB04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	910 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.758 Å
Unit-cell length b length_b	240.792 Å
Unit-cell length c length_c	117.177 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.79 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	47.800 Å
R factor r_factor	0.2304
R_work r_work	0.2292
R_free r_free	0.2988
