SAXSdb — 2bkf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ZINC-FINGER PROTEIN NBR1 (NEXT TO BREAST CANCER 1)

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–85	Fragment：RESIDUES 1-85 (PB1 INTERACTION DOMAIN)	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.1；1.6 M AMMONIUM SULFATE,0.1 M SODIUM ACETATE PH 4.1	Resolution 1.56 Å R-free 0.226

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2BKF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WJ6 Solution structure of RSGI RUH-024, a PB1 domain in human cDNA, KIAA0049 Deposited 2004-05-29	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–88（88 aa） Fragment：PB1 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100mM NaCl；Pressure ambient NMR sample composition 1.15mM PB1 domain U-15N,13C; 20mM Tris-HCl buffer (pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2CP8 Solution structure of the RSGI RUH-046, a UBA domain from human Next to BRCA1 gene 1 protein (KIAA0049 protein) R923H variant Deposited 2005-05-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 916–956（41 aa） Fragment：UBA	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100mM NaCl；Pressure ambient NMR sample composition 2.62mM RSGI RUH-046 U-13C, 15N; 20mM Tris-HCl U-2H, 100mM NaCl, 1mM DTT U-2H, 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2G4S Anomalous substructure of NBR1PB1 Deposited 2006-02-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–85（85 aa） Fragment：PB1 domain	Not recorded	CL CHLORIDE ION × 1 ACY ACETIC ACID × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.15 Å R-free 0.323
2L8J GABARAPL-1 NBR1-LIR complex structure Deposited 2011-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 726–738（13 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.6 mM [U-98% 15N] GABARAPL-1, 0.9 mM NBR1-LIR, 50 mM sodium phosphate, 100 mM sodium chloride, 4.6 mM sodium azide, 1 mM protease inhibitor cocktail, 0.3 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.6 mM [U-98% 13C; U-98% 15N] GABARAPL-1, 0.9 mM NBR1-LIR, 50 mM sodium phosphate, 100 mM sodium chloride, 4.6 mM sodium azide, 1 mM protease inhibitor cocktail, 0.3 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.9 mM GABARAPL-1, 0.6 mM [U-98% 15N] NBR1-LIR, 50 mM sodium phosphate, 100 mM sodium chloride, 4.6 mM sodium azide, 1 mM protease inhibitor cocktail, 0.3 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.9 mM GABARAPL-1, 0.6 mM [U-98% 13C; U-98% 15N] NBR1-LIR, 50 mM sodium phosphate, 100 mM sodium chloride, 4.6 mM sodium azide, 1 mM protease inhibitor cocktail, 0.3 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2MGW Solution Structure of the UBA Domain of Human NBR1 Deposited 2013-11-09	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 913–959（47 aa） Fragment：UNP residues 913-959	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.6；298 K；Pressure ambient NMR sample composition 20 mM potassium phosphate-1, 5 mM potassium chloride-2, 1 mM EDTA-3, 1 mM benzamidine-4, 1 mM DTT-5, 0.02 % sodium azide-6, 1.2 mM [U-100% 13C; U-100% 15N] NBR1 residues 913-959-7, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 20 mM potassium phosphate-8, 5 mM potassium chloride-9, 1 mM EDTA-10, 1 mM benzamidine-11, 1 mM DTT-12, 0.02 % sodium azide-13, 0.5 mM [U-100% 13C; U-100% 15N] NBR1 residues 913-959-14, 12.5 mg/mL Pf1 phage-15, 150 mM sodium chloride-16, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2MJ5 Structure of the UBA Domain of Human NBR1 in Complex with Ubiquitin Deposited 2013-12-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 913–959（47 aa） Fragment：UNP residues 916-959	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.6；298 K；Pressure ambient NMR sample composition 20 mM potassium phosphate-1, 5 mM potassium chloride-2, 1 mM EDTA-3, 1 mM benzamidine-4, 1 mM DTT-5, 0.02 % sodium azide-6, 1.2 mM [U-100% 13C; U-100% 15N] NBR1 residues 913-959-7, 95 % H2O-8, 5 % D2O-9, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 20 mM potassium phosphate-10, 5 mM potassium chloride-11, 1 mM EDTA-12, 1 mM benzamidine-13, 1 mM DTT-14, 0.02 % sodium azide-15, 0.5 mM [U-100% 13C; U-100% 15N] NBR1 residues 913-959-16, 12.5 mg/mL Pf1 phage-17, 150 mM sodium chloride-18, 95 % H2O-19, 5 % D2O-20, 0.5 mM [U-100% 13C; U-100% 15N] NBR1_UBA-21, 2 mM Ubiquitin-22, 12.5 mg/mL Pf1 phage-23, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 20 mM potassium phosphate-24, 5 mM potassium chloride-25, 1 mM EDTA-26, 1 mM benzamidine-27, 1 mM DTT-28, 0.02 % sodium azide-29, 0.5 mM [U-100% 13C; U-100% 15N] NBR1 residues 913-959-30, 12.5 mg/mL Pf1 phage-31, 150 mM sodium chloride-32, 95 % H2O-33, 5 % D2O-34, 0.5 mM [U-100% 13C; U-100% 15N] NBR1_UBA-35, 2 mM Ubiquitin-36, 12.5 mg/mL Pf1 phage-37, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 2 mM NBR1_UBA-38, 0.5 mM [U-100% 13C; U-100% 15N] Ubiquitin-39, 12.5 mg/mL Pf1 phage-40, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1 mM [U-100% 15N] NBR1_UBA-41, 4.5 mM Ubiquitin-42, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
4OLE Crystal structure of a neighbor of BRCA1 gene 1 (NBR1) from Homo sapiens at 2.52 A resolution Deposited 2014-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 365–485（121 aa） Fragment：UNP residues 365-485	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.33；277 K；2.35M ammonium sulfate, 0.1M TRIS pH 8.33, 0.01M Adenosine-5'-triphosphate disodium salt hydrate, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.52 Å R-free 0.188
4OLE Crystal structure of a neighbor of BRCA1 gene 1 (NBR1) from Homo sapiens at 2.52 A resolution Deposited 2014-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 365–485（121 aa） Fragment：UNP residues 365-485	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.33；277 K；2.35M ammonium sulfate, 0.1M TRIS pH 8.33, 0.01M Adenosine-5'-triphosphate disodium salt hydrate, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.52 Å R-free 0.188
4OLE Crystal structure of a neighbor of BRCA1 gene 1 (NBR1) from Homo sapiens at 2.52 A resolution Deposited 2014-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 365–485（121 aa） Fragment：UNP residues 365-485	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.33；277 K；2.35M ammonium sulfate, 0.1M TRIS pH 8.33, 0.01M Adenosine-5'-triphosphate disodium salt hydrate, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.52 Å R-free 0.188
4OLE Crystal structure of a neighbor of BRCA1 gene 1 (NBR1) from Homo sapiens at 2.52 A resolution Deposited 2014-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 365–485（121 aa） Fragment：UNP residues 365-485	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.33；277 K；2.35M ammonium sulfate, 0.1M TRIS pH 8.33, 0.01M Adenosine-5'-triphosphate disodium salt hydrate, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.52 Å R-free 0.188
4OLE Crystal structure of a neighbor of BRCA1 gene 1 (NBR1) from Homo sapiens at 2.52 A resolution Deposited 2014-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 16 PDB declaration: hexadecameric	Chain A 365–485（121 aa） Fragment：UNP residues 365-485 Chain B 365–485（121 aa） Fragment：UNP residues 365-485 Chain C 365–485（121 aa） Fragment：UNP residues 365-485 Chain D 365–485（121 aa） Fragment：UNP residues 365-485	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 28 EDO 1,2-ETHANEDIOL × 36	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.33；277 K；2.35M ammonium sulfate, 0.1M TRIS pH 8.33, 0.01M Adenosine-5'-triphosphate disodium salt hydrate, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.52 Å R-free 0.188

7 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	M172_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–87； UniProt 1–85

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bkf
Deposition date deposition_date	2005-02-16
Structure title title	Structure of the PB1 domain of NBR1
Keywords keywords	ZINC-FINGER PROTEIN, PB1 DOMAIN, NBR1, INTERACTION DOMAIN, ZINC-FINGER; ZINC-FINGER PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.66 Å
Radius of gyration Rg (electron density) rg_electron	12.19 Å
Forward intensity I(0) i0	2226240.00
Molecular weight molecular_weight	9981.0 kDa
Excluded volume excluded_volume	12364 Å³
Envelope volume envelope_volume	13638 Å³
Hydration-shell volume shell_volume	9706 Å³
Envelope diameter envelope_diameter	43.0 Å
Shell Rg shell_rg	17.67 Å
Envelope Rg envelope_rg	12.53 Å
Shape Rg shape_rg	12.16 Å
Total Rg total_rg	13.55 Å
Total atoms total_atoms	699
Residues n_residues	86
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

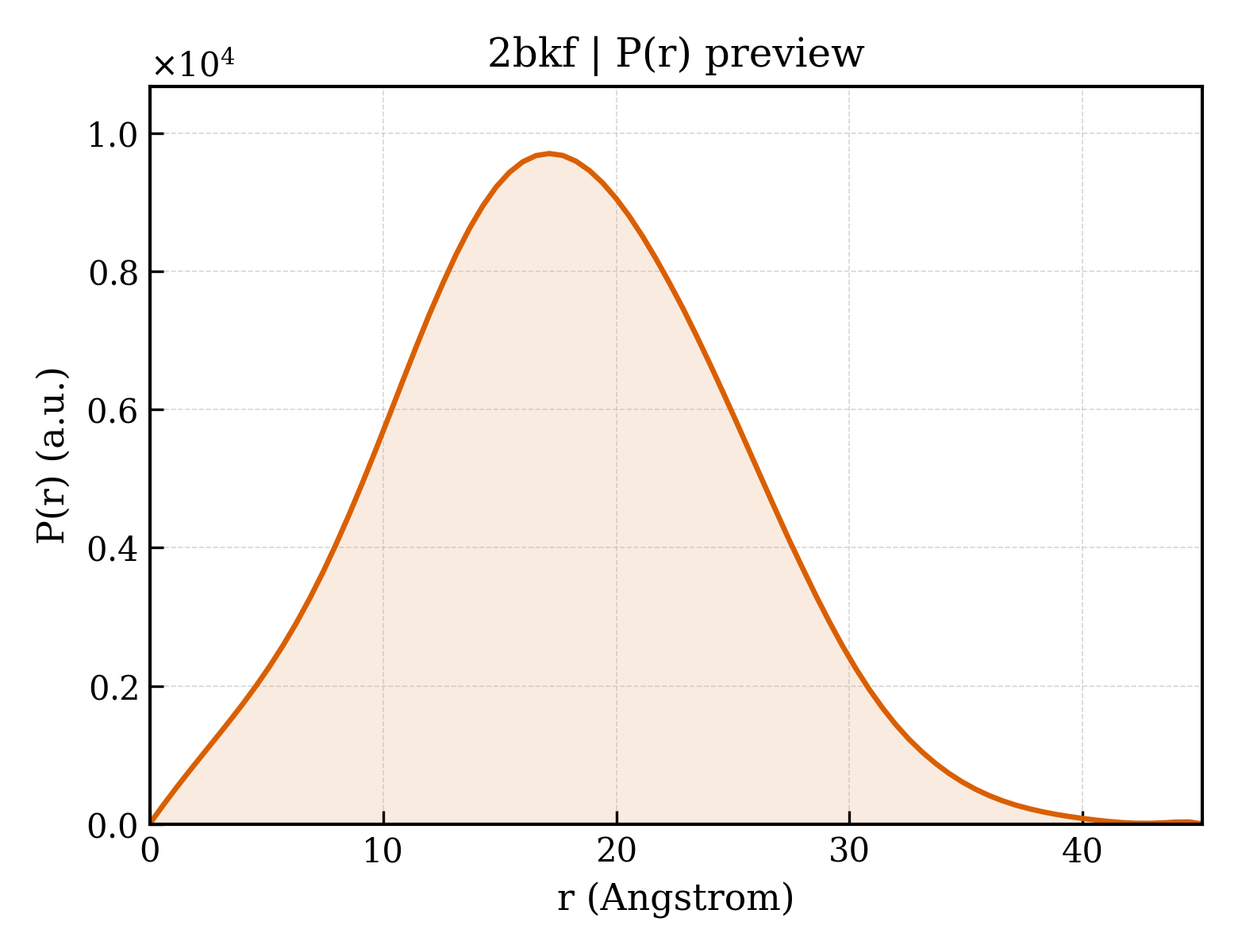

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.1 Å
Rg (real space) rg_real	13.57 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	2.2260e+06
I(0) uncertainty (real space) i0_real_error	2.6350e+04
Rg (reciprocal space) rg_reciprocal	13.58 Å
I(0) (reciprocal space) i0_reciprocal	2226000.0000
Solution quality estimate total_estimate	0.8709
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.1 Å
Skewness Skewness skewness	0.139
Kurtosis Kurtosis kurtosis	-0.260
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	435000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.777; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.990

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ZINC-FINGER PROTEIN NBR1 (NEXT TO BREAST CANCER 1)
Molecular weight formula_weight	9870.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	816

GAMEPQVTLNVTFKNEIQSFLVSDPENTTWADIEAMVKVSFDLNTIQIKYLDEENEEVSINSQGEYEEALKMAVKQGNQLQMQVHEG

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	94

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2bkfa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

CATH v4.4 (1 domains)

Domain ID domain_id	2bkfA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	100.612 Å
Unit-cell length b length_b	100.612 Å
Unit-cell length c length_c	42.160 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	1.560 Å
Low-resolution limit resolution_low	21.780 Å
R factor r_factor	0.2000
R_work r_work	0.1990
R_free r_free	0.2260

fit	/app/data/saxs_computation/bk/2bkf/2bkf.fit
pddf	/app/data/pr_computation/bk/2bkf/2bkf.pr.out
profile	/app/data/saxs_computation/bk/2bkf/2bkf.dat
