SAXSdb — 2bp0

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bp0
沉积日期 deposition_date	2005-04-17
结构标题 title	M144L mutant of nitrite reductase from Alcaligenes xylosoxidans
关键词 keywords	OXIDOREDUCTASE, DENTRIFICATION, NITRITE REDUCTASE, ELECTRON TRANSFER, M168L MUTANT, NITRATE ASSIMILATION, PERIPLASMIC; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.02 Å
回转半径 Rg (电子) rg_electron	33.97 Å
零角强度 I(0) i0	88959900.00
分子量 molecular_weight	73476.0 kDa
排除体积 excluded_volume	91008 Å³
包络体积 envelope_volume	122780 Å³
水化壳体积 shell_volume	31683 Å³
包络直径 envelope_diameter	119.4 Å
壳层 Rg shell_rg	38.00 Å
包络 Rg envelope_rg	34.17 Å
形状 Rg shape_rg	33.96 Å
总 Rg total_rg	34.31 Å
总原子数 total_atoms	5126
残基数 n_residues	670
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	113.0 Å
Rg (实空间) rg_real	34.25 Å
Rg 误差 (实空间) rg_real_error	1.00 Å
I(0) (实空间) i0_real	8.8960e+07
I(0) 误差 (实空间) i0_real_error	1.2710e+06
Rg (倒空间) rg_reciprocal	34.11 Å
I(0) (倒空间) i0_reciprocal	88950000.0000
解质量估计 total_estimate	0.8264
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	28.9 Å
偏度 Skewness skewness	0.443
峰度 Kurtosis kurtosis	-0.560
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17990000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.797; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.668; Smooth: 0.679

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	DISSIMILATORY COPPER-CONTAINING NITRITE REDUCTASE
分子量 formula_weight	36553.5 kDa
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5917

QDADKLPHTKVTLVAPPQVHPHEQASKTGPKVVEFTMTIEEKKMVIDDKGTTLQAMTFNGSMPGPTLVVHEGDYVQLTLVNPATNAMPHNVDFHGATGALGGAKLTNVNPGEQATLRFKADRSGTFVYHCAPEGMVPWHVVSGLSGTLMVLPRDGLKDPEGKPLHYDRAYTIGEFDLYIPKGPDGKYKDYATLAESYGDTVQVMRTLTPSHIVFNGKVGALTGANALTAKVGETVLLIHSQANRDTRPHLIGGHGDWVWETGKFANPPQRDLETWFIRGGSAGAALYTFKQPGVYAYLNHNLIEAFELGAAGHIKVEGKWNDDLMKQIKAPAPIPR

来源 Source

来源生物 organism	ACHROMOBACTER XYLOSOXIDANS
NCBI 分类编号 ncbi_taxonomy_id	85698
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	DISSIMILATORY COPPER-CONTAINING NITRITE REDUCTASE
分子量 formula_weight	36553.5 kDa
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

QDADKLPHTKVTLVAPPQVHPHEQATKSGPKVVEFTMTIEEKKMVIDDKGTTLQAMTFNGSMPGPTLVVHEGDYVQLTLVNPATNAMPHNVDFHGATGALGGAKLTNVNPGEQATLRFKADRSGTFVYHCAPEGMVPWHVVSGLSGTLMVLPRDGLKDPEGKPLHYDRAYTIGEFDLYIPKGPDGKYKDYATLAESYGDTVQVMRTLTPSHIVFNGKVGALTGANALTAKVGETVLLIHSQANRDTRPHLIGGHGDWVWETGKFANPPQRDLETWFIRGGSAGAALYTFKQPGVYAYLNHNLIEAFELGAAGHIKVEGKWNDDLMKQIKAPAPIPR

来源 Source

来源生物 organism	ACHROMOBACTER XYLOSOXIDANS
NCBI 分类编号 ncbi_taxonomy_id	85698
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 non-polymer

描述 description	COPPER (II) ION
分子量 formula_weight	63.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	11

Entity 5 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	791

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2bp0a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d2bp0a2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d2bp0b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d2bp0b2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

CATH v4.4 (4 domains)

结构域编号 domain_id	2bp0A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2bp0A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2bp0B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2bp0B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	90.605 Å
晶胞边长 b length_b	90.605 Å
晶胞边长 c length_c	291.439 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	9

空间群 space_group	H 3
空间群编号 int_tables_number	146
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	70.000 Å
R 因子 r_factor	0.1610
R_work r_work	0.1590
R_free r_free	0.1960

fit	/app/data/saxs_computation/bp/2bp0/2bp0.fit
pddf	/app/data/pr_computation/bp/2bp0/2bp0.pr.out
profile	/app/data/saxs_computation/bp/2bp0/2bp0.dat

M144L mutant of nitrite reductase from Alcaligenes xylosoxidans

SAXS 散射曲线 SAXS Profile

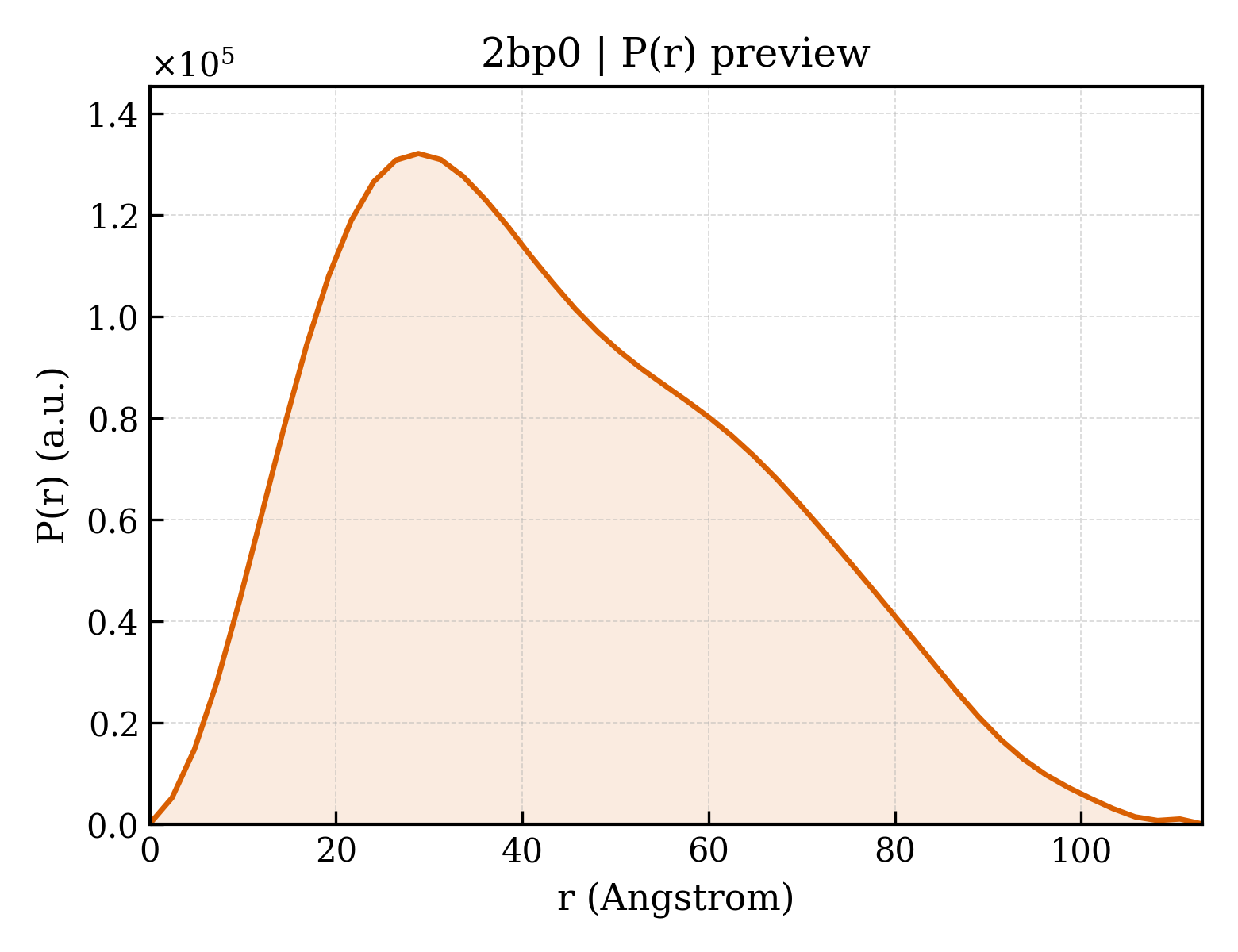

P(r) 距离分布 P(r) Distribution
