SAXSdb — 2cqx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LAG1 longevity assurance homolog 5

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 77–135	Fragment：residues 8-66	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7；298 K；Ionic strength (raw mmCIF value) 120mM NaCl；Pressure ambient NMR sample composition：1.30mM Domain U 15N, 13C; 20mM d-Tris-HCl (pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2CQX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5E8N The structure of the TEIPP associated Trh4 peptide in complex with H-2D(b) Deposited 2015-10-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 379–387（9 aa） Fragment：UNP residues 379-387	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；1.9 M Ammonium sulphate, 0.1 M Tris-HCl	Resolution 2.25 Å R-free 0.286
5E8N The structure of the TEIPP associated Trh4 peptide in complex with H-2D(b) Deposited 2015-10-14	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 379–387（9 aa） Fragment：UNP residues 379-387	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；1.9 M Ammonium sulphate, 0.1 M Tris-HCl	Resolution 2.25 Å R-free 0.286
5E8N The structure of the TEIPP associated Trh4 peptide in complex with H-2D(b) Deposited 2015-10-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 379–387（9 aa） Fragment：UNP residues 379-387	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；1.9 M Ammonium sulphate, 0.1 M Tris-HCl	Resolution 2.25 Å R-free 0.286
5E8N The structure of the TEIPP associated Trh4 peptide in complex with H-2D(b) Deposited 2015-10-14	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 379–387（9 aa） Fragment：UNP residues 379-387	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；1.9 M Ammonium sulphate, 0.1 M Tris-HCl	Resolution 2.25 Å R-free 0.286
5E8O The structure of the TEIPP associated altered peptide ligand Trh4-p2ABU in complex with H-2D(b) Deposited 2015-10-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 379–387（9 aa） Fragment：UNP residues 379-387	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；1.5 M ammonium sulphate, 0.1 M Tris-HCl, 0.5 M NaCl	Resolution 1.98 Å R-free 0.254
5E8O The structure of the TEIPP associated altered peptide ligand Trh4-p2ABU in complex with H-2D(b) Deposited 2015-10-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 379–387（9 aa） Fragment：UNP residues 379-387	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；1.5 M ammonium sulphate, 0.1 M Tris-HCl, 0.5 M NaCl	Resolution 1.98 Å R-free 0.254
5E8P The structure of the TEIPP associated altered peptide ligand Trh4-p5NLE in complex with H-2D(b) Deposited 2015-10-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 379–387（9 aa） Fragment：UNP residues 379-387	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.6 M ammonium sulphate, 0.1 M Tris-HCl, 0.5 M NaCl	Resolution 2.00 Å R-free 0.258
5E8P The structure of the TEIPP associated altered peptide ligand Trh4-p5NLE in complex with H-2D(b) Deposited 2015-10-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 379–387（9 aa） Fragment：UNP residues 379-387	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.6 M ammonium sulphate, 0.1 M Tris-HCl, 0.5 M NaCl	Resolution 2.00 Å R-free 0.258

3 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LASS5_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–66； UniProt 77–135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cqx
Deposition date deposition_date	2005-05-20
Structure title title	Solution structure of RSGI RUH-034, a homeodomain from mouse cDNA
Keywords keywords	;Homeodomain, DNA binding domain, Transcription, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.88 Å
Radius of gyration Rg (electron density) rg_electron	14.42 Å
Forward intensity I(0) i0	393292000.00
Molecular weight molecular_weight	160400.0 kDa
Excluded volume excluded_volume	198820 Å³
Envelope volume envelope_volume	42989 Å³
Hydration-shell volume shell_volume	18217 Å³
Envelope diameter envelope_diameter	71.8 Å
Shell Rg shell_rg	26.48 Å
Envelope Rg envelope_rg	21.66 Å
Shape Rg shape_rg	14.35 Å
Total Rg total_rg	15.04 Å
Total atoms total_atoms	22640
Residues n_residues	1440
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	40.1 Å
Rg (real space) rg_real	13.98 Å
Rg uncertainty (real space) rg_real_error	0.07 Å
I(0) (real space) i0_real	3.7480e+08
I(0) uncertainty (real space) i0_real_error	3.1940e+06
Rg (reciprocal space) rg_reciprocal	15.08 Å
I(0) (reciprocal space) i0_reciprocal	393300000.0000
Solution quality estimate total_estimate	0.6569
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	0
Primary peak position r_peak_primary	— Å
Skewness Skewness skewness	0.395
Kurtosis Kurtosis kurtosis	-0.319
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	4.0040
Highest regularization parameter α highest_alpha	245700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.008; Oscil: 0.865; Stabil: 0.982; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2cqxa1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.1 — Homeodomain

Domain ID domain_id	d2cqxa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2cqxa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2cqxA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

▶

8. Citations (1)

▶

Description description	LAG1 longevity assurance homolog 5
Molecular weight formula_weight	8046.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	22640

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

fit	/app/data/saxs_computation/cq/2cqx/2cqx.fit
pddf	/app/data/pr_computation/cq/2cqx/2cqx.pr.out
profile	/app/data/saxs_computation/cq/2cqx/2cqx.dat

Solution structure of RSGI RUH-034, a homeodomain from mouse cDNA

1. Protein Identity and Related Structures Protein Identity & Related Structures

LAG1 longevity assurance homolog 5

State in the Current Structure

Other States of the Same Protein in the Database

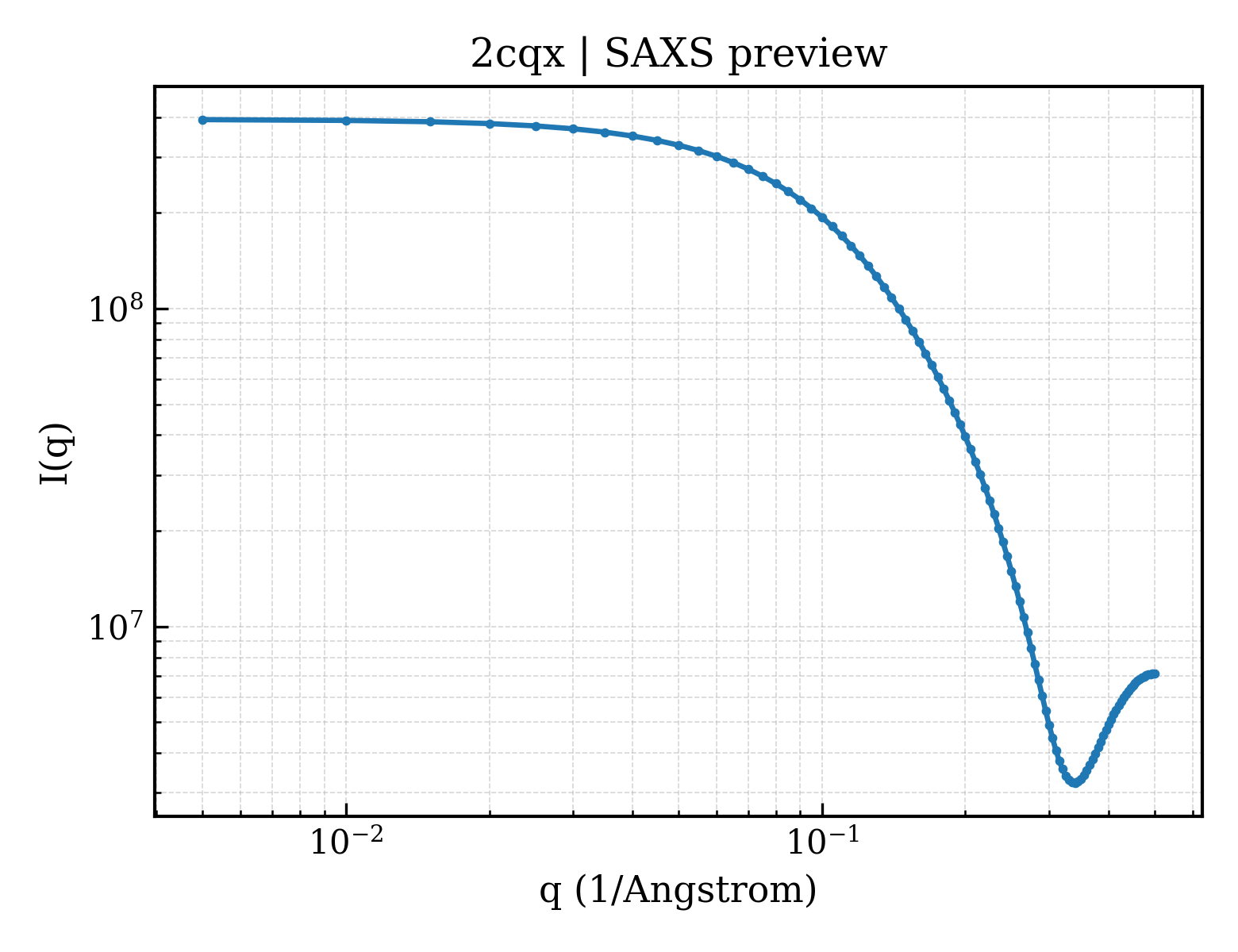

SAXS scattering curve SAXS Profile

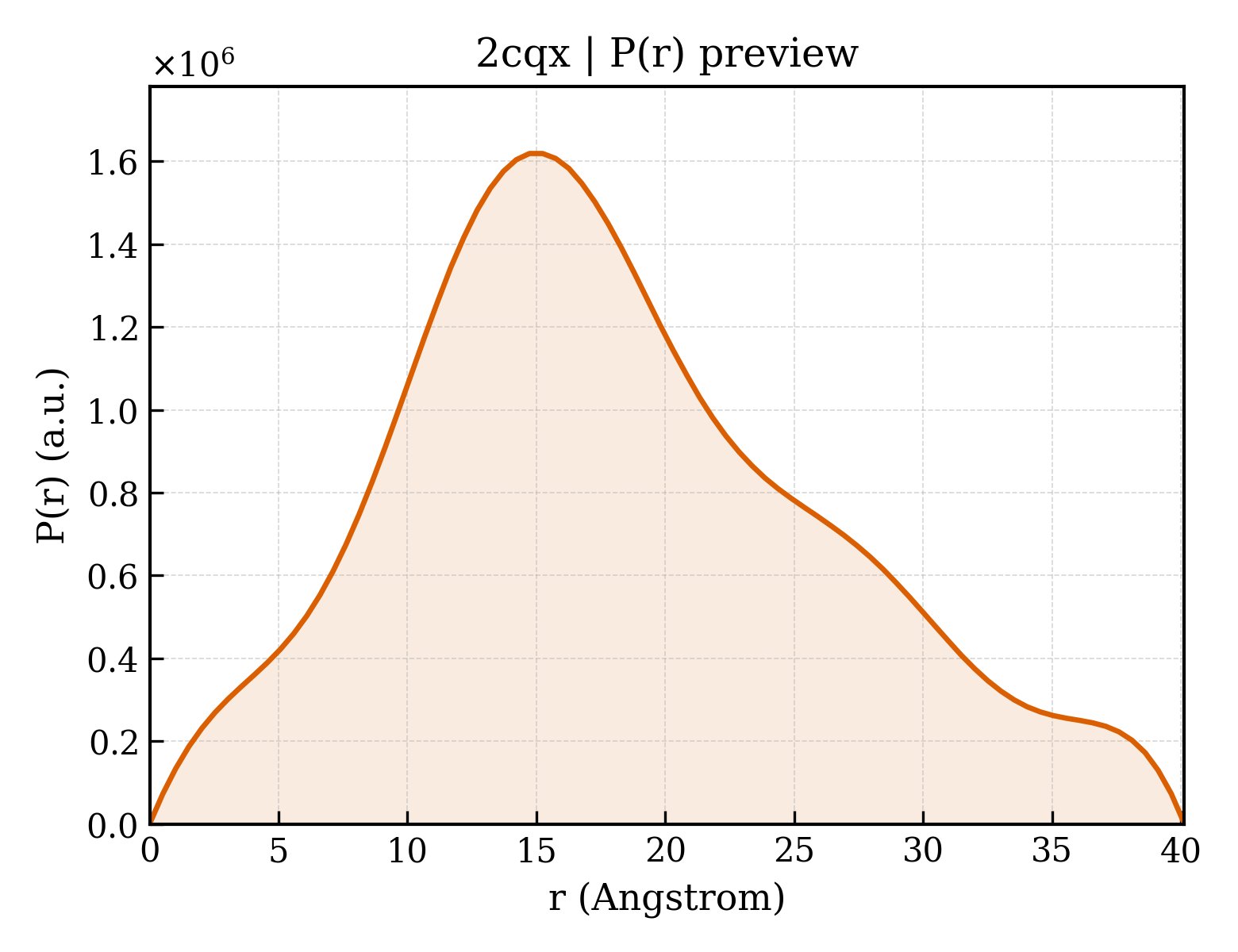

P(r) Distance Distribution P(r) Distribution
