SAXSdb — 2cy7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cysteine protease APG4B

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–393	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；potassium phosphate, sodium chloride, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2CY7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2D1I Structure of human Atg4b Deposited 2005-08-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–393（393 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；0.65M tri-Sodium citrate dihydrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 2.00 Å R-free 0.283
2D1I Structure of human Atg4b Deposited 2005-08-24	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–393（393 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；0.65M tri-Sodium citrate dihydrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 2.00 Å R-free 0.283
2Z0D The crystal structure of human Atg4B- LC3(1-120) complex Deposited 2007-05-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–354（354 aa） Fragment：residues (-2)-354	Mutation：H280A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；293 K；20% PEG 3350, 0.1M sodium citrate, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.227
2Z0E The crystal structure of human Atg4B- LC3(1-124) complex Deposited 2007-05-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–354（354 aa） Fragment：residues (-2)-354	Mutation：H280A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；293 K；20% PEG 3350, 0.1M sodium citrate, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.229
2ZZP The crystal structure of human Atg4B(C74S)- LC3(1-124) complex Deposited 2009-02-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–354（354 aa） Fragment：residues in database 1-354	Mutation：C74S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；293 K；20% PEG 3350, 0.1M sodium citrate, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.05 Å R-free 0.251
5LXH GABARAP-L1 ATG4B LIR Complex Deposited 2016-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 384–393（10 aa） Fragment：UNP residues 384-393	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M AMSO4, 40 % PEG 4000, 15 % glycerol	Resolution 1.58 Å R-free 0.237
5LXH GABARAP-L1 ATG4B LIR Complex Deposited 2016-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 384–393（10 aa） Fragment：UNP residues 384-393	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M AMSO4, 40 % PEG 4000, 15 % glycerol	Resolution 1.58 Å R-free 0.237
5LXH GABARAP-L1 ATG4B LIR Complex Deposited 2016-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 384–393（10 aa） Fragment：UNP residues 384-393	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M AMSO4, 40 % PEG 4000, 15 % glycerol	Resolution 1.58 Å R-free 0.237
5LXI GABARAP-L1 ATG4B LIR Complex Deposited 2016-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 384–393（10 aa） Fragment：UNP residues 384-393 Chain E 384–393（10 aa） Fragment：UNP residues 384-393	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 3 PGE TRIETHYLENE GLYCOL × 2 EDO 1,2-ETHANEDIOL × 1 PER PEROXIDE ION × 2 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MgCl2, 24.6 % PEG 400, 29.5 % PEG 8000, 0.1M TRIS 8.5	Resolution 1.44 Å R-free 0.230

6 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	APG4B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–396； UniProt 1–393

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cy7
Deposition date deposition_date	2005-07-05
Structure title title	The crystal structure of human Atg4B
Keywords keywords	papain-like fold, autophagy, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.44 Å
Radius of gyration Rg (electron density) rg_electron	19.15 Å
Forward intensity I(0) i0	23262200.00
Molecular weight molecular_weight	37116.0 kDa
Excluded volume excluded_volume	46561 Å³
Envelope volume envelope_volume	53678 Å³
Hydration-shell volume shell_volume	22597 Å³
Envelope diameter envelope_diameter	64.8 Å
Shell Rg shell_rg	26.39 Å
Envelope Rg envelope_rg	19.69 Å
Shape Rg shape_rg	19.15 Å
Total Rg total_rg	20.15 Å
Total atoms total_atoms	2615
Residues n_residues	333
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	63.7 Å
Rg (real space) rg_real	20.30 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	2.3260e+07
I(0) uncertainty (real space) i0_real_error	2.6680e+05
Rg (reciprocal space) rg_reciprocal	20.32 Å
I(0) (reciprocal space) i0_reciprocal	23260000.0000
Solution quality estimate total_estimate	0.8936
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.4 Å
Skewness Skewness skewness	0.111
Kurtosis Kurtosis kurtosis	-0.436
Angular range angular_range	— – 0.3900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6005000.0000
Real-space data points n_real_points	71
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.891; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.959

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2cy7a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.22 — Autophagin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	51.913 Å
Unit-cell length b length_b	88.339 Å
Unit-cell length c length_c	160.139 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	44.760 Å
R factor r_factor	0.2150
R_work r_work	0.2150
R_free r_free	0.2470

Description description	Cysteine protease APG4B
Molecular weight formula_weight	44645.5 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2817

The crystal structure of human Atg4B

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cysteine protease APG4B

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

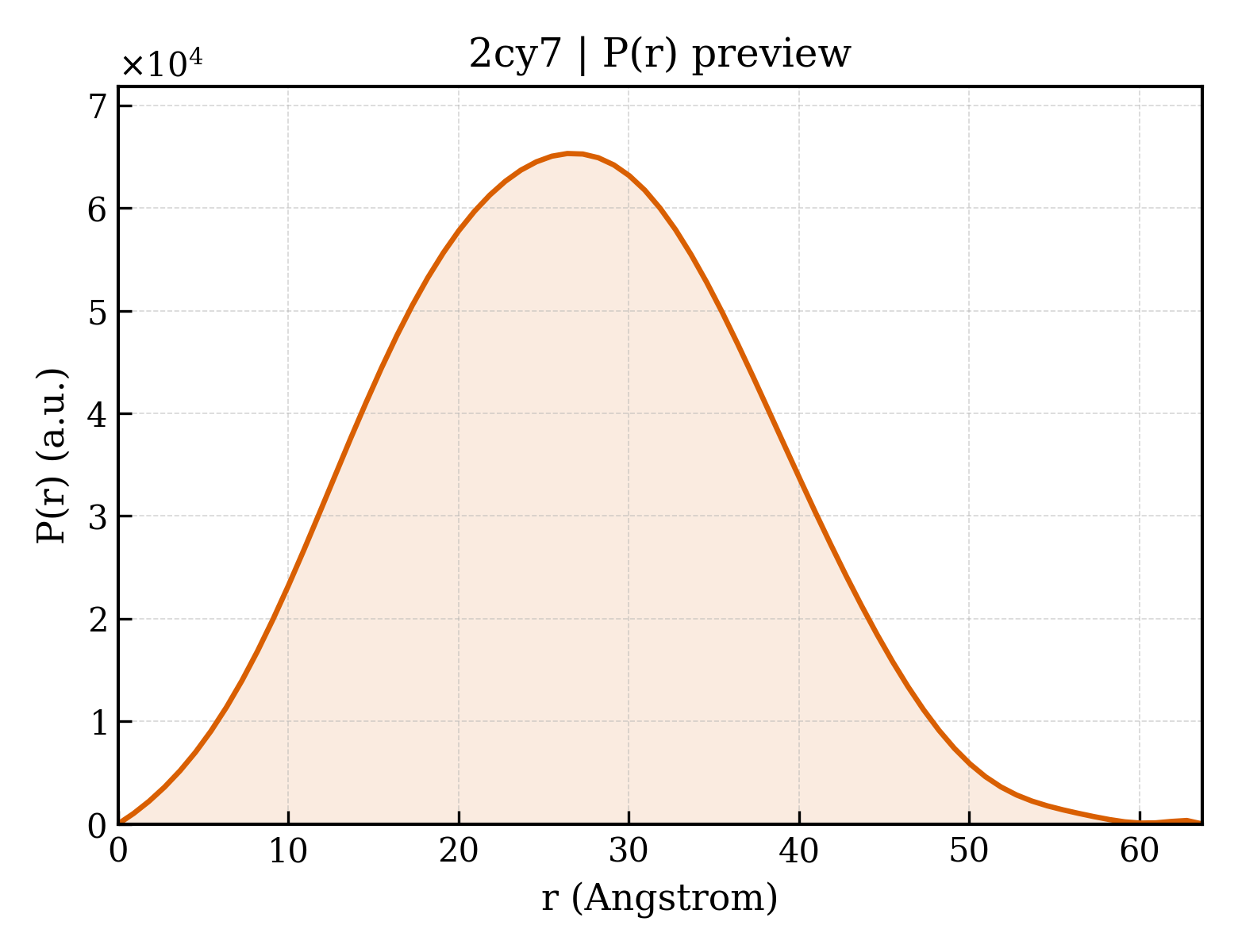

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	202

fit	/app/data/saxs_computation/cy/2cy7/2cy7.fit
pddf	/app/data/pr_computation/cy/2cy7/2cy7.pr.out
profile	/app/data/saxs_computation/cy/2cy7/2cy7.dat
