2d0o

Structure of diol dehydratase-reactivating factor complexed with ADP and Mg2+

Method: X-RAY DIFFRACTION D_max: 115.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2d0o
沉积日期 deposition_date	2005-08-05
结构标题 title	Structure of diol dehydratase-reactivating factor complexed with ADP and Mg2+
关键词 keywords	CHAPERONE; CHAPERONE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.56 Å
回转半径 Rg (电子) rg_electron	35.75 Å
零角强度 I(0) i0	349795000.00
分子量 molecular_weight	151860.0 kDa
排除体积 excluded_volume	190690 Å³
包络体积 envelope_volume	243720 Å³
水化壳体积 shell_volume	55960 Å³
包络直径 envelope_diameter	124.0 Å
壳层 Rg shell_rg	43.07 Å
包络 Rg envelope_rg	35.16 Å
形状 Rg shape_rg	35.75 Å
总 Rg total_rg	36.21 Å
总原子数 total_atoms	10662
残基数 n_residues	1426
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

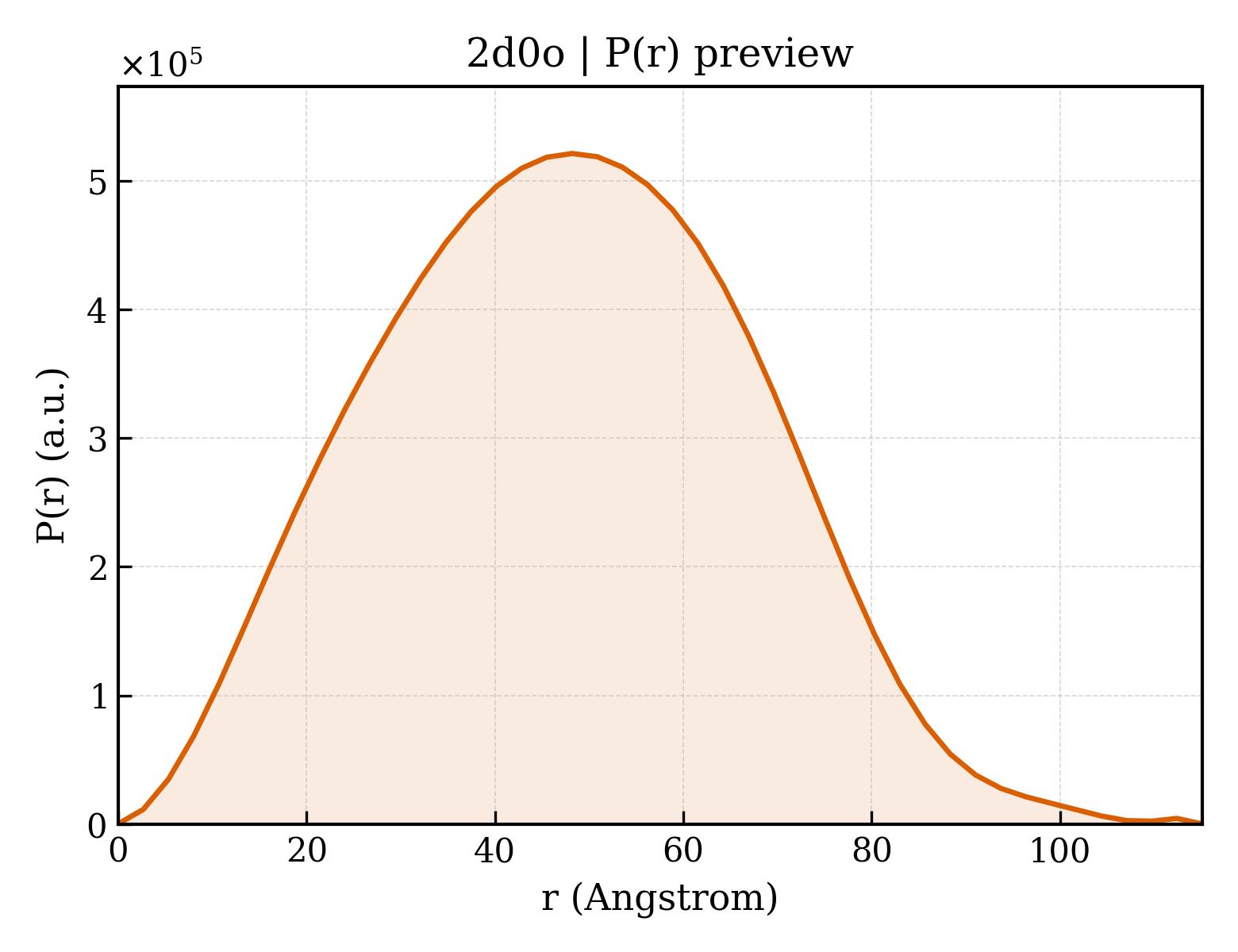

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	115.1 Å
Rg (实空间) rg_real	36.34 Å
Rg 误差 (实空间) rg_real_error	0.79 Å
I(0) (实空间) i0_real	3.4980e+08
I(0) 误差 (实空间) i0_real_error	5.5550e+06
Rg (倒空间) rg_reciprocal	36.48 Å
I(0) (倒空间) i0_reciprocal	349800000.0000
解质量估计 total_estimate	0.8960
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	48.2 Å
偏度 Skewness skewness	0.106
峰度 Kurtosis kurtosis	-0.478
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42500000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.919

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	diol dehydratase-reactivating factor large subunit
分子量 formula_weight	64329.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	11468

MRYIAGIDIGNSSTEVALATLDEAGALTITHSALAETTGIKGTLRNVFGIQEALALVARGAGIAVSDISLIRINEATPVIGDVAMETITETIITESTMIGHNPKTPGGAGLGTGITITPQELLTRPADAPYILVVSSAFDFADIASVINASLRAGYQITGVILQRDDGVLVSNRLEKPLPIVDEVLYIDRIPLGMLAAIEVAVPGKVIETLSNPYGIATVFNLSPEETKNIVPMARALIGNRSAVVVKTPSGDVKARAIPAGNLELLAQGRSVRVDVAAGAEAIMKAVDGCGRLDNVTGESGTNIGGMLEHVRQTMAELTNKPSSEIFIQDLLAVDTSVPVSVTGGLAGEFSLEQAVGIASMVKSDRLQMAMIAREIEQKLNIDVQIGGAEAEAAILGALTTPGTTRPLAILDLGAGSTDASIINPKGDIIATHLAGAGDMVTMIIARELGLEDRYLAEEIKKYPLAKVESLFHLRHEDGSVQFFSTPLPPAVFARVCVVKADELVPLPGDLALEKVRAIRRSAKERVFVTNALRALRQVSPTGNIRDIPFVVLVGGSSLDFEVPQLVTDALAHYRLVAGRGNIRGSEGPRNAVATGLILSWHKEFAHER

来源 Source

来源生物 organism	Klebsiella oxytoca
NCBI 分类编号 ncbi_taxonomy_id	571
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	diol dehydratase-reactivating factor small subunit
分子量 formula_weight	13637.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MNGNHSAPAIAIAVIDGCDGLWREVLLGIEEEGIPFRLQHHPAGEVVDSAWQAARSSPLLVGIACDRHMLVVHYKNLPASAPLFTLMHHQDSQAHRNTGNNAARLVKGIPFRDLNSEATGEQQDE

来源 Source

来源生物 organism	Klebsiella oxytoca
NCBI 分类编号 ncbi_taxonomy_id	571
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	806

▼

6. 折叠分类 (SCOP + CATH) 20 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2d0oa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.6 — Swiveling domain of dehydratase reactivase alpha subunit
家族 Family family	c.8.6.1 — Swiveling domain of dehydratase reactivase alpha subunit

结构域编号 domain_id	d2d0oa2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.6 — ATPase domain of dehydratase reactivase alpha subunit

结构域编号 domain_id	d2d0oa3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.6 — ATPase domain of dehydratase reactivase alpha subunit

结构域编号 domain_id	d2d0ob1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.51 — Anticodon-binding domain-like
超家族 Superfamily superfamily	c.51.3 — B12-dependent dehydatase associated subunit
家族 Family family	c.51.3.2 — Dehydratase-reactivating factor beta subunit

结构域编号 domain_id	d2d0oc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.6 — Swiveling domain of dehydratase reactivase alpha subunit
家族 Family family	c.8.6.1 — Swiveling domain of dehydratase reactivase alpha subunit

结构域编号 domain_id	d2d0oc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.6 — ATPase domain of dehydratase reactivase alpha subunit

结构域编号 domain_id	d2d0oc3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.6 — ATPase domain of dehydratase reactivase alpha subunit

结构域编号 domain_id	d2d0od_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.51 — Anticodon-binding domain-like
超家族 Superfamily superfamily	c.51.3 — B12-dependent dehydatase associated subunit
家族 Family family	c.51.3.2 — Dehydratase-reactivating factor beta subunit

CATH v4.4 (12 domains)

结构域编号 domain_id	2d0oA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2d0oA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	470 — Ribosomal Protein L22; Chain A
同源超家族 H-superfamily homologous superfamily	30 — Coenzyme B12-Dependent Enzyme linker domain

结构域编号 domain_id	2d0oA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	30 — Glucose Oxidase; domain 1
同源超家族 H-superfamily homologous superfamily	70 — Swiveling domain of dehydratase reactivase alpha subunit

结构域编号 domain_id	2d0oA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2d0oA05
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	2d0oB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10150 — B12-dependent dehydatase associated subunit

结构域编号 domain_id	2d0oC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2d0oC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	470 — Ribosomal Protein L22; Chain A
同源超家族 H-superfamily homologous superfamily	30 — Coenzyme B12-Dependent Enzyme linker domain

结构域编号 domain_id	2d0oC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	30 — Glucose Oxidase; domain 1
同源超家族 H-superfamily homologous superfamily	70 — Swiveling domain of dehydratase reactivase alpha subunit

结构域编号 domain_id	2d0oC04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2d0oC05
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	2d0oD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10150 — B12-dependent dehydatase associated subunit

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	83.261 Å
晶胞边长 b length_b	84.599 Å
晶胞边长 c length_c	280.090 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	46.480 Å
R 因子 r_factor	0.1980
R_work r_work	0.1980
R_free r_free	0.2320

fit	/app/data/saxs_computation/d0/2d0o/2d0o.fit
pddf	/app/data/pr_computation/d0/2d0o/2d0o.pr.out
profile	/app/data/saxs_computation/d0/2d0o/2d0o.dat
