SAXSdb — 2d5b

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Methionyl-tRNA Synthetase

Thermus thermophilus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–500	Fragment：MetRS Mutation：Y225F	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG6000, Hepes-Na(0.1M), DTT(1mM), pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2D5B	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A8H METHIONYL-TRNA SYNTHETASE FROM THERMUS THERMOPHILUS Deposited 1998-03-26	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–500（500 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.00 Å R-free 0.283
1WOY Crystal structure of methionyl tRNA synthetase Y225F mutant from Thermus thermophilus Deposited 2004-08-27	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–500（500 aa） Fragment：residues 1-500	Mutation：Y225F	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；2-propanol, sodium citrate, Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.226
2D54 Crystal Structure of Methionyl tRNA Synthetase Y225A Mutant from Thermus Thermophilus Deposited 2005-10-28	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–502（502 aa） Fragment：MetRS	Mutation：Y225A	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG6000, 0.1M Hepes-Na, 1mM DTT, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.254
3VU8 Metionyl-tRNA synthetase from Thermus thermophilus complexed with methionyl-adenylate analogue Deposited 2012-06-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–502（502 aa） Fragment：UNP residues 1-502	Not recorded	ZN ZINC ION × 1 MDS N-[METHIONYL]-N'-[ADENOSYL]-DIAMINOSULFONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG6000, DTT, HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.300

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SYM_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–500； UniProt 1–500

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2d5b
Deposition date deposition_date	2005-10-31
Structure title title	Crystal Structure of Thermus Thermophilus Methionyl tRNA synthetase Y225F Mutant obtained in the presence of PEG6000
Keywords keywords	;Rossmann fold, class 1a aars, ISOMERASE, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI ;; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.33 Å
Radius of gyration Rg (electron density) rg_electron	26.62 Å
Forward intensity I(0) i0	52103800.00
Molecular weight molecular_weight	57982.0 kDa
Excluded volume excluded_volume	73255 Å³
Envelope volume envelope_volume	87217 Å³
Hydration-shell volume shell_volume	28604 Å³
Envelope diameter envelope_diameter	99.2 Å
Shell Rg shell_rg	32.69 Å
Envelope Rg envelope_rg	26.79 Å
Shape Rg shape_rg	26.59 Å
Total Rg total_rg	27.36 Å
Total atoms total_atoms	4101
Residues n_residues	500
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	95.0 Å
Rg (real space) rg_real	27.51 Å
Rg uncertainty (real space) rg_real_error	0.96 Å
I(0) (real space) i0_real	5.2100e+07
I(0) uncertainty (real space) i0_real_error	8.2700e+05
Rg (reciprocal space) rg_reciprocal	27.45 Å
I(0) (reciprocal space) i0_reciprocal	52100000.0000
Solution quality estimate total_estimate	0.8482
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.5 Å
Skewness Skewness skewness	0.555
Kurtosis Kurtosis kurtosis	-0.072
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8474000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.730; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.935; Smooth: 0.896

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Methionyl-tRNA Synthetase
Molecular weight formula_weight	58004.4 kDa
EC 编号 ec_number	6.1.1.10
Mutation mutation	Y225F
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4500

MEKVFYVTTPIYYVNAEPHLGHAYTTVVADFLARWHRLDGYRTFFLTGTDEHGETVYRAAQAAGEDPKAFVDRVSGRFKRAWDLLGIAYDDFIRTTEERHKKVVQLVLKKVYEAGDIYYGEYEGLYCVSCERFYTEKELVEGLCPIHGRPVERRKEGNYFFRMEKYRPWLQEYIQENPDLIRPEGYRNEVLAMLAEPIGDLSISRPKSRVPWGIPLPWDENHVTFVWFDALLNYVSALDYPEGEAYRTFWPHAWHLIGKDILKPHAVFWPTMLKAAGIPMYRHLNVGGFLLGPDGRKMSKTLGNVVDPFALLEKYGRDALRYYLLREIPYGQDTPVSEEALRTRYEADLADDLGNLVQRTRAMLFRFAEGRIPEPVAGEELAEGTGLAGRLRPLVRELKFHVALEEAMAYVKALNRYINEKKPWELFKKEPEEARAVLYRVVEGLRIASILLTPAMPDKMAELRRALGLKEEVRLEEAERWGLAEPRPIPEEAPVLFPKK

来源 Source

来源生物 organism	Thermus thermophilus
NCBI Class编号 ncbi_taxonomy_id	274
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	399

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2d5ba1
Class class	a — All alpha proteins
Fold Fold fold	a.27 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
Superfamily Superfamily superfamily	a.27.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
Family Family family	a.27.1.0 — automated matches

Domain ID domain_id	d2d5ba2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

CATH v4.4 (3 domains)

Domain ID domain_id	2d5bA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	2d5bA02
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	220 — Methionyl-trna Synthetase; domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2d5bA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	730 — Isoleucyl-tRNA Synthetase; Domain 1
Homologous superfamily homologous superfamily	10 — Isoleucyl-tRNA Synthetase; Domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	50.140 Å
Unit-cell length b length_b	82.250 Å
Unit-cell length c length_c	121.410 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.1950
R_free r_free	0.2420

fit	/app/data/saxs_computation/d5/2d5b/2d5b.fit
pddf	/app/data/pr_computation/d5/2d5b/2d5b.pr.out
profile	/app/data/saxs_computation/d5/2d5b/2d5b.dat

Crystal Structure of Thermus Thermophilus Methionyl tRNA synthetase Y225F Mutant obtained in the presence of PEG6000

1. Protein Identity and Related Structures Protein Identity & Related Structures

Methionyl-tRNA Synthetase

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

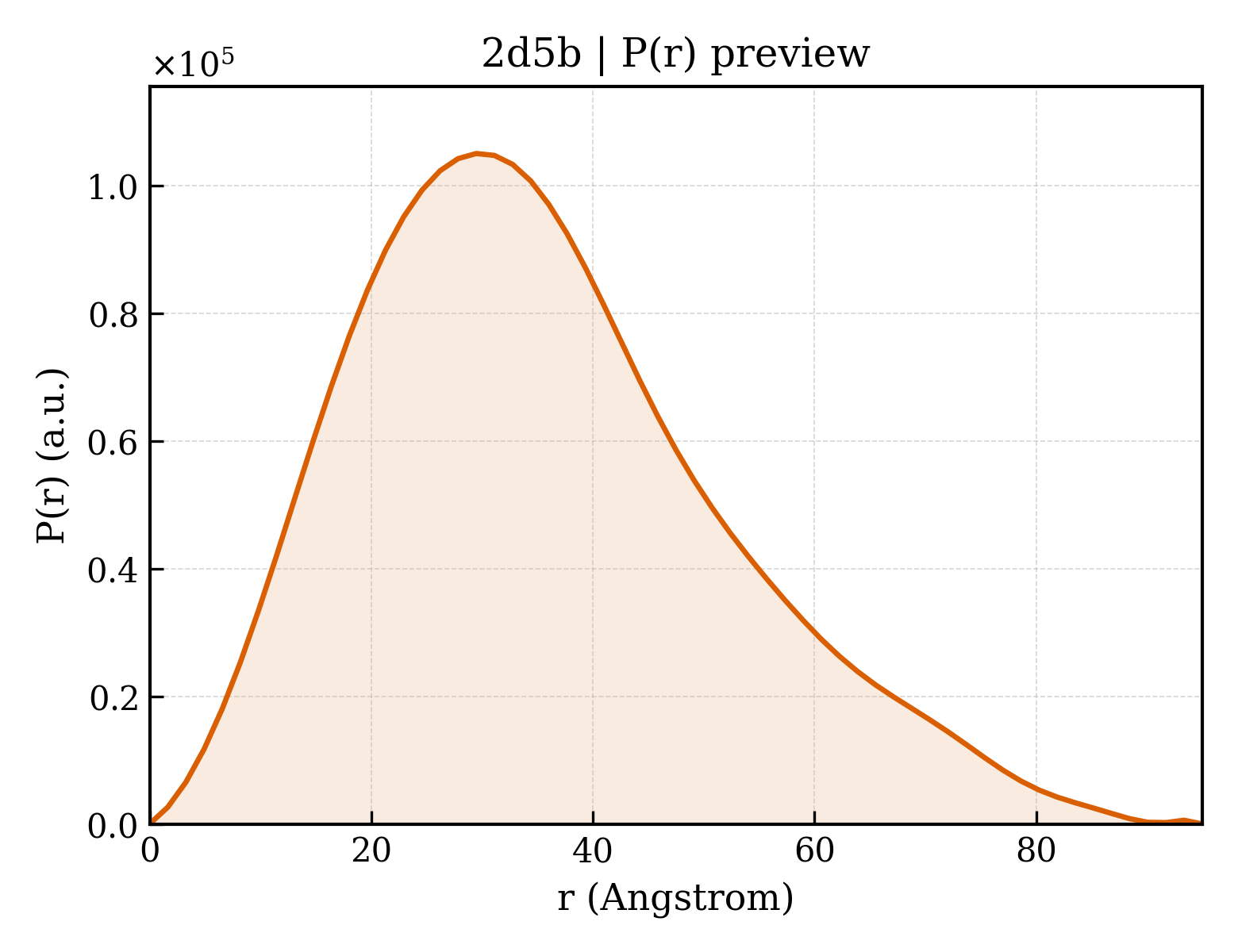

P(r) Distance Distribution P(r) Distribution
