2de5

Crystal structure of the electron transfer complex between oxygenase and ferredoxin in carbazole 1,9a-dioxygenase

Method: X-RAY DIFFRACTION D_max: 120.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

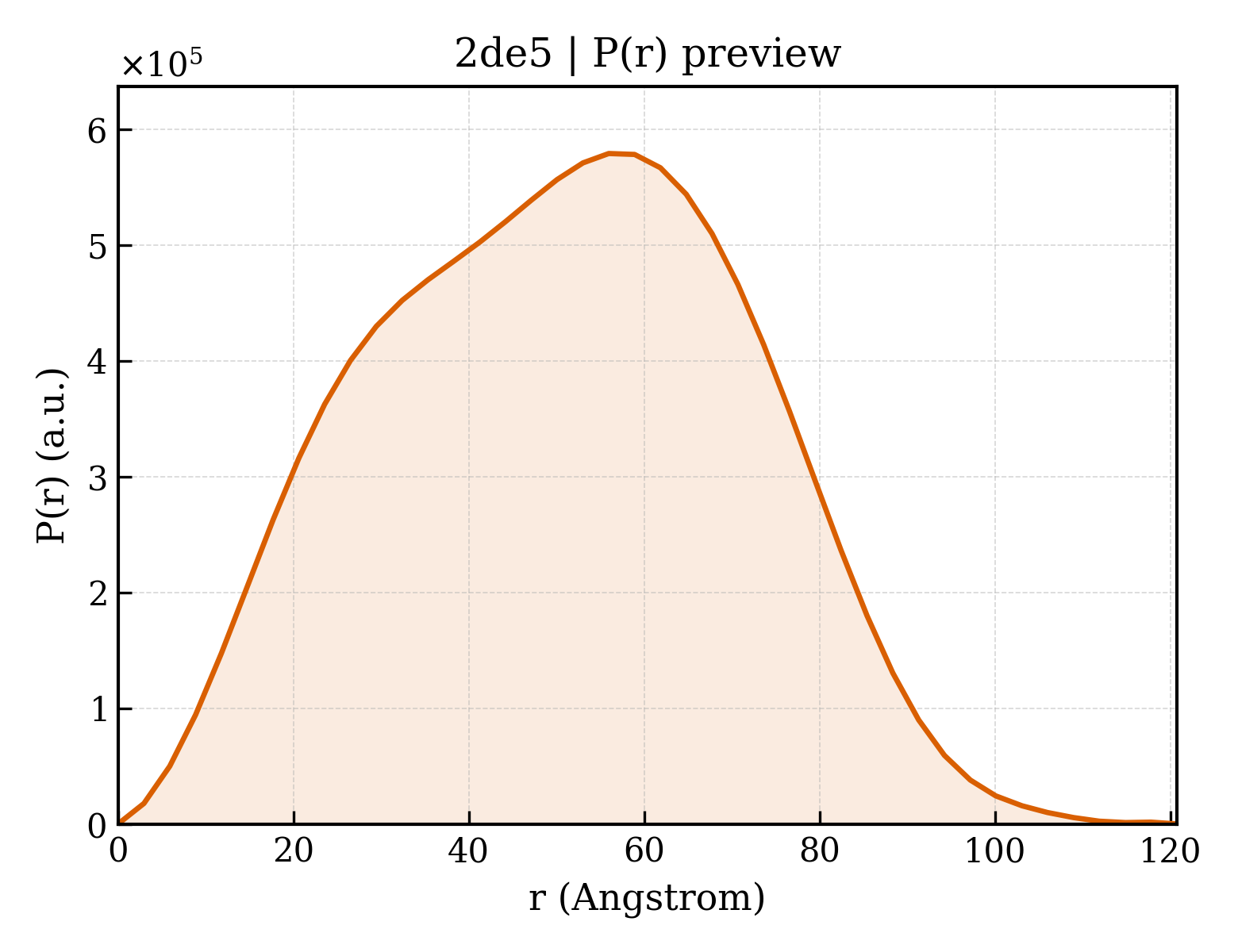

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2de5
沉积日期 deposition_date	2006-02-08
结构标题 title	Crystal structure of the electron transfer complex between oxygenase and ferredoxin in carbazole 1,9a-dioxygenase
关键词 keywords	;Electron transfer complex, Rieske non-heme iron oxygenase system, Terminal oxygenase, Rieske-type ferredoxin, carbazole 1, 9a-dioxygenase, OXIDOREDUCTASE ;; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.94 Å
回转半径 Rg (电子) rg_electron	38.22 Å
零角强度 I(0) i0	425233000.00
分子量 molecular_weight	167710.0 kDa
排除体积 excluded_volume	208920 Å³
包络体积 envelope_volume	266200 Å³
水化壳体积 shell_volume	55210 Å³
包络直径 envelope_diameter	130.8 Å
壳层 Rg shell_rg	46.89 Å
包络 Rg envelope_rg	37.96 Å
形状 Rg shape_rg	38.22 Å
总 Rg total_rg	38.68 Å
总原子数 total_atoms	11764
残基数 n_residues	1482
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	120.8 Å
Rg (实空间) rg_real	38.67 Å
Rg 误差 (实空间) rg_real_error	0.69 Å
I(0) (实空间) i0_real	4.2520e+08
I(0) 误差 (实空间) i0_real_error	5.9690e+06
Rg (倒空间) rg_reciprocal	38.84 Å
I(0) (倒空间) i0_reciprocal	425300000.0000
解质量估计 total_estimate	0.8997
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	56.0 Å
偏度 Skewness skewness	0.015
峰度 Kurtosis kurtosis	-0.665
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	73070000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.941

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	terminal oxygenase component of carbazole
分子量 formula_weight	44910.7 kDa
EC 编号 ec_number	1.14.12.-
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	12842

MANVDEAILKRVKGWAPYVDAKLGFRNHWYPVMFSKEINEGEPKTLKLLGENLLVNRIDGKLYCLKDRCLHRGVQLSVKVECKTKSTITCWYHAWTYRWEDGVLCDILTNPTSAQIGRQKLKTYPVQEAKGCVFIYLGDGDPPPLARDTPPNFLDDDMEILGKNQIIKSNWRLAVENGFDPSHIYIHKDSILVKDNDLALPLGFAPGGDRKQQTRVVDDDVVGRKGVYDLIGEHGVPVFEGTIGGEVVREGAYGEKIVANDISIWLPGVLKVNPFPNPDMMQFEWYVPIDENTHYYFQTLGKPCANDEERKKYEQEFESKWKPMALEGFNNDDIWAREAMVDFYADDKGWVNEILFESDEAIVAWRKLASEHNQGIQTQAHVSGLEHHHHHH

来源 Source

来源生物 organism	Janthinobacterium
NCBI 分类编号 ncbi_taxonomy_id	29580
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	ferredoxin component of carbazole
分子量 formula_weight	12448.1 kDa
EC 编号 ec_number	1.14.12.-
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F

MNQIWLKVCAASDMQPGTIRRVNRVGAAPLAVYRVGDQFYATEDTCTHGIASLSEGTLDGDVIECPFHGGAFNVCTGMPASSPCTVPLGVFEVEVKEGEVYVAGEKKLEHHHHHH

来源 Source

来源生物 organism	Pseudomonas resinovorans
NCBI 分类编号 ncbi_taxonomy_id	53412
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	FE (II) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1078

▼

6. 折叠分类 (SCOP + CATH) 21 domains

SCOP 2.08 (9 domains)

结构域编号 domain_id	d2de5a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.2 — Ring hydroxylating alpha subunit ISP domain

结构域编号 domain_id	d2de5a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.3 — Ring hydroxylating alpha subunit catalytic domain

结构域编号 domain_id	d2de5a3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2de5b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.2 — Ring hydroxylating alpha subunit ISP domain

结构域编号 domain_id	d2de5b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.3 — Ring hydroxylating alpha subunit catalytic domain

结构域编号 domain_id	d2de5b3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2de5c1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.2 — Ring hydroxylating alpha subunit ISP domain

结构域编号 domain_id	d2de5c2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.3 — Ring hydroxylating alpha subunit catalytic domain

结构域编号 domain_id	d2de5c3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (12 domains)

结构域编号 domain_id	2de5A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2de5A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily	680 —

结构域编号 domain_id	2de5A03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2de5B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2de5B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily	680 —

结构域编号 domain_id	2de5B03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2de5C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2de5C02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily	680 —

结构域编号 domain_id	2de5C03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2de5D00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

结构域编号 domain_id	2de5E00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

结构域编号 domain_id	2de5F00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	98.091 Å
晶胞边长 b length_b	89.835 Å
晶胞边长 c length_c	104.914 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	103.79 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	44.920 Å
R 因子 r_factor	0.1990
R_work r_work	0.1990
R_free r_free	0.2330

fit	/app/data/saxs_computation/de/2de5/2de5.fit
pddf	/app/data/pr_computation/de/2de5/2de5.pr.out
profile	/app/data/saxs_computation/de/2de5/2de5.dat
