SAXSdb — 2dqu

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2dqu
沉积日期 deposition_date	2006-05-30
结构标题 title	Crystal form II: high resolution crystal structure of the complex of the hydrolytic antibody Fab 6D9 and a transition-state analog
关键词 keywords	CATALYTIC ANTIBODY, ESTER HYDROLYSIS, ESTEROLYTIC, FAB, IMMUNOGLOBULIN, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.10 Å
回转半径 Rg (电子) rg_electron	24.96 Å
零角强度 I(0) i0	40982300.00
分子量 molecular_weight	48704.0 kDa
排除体积 excluded_volume	60495 Å³
包络体积 envelope_volume	73780 Å³
水化壳体积 shell_volume	24982 Å³
包络直径 envelope_diameter	80.7 Å
壳层 Rg shell_rg	31.83 Å
包络 Rg envelope_rg	24.55 Å
形状 Rg shape_rg	24.93 Å
总 Rg total_rg	25.79 Å
总原子数 total_atoms	3422
残基数 n_residues	426
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	83.4 Å
Rg (实空间) rg_real	26.10 Å
Rg 误差 (实空间) rg_real_error	0.48 Å
I(0) (实空间) i0_real	4.0980e+07
I(0) 误差 (实空间) i0_real_error	5.7030e+05
Rg (倒空间) rg_reciprocal	26.11 Å
I(0) (倒空间) i0_reciprocal	40980000.0000
解质量估计 total_estimate	0.9047
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	27.4 Å
偏度 Skewness skewness	0.281
峰度 Kurtosis kurtosis	-0.577
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	6026000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.943; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.955

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	IMMUNOGLOBULIN 6D9
分子量 formula_weight	24101.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	3679

DVLMTQTPLSLPVSLGDQASISCRSSQTIVHSNGDTYLDWFLQKPGQSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDLGVYYCFQGSHVPPTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 2 polymer

描述 description	IMMUNOGLOBULIN 6D9
分子量 formula_weight	24134.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

EVKLVESGGGLVKPGGSLKLSCAASGFTFSNYAMSWVRQTPEKRLEWVVSISSGGSIYYLDSVKGRFTVSRDNARNILYLQMTSLRSEDTAMYFCARVSHYDGSRDWYFDVWGAGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPRDC

Entity 3 non-polymer

描述 description	;[1-(3-DIMETHYLAMINO-PROPYL)-3-ETHYL-UREIDO]-[4-(2,2,2-TRIFLUORO-ACETYLAMINO)-BENZYL]PHOSPHINIC ACID-2-(2,2-DIHYDRO-ACETYLAMINO)-3-HYDROXY-1-(4-NITROPHENYL)-PROPYL ESTER ;
分子量 formula_weight	743.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	257

▼

6. 折叠分类 (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d2dquh_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2dqul1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2dqul2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

结构域编号 domain_id	2dquH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2dquH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2dquL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2dquL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (8)

Thermodynamic and structural basis for transition-state stabilization in antibody-catalyzed hydrolysis

J.Mol.Biol. (2007)

PMID: 17428500 · DOI: 10.1016/j.jmb.2007.03.023 PRIMARY

;Site-directed mutagenesis of active site contact residues in a hydrolytic abzyme: evidence for an essential histidine involved in transition state stabilization ;

J.Mol.Biol. (1997)

PMID: 9150409 · DOI: 10.1006/jmbi.1997.0938

;Correlation between Antigen-Combining-Site Structures and Functions within a Panel of Catalytic Antibodies Generated against a Single Transition State Analog ;

J.Am.Chem.Soc. (1995)

DOI: 10.1021/ja00128a006

;Crystallization and Preliminary X-Ray Analysis: Transition State Complex of a Chloramphenicol Prodrug Activation Specific Catalytic Antibody ;

Protein Pept.Lett. (1995)

A common ancestry for multiple catalytic antibodies generated against a single transition-state analog

Proc.Natl.Acad.Sci.Usa (1994)

PMID: 7938025 · DOI: 10.1073/pnas.91.22.10757a

A common ancestry for multiple catalytic antibodies generated against a single transition-state analog

Proc.Natl.Acad.Sci.Usa (1994)

PMID: 8016113 · DOI: 10.1073/pnas.91.13.6045

Prodrug activation via catalytic antibodies

Proc.Natl.Acad.Sci.Usa (1993)

PMID: 8506382 · DOI: 10.1073/pnas.90.11.5337

Thermodynamic and Structural Analyses of Hydrolytic Mechanism by Catalytic Antibodies

To be Published

▶

晶胞边长 a length_a	58.700 Å
晶胞边长 b length_b	63.040 Å
晶胞边长 c length_c	56.560 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	98.75 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.2070
R_work r_work	0.2070
R_free r_free	0.2460

fit	/app/data/saxs_computation/dq/2dqu/2dqu.fit
pddf	/app/data/pr_computation/dq/2dqu/2dqu.pr.out
profile	/app/data/saxs_computation/dq/2dqu/2dqu.dat

Crystal form II: high resolution crystal structure of the complex of the hydrolytic antibody Fab 6D9 and a transition-state analog

SAXS 散射曲线 SAXS Profile

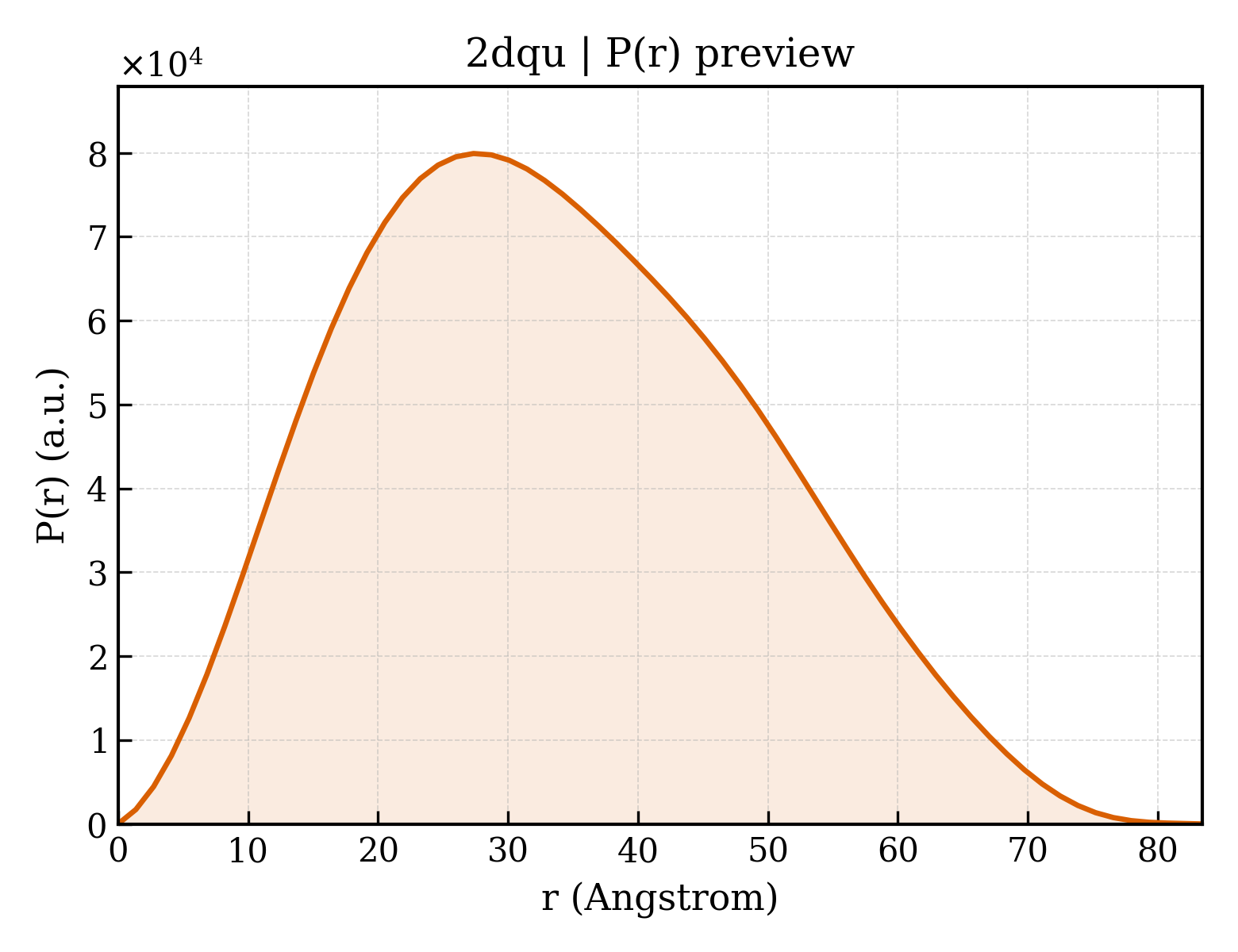

P(r) 距离分布 P(r) Distribution
