SAXSdb — 2ep8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pescadillo homolog 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 322–414	Fragment：BRCT domain	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7；293 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition：0.46mM uniformly 13C,15N-labeled protein; 20mM TrisHCl, 100mM NaCl, 1mM DTT, 0.02% NaN3; 10% D2O, 90% H2O \| 10% D2O, 90% H2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2EP8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8FKP Human nucleolar pre-60S ribosomal subunit (State A1) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 54 ZN ZINC ION × 2 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the Vitrobot.	Resolution 2.85 Å
8FKQ Human nucleolar pre-60S ribosomal subunit (State A2) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 43-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 51 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.76 Å
8FKR Human nucleolar pre-60S ribosomal subunit (State B1) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 51-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 54 ZN ZINC ION × 2 SF4 IRON/SULFUR CLUSTER × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.89 Å
8FKS Human nucleolar pre-60S ribosomal subunit (State B2) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 61 ZN ZINC ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.88 Å
8FKT Human nucleolar pre-60S ribosomal subunit (State C1) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 64 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 SF4 IRON/SULFUR CLUSTER × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.81 Å
8FKU Human nucleolar pre-60S ribosomal subunit (State C2) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 50-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 58 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.82 Å
8FKV Human nucleolar pre-60S ribosomal subunit (State D1) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 56-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 65 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 SF4 IRON/SULFUR CLUSTER × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.47 Å
8FKW Human nucleolar pre-60S ribosomal subunit (State D2) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 59 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.50 Å
8FKX Human nucleolar pre-60S ribosomal subunit (State E) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 53-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 61 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.59 Å
8FKY Human nucleolar pre-60S ribosomal subunit (State F) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 56 PDB declaration: 59-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 70 ZN ZINC ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.67 Å
8FKZ Human nucleolar pre-60S ribosomal subunit (State G) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 48 PDB declaration: 51-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 64 ZN ZINC ION × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 3.04 Å
8FL2 Human nuclear pre-60S ribosomal subunit (State I1) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 61 PDB declaration: 65-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 100 ZN ZINC ION × 5 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 K POTASSIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.67 Å
8FL3 Human nuclear pre-60S ribosomal subunit (State I2) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 60 PDB declaration: 63-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 100 ZN ZINC ION × 5 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 K POTASSIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.53 Å
8FL4 Human nuclear pre-60S ribosomal subunit (State I3) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 59 PDB declaration: 62-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 99 ZN ZINC ION × 5 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 K POTASSIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.89 Å
8FL6 Human nuclear pre-60S ribosomal subunit (State J1) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 56-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 88 ZN ZINC ION × 6 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.62 Å
8FL7 Human nuclear pre-60S ribosomal subunit (State J2) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 88 ZN ZINC ION × 6 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.55 Å
8FLA Human nuclear pre-60S ribosomal subunit (State K1) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 56-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 88 ZN ZINC ION × 6 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.63 Å
8FLB Human nuclear pre-60S ribosomal subunit (State K2) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 54-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 88 ZN ZINC ION × 6 GDP GUANOSINE-5'-DIPHOSPHATE × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the vitrobot.	Resolution 2.55 Å
8FLD Human nuclear pre-60S ribosomal subunit (State L1) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 54-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 87 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the Vitrobot.	Resolution 2.58 Å
8FLE Human nuclear pre-60S ribosomal subunit (State L2) Deposited 2022-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric	Chain SM 1–588（588 aa）	Not recorded	MG MAGNESIUM ION × 87 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE；Four applications with manual blotting before last blotting with the Vitrobot.	Resolution 2.48 Å
8INE human nuclear pre-60S ribosomal particle - State G' Deposited 2023-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 58-meric	Chain v 1–588（588 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8INF human nuclear pre-60S ribosomal particle - State F' Deposited 2023-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 57 PDB declaration: 61-meric	Chain v 1–588（588 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 K POTASSIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8IPX human nuclear pre-60S ribosomal particle - State C' Deposited 2023-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 58-meric	Chain q 1–588（588 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
8IPY human nuclear pre-60S ribosomal particle - State D' Deposited 2023-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 59-meric	Chain q 1–588（588 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8IR3 human nuclear pre-60S ribosomal particle - State B' Deposited 2023-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 59-meric	Chain q 1–588（588 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å

25 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PESC_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–100； UniProt 322–414

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ep8
Deposition date deposition_date	2007-03-29
Structure title title	Solution structure of the BRCT domain from human Pescadillo homolog 1
Keywords keywords	;a/b/a 3 layers, nucleolus, ribosome biogenesis, DNA damage, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, CELL CYCLE ;; CELL CYCLE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.45 Å
Radius of gyration Rg (electron density) rg_electron	13.89 Å
Forward intensity I(0) i0	673888000.00
Molecular weight molecular_weight	224180.0 kDa
Excluded volume excluded_volume	282210 Å³
Envelope volume envelope_volume	30949 Å³
Hydration-shell volume shell_volume	15239 Å³
Envelope diameter envelope_diameter	64.3 Å
Shell Rg shell_rg	23.64 Å
Envelope Rg envelope_rg	19.16 Å
Shape Rg shape_rg	13.82 Å
Total Rg total_rg	14.34 Å
Total atoms total_atoms	31560
Residues n_residues	2000
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	60.5 Å
Rg (real space) rg_real	14.52 Å
Rg uncertainty (real space) rg_real_error	0.68 Å
I(0) (real space) i0_real	6.7390e+08
I(0) uncertainty (real space) i0_real_error	8.5850e+06
Rg (reciprocal space) rg_reciprocal	14.51 Å
I(0) (reciprocal space) i0_reciprocal	673900000.0000
Solution quality estimate total_estimate	0.7159
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.9 Å
Skewness Skewness skewness	0.582
Kurtosis Kurtosis kurtosis	0.555
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	303200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.264; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.516; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2ep8A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

▶

8. Citations (1)

▶

Description description	Pescadillo homolog 1
Molecular weight formula_weight	11237.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	31560

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606

fit	/app/data/saxs_computation/ep/2ep8/2ep8.fit
pddf	/app/data/pr_computation/ep/2ep8/2ep8.pr.out
profile	/app/data/saxs_computation/ep/2ep8/2ep8.dat

Solution structure of the BRCT domain from human Pescadillo homolog 1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pescadillo homolog 1

State in the Current Structure

Other States of the Same Protein in the Database

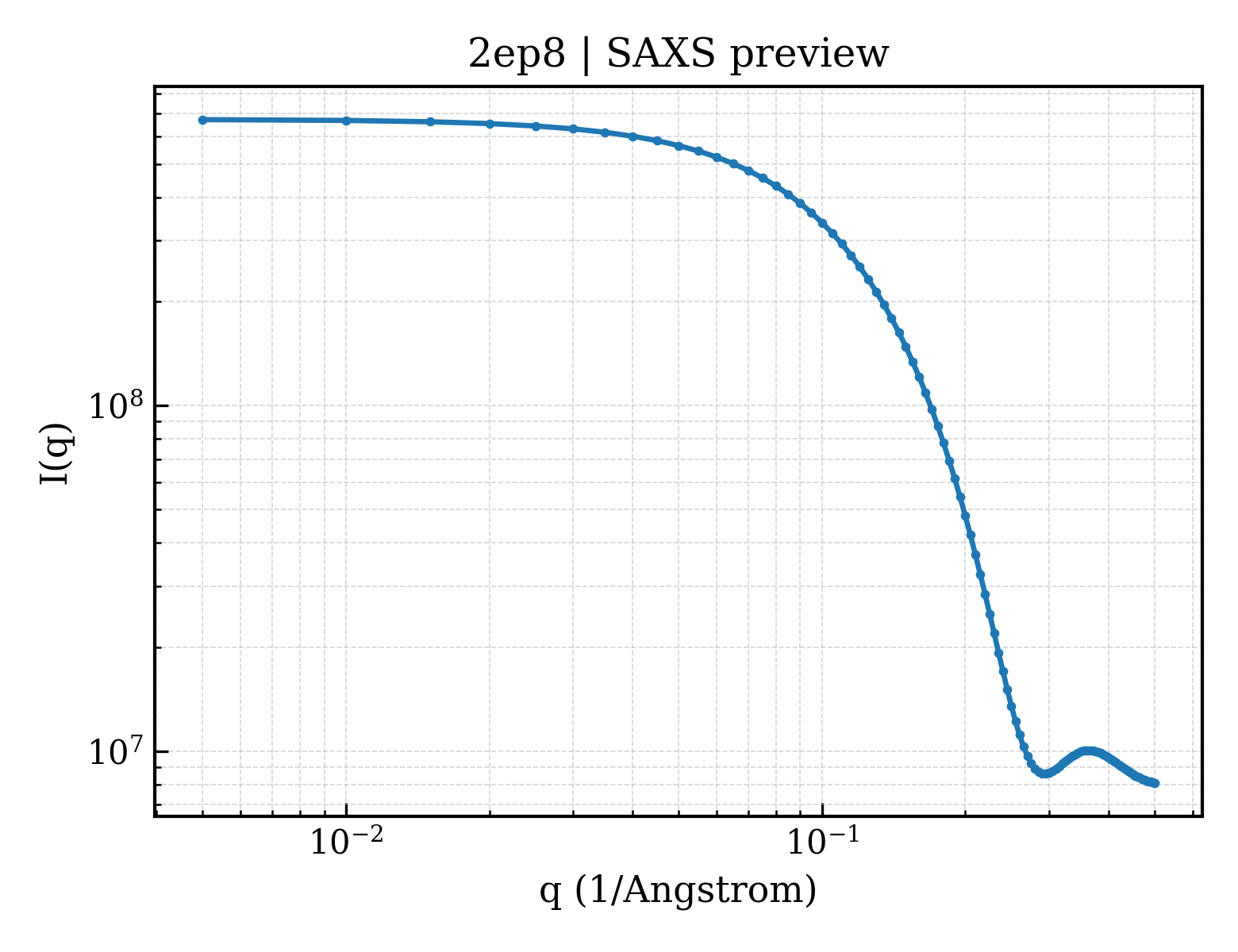

SAXS scattering curve SAXS Profile

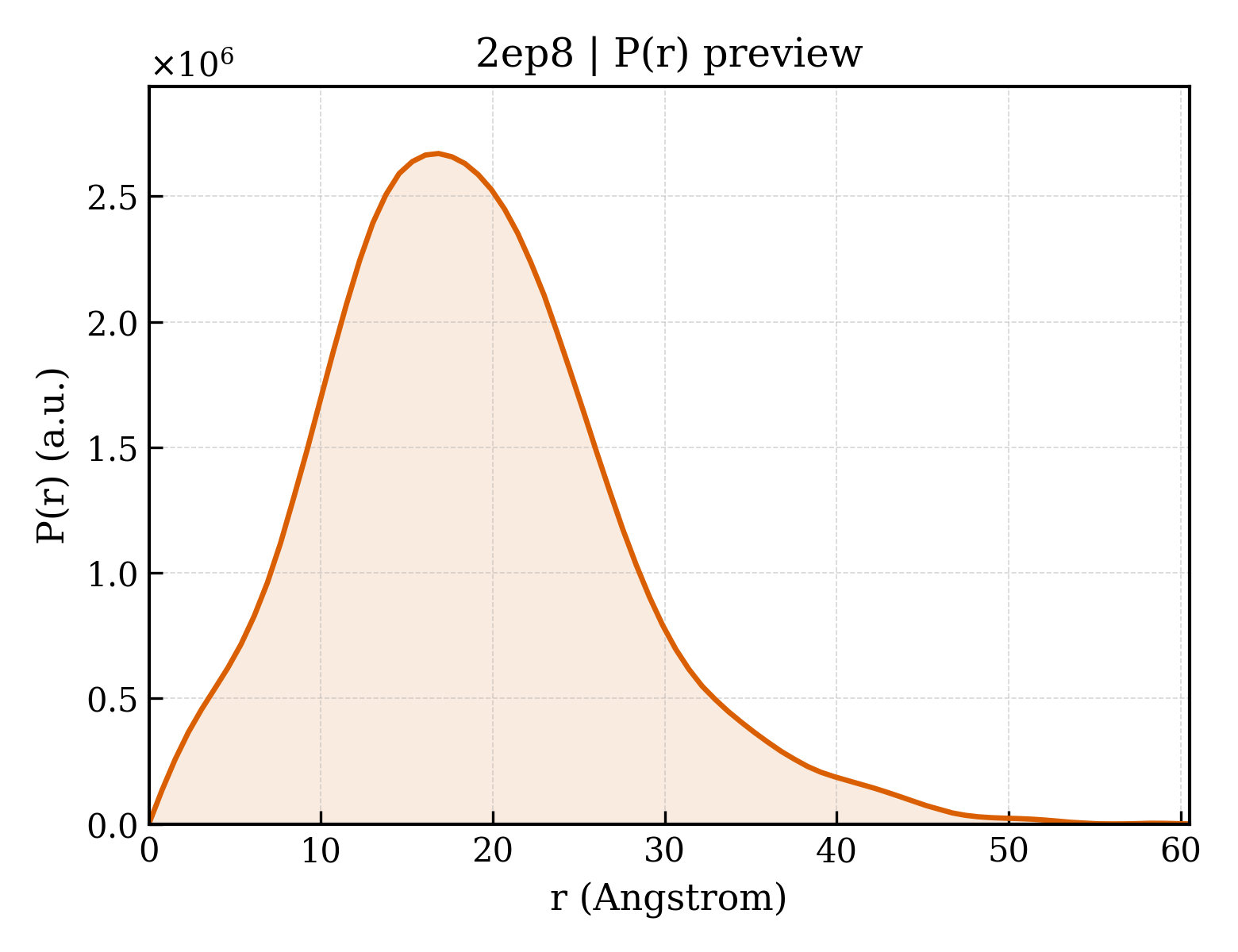

P(r) Distance Distribution P(r) Distribution
