SAXSdb — 2evz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polypyrimidine tract-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 324–531	Fragment：RNA BINDING DOMAINS 3 AND 4	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.5；303 K；Ionic strength (raw mmCIF value) 20mM NaCl, 10mM Na-phosphate；Pressure 1 NMR sample composition：1mM PTB RBD34 15N; 20mM NaCl; 10mM sodium phosphate; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition：1mM PTB RBD34 15N, 13C; 20mM NaCl; 10mM sodium phosphate; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition：1mM PTB RBD34 15N; 20mM NaCl; 10mM sodium phosphate; 100% D2O \| 100% D2O NMR sample composition：1mM PTB RBD34 15N, 13C; 20mM NaCl; 10mM sodium phosphate; 100% D2O \| 100% D2O NMR sample composition：1mM PTB RBD3 15N, 13C, RBD4 unlabeled; 20mM NaCl; 10mM sodium phosphate; 100% D2O \| 100% D2O NMR sample composition：1mM PTB RBD3 unlabeled, RBD4 13C, 15N; 20mM NaCl; 10mM sodium phosphate; 100% D2O \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2EVZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1QM9 NMR, REPRESENTATIVE STRUCTURE Deposited 1999-09-22	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 335–531（197 aa） Fragment：RNA BINDING FRAGMENT	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；302 K	Resolution not provided
1SJQ NMR Structure of RRM1 from Human Polypyrimidine Tract Binding Protein Isoform 1 (PTB1) Deposited 2004-03-04	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 54–147（94 aa） Fragment：RRM1, residues 54-147	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 0.3 M；Pressure ambient NMR sample composition 1 mM PTB1-1 U-15N,13C, 50 mM Na phosphate buffer, 100 mM NaCl, 2 mM NaN3,10% D2O \| 100 mM NaCl, 2 mM NaN3,10% D2O	Resolution not provided
1SJR NMR Structure of RRM2 from Human Polypyrimidine Tract Binding Protein Isoform 1 (PTB1) Deposited 2004-03-04	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 147–301（155 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 0.3 M；Pressure ambient NMR sample composition 0.25 mM PTB1-2, U-15N, 13C, 50 mM Na phosphate buffer, 100 mM NaCl, 10 mM DTT, 2 mM NaN3,10% D2O \| 10% D2O	Resolution not provided
2AD9 Solution structure of Polypyrimidine Tract Binding protein RBD1 complexed with CUCUCU RNA Deposited 2005-07-20	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 49–146（98 aa） Fragment：RBD1	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；313 K；Ionic strength (raw mmCIF value) 30mM；Pressure ambient NMR sample composition 1.5mM PTB RBD1 15N, 13C; 1.5mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 90% H2O/10% D2O NMR sample composition 1.5mM PTB RBD1 15N; 1.5mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 90% H2O/10% D2O NMR sample composition 1.5mM PTB RBD1 15N; 1.5mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 100% D2O	Resolution not provided
2ADB Solution structure of Polypyrimidine Tract Binding protein RBD2 complexed with CUCUCU RNA Deposited 2005-07-20	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 172–298（127 aa） Fragment：RBD2	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；313 K；Ionic strength (raw mmCIF value) 30mM；Pressure ambient NMR sample composition 1.5mM PTB RBD2 15N, 13C; 1.5mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 90% H2O/10% D2O NMR sample composition 1.5mM PTB RBD2 15N; 1.5mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 90% H2O/10% D2O NMR sample composition 1.5mM PTB RBD2 15N; 1.5mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 100% D2O	Resolution not provided
2ADC Solution structure of Polypyrimidine Tract Binding protein RBD34 complexed with CUCUCU RNA Deposited 2005-07-20	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 324–531（208 aa） Fragment：RBD34	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；313 K；Ionic strength (raw mmCIF value) 30mM；Pressure ambient NMR sample composition 1.5mM PTB RBD34 15N, 13C; 3mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 90% H2O/10% D2O NMR sample composition 1.5mM PTB RBD34 15N; 3mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 90% H2O/10% D2O NMR sample composition 1.5mM PTB RBD34 15N; 3mM CUCUCU-RNA; 20mM phosphate buffer; 10mM NaCl \| 100% D2O	Resolution not provided
2N3O Structure of PTB RRM1(41-163) bound to an RNA stemloop containing a structured loop derived from viral internal ribosomal entry site RNA Deposited 2015-06-08	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 41–163（123 aa） Fragment：UNP residues 41-163	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；313 K；Ionic strength (raw mmCIF value) 0.020；Pressure ambient NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.020；Pressure ambient NMR measurement conditions pH 6.5；278 K；Ionic strength (raw mmCIF value) 0.020；Pressure ambient NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 0.020；Pressure ambient NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM [U-99% 13C; U-99% 15N] RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM [U-13C; U-15N]-ribose-Cyt9,Ura11,Ura13,Gua15 RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 100% D2O \| 100% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM [U-13C; U-15N]-Ura7,Ura10,Cyt11,Ura12,Ura13,Ura14,Cyt15,Cyt16,Ura20,Cyt21,Cyt22,Cyt23 RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 100% D2O \| 100% D2O NMR sample composition 1 mM [U-99% 13C; U-99% 15N] RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 100% D2O \| 100% D2O NMR sample composition 1 mM RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-99% 13C; U-99% 15N] PTBRRM1, 1 mM RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM [U-99% 13C; U-99% 15N] RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 100% D2O \| 100% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM [U-13C; U-15N]-ribose-Ura10,Ura12,Ura14 RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 100% D2O \| 100% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 100% D2O \| 100% D2O NMR sample composition 1 mM [U-99% 13C; U-99% 15N] PTBRRM1, 1 mM RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 100% D2O \| 100% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 13 mg/mL Pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM [U-99% 13C; U-99% 15N] RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 13 mg/mL Pf1 phage, 100% D2O \| 100% D2O NMR sample composition 1 mM [U-99% 15N] PTBRRM1, 1 mM [U-99% 13C; U-99% 15N] RNA, 10 mM sodium phosphate, 20 mM sodium chloride, 13 mg/mL Pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3ZZY Crystal structure of a Raver1 PRI3 peptide in complex with polypyrimidine tract binding protein RRM2 Deposited 2011-09-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 156–285（130 aa） Fragment：RNA RECOGNITION MOTIF 2, RESIDUES 172-301	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；SEE PAPER., pH 6.5	Resolution 1.40 Å R-free 0.234
3ZZY Crystal structure of a Raver1 PRI3 peptide in complex with polypyrimidine tract binding protein RRM2 Deposited 2011-09-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–285（130 aa） Fragment：RNA RECOGNITION MOTIF 2, RESIDUES 172-301	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；SEE PAPER., pH 6.5	Resolution 1.40 Å R-free 0.234
3ZZZ Crystal structure of a Raver1 PRI4 peptide in complex with polypyrimidine tract binding protein RRM2 Deposited 2011-09-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 156–285（130 aa） Fragment：RNA RECOGNITION MOTIF 2, RESIDUES 156-285	Not recorded	IOD IODIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；SEE PAPER., pH 6.5	Resolution 1.55 Å R-free 0.224
3ZZZ Crystal structure of a Raver1 PRI4 peptide in complex with polypyrimidine tract binding protein RRM2 Deposited 2011-09-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 156–285（130 aa） Fragment：RNA RECOGNITION MOTIF 2, RESIDUES 156-285	Not recorded	IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；SEE PAPER., pH 6.5	Resolution 1.55 Å R-free 0.224
8BGF NMR solution structure of the N-terminal RRM and flanking linker regions of Polypyrimidine tract binding protein 1 using the CYANA CONSENSUS method. Deposited 2022-10-27	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 41–163（123 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 33.3；Pressure 1 NMR measurement conditions pH 6.5；313 K；Ionic strength (raw mmCIF value) 33.3；Pressure 1 NMR measurement conditions pH 6.5；293 K；Ionic strength (raw mmCIF value) 33.3；Pressure 1 NMR sample composition 0.8 mM [U-15N]-99% Polypyrimidine-tract binding protein N-terminal RNA recognition motif, 10 mM NaH2PO4/NaOH buffer, 20 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-13C,15N]-99% Polypyrimidine-tract binding protein N-terminal RNA recognition motif, 10 mM NaH2PO4/NaOH buffer, 20 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-15N]-99% Polypyrimidine-tract binding protein N-terminal RNA recognition motif, 10 mM NaH2PO4/NaOH buffer, 20 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-15N]-99% Polypyrimidine-tract binding protein N-terminal RNA recognition motif, 10 mM NaH2PO4/NaOH buffer, 20 mM sodium chloride, 0.8 mM [U-13C,15N]-99% UCUUU-SL-RNA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 5 NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 57–140（84 aa）	Not recorded	NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 2 NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 1 NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 13 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 57–140（84 aa）	Not recorded	NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 14 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain N 57–140（84 aa）	Not recorded	NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 15 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 1 NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 16 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 57–140（84 aa）	Not recorded	NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 57–140（84 aa）	Not recorded	NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 1 NH2 AMINO GROUP × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 2 NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 57–140（84 aa）	Not recorded	NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 2 NH2 AMINO GROUP × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 3 NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 57–140（84 aa）	Not recorded	SO4 SULFATE ION × 1 NH2 AMINO GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
8BWF PTBP1 RRM1 bound to an allosteric inhibitor Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 57–140（84 aa）	Not recorded	NH2 AMINO GROUP × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.86；298 K；1.89M Ammoniumsulfate, 0.1 M HEPES, 2 v/v% PEG400	Resolution 2.90 Å R-free 0.340
9LGQ The crystal structure of SARS-CoV-2 NSP5 in complex with PTBP1 Deposited 2025-01-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 316–325（10 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；0.1 M MES pH 5.6, 7% PEG 6000, and 6% dimethyl sulfoxide (DMSO)	Resolution 1.82 Å R-free 0.218

12 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PTBP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–229； UniProt 324–531

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2evz
Deposition date deposition_date	2005-11-01
Structure title title	Structure of RNA Binding Domains 3 and 4 of Polypyrimidine Tract Binding Protein
Keywords keywords	ALPHA-BETA SANDWICH, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.19 Å
Radius of gyration Rg (electron density) rg_electron	17.89 Å
Forward intensity I(0) i0	2880540000.00
Molecular weight molecular_weight	458750.0 kDa
Excluded volume excluded_volume	576080 Å³
Envelope volume envelope_volume	68620 Å³
Hydration-shell volume shell_volume	25160 Å³
Envelope diameter envelope_diameter	87.2 Å
Shell Rg shell_rg	29.83 Å
Envelope Rg envelope_rg	24.20 Å
Shape Rg shape_rg	17.86 Å
Total Rg total_rg	18.20 Å
Total atoms total_atoms	65180
Residues n_residues	4160
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.0 Å
Rg (real space) rg_real	18.09 Å
Rg uncertainty (real space) rg_real_error	0.09 Å
I(0) (real space) i0_real	2.7980e+09
I(0) uncertainty (real space) i0_real_error	2.4460e+07
Rg (reciprocal space) rg_reciprocal	18.18 Å
I(0) (reciprocal space) i0_reciprocal	2881000000.0000
Solution quality estimate total_estimate	0.6891
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	21.6 Å
Skewness Skewness skewness	0.293
Kurtosis Kurtosis kurtosis	-0.311
Angular range angular_range	— – 0.4350 Å⁻¹
Current regularization parameter α current_alpha	9.3200
Highest regularization parameter α highest_alpha	1438000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 0.951; Stabil: 0.931; Sysdev: 0.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.335

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2evza1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2evza2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

CATH v4.4 (2 domains)

Domain ID domain_id	2evzA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2evzA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

8. Citations (1)

▶

Description description	Polypyrimidine tract-binding protein 1
Molecular weight formula_weight	25266.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	65180

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/ev/2evz/2evz.fit
pddf	/app/data/pr_computation/ev/2evz/2evz.pr.out
profile	/app/data/saxs_computation/ev/2evz/2evz.dat

Structure of RNA Binding Domains 3 and 4 of Polypyrimidine Tract Binding Protein

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polypyrimidine tract-binding protein 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

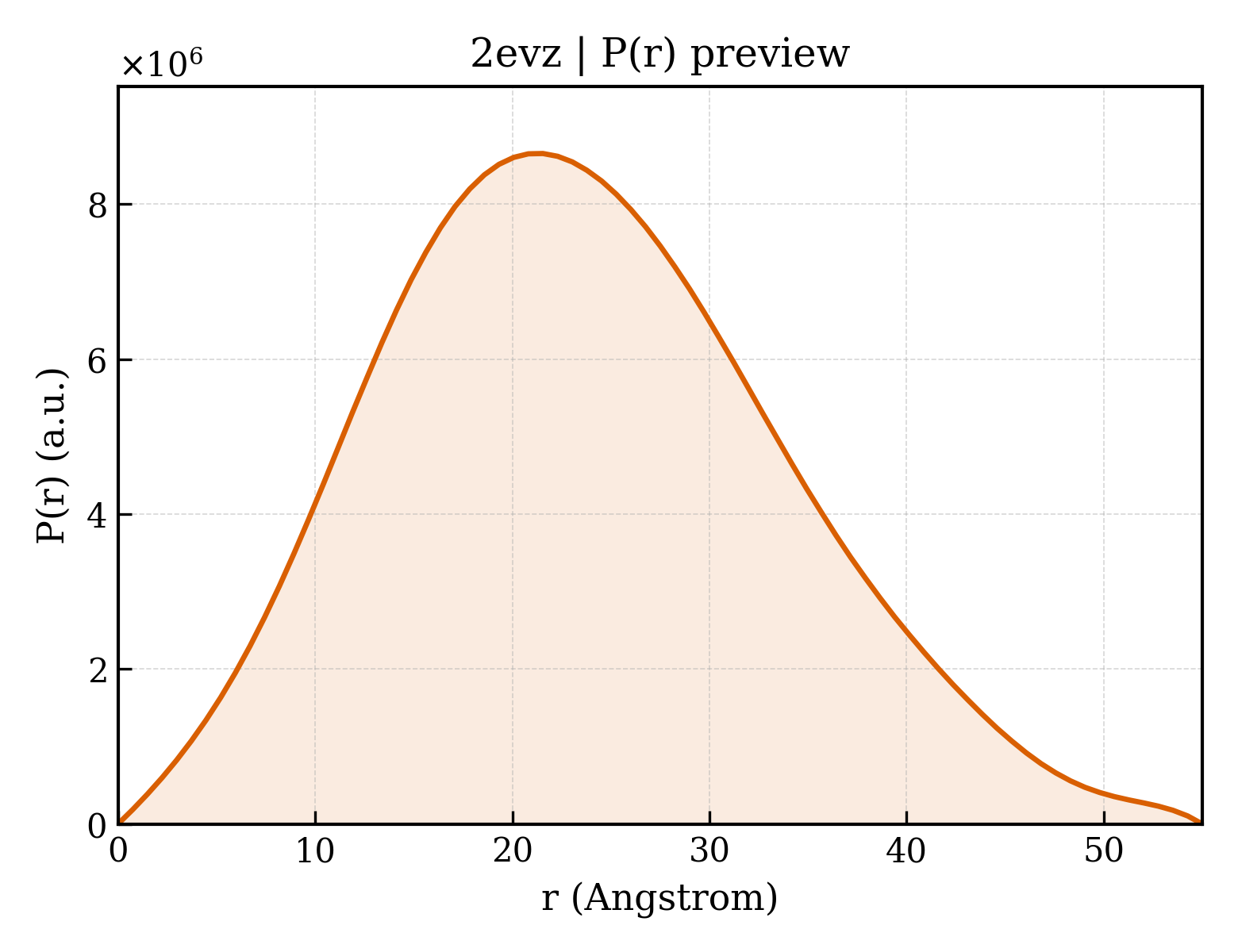

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
