SAXSdb — 2fg0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

No usable UniProt protein identity is available for this entry.

The relationship tables retain this entry's assembly and composition data, but cross-PDB links for the same protein cannot be established reliably without a unified protein identity.

Assembly Composition of the Current Entry

Assembly	Physical composition	Protein state	蛋白 / DNA / RNA / 其他Polymer	Data consistency
1	Protein homooligomer	Homooligomer	2 / 0 / 0 / 0	Consistent with protein count

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fg0
Deposition date deposition_date	2005-12-20
Structure title title	Crystal structure of a putative gamma-d-glutamyl-l-diamino acid endopeptidase (npun_r0659) from nostoc punctiforme pcc 73102 at 1.79 A resolution
Keywords keywords	Nlpc/p60 family, structural genomics, Joint Center for Structural Genomics, JCSG, Protein Structure Initiative, PSI-2, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fg0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2fg0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

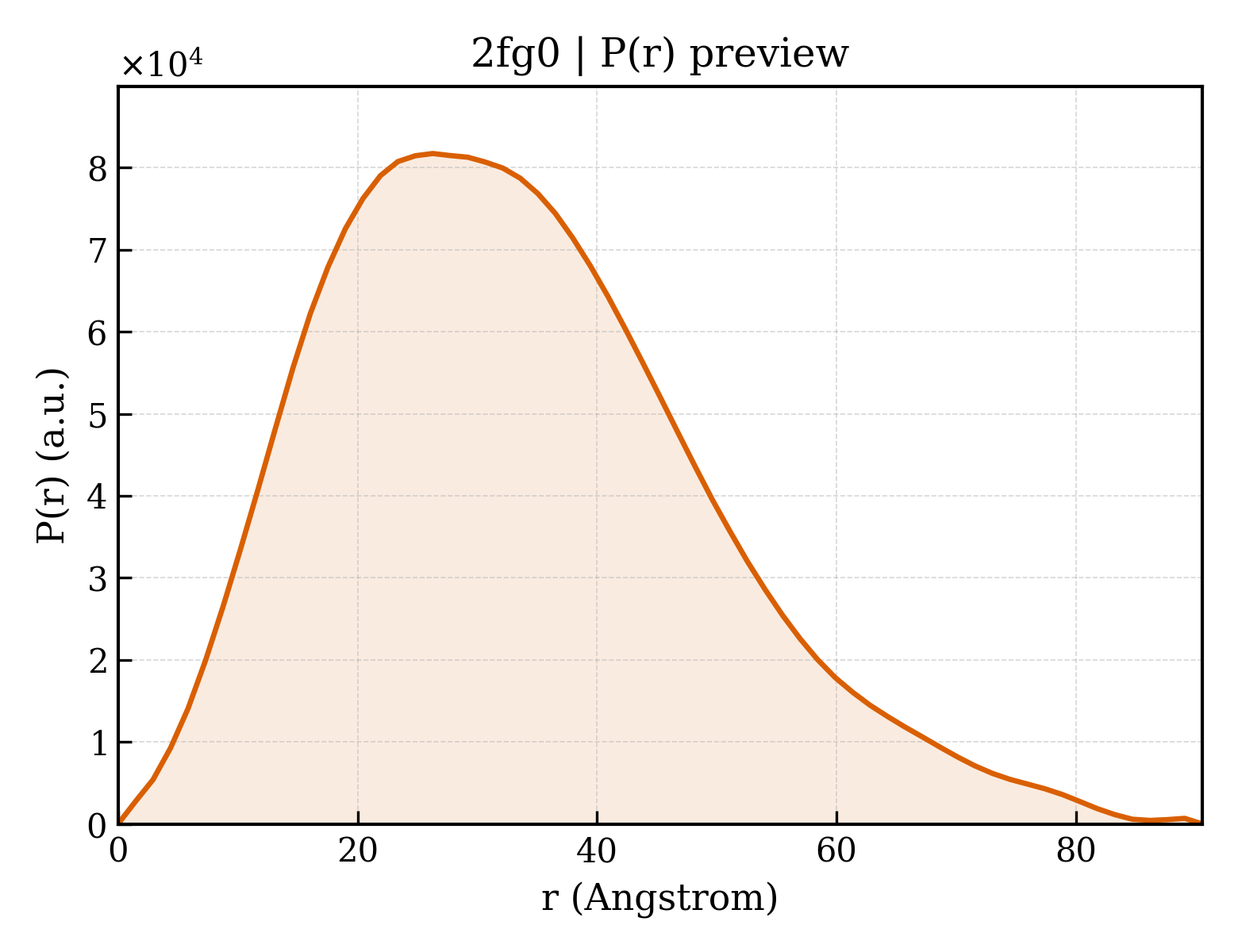

2fg0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.70 Å
Rg (electron density)	25.16 Å
Total Rg	25.69 Å
Atom count	3444
Residues	440
Excluded volume	60782 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fg0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	COG0791: Cell wall-associated hydrolases (invasion-associated proteins)
Molecular weight formula_weight	27591.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3977

MGSDKIHHHHHHMVRLSEAEVQNPKLGEYQCLADLNLFDSPECTRLATQSASGRHLWVTSNHQNLAVEVYLCEDDYPGWLSLSDFDSLQPATVPYQAATFSESEIKKLLAEVIAFTQKAMQQSNYYLWGGTVGPNYDCSGLMQAAFASVGIWLPRDAYQQEGFTQPITIAELVAGDLVFFGTSQKATHVGLYLADGYYIHSSGKDQGRDGIGIDILSEQGDAVSLSYYQQLRGAGRVFKSYEPQRR

Source Source

Source organism organism	Nostoc punctiforme
NCBI taxonomy ID ncbi_taxonomy_id	63737
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	428

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2fg0a1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.11 — Prokaryotic SH3-related domain
Family Family family	b.34.11.3 — Spr N-terminal domain-like

Domain ID domain_id	d2fg0a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.16 — NlpC/P60

Domain ID domain_id	d2fg0b1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.11 — Prokaryotic SH3-related domain
Family Family family	b.34.11.3 — Spr N-terminal domain-like

Domain ID domain_id	d2fg0b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.16 — NlpC/P60

CATH v4.4 (4 domains)

Domain ID domain_id	2fg0A01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	2fg0A02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1720 — endopeptidase fold (from Nostoc punctiforme)
Homologous superfamily homologous superfamily	10 — endopeptidase domain like (from Nostoc punctiforme)

Domain ID domain_id	2fg0B01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	2fg0B02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1720 — endopeptidase fold (from Nostoc punctiforme)
Homologous superfamily homologous superfamily	10 — endopeptidase domain like (from Nostoc punctiforme)

▶

Unit-cell length a length_a	125.080 Å
Unit-cell length b length_b	125.080 Å
Unit-cell length c length_c	97.670 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.790 Å
Low-resolution limit resolution_low	29.480 Å
R factor r_factor	—
R_work r_work	0.1540
R_free r_free	0.1720

Crystal structure of a putative gamma-d-glutamyl-l-diamino acid endopeptidase (npun_r0659) from nostoc punctiforme pcc 73102 at 1.79 A resolution
