SAXSdb — 2fta

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2fta
沉积日期 deposition_date	2006-01-24
结构标题 title	;Structure of Cu(II)azurin with the metal-binding loop sequence "CTFPGHSALM" replaced with "CTPHPFM" ;
关键词 keywords	Blue copper-binding protein, greek-key beta-barrel, ELECTRON TRANSPORT; ELECTRON TRANSPORT
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.49 Å
回转半径 Rg (电子) rg_electron	38.40 Å
零角强度 I(0) i0	51374900.00
分子量 molecular_weight	55161.0 kDa
排除体积 excluded_volume	68351 Å³
包络体积 envelope_volume	103510 Å³
水化壳体积 shell_volume	27250 Å³
包络直径 envelope_diameter	127.5 Å
壳层 Rg shell_rg	35.93 Å
包络 Rg envelope_rg	37.78 Å
形状 Rg shape_rg	38.39 Å
总 Rg total_rg	38.25 Å
总原子数 total_atoms	3838
残基数 n_residues	491
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	121.8 Å
Rg (实空间) rg_real	38.23 Å
Rg 误差 (实空间) rg_real_error	1.41 Å
I(0) (实空间) i0_real	5.1370e+07
I(0) 误差 (实空间) i0_real_error	9.2770e+05
Rg (倒空间) rg_reciprocal	37.78 Å
I(0) (倒空间) i0_reciprocal	51350000.0000
解质量估计 total_estimate	0.6952
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	4
主峰位置 r_peak_primary	20.3 Å
偏度 Skewness skewness	0.607
峰度 Kurtosis kurtosis	-0.288
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1817000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.516; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.485; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Azurin
分子量 formula_weight	13730.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	4285

AECSVDIQGNDQMQFNTNAITVDKSCKQFTVNLSHPGNLPKNVMGHNWVLSTAADMQGVVTDGMASGLDKDYLKPDDSRVIAHTKLIGSGEKDSVTFDVSKLKEGEQYMFFCTPHPFMKGTLTLK

来源 Source

来源生物 organism	Pseudomonas aeruginosa
NCBI 分类编号 ncbi_taxonomy_id	287
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	COPPER (II) ION
分子量 formula_weight	63.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	NONAETHYLENE GLYCOL
分子量 formula_weight	414.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	ETHANOL
分子量 formula_weight	46.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	447

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2ftaa_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.1 — Plastocyanin/azurin-like

结构域编号 domain_id	d2ftab_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.1 — Plastocyanin/azurin-like

结构域编号 domain_id	d2ftac_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.1 — Plastocyanin/azurin-like

结构域编号 domain_id	d2ftad_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.1 — Plastocyanin/azurin-like

CATH v4.4 (4 domains)

结构域编号 domain_id	2ftaA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2ftaB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2ftaC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	2ftaD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	36.840 Å
晶胞边长 b length_b	97.630 Å
晶胞边长 c length_c	61.120 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.31 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.610 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	—
R_work r_work	0.2330
R_free r_free	0.2690

fit	/app/data/saxs_computation/ft/2fta/2fta.fit
pddf	/app/data/pr_computation/ft/2fta/2fta.pr.out
profile	/app/data/saxs_computation/ft/2fta/2fta.dat

;Structure of Cu(II)azurin with the metal-binding loop sequence "CTFPGHSALM" replaced with "CTPHPFM" ;

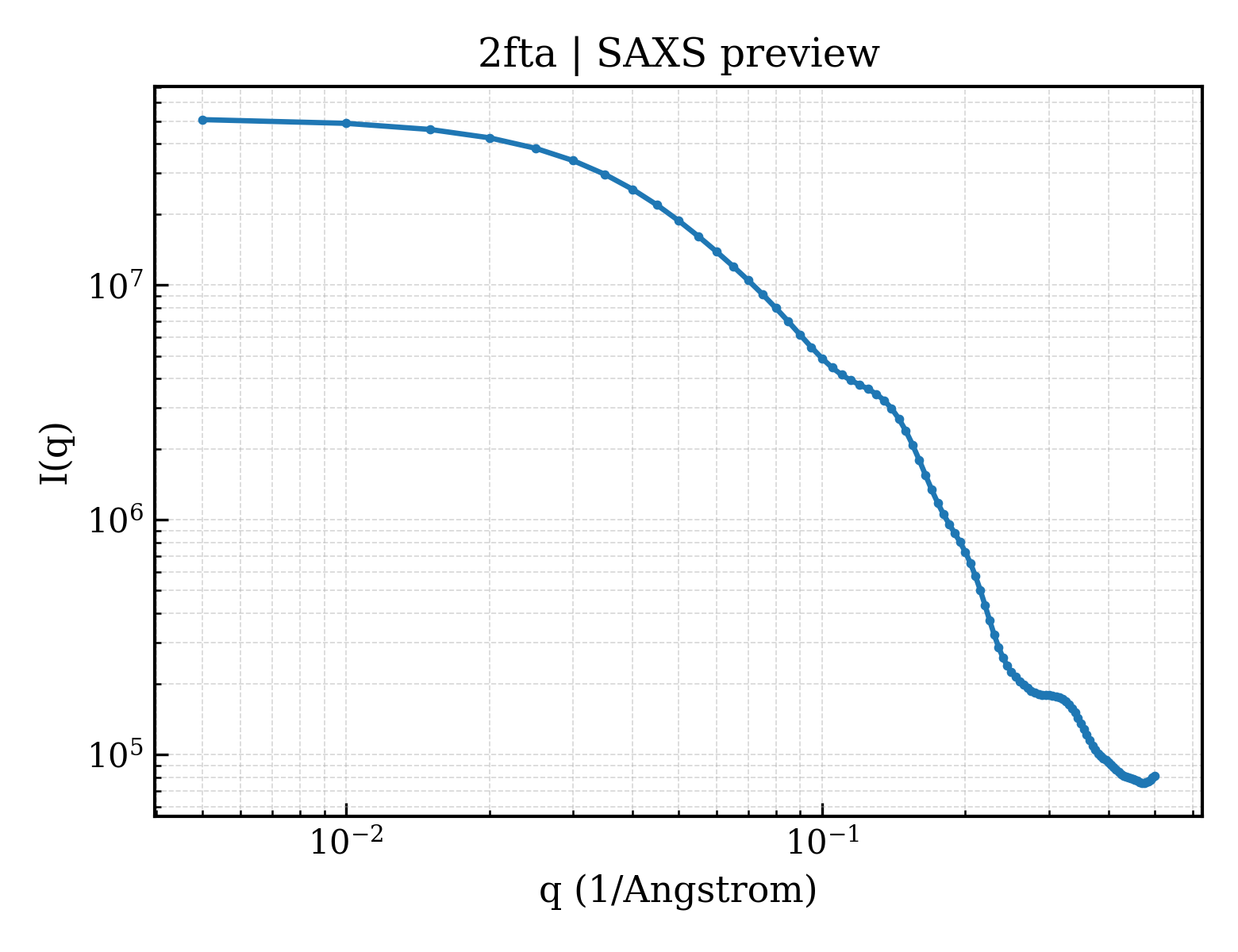

SAXS 散射曲线 SAXS Profile

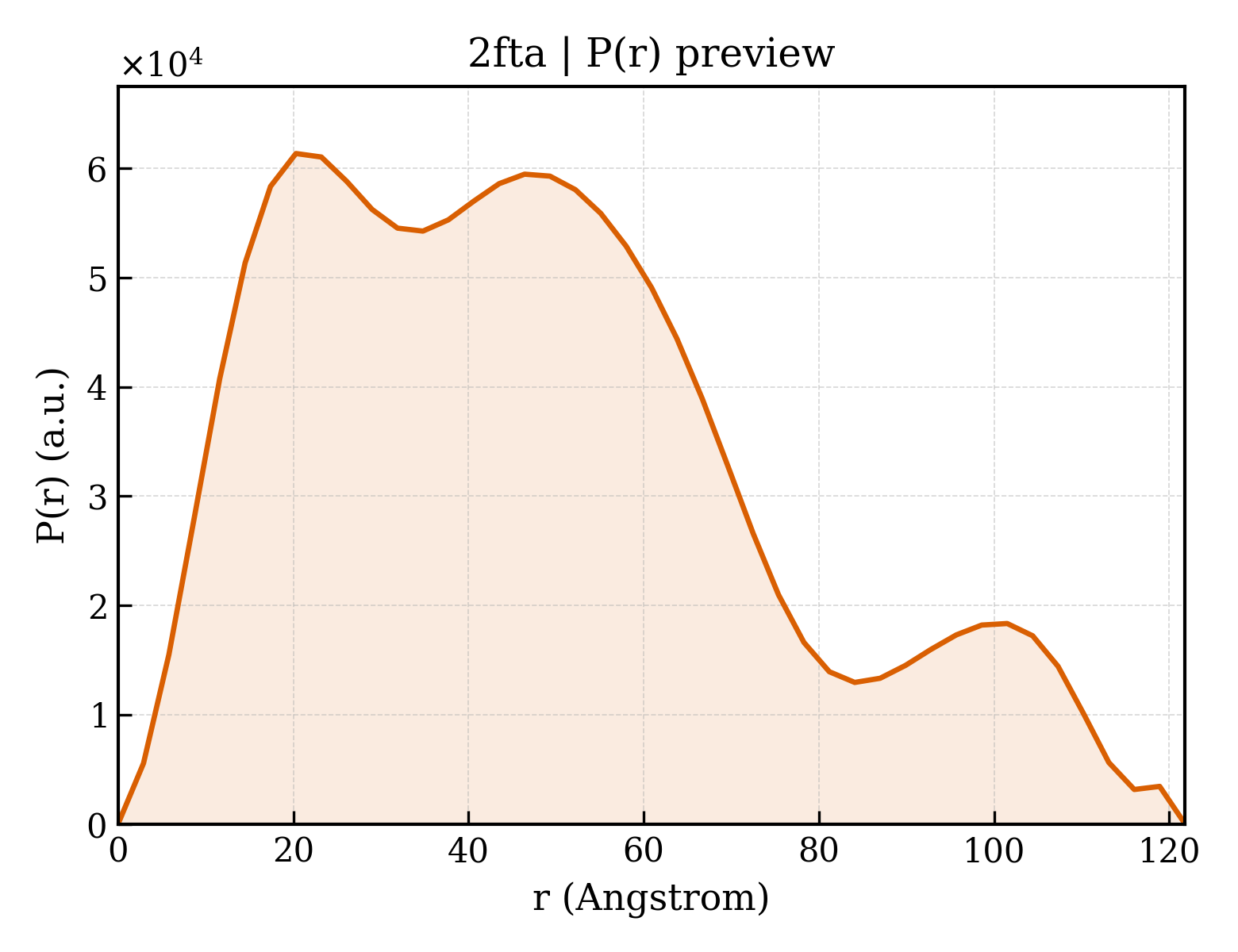

P(r) 距离分布 P(r) Distribution
