2ghp

Crystal structure of the N-terminal 3 RNA binding domains of the yeast splicing factor Prp24

Method: X-RAY DIFFRACTION D_max: 157.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

U4/U6 snRNA-associated splicing factor PRP24

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–291 Chain B； UniProt 1–291 Chain C； UniProt 1–291 Chain D； UniProt 1–291	Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；277 K；PROTEIN SOLUTION (10 MG/ML PROTEIN, 0.050 M SODIUM CHLORIDE, 0.0003 M TCEP, 0.005 TRIS PH 8.0) MIXED IN A 1:1 RATIO WITH THE WELL SOLUTION (14% MEPEG 5000, 0.20 M TETRAMETHYL AMMONIUM CHLORIDE, 0.10 M SODIUM SUCCINATE PH 4.0) Crystals cryo-protected with the well solution supplemented with 30% ethylene glycol., VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.264
2	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 1–291 Chain F； UniProt 1–291 Chain G； UniProt 1–291 Chain H； UniProt 1–291	Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；277 K；PROTEIN SOLUTION (10 MG/ML PROTEIN, 0.050 M SODIUM CHLORIDE, 0.0003 M TCEP, 0.005 TRIS PH 8.0) MIXED IN A 1:1 RATIO WITH THE WELL SOLUTION (14% MEPEG 5000, 0.20 M TETRAMETHYL AMMONIUM CHLORIDE, 0.10 M SODIUM SUCCINATE PH 4.0) Crystals cryo-protected with the well solution supplemented with 30% ethylene glycol., VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.264

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2GHP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2GO9 RRM domains 1 and 2 of Prp24 from S. cerevisiae Deposited 2006-04-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 38–197（160 aa） Fragment：(RRM domains 1 and 2)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.1 M KCl；Pressure AMBIENT NMR sample composition 0.3-0.8 mM protein, 50 mM K(PO)4 (pH 6.5), 100 mM KCl, 2 mM DTT \| 90% H2O/10% D2O	Resolution not provided
2KH9 Solution structure of yeast Prp24-RRM2 bound to a fragment of U6 RNA Deposited 2009-03-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 115–197（83 aa） Fragment：UNP residues 115-197	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298.15 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 300 uM Prp24-RRM2-1, 3 mM AGAGAU-2, 10 mM [U-2H] TRIS-3, 50 mM potassium chloride-4, 100% D2O \| 100% D2O NMR sample composition 500 uM [U-99% 15N] Prp24-RRM2-5, 5 mM AGAGAU-6, 10 mM [U-2H] TRIS-7, 50 mM potassium chloride-8, 100% D2O \| 100% D2O NMR sample composition 500 mM [U-99% 13C; U-99% 15N] Prp24-RRM2-9, 5 mM AGAGAU-10, 10 mM TRIS-11, 50 mM potassium chloride-12, 1 mM DTT-13, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 500 uM [U-99% 13C; U-99% 15N] Prp24-RRM2-14, 5 mM AGAGAU-15, 10 mM TRIS-16, 50 mM potassium chloride-17, 1 mM DTT-18, 10 uM DSS-19, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 300 uM [U-99% 13C; U-99% 15N] Prp24-RRM2-20, 3 mM AGAGAU-21, 10 mM TRIS-22, 50 mM potassium chloride-23, 1 mM DTT-24, 6.5 % DMPC/DHPC 3:1-25, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2L9W Solution Structure of the C-terminal domain of Prp24 Deposited 2011-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 292–400（109 aa） Fragment：C-terminal residues 292-400	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Pressure ambient NMR measurement conditions pH 6；304 K；Pressure ambient NMR sample composition 600 uM [U-99% 13C; U-99% 15N] L4W, 18 mM potassium phosphate pH 6, 45 mM potassium chloride, 0.9 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 600 uM [U-99% 13C; U-99% 15N] L4W, 18 mM [U-99% 2H] potassium phosphate pH 6, 45 mM [U-99% 2H] potassium chloride, 100% D2O \| 100% D2O NMR sample composition 600 uM [U-99% 13C; U-99% 15N] L4W, 18 mM potassium phosphate pH 6, 45 mM potassium chloride, 1 uM DSS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 600 uM L4W, 18 mM [U-99% 2H] potassium phosphate pH 6, 45 mM [U-99% 2H] potassium chloride, 100% D2O \| 100% D2O NMR sample composition 600 uM [U-99% 13C; U-99% 15N] L4W, 18 mM potassium phosphate pH 6, 45 mM potassium chloride, 0.9 mM DTT, 6.5 % DMPC/DHPC q=3, 0.67 mg/mL CTAB, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
4N0T Core structure of the U6 small nuclear ribonucleoprotein at 1.7 Angstrom resolution Deposited 2013-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 34–400（367 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；274 K；100 mM lithium sulfate, 100 mM sodium citrate, pH 5.5, 20 % PEG 1,000, VAPOR DIFFUSION, SITTING DROP, temperature 274K	Resolution 1.70 Å R-free 0.211
5TF6 Structure and conformational plasticity of the U6 small nuclear ribonucleoprotein core Deposited 2016-09-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 34–400（367 aa） Fragment：UNP residues 34-400	Not recorded	K POTASSIUM ION × 2 CL CHLORIDE ION × 2 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；1 M lithium chloride, 100 mM sodium MES, 64 mM hydrochloric acid, 25% PEG 8,000, 20% glycerol, 1 mM MnCl2, 400 mM potassium chloride, 10 mM HEPES acid, 10 mM Tris base, 2 mM MgCl2, 1 mM TCEP-HCl	Resolution 2.30 Å R-free 0.232
5TF6 Structure and conformational plasticity of the U6 small nuclear ribonucleoprotein core Deposited 2016-09-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain C 34–400（367 aa） Fragment：UNP residues 34-400	Not recorded	K POTASSIUM ION × 3 CL CHLORIDE ION × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；1 M lithium chloride, 100 mM sodium MES, 64 mM hydrochloric acid, 25% PEG 8,000, 20% glycerol, 1 mM MnCl2, 400 mM potassium chloride, 10 mM HEPES acid, 10 mM Tris base, 2 mM MgCl2, 1 mM TCEP-HCl	Resolution 2.30 Å R-free 0.232
5VSU Structure of yeast U6 snRNP with 2'-phosphate terminated U6 RNA Deposited 2017-05-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain A 1–444（444 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；289 K；0.2 M NH4F 0.1 M HEPES pH 7.4 0.01 M MgCl2 18 % PEG 3,350	Resolution 3.10 Å R-free 0.298
6ASO Structure of yeast U6 snRNP with 3'-phosphate terminated U6 RNA Deposited 2017-08-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 8 PDB declaration: nonameric	Chain A 28–444（417 aa）	Not recorded	K POTASSIUM ION × 2 MN MANGANESE (II) ION × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；280 mM sodium potassium tartrate 22.5 % glycerol 17.5 % PEG 3,350 1 mM manganese chloride	Resolution 2.71 Å R-free 0.247

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PRP24_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–292； UniProt 1–291 Author chain B； PDBConstruct 2–292； UniProt 1–291 Author chain C； PDBConstruct 2–292； UniProt 1–291 Author chain D； PDBConstruct 2–292； UniProt 1–291 Author chain E； PDBConstruct 2–292； UniProt 1–291 Author chain F； PDBConstruct 2–292； UniProt 1–291 Author chain G； PDBConstruct 2–292； UniProt 1–291 Author chain H； PDBConstruct 2–292； UniProt 1–291

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ghp
Deposition date deposition_date	2006-03-27
Structure title title	Crystal structure of the N-terminal 3 RNA binding domains of the yeast splicing factor Prp24
Keywords keywords	;RNA chaperone, RNA binding domain, RNA recognition motif, splicing factor, snRNP, spliceosome, Structural Genomics, Protein Structure Initiative, PSI, Center for Eukaryotic Structural Genomics, CESG, RNA BINDING PROTEIN ;; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	46.82 Å
Radius of gyration Rg (electron density) rg_electron	47.02 Å
Forward intensity I(0) i0	671163000.00
Molecular weight molecular_weight	215270.0 kDa
Excluded volume excluded_volume	269770 Å³
Envelope volume envelope_volume	383410 Å³
Hydration-shell volume shell_volume	67834 Å³
Envelope diameter envelope_diameter	162.6 Å
Shell Rg shell_rg	51.03 Å
Envelope Rg envelope_rg	46.15 Å
Shape Rg shape_rg	47.06 Å
Total Rg total_rg	47.02 Å
Total atoms total_atoms	15026
Residues n_residues	1838
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

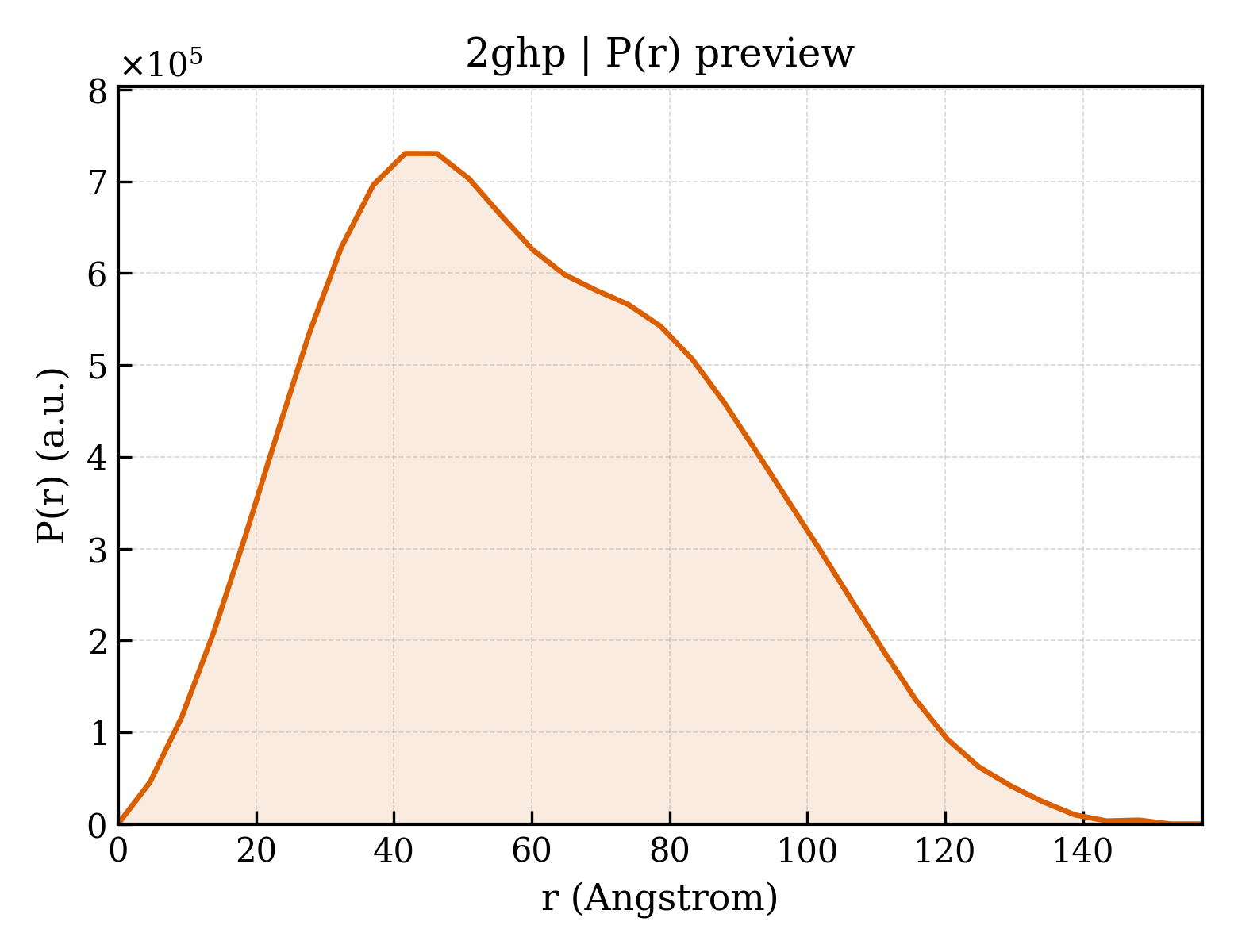

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	157.3 Å
Rg (real space) rg_real	46.91 Å
Rg uncertainty (real space) rg_real_error	2.05 Å
I(0) (real space) i0_real	6.7120e+08
I(0) uncertainty (real space) i0_real_error	1.3200e+07
Rg (reciprocal space) rg_reciprocal	46.82 Å
I(0) (reciprocal space) i0_reciprocal	671100000.0000
Solution quality estimate total_estimate	0.8743
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.6 Å
Skewness Skewness skewness	0.317
Kurtosis Kurtosis kurtosis	-0.591
Angular range angular_range	— – 0.1700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	119700000.0000
Real-space data points n_real_points	35
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.843; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.839

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

Domain ID domain_id	d2ghpa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpa3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpb3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpc3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpd1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpd3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpe1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpe2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpe3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpf1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpf3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpg1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghpg3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghph1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghph2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d2ghph3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

CATH v4.4 (24 domains)

Domain ID domain_id	2ghpA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpD03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpE02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpE03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpF03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpG02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpG03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpH02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	2ghpH03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	114.608 Å
Unit-cell length b length_b	125.848 Å
Unit-cell length c length_c	196.542 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	49.503 Å
R factor r_factor	—
R_work r_work	0.2130
R_free r_free	0.2642

Description description	U4/U6 snRNA-associated splicing factor PRP24
Molecular weight formula_weight	33401.4 kDa
Source method src_method	man
Copy count entity_count	8

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	15219

Crystal structure of the N-terminal 3 RNA binding domains of the yeast splicing factor Prp24

1. Protein Identity and Related Structures Protein Identity & Related Structures

U4/U6 snRNA-associated splicing factor PRP24

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	193

fit	/app/data/saxs_computation/gh/2ghp/2ghp.fit
pddf	/app/data/pr_computation/gh/2ghp/2ghp.pr.out
profile	/app/data/saxs_computation/gh/2ghp/2ghp.dat
