2hpd

CRYSTAL STRUCTURE OF HEMOPROTEIN DOMAIN OF P450BM-3, A PROTOTYPE FOR MICROSOMAL P450'S

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME P450 BM-3

Bacillus megaterium

UniProt P14779

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 PROTOPORPHYRIN IX CONTAINING FE × 1 water × 1 Consistent with protein count
2 Protein monomer Monomer Protein 1 PROTOPORPHYRIN IX CONTAINING FE × 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1bu7 1bu7 1fag 1fag 1fag 1fag 1fah 1fah 1jpz 1jpz 1smi 1smi

266 assemblies; showing the first 12

Homodimer
1jme 1p0v 1p0w 1p0x 4dql 5b2u 5b2v 5b2w 5b2x 5b2y 5dyp 5dyz

36 assemblies; showing the first 12

Homotetramer
3hf2 5zis

2 assemblies

Other homooligomers
1bvy 4wg2 5jqu 5jqv

4 assemblies

Heteromeric or nucleic-acid complex
7y0s 7y0t 7y0u 9uxz

4 assemblies

View Construct and Data Evidence
UniProt name CPXB_BACME
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–471； UniProt 1–471 Author chain B； PDBConstruct 1–471； UniProt 1–471

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2hpd
Deposition date deposition_date1993-09-16
Structure title titleCRYSTAL STRUCTURE OF HEMOPROTEIN DOMAIN OF P450BM-3, A PROTOTYPE FOR MICROSOMAL P450'S
Keywords keywordsOXIDOREDUCTASE(OXYGENASE); OXIDOREDUCTASE(OXYGENASE)
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

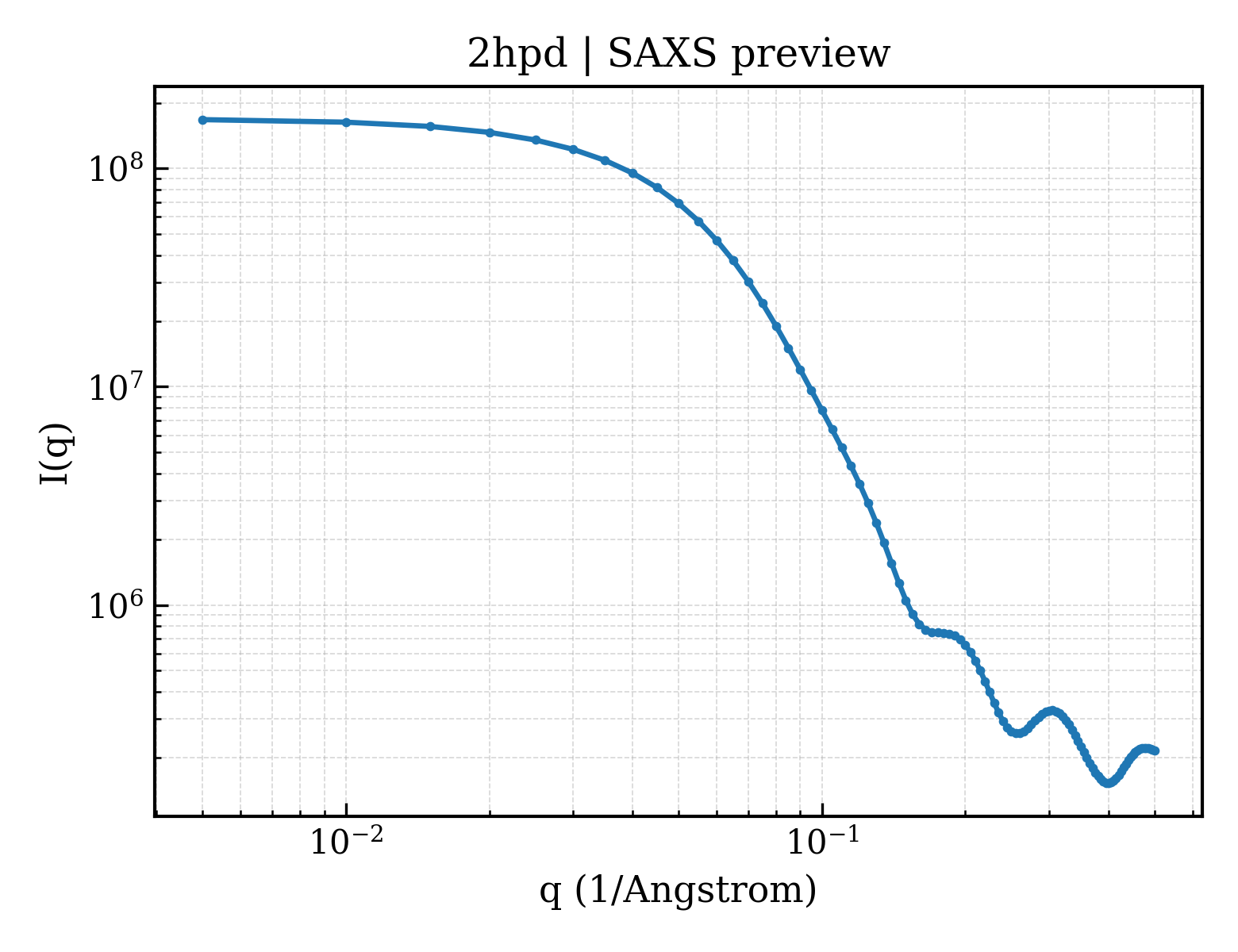

2hpd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2hpd__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2hpd__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）23.62 Å
Rg (electron density)22.28 Å
Total Rg23.19 Å
Atom count3721
Residues457
Excluded volume66433 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2hpd__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 2hpd__assembly_2__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd2hpda_
Class classa — All alpha proteins
Fold Fold folda.104 — Cytochrome P450
Superfamily Superfamily superfamilya.104.1 — Cytochrome P450
Family Family familya.104.1.1 — Cytochrome P450
Domain ID domain_idd2hpdb_
Class classa — All alpha proteins
Fold Fold folda.104 — Cytochrome P450
Superfamily Superfamily superfamilya.104.1 — Cytochrome P450
Family Family familya.104.1.1 — Cytochrome P450

CATH v4.4 (2 domains)

Domain ID domain_id2hpdA00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology630 — Cytochrome p450
Homologous superfamily homologous superfamily10 — Cytochrome P450
Domain ID domain_id2hpdB00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology630 — Cytochrome p450
Homologous superfamily homologous superfamily10 — Cytochrome P450
▶

7. Citations (3)
