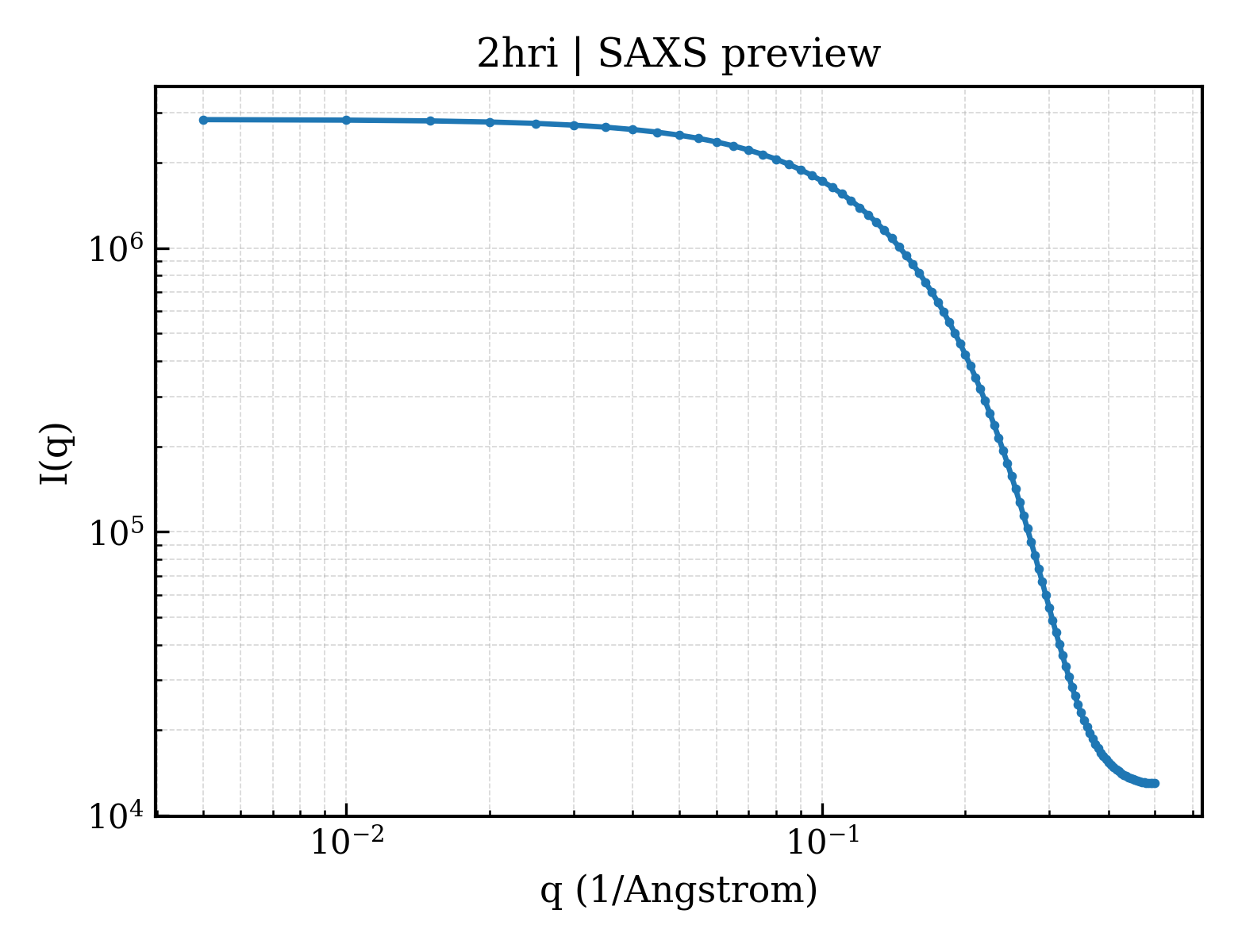

SAXS 散射曲线 SAXS Profile

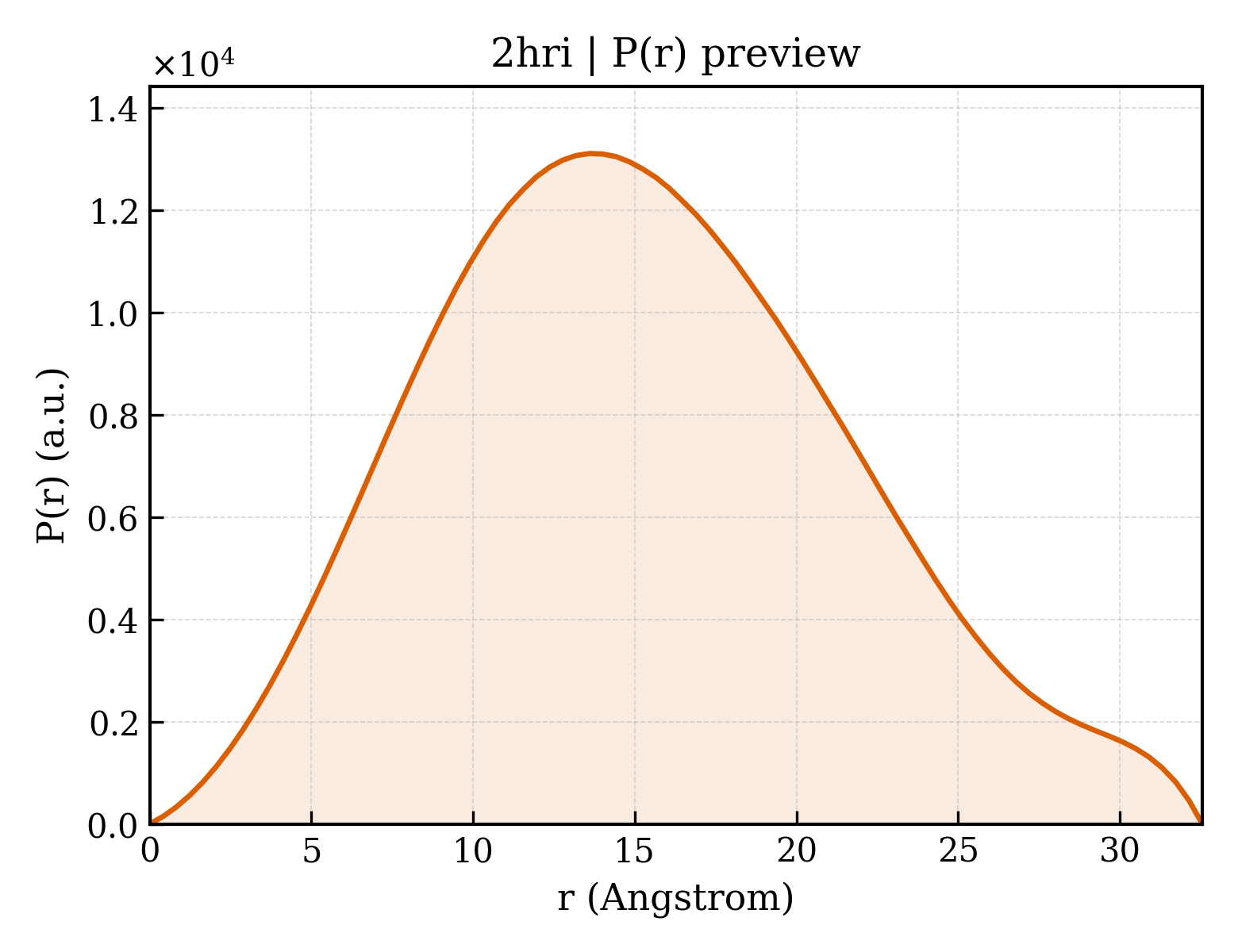

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 2hri |
| 沉积日期 deposition_date | 2006-07-20 |
| 结构标题 title | A parallel stranded human telomeric quadruplex in complex with the porphyrin TMPyP4 |
| 关键词 keywords | QUADRUPLEX, DNA, PROPELLER, DIMERIC, HUMAN TELOMERE PARALLEL STRANDED, LIGAND, COMPLEX; DNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 12.29 Å |
| 回转半径 Rg (电子) rg_electron | 12.18 Å |
| 零角强度 I(0) i0 | 2839330.00 |
| 分子量 molecular_weight | 8398.0 kDa |
| 排除体积 excluded_volume | 8794 ų |
| 包络体积 envelope_volume | 10673 ų |
| 水化壳体积 shell_volume | 8017 ų |
| 包络直径 envelope_diameter | 53.5 Å |
| 壳层 Rg shell_rg | 16.90 Å |
| 包络 Rg envelope_rg | 13.07 Å |
| 形状 Rg shape_rg | 12.18 Å |
| 总 Rg total_rg | 13.02 Å |
| 总原子数 total_atoms | 569 |
| 残基数 n_residues | 22 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 32.5 Å |
| Rg (实空间) rg_real | 11.62 Å |
| Rg 误差 (实空间) rg_real_error | 0.04 Å |
| I(0) (实空间) i0_real | 2.7120e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.9310e+04 |
| Rg (倒空间) rg_reciprocal | 12.36 Å |
| I(0) (倒空间) i0_reciprocal | 2839000.0000 |
| 解质量估计 total_estimate | 0.6851 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 13.6 Å |
| 偏度 Skewness skewness | 0.266 |
| 峰度 Kurtosis kurtosis | -0.410 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 3.8360 |
| 最高正则化参数 α highest_alpha | 617500.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.001;
Oscil: 0.991;
Stabil: 0.980;
Sysdev: 0.000;
Positv: 1.000;
Valcen: 0.996;
Smooth: 0.000
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 37.290 Å |
| 晶胞边长 b length_b | 61.990 Å |
| 晶胞边长 c length_c | 61.400 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 16 |
对称性 Symmetry
| 空间群 space_group | C 2 2 21 |
| 空间群编号 int_tables_number | 20 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 2.090 Å |
| 最低分辨率 resolution_low | 28.350 Å |
| R 因子 r_factor | 0.2006 |
| R_work r_work | 0.1983 |
| R_free r_free | 0.2483 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | 5'-D(*TP*AP*GP*GP*GP*TP*TP*AP*GP*GP*G)-3' |
| 分子量 formula_weight | 3469.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A,B |
| 原子数 atom_count | 615 |
TAGGGTTAGGG
Entity 2
non-polymer
| 描述 description | POTASSIUM ION |
| 分子量 formula_weight | 39.1 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 3 |
Entity 3
non-polymer
| 描述 description | (1Z,4Z,9Z,15Z)-5,10,15,20-tetrakis(1-methylpyridin-1-ium-4-yl)-21,23-dihydroporphyrin |
| 分子量 formula_weight | 678.8 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
Entity 4
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 46 |
Structural basis for binding of porphyrin to human telomeres.
Biochemistry (2007)
Files (7)
- pr_distribution /app/data/pr_computation/hr/2hri/pr_distribution.json
- pr_output /app/data/pr_computation/hr/2hri/2hri.pr.out
- pr_plot /app/data/visualization/pr_computation/hr/2hri/2hri_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/hr/2hri/2hri.dat
- saxs_fit /app/data/saxs_computation/hr/2hri/2hri.fit
- saxs_log /app/data/saxs_computation/hr/2hri/2hri.log
- saxs_plot /app/data/visualization/saxs_computation/hr/2hri/2hri_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/hr/2hri/2hri.fit |
| pddf |
/app/data/pr_computation/hr/2hri/2hri.pr.out |
| profile |
/app/data/saxs_computation/hr/2hri/2hri.dat |
