SAXSdb — 2iik

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3-ketoacyl-CoA thiolase, peroxisomal

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 28–424 Chain B； UniProt 28–424	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；0.2M Amonium Sulphate, 0.1M Hepes, 25% PEG3350., pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.55 Å R-free 0.223

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2IIK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9OK4 GID4 in complex with CLEO4-88 and ACAA1 Deposited 2025-05-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 30–424（395 aa） Chain B 30–424（395 aa）	Not recorded	L6U (2S)-2-{[(2S)-2-({N-[(2,4-dimethoxyphenyl)methyl]glycyl}amino)-2-(thiophen-2-yl)acetyl]amino}-N-methyl-4-phenylbutanamide × 2 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.1 M Tris pH 7.5 and 0.2 M NaF	Resolution 2.28 Å R-free 0.230

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	THIK_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–417； UniProt 28–424 Author chain B； PDBConstruct 24–417； UniProt 28–424

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2iik
Deposition date deposition_date	2006-09-28
Structure title title	Crystal Structure of human peroxisomal acetyl-CoA acyl transferase 1 (ACAA1)
Keywords keywords	FATTY ACID METABOLISM, Structural Genomics, Structural Genomics Consortium, SGC, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.73 Å
Radius of gyration Rg (electron density) rg_electron	25.72 Å
Forward intensity I(0) i0	107314000.00
Molecular weight molecular_weight	80648.0 kDa
Excluded volume excluded_volume	100810 Å³
Envelope volume envelope_volume	117800 Å³
Hydration-shell volume shell_volume	36559 Å³
Envelope diameter envelope_diameter	87.7 Å
Shell Rg shell_rg	34.47 Å
Envelope Rg envelope_rg	26.14 Å
Shape Rg shape_rg	25.76 Å
Total Rg total_rg	26.48 Å
Total atoms total_atoms	5638
Residues n_residues	785
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

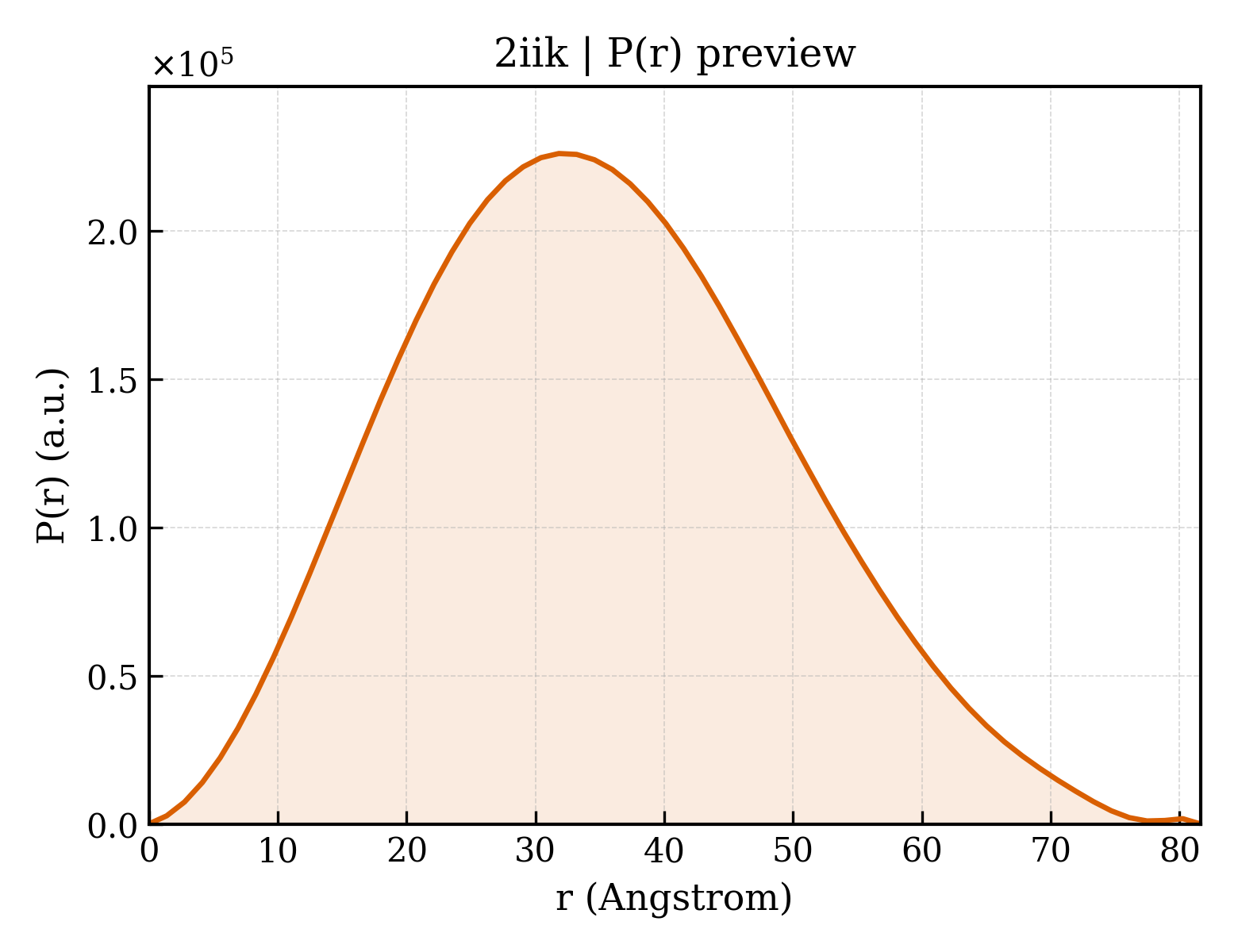

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	81.6 Å
Rg (real space) rg_real	26.62 Å
Rg uncertainty (real space) rg_real_error	0.48 Å
I(0) (real space) i0_real	1.0730e+08
I(0) uncertainty (real space) i0_real_error	1.6670e+06
Rg (reciprocal space) rg_reciprocal	26.65 Å
I(0) (reciprocal space) i0_reciprocal	107300000.0000
Solution quality estimate total_estimate	0.9036
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.8 Å
Skewness Skewness skewness	0.243
Kurtosis Kurtosis kurtosis	-0.414
Angular range angular_range	— – 0.2950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	26090000.0000
Real-space data points n_real_points	60
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.928

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	3-ketoacyl-CoA thiolase, peroxisomal
Molecular weight formula_weight	43969.2 kDa
EC 编号 ec_number	2.3.1.16
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5873

MHHHHHHSSGVDLGTENLYFQSMAPQASAADVVVVHGRRTAICRAGRGGFKDTTPDELLSAVMTAVLKDVNLRPEQLGDICVGNVLQPGAGAIMARIAQFLSDIPETVPLSTVNRQCSSGLQAVASIAGGIRNGSYDIGMACGVESMSLADRGNPGNITSRLMEKEKARDCLIPMGITSENVAERFGISREKQDTFALASQQKAARAQSKGCFQAEIVPVTTTVHDDKGTKRSITVTQDEGIRPSTTMEGLAKLKPAFKKDGSTTAGNSSQVSDGAAAILLARRSKAEELGLPILGVLRSYAVVGVPPDIMGIGPAYAIPVALQKAGLTVSDVDIFEINEAFASQAAYCVEKLRLPPEKVNPLGGAVALGHPLGCTGARQVITLLNELKRRGKRAYGVVSMCIGTGMGAAAVFEYPGN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	226

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d2iika1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.0 — automated matches

Domain ID domain_id	d2iika2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.0 — automated matches

Domain ID domain_id	d2iikb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.0 — automated matches

Domain ID domain_id	d2iikb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.0 — automated matches

Domain ID domain_id	d2iikb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2iikA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	2iikB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

▶

8. Citations (1)

▶

Unit-cell length a length_a	55.147 Å
Unit-cell length b length_b	96.845 Å
Unit-cell length c length_c	142.055 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.550 Å
Low-resolution limit resolution_low	80.060 Å
R factor r_factor	0.1811
R_work r_work	0.1787
R_free r_free	0.2235

fit	/app/data/saxs_computation/ii/2iik/2iik.fit
pddf	/app/data/pr_computation/ii/2iik/2iik.pr.out
profile	/app/data/saxs_computation/ii/2iik/2iik.dat
