SAXSdb — 2jxm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plastocyanin

Prochlorothrix hollandica

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 35–131	Not recorded	Cytochrome f × 1 （Q8RN59） CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions：pH 6；300 K；Ionic strength (raw mmCIF value) 10；Pressure ambient NMR sample composition：85 uM [U-99% 15N] plastocyanin, 50 uM cytochrome f, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2JXM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B3I NMR SOLUTION STRUCTURE OF PLASTOCYANIN FROM THE PHOTOSYNTHETIC PROKARYOTE, PROCHLOROTHRIX HOLLANDICA (MINIMIZED AVERAGE STRUCTURE) Deposited 1998-12-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–131（97 aa）	Mutation：T2S	CU1 COPPER (I) ION × 1	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 20mM POTASSIUM PHOSPHATE；Pressure 1 NMR sample composition 90% WATER/10% D2O	Resolution not provided
2B3I NMR SOLUTION STRUCTURE OF PLASTOCYANIN FROM THE PHOTOSYNTHETIC PROKARYOTE, PROCHLOROTHRIX HOLLANDICA (19 STRUCTURES) Deposited 1998-12-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–131（97 aa）	Mutation：T2S	CU1 COPPER (I) ION × 1	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 20mM POTASSIUM PHOSPHATE；Pressure 1 NMR sample composition 90% WATER/10% D2O	Resolution not provided

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLAS_PROHO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–97； UniProt 35–131

Cytochrome f

Prochlorothrix hollandica

UniProt Q8RN59

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 47–295	Not recorded	Plastocyanin × 1 （P50057） CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions：pH 6；300 K；Ionic strength (raw mmCIF value) 10；Pressure ambient NMR sample composition：85 uM [U-99% 15N] plastocyanin, 50 uM cytochrome f, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	Q8RN59_PROHO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–249； UniProt 47–295

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jxm
Deposition date deposition_date	2007-11-22
Structure title title	Ensemble of twenty structures of the Prochlorothrix hollandica plastocyanin- cytochrome f complex
Keywords keywords	Copper, Electron transport, Metal-binding, Transport; ELECTRON TRANSPORT
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.45 Å
Radius of gyration Rg (electron density) rg_electron	23.42 Å
Forward intensity I(0) i0	7399150000.00
Molecular weight molecular_weight	747930.0 kDa
Excluded volume excluded_volume	938790 Å³
Envelope volume envelope_volume	76240 Å³
Hydration-shell volume shell_volume	26537 Å³
Envelope diameter envelope_diameter	86.8 Å
Shell Rg shell_rg	31.54 Å
Envelope Rg envelope_rg	25.17 Å
Shape Rg shape_rg	23.42 Å
Total Rg total_rg	23.49 Å
Total atoms total_atoms	103580
Residues n_residues	6920
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	80.4 Å
Rg (real space) rg_real	23.57 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	7.3990e+09
I(0) uncertainty (real space) i0_real_error	1.0530e+08
Rg (reciprocal space) rg_reciprocal	23.54 Å
I(0) (reciprocal space) i0_reciprocal	7399000000.0000
Solution quality estimate total_estimate	0.8693
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.5 Å
Skewness Skewness skewness	0.471
Kurtosis Kurtosis kurtosis	-0.249
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4271000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.820; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.864; Smooth: 0.973

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Plastocyanin
Molecular weight formula_weight	10148.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	103580

ASVQIKMGTDKYAPLYEPKALSISAGDTVEFVMNKVGPHNVIFDKVPAGESAPALSNTKLAIAPGSFYSVTLGTPGTYSFYCTPHRGAGMVGTITVE

来源 Source

来源生物 organism	Prochlorothrix hollandica
NCBI Class编号 ncbi_taxonomy_id	1223
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Cytochrome f
Molecular weight formula_weight	26611.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

YPFYAQYNYDSPREATGKIVCANCHLAKKTVEIEVPQAVLPDTVFKAVVKVPYDLDIQQVQADGSPSGLNVGAVLMLPEGFKLAPPERVDEELMEEVGDFYYLVTPYSETDENILLAGPLPGEDYQEMIFPILSPNPATDAGVYFGKYSIHLGGNRGRGQVYPTGELSNNNAFSASIAGTIAAIEDNGFGFDVTIQPEDGDAVVTSILPGPELIVAVGDTVEAGQLLTTNPNVGGFGQMDSEIVLQSSS

来源 Source

来源生物 organism	Prochlorothrix hollandica
NCBI Class编号 ncbi_taxonomy_id	1223
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2jxma_
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.1 — Plastocyanin/azurin-like

Domain ID domain_id	d2jxmb1
Class class	i — Low resolution protein structures
Fold Fold fold	i.4 — Electron transport chains
Superfamily Superfamily superfamily	i.4.1 — Electron transport chains
Family Family family	i.4.1.1 — Electron transport chains

CATH v4.4 (3 domains)

Domain ID domain_id	2jxmA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

Domain ID domain_id	2jxmB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	830 — Cytochrome f large domain

Domain ID domain_id	2jxmB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

fit	/app/data/saxs_computation/jx/2jxm/2jxm.fit
pddf	/app/data/pr_computation/jx/2jxm/2jxm.pr.out
profile	/app/data/saxs_computation/jx/2jxm/2jxm.dat

Ensemble of twenty structures of the Prochlorothrix hollandica plastocyanin- cytochrome f complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plastocyanin

State in the Current Structure

Other States of the Same Protein in the Database

Cytochrome f

State in the Current Structure

Other States of the Same Protein in the Database

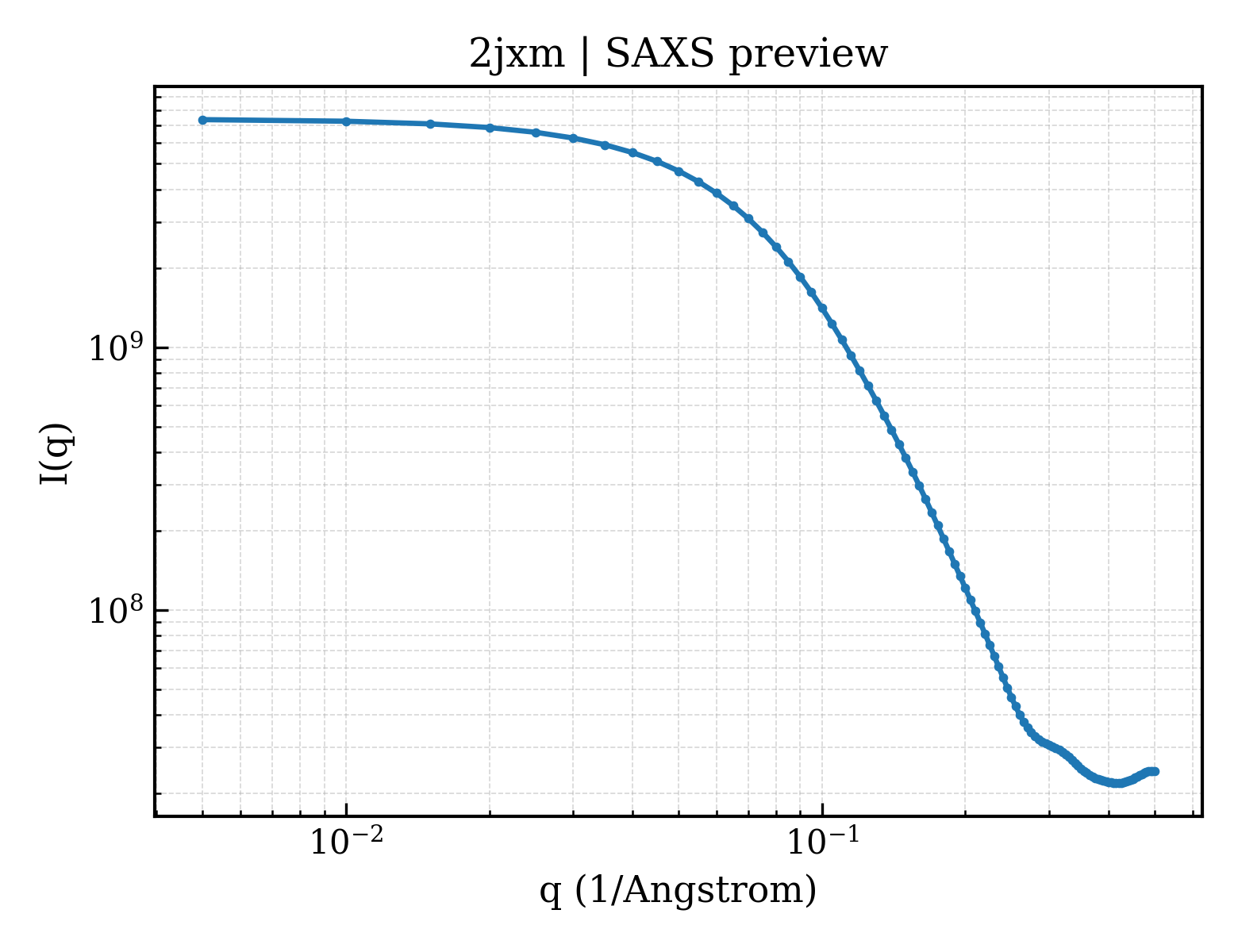

SAXS scattering curve SAXS Profile
