SAXSdb — 2khn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Intersectin-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–111	Fragment：UNP residues 1-111	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Ionic strength (raw mmCIF value) 430；Pressure ambient NMR sample composition：0.87 mM [U-98% 13C; U-98% 15N] HR3646E-1, 20 mM MES-2, 200 mM sodium chloride-3, 5 mM calcium chloride-4, 10 mM DTT-5, 0.02 % sodium azide-6, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.81 mM [U-5% 13C; U-98% 15N] HR3646E-7, 20 mM MES-8, 200 mM sodium chloride-9, 5 mM calcium chloride-10, 10 mM DTT-11, 0.02 % sodium azide-12, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2KHN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1KI1 Guanine Nucleotide Exchange Region of Intersectin in Complex with Cdc42 Deposited 2001-12-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1229–1581（353 aa） Fragment：Dbl homology and Pleckstrin homology domains (residues 1229-1580)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG 4000, ammonium sulfate, Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.30 Å R-free 0.247
1KI1 Guanine Nucleotide Exchange Region of Intersectin in Complex with Cdc42 Deposited 2001-12-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1229–1581（353 aa） Fragment：Dbl homology and Pleckstrin homology domains (residues 1229-1580)	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG 4000, ammonium sulfate, Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.30 Å R-free 0.247
2KGR Solution structure of protein ITSN1 from Homo sapiens. Northeast Structural Genomics Consortium target HR5524A Deposited 2009-03-16	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 210–312（103 aa） Fragment：residues 210-312	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.2；Pressure ambient NMR sample composition 1.0 mM [U-100% 13C; U-100% 15N] protein-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM [U-5% 13C; U-99% 15N] protein-2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3FIA Crystal structure of the EH 1 domain from human intersectin-1 protein. Northeast Structural Genomics Consortium target HR3646e. Deposited 2008-12-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–111（111 aa） Fragment：residues 1-111	Mutation：M1V, I14T Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 8.5；277 K；1.5M ammonium sulfate, 12% glycerol, 0.1M TrisHCl, pH 8.5, microbatch under oil , temperature 277K	Resolution 1.45 Å R-free 0.176
3QBV Structure of designed orthogonal interaction between CDC42 and nucleotide exchange domains of intersectin Deposited 2011-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1229–1579（351 aa） Fragment：DH AND PH DOMAINS (UNP Residues 1229-1571)	Mutation：S1373E	GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；100mm TRIS pH 7.5, 25% PEG 3350, 150mm ammonium sulfate, and 1mM DTT, temperature 295k, VAPOR DIFFUSION, HANGING DROP	Resolution 2.65 Å R-free 0.284
3QBV Structure of designed orthogonal interaction between CDC42 and nucleotide exchange domains of intersectin Deposited 2011-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1229–1579（351 aa） Fragment：DH AND PH DOMAINS (UNP Residues 1229-1571)	Mutation：S1373E	GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；100mm TRIS pH 7.5, 25% PEG 3350, 150mm ammonium sulfate, and 1mM DTT, temperature 295k, VAPOR DIFFUSION, HANGING DROP	Resolution 2.65 Å R-free 0.284
4IIM Crystal structure of the Second SH3 Domain of ITSN1 bound with a synthetic peptide Deposited 2012-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 916–970（55 aa） Chain B 916–970（55 aa）	Not recorded	UNX UNKNOWN LIGAND × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；1.2 M NaCitrate and 0.1 M Tris, pH 8.5, vapor diffusion hanging drop, temperature 291K	Resolution 1.80 Å R-free 0.243
4IIM Crystal structure of the Second SH3 Domain of ITSN1 bound with a synthetic peptide Deposited 2012-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 916–970（55 aa） Chain B 916–970（55 aa）	Not recorded	UNX UNKNOWN LIGAND × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；1.2 M NaCitrate and 0.1 M Tris, pH 8.5, vapor diffusion hanging drop, temperature 291K	Resolution 1.80 Å R-free 0.243
5HZI Crystal structure of photoinhibitable Intersectin1 containing C450M mutant LOV2 domain Deposited 2016-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1230–1308（79 aa） Chain A 1238–1509（272 aa）	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5, 9% (w/v) PEG 8000, 9% (v/v) ethylene glycol	Resolution 2.60 Å R-free 0.285
5HZI Crystal structure of photoinhibitable Intersectin1 containing C450M mutant LOV2 domain Deposited 2016-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1230–1308（79 aa） Chain B 1238–1509（272 aa）	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5, 9% (w/v) PEG 8000, 9% (v/v) ethylene glycol	Resolution 2.60 Å R-free 0.285
5HZJ Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain Deposited 2016-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1230–1308（79 aa） Chain A 1309–1580（272 aa）	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5, 9% (w/v) PEG 8000, 9% (v/v) ethylene glycol	Resolution 2.60 Å R-free 0.281
5HZJ Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain Deposited 2016-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1230–1308（79 aa） Chain B 1309–1580（272 aa）	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5, 9% (w/v) PEG 8000, 9% (v/v) ethylene glycol	Resolution 2.60 Å R-free 0.281
5HZK Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain in complex with Cdc42 Deposited 2016-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1230–1308（79 aa） Chain B 1309–1580（272 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；0.1 M MES, 20% (w/v) PEG 6000	Resolution 3.30 Å R-free 0.257
5HZK Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain in complex with Cdc42 Deposited 2016-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1230–1308（79 aa） Chain D 1309–1580（272 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；0.1 M MES, 20% (w/v) PEG 6000	Resolution 3.30 Å R-free 0.257
6GBU Crystal structure of the second SH3 domain of FCHSD2 (SH3-2) in complex with the fourth SH3 domain of ITSN1 (SH3d) Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1069–1133（65 aa） Chain D 1069–1133（65 aa） Chain F 1069–1133（65 aa） Chain H 1069–1133（65 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.5M ammonium sulfate, 10% Glycerol, Tris pH8.5	Resolution 3.44 Å R-free 0.247
6H5T Intersectin SH3A short isoform Deposited 2018-07-25	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 741–835（95 aa）	Not recorded	7PG 2,5,8,11,14,17,20,23-OCTAOXAPENTACOSAN-25-OL × 1 CL CHLORIDE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；25% (v/v) polyethylene glycol 550 mono-methyl ether, 100 mM MES-NaOH at pH 6.5, and 10 mM ZnSO4	Resolution 1.69 Å R-free 0.191
6H5T Intersectin SH3A short isoform Deposited 2018-07-25	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 741–835（95 aa）	Not recorded	7PG 2,5,8,11,14,17,20,23-OCTAOXAPENTACOSAN-25-OL × 1 ZN ZINC ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；25% (v/v) polyethylene glycol 550 mono-methyl ether, 100 mM MES-NaOH at pH 6.5, and 10 mM ZnSO4	Resolution 1.69 Å R-free 0.191

10 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ITSN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–121； UniProt 1–111

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2khn
Deposition date deposition_date	2009-04-09
Structure title title	NMR solution structure of the EH 1 domain from human intersectin-1 protein. Northeast Structural Genomics Consortium target HR3646E.
Keywords keywords	;GFT NMR, high throughput, NESGC, human intersectin-1, Alternative splicing, Calcium, Cell junction, Cell projection, Coiled coil, Endocytosis, Membrane, Phosphoprotein, SH3 domain, Synapse, Synaptosome, SIGNALING PROTEIN, Structural Genomics, PSI-2, Protein Structure Initiative, Northeast Structural Genomics Consortium ;; SIGNALING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.32 Å
Radius of gyration Rg (electron density) rg_electron	19.12 Å
Forward intensity I(0) i0	1042400000.00
Molecular weight molecular_weight	271930.0 kDa
Excluded volume excluded_volume	339840 Å³
Envelope volume envelope_volume	113680 Å³
Hydration-shell volume shell_volume	31478 Å³
Envelope diameter envelope_diameter	123.7 Å
Shell Rg shell_rg	35.50 Å
Envelope Rg envelope_rg	36.60 Å
Shape Rg shape_rg	19.16 Å
Total Rg total_rg	19.46 Å
Total atoms total_atoms	38060
Residues n_residues	2420
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

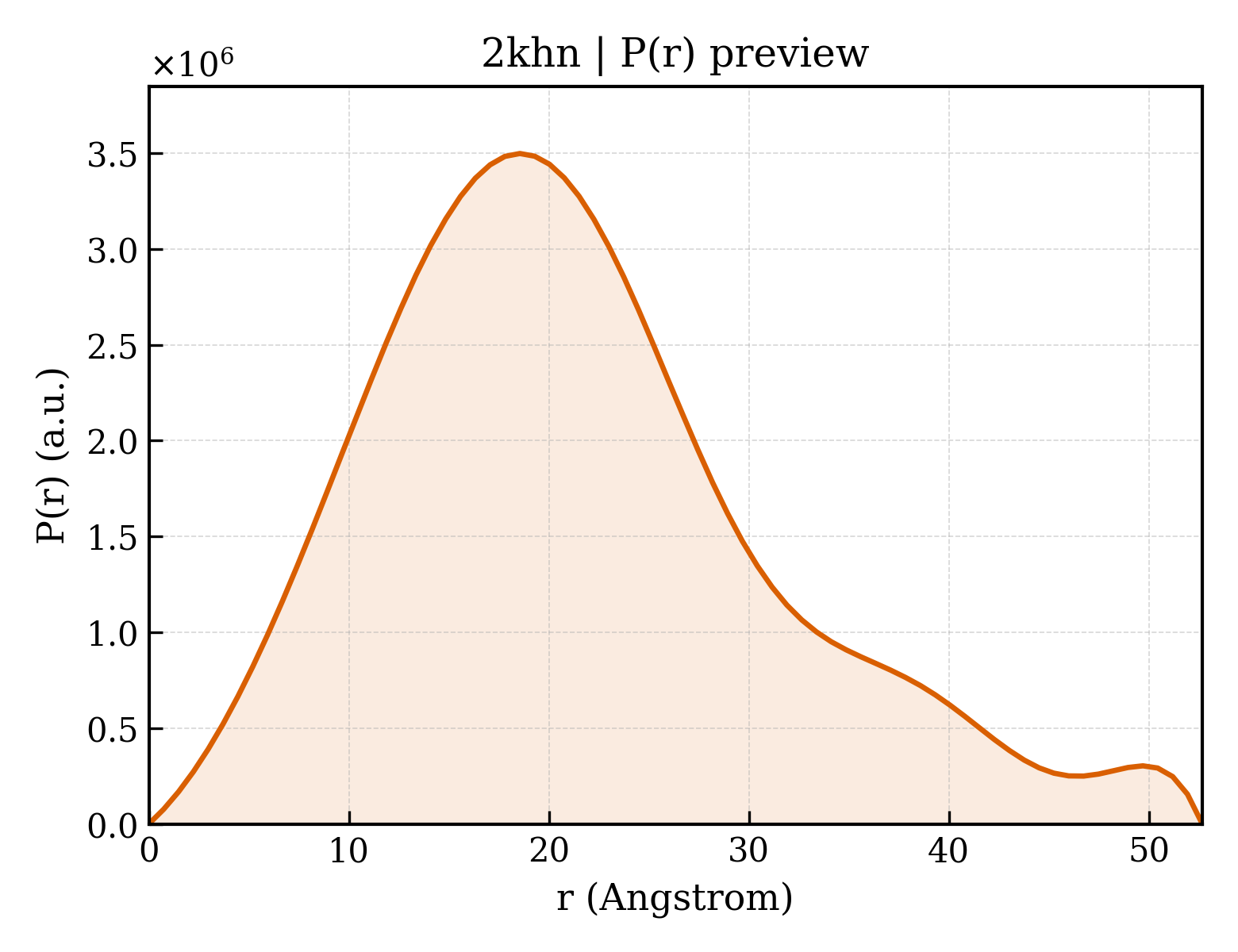

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	52.7 Å
Rg (real space) rg_real	16.54 Å
Rg uncertainty (real space) rg_real_error	0.15 Å
I(0) (real space) i0_real	9.7380e+08
I(0) uncertainty (real space) i0_real_error	1.0000e+07
Rg (reciprocal space) rg_reciprocal	20.34 Å
I(0) (reciprocal space) i0_reciprocal	1042000000.0000
Solution quality estimate total_estimate	0.6143
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.6 Å
Skewness Skewness skewness	0.672
Kurtosis Kurtosis kurtosis	0.265
Angular range angular_range	— – 0.4100 Å⁻¹
Current regularization parameter α current_alpha	1.1510
Highest regularization parameter α highest_alpha	1073000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.048; Oscil: 0.738; Stabil: 0.992; Sysdev: 0.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2khna1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.0 — automated matches

Domain ID domain_id	d2khna2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2khnA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

Description description	Intersectin-1
Molecular weight formula_weight	13614.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	38060

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/kh/2khn/2khn.fit
pddf	/app/data/pr_computation/kh/2khn/2khn.pr.out
profile	/app/data/saxs_computation/kh/2khn/2khn.dat
