SAXSdb — 2l7l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–149	Not recorded	Calcium/calmodulin-dependent protein kinase type 1 × 1 （Q63450） CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions：pH 6.8；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR measurement conditions：pH 6.8；303 K；Ionic strength (raw mmCIF value) 0.3；Pressure ambient NMR sample composition：0.95 mM [U-13C; U-15N] protein, 1.05 mM peptide, 4 mM CALCIUM ION, 0.5 mM DSS, 100 mM potassium chloride, 20 mM Bis-Tris, 0.03 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.66 mM [U-2H; U-15N] protein, 0.40 mM peptide, 20 mM Bis-Tris, 100 mM potassium chloride, 4 mM CALCIUM ION, 0.03 % sodium azide, 0.5 mM DSS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.64 mM 1H/13C-methyl Met; U-2H; U-15N protein, 0.83 mM peptide, 20 mM Bis-Tris, 100 mM potassium chloride, 4 mM CALCIUM ION, 0.03 % sodium azide, 0.5 mM DSS, 100% D2O \| 100% D2O NMR sample composition：0.95 mM [U-13C; U-15N] protein, 1.05 mM peptide, 20 mM Bis-Tris, 300 mM potassium chloride, 4 mM CALCIUM ION, 0.03 % sodium azide, 0.5 mM DSS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.95 mM [U-13C; U-15N] protein, 1.05 mM peptide, 20 mM Bis-Tris, 300 mM potassium chloride, 4 mM CALCIUM ION, 0.03 % sodium azide, 0.5 mM DSS, 16 w/v Pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	B4DJ51_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–148； UniProt 2–149

Calcium/calmodulin-dependent protein kinase type 1

OrganismNot specified

UniProt Q63450

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 299–320	Fragment：Calmodulin-binding residues 299-320	Calmodulin × 1 （B4DJ51） CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions：pH 6.8；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR measurement conditions：pH 6.8；303 K；Ionic strength (raw mmCIF value) 0.3；Pressure ambient NMR sample composition：0.95 mM [U-13C; U-15N] protein, 1.05 mM peptide, 4 mM CALCIUM ION, 0.5 mM DSS, 100 mM potassium chloride, 20 mM Bis-Tris, 0.03 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.66 mM [U-2H; U-15N] protein, 0.40 mM peptide, 20 mM Bis-Tris, 100 mM potassium chloride, 4 mM CALCIUM ION, 0.03 % sodium azide, 0.5 mM DSS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.64 mM 1H/13C-methyl Met; U-2H; U-15N protein, 0.83 mM peptide, 20 mM Bis-Tris, 100 mM potassium chloride, 4 mM CALCIUM ION, 0.03 % sodium azide, 0.5 mM DSS, 100% D2O \| 100% D2O NMR sample composition：0.95 mM [U-13C; U-15N] protein, 1.05 mM peptide, 20 mM Bis-Tris, 300 mM potassium chloride, 4 mM CALCIUM ION, 0.03 % sodium azide, 0.5 mM DSS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.95 mM [U-13C; U-15N] protein, 1.05 mM peptide, 20 mM Bis-Tris, 300 mM potassium chloride, 4 mM CALCIUM ION, 0.03 % sodium azide, 0.5 mM DSS, 16 w/v Pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2L7L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A06 CALMODULIN-DEPENDENT PROTEIN KINASE FROM RAT Deposited 1997-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–333（333 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.50 Å R-free 0.313
1MXE Structure of the Complex of Calmodulin with the Target Sequence of CaMKI Deposited 2002-10-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 294–318（25 aa） Fragment：Calmodulin Binding Domain	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；Cacodylate, Calcium chloride, MPD, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.229
1MXE Structure of the Complex of Calmodulin with the Target Sequence of CaMKI Deposited 2002-10-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 294–318（25 aa） Fragment：Calmodulin Binding Domain	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；Cacodylate, Calcium chloride, MPD, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.229

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KCC1A_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–22； UniProt 299–320

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l7l
Deposition date deposition_date	2010-12-13
Structure title title	Solution structure of Ca2+/calmodulin complexed with a peptide representing the calmodulin-binding domain of calmodulin kinase I
Keywords keywords	Calmodulin complex, calmodulin-peptide complex, CaMKI, Metal Binding Protein-Transferase complex; Metal Binding Protein/Transferase
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.92 Å
Radius of gyration Rg (electron density) rg_electron	15.57 Å
Forward intensity I(0) i0	7802060.00
Molecular weight molecular_weight	19448.0 kDa
Excluded volume excluded_volume	23877 Å³
Envelope volume envelope_volume	26883 Å³
Hydration-shell volume shell_volume	14616 Å³
Envelope diameter envelope_diameter	53.0 Å
Shell Rg shell_rg	21.38 Å
Envelope Rg envelope_rg	15.78 Å
Shape Rg shape_rg	15.58 Å
Total Rg total_rg	16.53 Å
Total atoms total_atoms	2647
Residues n_residues	170
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

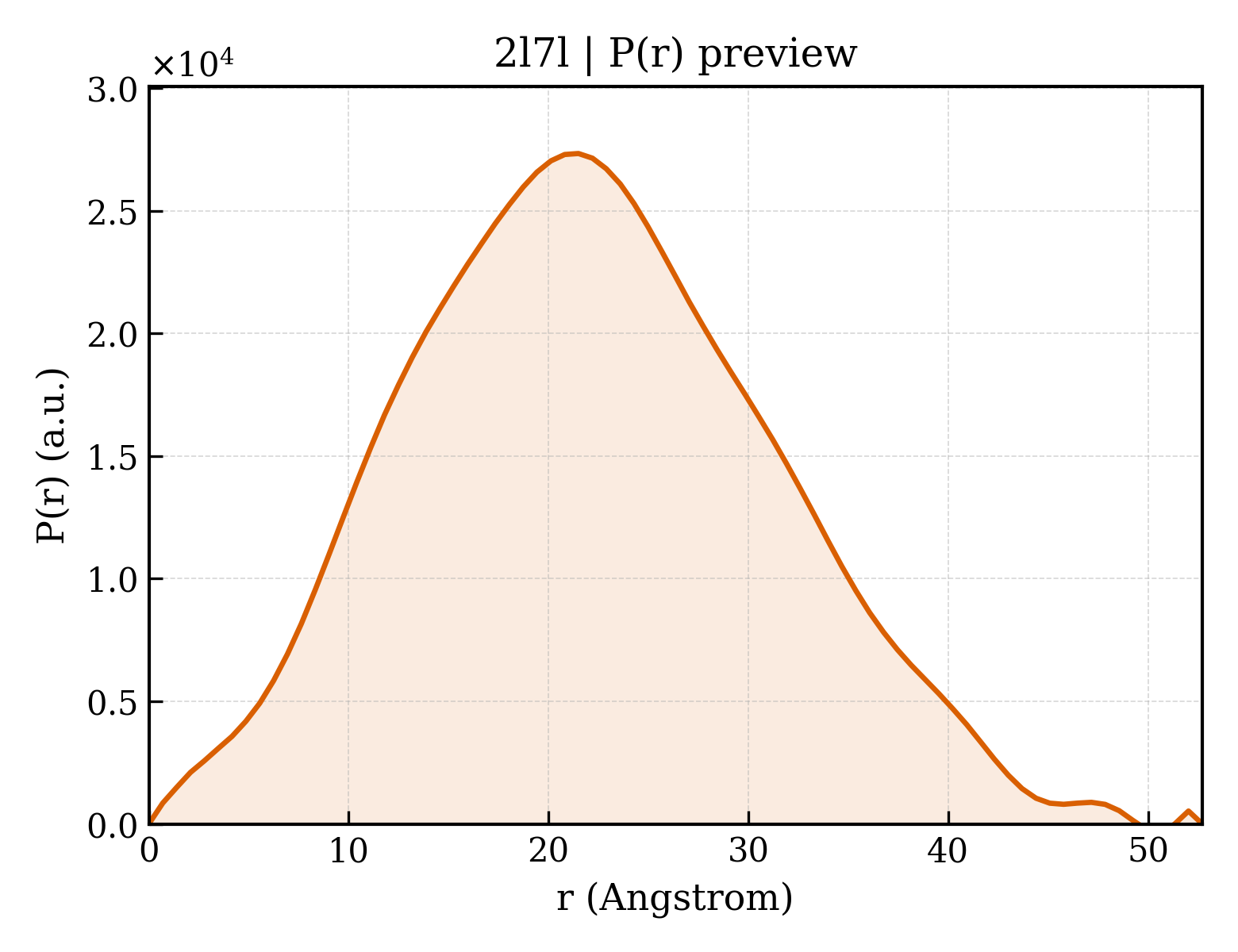

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	52.7 Å
Rg (real space) rg_real	16.83 Å
Rg uncertainty (real space) rg_real_error	0.35 Å
I(0) (real space) i0_real	7.8020e+06
I(0) uncertainty (real space) i0_real_error	9.3810e+04
Rg (reciprocal space) rg_reciprocal	16.84 Å
I(0) (reciprocal space) i0_reciprocal	7802000.0000
Solution quality estimate total_estimate	0.8153
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	21.5 Å
Skewness Skewness skewness	0.195
Kurtosis Kurtosis kurtosis	-0.349
Angular range angular_range	— – 0.4700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1212000.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.868; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Calmodulin
Molecular weight formula_weight	16721.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2647

ADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Calcium/calmodulin-dependent protein kinase type 1
Molecular weight formula_weight	2606.1 kDa
EC 编号 ec_number	2.7.11.17
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AKSKWKQAFNATAVVRHMRKLQ

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/l7/2l7l/2l7l.fit
pddf	/app/data/pr_computation/l7/2l7l/2l7l.pr.out
profile	/app/data/saxs_computation/l7/2l7l/2l7l.dat

Solution structure of Ca2+/calmodulin complexed with a peptide representing the calmodulin-binding domain of calmodulin kinase I
