SAXSdb — 2lln

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome c oxidase subunit 2

Thermus thermophilus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 11–135	Fragment：UNP residues 11-135	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition：0.8 -1 mM [U-99% 13C; U-99% 15N] protein, 100 mM potassium phosphate, 2 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.8 -1 mM [U-99% 15N] protein, 100 mM potassium phosphate, 2 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.8 - 1 mM protein, 100 mM potassium phosphate, 2 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2LLN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1XME Structure of Recombinant Cytochrome ba3 Oxidase from Thermus thermophilus Deposited 2004-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–168（168 aa）	Not recorded	BNG nonyl beta-D-glucopyranoside × 1 CU COPPER (II) ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 HAS HEME-AS × 1 GOL GLYCEROL × 1 CUA DINUCLEAR COPPER ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；297 K；Peg 2000, Bis-tris, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.236
2CUA THE CUA DOMAIN OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS Deposited 1999-02-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–168（135 aa） Fragment：SOLUBLE CUA-CONTAINING DOMAIN	Not recorded	ZN ZINC ION × 1 CUA DINUCLEAR COPPER ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2-20% MPEG 5K 100MM NA CACODYLATE PH 6.5 1MM ZNCL2	Resolution 1.60 Å R-free 0.296
2CUA THE CUA DOMAIN OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS Deposited 1999-02-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 34–168（135 aa） Fragment：SOLUBLE CUA-CONTAINING DOMAIN	Not recorded	ZN ZINC ION × 1 CUA DINUCLEAR COPPER ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2-20% MPEG 5K 100MM NA CACODYLATE PH 6.5 1MM ZNCL2	Resolution 1.60 Å R-free 0.296
2FWL The cytochrome c552/CuA complex from Thermus thermophilus Deposited 2006-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–135（135 aa）	Not recorded	HEC HEME C × 1 CUA DINUCLEAR COPPER ION × 1	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 20mM phosphate buffer；Pressure ambient NMR sample composition 0.5mM cytochrome c552 U-15N, 20mM phosphate buffer, 2mM CuA domain, 95% H2O, 5% D2O \| 95% H2O/5% D2O NMR sample composition 0.5mM CuA domain U-15N, 20mM phosphate buffer, 2mM cytochrome c552, 95% H2O, 5% D2O \| 95% H2O/5% D2O	Resolution not provided
5U7N CRYSTAL STRUCTURE OF A CHIMERIC CUA DOMAIN (SUBUNIT II) OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS WITH THE AMICYANIN LOOP Deposited 2016-12-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–116（106 aa） Fragment：UNP residues 11-116,127-135 Chain A 127–135（9 aa） Fragment：UNP residues 11-116,127-135	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；60 % (4S)-2-METHYL-2,4-PENTANEDIOL	Resolution 2.30 Å R-free 0.226
5U7N CRYSTAL STRUCTURE OF A CHIMERIC CUA DOMAIN (SUBUNIT II) OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS WITH THE AMICYANIN LOOP Deposited 2016-12-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 11–116（106 aa） Fragment：UNP residues 11-116,127-135 Chain B 127–135（9 aa） Fragment：UNP residues 11-116,127-135	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；60 % (4S)-2-METHYL-2,4-PENTANEDIOL	Resolution 2.30 Å R-free 0.226
5U7N CRYSTAL STRUCTURE OF A CHIMERIC CUA DOMAIN (SUBUNIT II) OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS WITH THE AMICYANIN LOOP Deposited 2016-12-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 11–116（106 aa） Fragment：UNP residues 11-116,127-135 Chain C 127–135（9 aa） Fragment：UNP residues 11-116,127-135	Not recorded	CU COPPER (II) ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；60 % (4S)-2-METHYL-2,4-PENTANEDIOL	Resolution 2.30 Å R-free 0.226
5U7N CRYSTAL STRUCTURE OF A CHIMERIC CUA DOMAIN (SUBUNIT II) OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS WITH THE AMICYANIN LOOP Deposited 2016-12-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 11–116（106 aa） Fragment：UNP residues 11-116,127-135 Chain D 127–135（9 aa） Fragment：UNP residues 11-116,127-135	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；60 % (4S)-2-METHYL-2,4-PENTANEDIOL	Resolution 2.30 Å R-free 0.226
5U7N CRYSTAL STRUCTURE OF A CHIMERIC CUA DOMAIN (SUBUNIT II) OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS WITH THE AMICYANIN LOOP Deposited 2016-12-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 11–116（106 aa） Fragment：UNP residues 11-116,127-135 Chain E 127–135（9 aa） Fragment：UNP residues 11-116,127-135	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；60 % (4S)-2-METHYL-2,4-PENTANEDIOL	Resolution 2.30 Å R-free 0.226
5U7N CRYSTAL STRUCTURE OF A CHIMERIC CUA DOMAIN (SUBUNIT II) OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS WITH THE AMICYANIN LOOP Deposited 2016-12-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 11–116（106 aa） Fragment：UNP residues 11-116,127-135 Chain F 127–135（9 aa） Fragment：UNP residues 11-116,127-135	Not recorded	CU COPPER (II) ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；60 % (4S)-2-METHYL-2,4-PENTANEDIOL	Resolution 2.30 Å R-free 0.226
5U7N CRYSTAL STRUCTURE OF A CHIMERIC CUA DOMAIN (SUBUNIT II) OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS WITH THE AMICYANIN LOOP Deposited 2016-12-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 11–116（106 aa） Fragment：UNP residues 11-116,127-135 Chain G 127–135（9 aa） Fragment：UNP residues 11-116,127-135	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；60 % (4S)-2-METHYL-2,4-PENTANEDIOL	Resolution 2.30 Å R-free 0.226
5U7N CRYSTAL STRUCTURE OF A CHIMERIC CUA DOMAIN (SUBUNIT II) OF CYTOCHROME BA3 FROM THERMUS THERMOPHILUS WITH THE AMICYANIN LOOP Deposited 2016-12-12	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 11–116（106 aa） Fragment：UNP residues 11-116,127-135 Chain H 127–135（9 aa） Fragment：UNP residues 11-116,127-135	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；60 % (4S)-2-METHYL-2,4-PENTANEDIOL	Resolution 2.30 Å R-free 0.226
6PTT Soluble model of Arabidopsis thaliana CuA (Tt3LAt) Deposited 2019-07-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–135（125 aa）	Not recorded	CUA DINUCLEAR COPPER ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291 K；100 mM Hepes, 1.5 M LiSO4, pH 7.5	Resolution 1.84 Å R-free 0.214
6PTT Soluble model of Arabidopsis thaliana CuA (Tt3LAt) Deposited 2019-07-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 11–135（125 aa）	Not recorded	CUA DINUCLEAR COPPER ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291 K；100 mM Hepes, 1.5 M LiSO4, pH 7.5	Resolution 1.84 Å R-free 0.214
6PTY Soluble model of human CuA (Tt3Lh) Deposited 2019-07-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–135（125 aa）	Not recorded	CUA DINUCLEAR COPPER ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291 K；100 mM Hepes, 1.6 M (NH4)2SO4, 0.1 mM NaCl, pH 7.5	Resolution 1.98 Å R-free 0.238
6PTY Soluble model of human CuA (Tt3Lh) Deposited 2019-07-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 11–135（125 aa）	Not recorded	CUA DINUCLEAR COPPER ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291 K；100 mM Hepes, 1.6 M (NH4)2SO4, 0.1 mM NaCl, pH 7.5	Resolution 1.98 Å R-free 0.238

6 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	COX2_THETH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–126； UniProt 11–135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2lln
Deposition date deposition_date	2011-11-15
Structure title title	Solution structure of Thermus thermophilus apo-CuA
Keywords keywords	entatic state, electron transfer, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.67 Å
Radius of gyration Rg (electron density) rg_electron	14.34 Å
Forward intensity I(0) i0	1019520000.00
Molecular weight molecular_weight	278560.0 kDa
Excluded volume excluded_volume	351070 Å³
Envelope volume envelope_volume	31491 Å³
Hydration-shell volume shell_volume	16170 Å³
Envelope diameter envelope_diameter	56.5 Å
Shell Rg shell_rg	22.43 Å
Envelope Rg envelope_rg	16.53 Å
Shape Rg shape_rg	14.30 Å
Total Rg total_rg	14.63 Å
Total atoms total_atoms	39020
Residues n_residues	2520
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.2 Å
Rg (real space) rg_real	14.56 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	1.0200e+09
I(0) uncertainty (real space) i0_real_error	1.1040e+07
Rg (reciprocal space) rg_reciprocal	14.57 Å
I(0) (reciprocal space) i0_reciprocal	1020000000.0000
Solution quality estimate total_estimate	0.8799
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.3 Å
Skewness Skewness skewness	0.068
Kurtosis Kurtosis kurtosis	-0.460
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	389800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2llna_
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.2 — Periplasmic domain of cytochrome c oxidase subunit II

CATH v4.4 (1 domains)

Domain ID domain_id	2llnA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

8. Citations (1)

▶

Description description	Cytochrome c oxidase subunit 2
Molecular weight formula_weight	13959.9 kDa
EC 编号 ec_number	1.9.3.1
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	39020

来源生物 organism	Thermus thermophilus
NCBI Class编号 ncbi_taxonomy_id	274
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/ll/2lln/2lln.fit
pddf	/app/data/pr_computation/ll/2lln/2lln.pr.out
profile	/app/data/saxs_computation/ll/2lln/2lln.dat

Solution structure of Thermus thermophilus apo-CuA

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome c oxidase subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

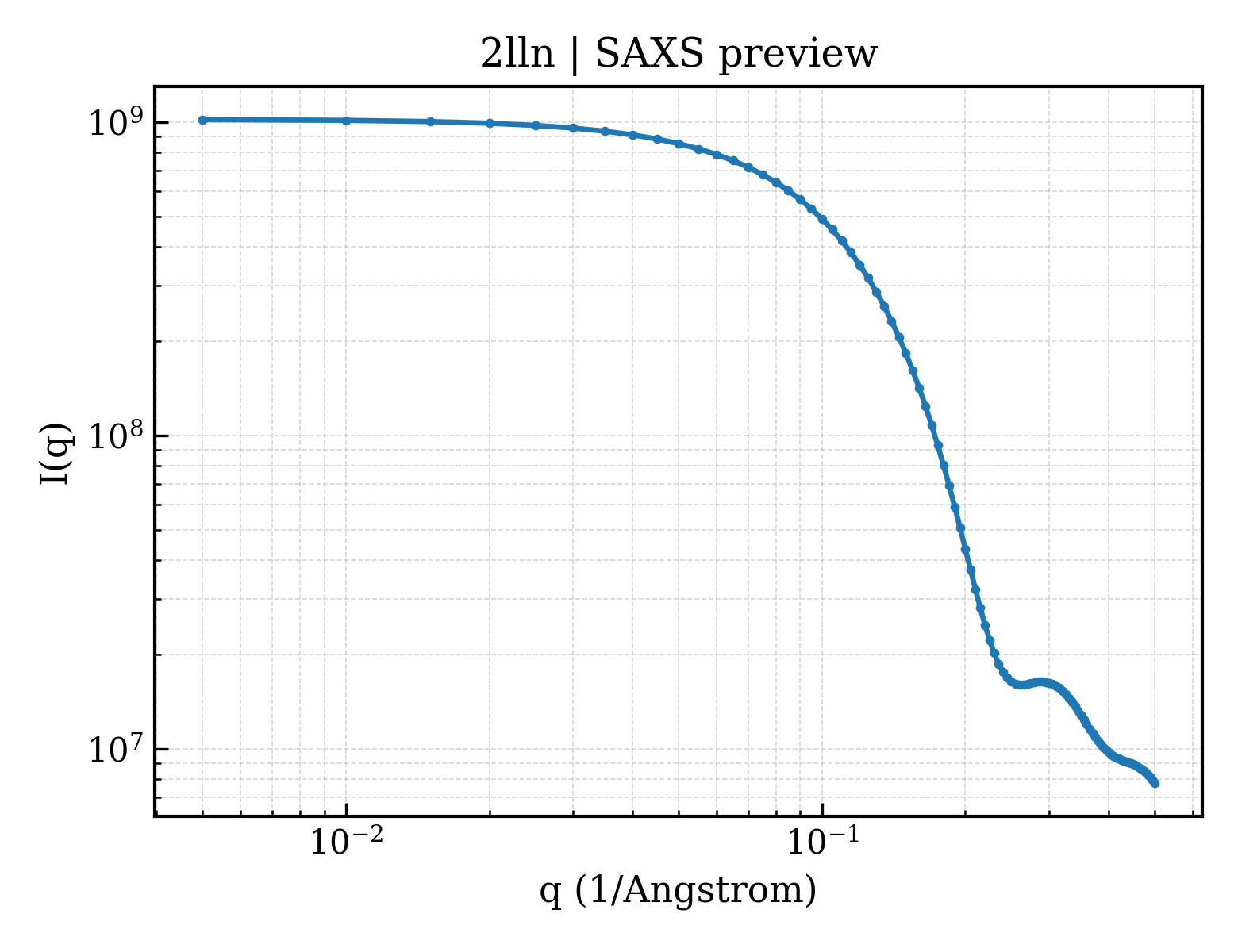

SAXS scattering curve SAXS Profile

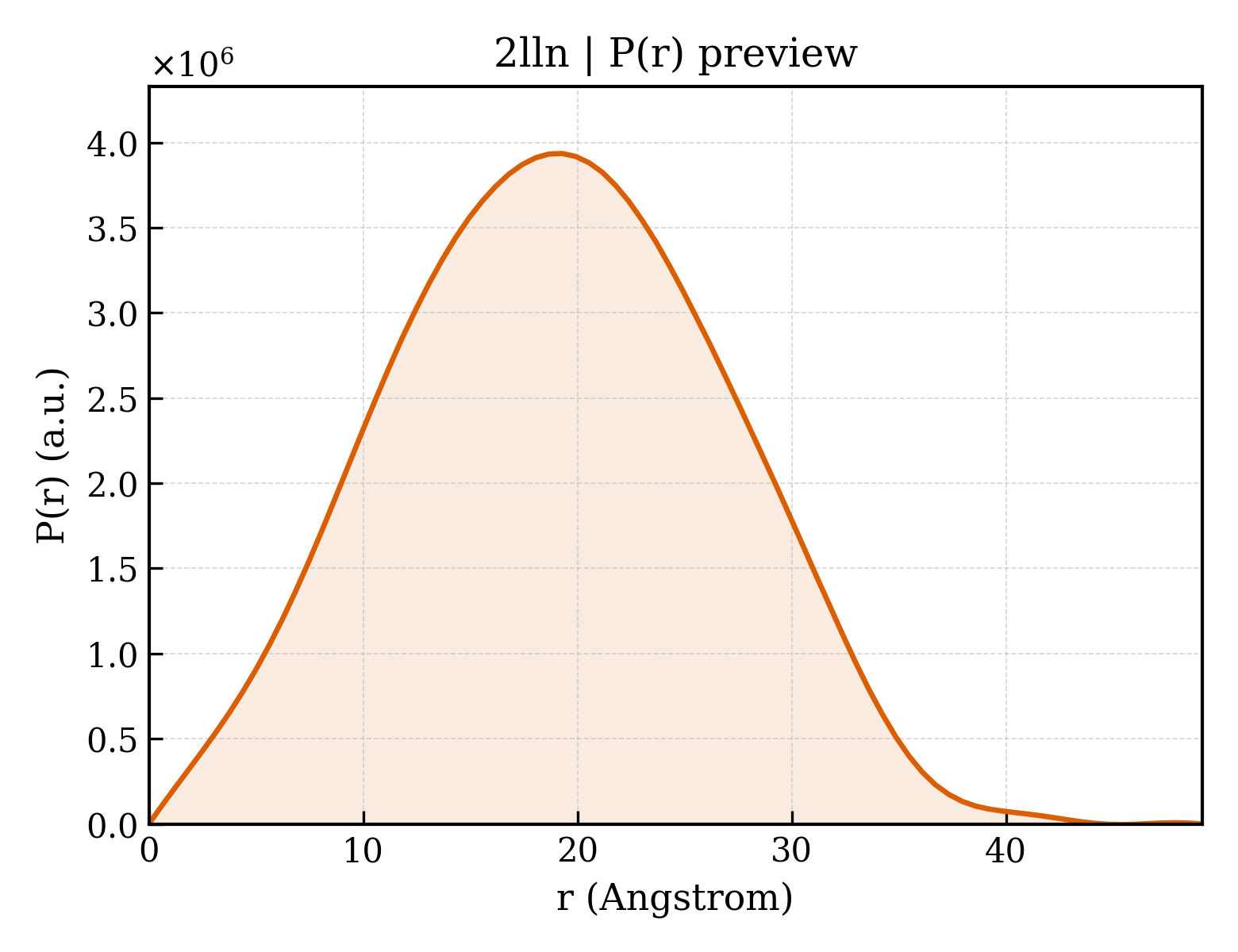

P(r) Distance Distribution P(r) Distribution
