SAXSdb — 2mkh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytoplasmic polyadenylation element-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 219–434	Fragment：UNP residues 219-434	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.5；303 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition：100 mM sodium chloride-1, 1 mM DTT-2, 1 mM magnesium sulphate-3, 50 mM sodium phosphate-4, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2MKH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2M13 The ZZ domain of cytoplasmic polyadenylation element binding protein 1 (CPEB1) Deposited 2012-11-14	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 504–566（63 aa） Fragment：ZZ domain of CPEB1	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 200；Pressure ambient NMR sample composition 0.3 mM [U-100% 13C; U-100% 15N] CPEB1-ZZ G-P-504, 20 mM TRIS, 200 mM sodium chloride, 1 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3 mM [U-100% 13C; U-100% 15N] CPEB1-ZZ T498S, 50 mM potassium phosphate, 200 mM potassium chloride, 5 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2MKE Solution structure of CPEB1 ZZ domain in the free state Deposited 2014-02-06	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 426–486（61 aa） Fragment：UNP residues 426-486	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 0.4-0.6 mM [U-100% 13C; U-100% 15N] CPEB1ZZ-1, 0.4-0.6 mM [U-100% 15N] CPEB1ZZ-2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2MKK Structural model of tandem RRM domains of cytoplasmic polyadenylation element binding protein 1 (CPEB1) in complex with RNA Deposited 2014-02-07	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 219–430（212 aa） Fragment：UNP residues 219-430	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；313 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 0.4-0.6 mM [U-100% 13C; U-100% 15N; U-80% 2H] CPEB1RRM12-1, 0.4-0.6 mM 5'-UUUUA-3'-2, 100 mM sodium chloride-3, 50 mM sodium phosphate-4, 1 mM DTT-5, 1 mM magnesium sulfate-6, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4-0.6 mM [U-100% 13C; U-100% 15N] CPEB1RRM12-7, 0.4-0.6 mM 5'-UUUUA-3'-8, 100 mM sodium chloride-9, 50 mM sodium phosphate-10, 1 mM DTT-11, 1 mM magnesium sulfate-12, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4-0.6 mM [U-100% 13C; U-100% 15N] CPEB1RRM12-13, 0.4-0.6 mM 5'-UUUUA-3'-14, 100 mM sodium chloride-15, 50 mM sodium phosphate-16, 1 mM DTT-17, 1 mM magnesium sulfate-18, 100% D2O \| 100% D2O NMR sample composition 0.4-0.6 mM [U-100% 15N] CPEB1RRM12-19, 0.4-0.6 mM 5'-UUUUA-3'-20, 100 mM sodium chloride-21, 50 mM sodium phosphate-22, 1 mM DTT-23, 1 mM magnesium sulfate-24, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4-0.6 mM [U-100% 15N] CPEB1RRM12-25, 0.4-0.6 mM 5'-UUUUA-3'-26, 100 mM sodium chloride-27, 50 mM sodium phosphate-28, 1 mM DTT-29, 1 mM magnesium sulfate-30, 100% D2O \| 100% D2O NMR sample composition 0.4-0.6 mM [U-100% 15N] CPEB1RRM12-31, 0.4-0.6 mM 5'-CUUUA-3'-32, 100 mM sodium chloride-33, 50 mM sodium phosphate-34, 1 mM DTT-35, 1 mM magnesium sulfate-36, 100% D2O \| 100% D2O NMR sample composition 0.4-0.6 mM [U-100% 13C; U-100% 15N] CPEB1RRM12-37, 0.4-0.6 mM 5'-CUUUA-3'-38, 100 mM sodium chloride-39, 50 mM sodium phosphate-40, 1 mM DTT-41, 1 mM magnesium sulfate-42, 100% D2O \| 100% D2O	Resolution not provided
2N1O PIN1 WW domain in complex with a phosphorylated CPEB1 derived peptide Deposited 2015-04-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 206–213（8 aa） Fragment：UNP residues 206-213	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；285 K；Pressure ambient NMR sample composition 1 mM Pin1, 3 mM CPEB1, 10 % [U-100% 2H] D2O, 20 mM [U-100% 2H] TRIS, 130 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CPEB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–217； UniProt 219–434

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2mkh
Deposition date deposition_date	2014-02-07
Structure title title	Solution structure of tandem RRM domains of cytoplasmic polyadenylation element binding protein 1 (CPEB1) in free state
Keywords keywords	CPEB1, RNA recognition motif (RRM), Cytoplasmic polyadenylation, Translational regulation, TRANSLATION REGULATOR; TRANSLATION REGULATOR
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.39 Å
Radius of gyration Rg (electron density) rg_electron	20.03 Å
Forward intensity I(0) i0	2911450000.00
Molecular weight molecular_weight	475570.0 kDa
Excluded volume excluded_volume	601420 Å³
Envelope volume envelope_volume	58286 Å³
Hydration-shell volume shell_volume	22624 Å³
Envelope diameter envelope_diameter	77.4 Å
Shell Rg shell_rg	28.71 Å
Envelope Rg envelope_rg	22.23 Å
Shape Rg shape_rg	19.97 Å
Total Rg total_rg	20.35 Å
Total atoms total_atoms	67200
Residues n_residues	4240
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	68.4 Å
Rg (real space) rg_real	20.46 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	2.9110e+09
I(0) uncertainty (real space) i0_real_error	3.8750e+07
Rg (reciprocal space) rg_reciprocal	20.45 Å
I(0) (reciprocal space) i0_reciprocal	2911000000.0000
Solution quality estimate total_estimate	0.7935
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.5 Å
Skewness Skewness skewness	0.424
Kurtosis Kurtosis kurtosis	-0.385
Angular range angular_range	— – 0.3900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1751000.0000
Real-space data points n_real_points	71
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.795; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.927; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2mkhA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

8. Citations (1)

▶

Description description	Cytoplasmic polyadenylation element-binding protein 1
Molecular weight formula_weight	24375.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	67200

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/mk/2mkh/2mkh.fit
pddf	/app/data/pr_computation/mk/2mkh/2mkh.pr.out
profile	/app/data/saxs_computation/mk/2mkh/2mkh.dat

Solution structure of tandem RRM domains of cytoplasmic polyadenylation element binding protein 1 (CPEB1) in free state

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytoplasmic polyadenylation element-binding protein 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

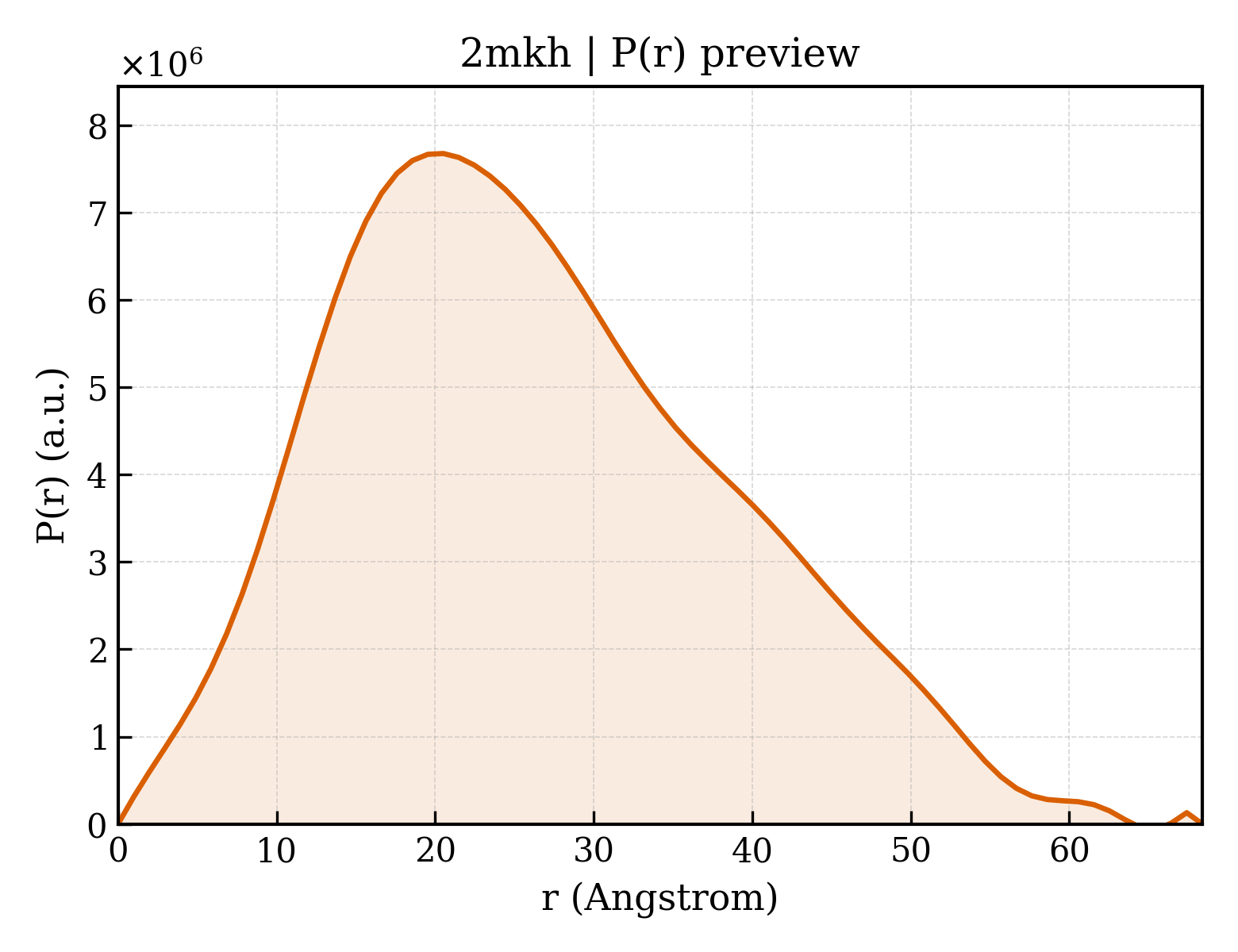

P(r) Distance Distribution P(r) Distribution
