2msv

Solution structure of the MLKL N-terminal domain

Method: SOLUTION NMR Dmax: 62.8 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mixed lineage kinase domain-like protein

Homo sapiens

UniProt Q8NB16

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–154 Fragment：N-terminal domain, residues 1-154 Mutation：M1L No other associated polymer SOLUTION NMR NMR measurement conditions：pH 7；298 K；Ionic strength (raw mmCIF value) 0.12；Pressure ambient NMR sample composition：1.5 mM [U-99% 13C; U-99% 15N] protein, 20 mM HEPES, 100 mM sodium chloride, 2 mM TCEP, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：1.5 mM [U-99% 15N] protein, 20 mM HEPES, 100 mM sodium chloride, 2 mM TCEP, 100% D2O | 100% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2MSV Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4M67 Crystal structure of the human MLKL kinase-like domain Deposited 2013-08-09 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 179–471（293 aa） Fragment：UNP residues 179-471
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；0.1M MES, 13% PEG 6000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 1.90 Å R-free 0.225
4MWI Crystal structure of the human MLKL pseudokinase domain Deposited 2013-09-25 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 183–471（289 aa） Fragment：unp residues 183-471
Not recorded PXN (2S)-1-[3-{[(2R)-2-hydroxypropyl]oxy}-2,2-bis({[(2R)-2-hydroxypropyl]oxy}methyl)propoxy]propan-2-ol × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；25% w/v pentaerythitol propoxylate, 0.1M Tris chloride, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.70 Å R-free 0.194
5KNJ Pseudokinase Domain of MLKL bound to Compound 1. Deposited 2016-06-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 191–471（281 aa） Fragment：UNP residues 191-471
Not recorded 6UX 1-[4-[methyl-[2-[(3-sulfamoylphenyl)amino]pyrimidin-4-yl]amino]phenyl]-3-[4-(trifluoromethyloxy)phenyl]urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M Na Citrate and 15% PEG3350
Resolution 2.88 Å R-free 0.256
5KNJ Pseudokinase Domain of MLKL bound to Compound 1. Deposited 2016-06-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 191–471（281 aa） Fragment：UNP residues 191-471
Not recorded 6UX 1-[4-[methyl-[2-[(3-sulfamoylphenyl)amino]pyrimidin-4-yl]amino]phenyl]-3-[4-(trifluoromethyloxy)phenyl]urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M Na Citrate and 15% PEG3350
Resolution 2.88 Å R-free 0.256
5KO1 Pseudokinase Domain of MLKL bound to Compound 4. Deposited 2016-06-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 191–471（281 aa） Fragment：UNP residues 191-471
Not recorded 6UY [(1~{R})-2-[(4-fluorophenyl)amino]-2-oxidanylidene-1-phenyl-ethyl] 3-azanylpyrazine-2-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M BisTRIS pH 6.5 20% PEG3350
Resolution 2.16 Å R-free 0.226
6BWK Crystal structure of the human MLKL pseudokinase domain T357E/S358E mutant Deposited 2017-12-15 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 190–471（282 aa） Fragment：UNP Residues 190-471
Mutation：T357E S358E GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；5% w/v polyethylene glycol 8000, 20% v/v polyethylene glycol 300, 0.1M Tris chloride pH 8.5, 10% v/v glycerol
Resolution 2.79 Å R-free 0.297
6D74 Direct Activation of the Executioner Domain of MLKL by a Select Repertoire of Inositol Phosphates Deposited 2018-04-24 Different construct Different mutation/modification Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–156（156 aa） Fragment：residues 1-156
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；303 K；Ionic strength (raw mmCIF value) 0；Pressure 1
NMR sample composition 500 uM [U-13C; U-15N] protein, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
6LK5 MLKL mutant - T357ES358D Deposited 2019-12-18 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–471（471 aa）
Mutation：T357E, S358D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5%(v/v) 2-Methyl-2,4-pentanediol, 0.1M HEPES(pH7.5), 10%(w/v) PEG 10000
Resolution 2.50 Å R-free 0.238
6LK6 MLKL mutant - T357AS358A Deposited 2019-12-18 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 179–471（293 aa）
Mutation：T357A, S358A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；14%(w/v) PEG 6000, 5% EG, 0.1M HEPES(pH7.5)
Resolution 2.41 Å R-free 0.247
6O5Z Crystal Structure of the human MLKL pseudokinase domain bound to compound 2 Deposited 2019-03-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 190–471（282 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.88；293 K；0.18 M magnesium chloride, 26.8% (w/v) PEG 3350, 0.1 M sodium HEPES pH 7.88
Resolution 2.29 Å R-free 0.232
6O5Z Crystal Structure of the human MLKL pseudokinase domain bound to compound 2 Deposited 2019-03-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 190–471（282 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 LN4 1-[2-fluoranyl-5-(trifluoromethyl)phenyl]-3-[4-[methyl-[2-[(3-sulfamoylphenyl)amino]pyrimidin-4-yl]amino]phenyl]urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.88；293 K；0.18 M magnesium chloride, 26.8% (w/v) PEG 3350, 0.1 M sodium HEPES pH 7.88
Resolution 2.29 Å R-free 0.232
6UX8 Structure of monobody 33 MLKL N-terminal domain complex Deposited 2019-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 5–154（150 aa）
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；25% PEG-MME 550, 0.1 M MES pH 6.5, 0.01 M Zinc acetate
Resolution 2.50 Å R-free 0.296
6ZLE Solution structure of unliganded MLKL executioner domain Deposited 2020-06-30 Different construct Different mutation/modification Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–154（153 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate,150 mM sodium chloride；Pressure 1
NMR measurement conditions pH 7.1；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate,150 mM sodium chloride；Pressure 1
NMR sample composition 400 uM [U-13C; U-15N] MLKL, 93% H2O/7% D2O | 93% H2O/7% D2O
NMR sample composition 430 uM [U-13C; U-15N] MLKL, 100% D2O | 100% D2O
Resolution not provided
6ZPR Solution structure of MLKL executioner domain in complex with a covalent inhibitor Deposited 2020-07-09 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–85（84 aa）
Chain A 86–154（69 aa）
Not recorded QOK 7-(2-methoxyethoxymethyl)-1,3-dimethyl-purine-2,6-dione × 1 SOLUTION NMR
NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate, 150 mM sodium chloride；Pressure 1
NMR measurement conditions pH 7.1；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate, 150 mM sodium chloride；Pressure 1
NMR sample composition 340 uM [U-13C; U-15N] MLKL, 1200 uM Compound, 93% H2O/7% D2O | 93% H2O/7% D2O
NMR sample composition 385 uM [U-13C; U-15N] MLKL, 840 uM Compound, 100% D2O | 100% D2O
Resolution not provided
6ZVO Crystal structure of unliganded MLKL executioner domain Deposited 2020-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–150（149 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；31 % Polyethylene glycol monomethyl ether 2,000, 0.15 M Potassium bromide, 0.1 M TRIS, pH 9
Resolution 1.37 Å R-free 0.234
6ZVO Crystal structure of unliganded MLKL executioner domain Deposited 2020-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–150（149 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；31 % Polyethylene glycol monomethyl ether 2,000, 0.15 M Potassium bromide, 0.1 M TRIS, pH 9
Resolution 1.37 Å R-free 0.234
6ZVO Crystal structure of unliganded MLKL executioner domain Deposited 2020-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2–150（149 aa）
Not recorded CL CHLORIDE ION × 1 BR BROMIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；31 % Polyethylene glycol monomethyl ether 2,000, 0.15 M Potassium bromide, 0.1 M TRIS, pH 9
Resolution 1.37 Å R-free 0.234
6ZZ1 Crystal structure of MLKL executioner domain in complex with a covalent inhibitor Deposited 2020-08-03 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–150（149 aa）
Not recorded QOK 7-(2-methoxyethoxymethyl)-1,3-dimethyl-purine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；32 % Polyethylene glycol monomethyl ether 2,000, 0.15 M Potassium bromide, 0.1 M TRIS, pH 9
Resolution 1.64 Å R-free 0.231
6ZZ1 Crystal structure of MLKL executioner domain in complex with a covalent inhibitor Deposited 2020-08-03 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–150（149 aa）
Not recorded QOK 7-(2-methoxyethoxymethyl)-1,3-dimethyl-purine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；32 % Polyethylene glycol monomethyl ether 2,000, 0.15 M Potassium bromide, 0.1 M TRIS, pH 9
Resolution 1.64 Å R-free 0.231
7JW7 Structure of monobody 27 human MLKL pseudokinase domain complex Deposited 2020-08-25 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 190–471（282 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；281.15 K；0.2 M magnesium chloride, 20% w/v PEG 3350
Resolution 2.63 Å R-free 0.281
7JXU Structure of monobody 32 human MLKL pseudokinase domain complex Deposited 2020-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 190–471（282 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；281.15 K；0.1 M Bis-Tris chloride, pH 6.5, 20 % w/v PEG monomethyl ether 5000
Resolution 2.44 Å R-free 0.240
7JXU Structure of monobody 32 human MLKL pseudokinase domain complex Deposited 2020-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 190–471（282 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；281.15 K；0.1 M Bis-Tris chloride, pH 6.5, 20 % w/v PEG monomethyl ether 5000
Resolution 2.44 Å R-free 0.240
7MON Structure of human RIPK3-MLKL complex Deposited 2021-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 190–471（282 aa）
Not recorded ZL1 N-[4-({2-[(cyclopropanecarbonyl)amino]pyridin-4-yl}oxy)-3-fluorophenyl]-1-(4-fluorophenyl)-2-oxo-1,2-dihydropyridine-3-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；281.15 K；0.2 M ammonium acetate 30%w/v PEG 4000 0.1 M trisodium citrate-citric acid pH 5.5
Resolution 2.23 Å R-free 0.260
7NM2 Solution structure of MLKL executioner domain in complex with a fragment Deposited 2021-02-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–154（153 aa）
Not recorded UJ5 2-[(~{S})-methoxy-(4-propan-2-ylphenyl)methyl]-3~{H}-benzimidazole-5-carboxylic acid × 1 SOLUTION NMR
NMR measurement conditions pH 7.1；298 K；Ionic strength (raw mmCIF value) 170；Pressure 1
NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 170；Pressure 1
NMR sample composition 430 uM [U-13C; U-15N] MLKL executioner domain, 700 uM Cpd 5, 100% D2O | 100% D2O
NMR sample composition 400 uM [U-13C; U-15N] MLKL executioner domain, 700 uM Cpd 5, 93% H2O/7% D2O | 93% H2O/7% D2O
Resolution not provided
7NM4 Solution structure of MLKL executioner domain in complex with a fragment Deposited 2021-02-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–154（153 aa）
Not recorded UJ8 (~{S})-1~{H}-benzimidazol-2-yl-(4-propan-2-ylphenyl)methanol × 1 SOLUTION NMR
NMR measurement conditions pH 7.1；298 K；Ionic strength (raw mmCIF value) 170；Pressure 1
NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 170；Pressure 1
NMR sample composition 385 uM [U-13C; U-15N] MLKL executioner domain, 2000 uM Cpd 3, 100% D2O | 100% D2O
NMR sample composition 315 uM [U-13C; U-15N] MLKL executioner domain, 1600 uM Cpd 3, 93% H2O/7% D2O | 93% H2O/7% D2O
Resolution not provided
7NM5 Solution structure of MLKL executioner domain in complex with a fragment Deposited 2021-02-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–154（153 aa）
Not recorded UJ2 2-[(~{S})-methoxy-(4-phenylphenyl)methyl]-3~{H}-benzimidazole-5-carboxylic acid × 1 SOLUTION NMR
NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 170；Pressure 1
NMR measurement conditions pH 7.1；298 K；Ionic strength (raw mmCIF value) 170；Pressure 1
NMR sample composition 400 uM [U-13C; U-15N] MLKL executioner domain, 700 uM Cpd 7, 93% H2O/7% D2O | 93% H2O/7% D2O
NMR sample composition 430 uM [U-13C; U-15N] MLKL executioner domain, 700 uM Cpd 7, 100% D2O | 100% D2O
Resolution not provided
8SLZ Crystal structure of phosphorylated (T357/S358) human MLKL pseudokinase domain Deposited 2023-04-25 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 190–471（282 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.1 M HEPES pH 7.5, 20%w/v PEG 8000
Resolution 2.30 Å R-free 0.234

21 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MLKL_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 13–166； UniProt 1–154

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

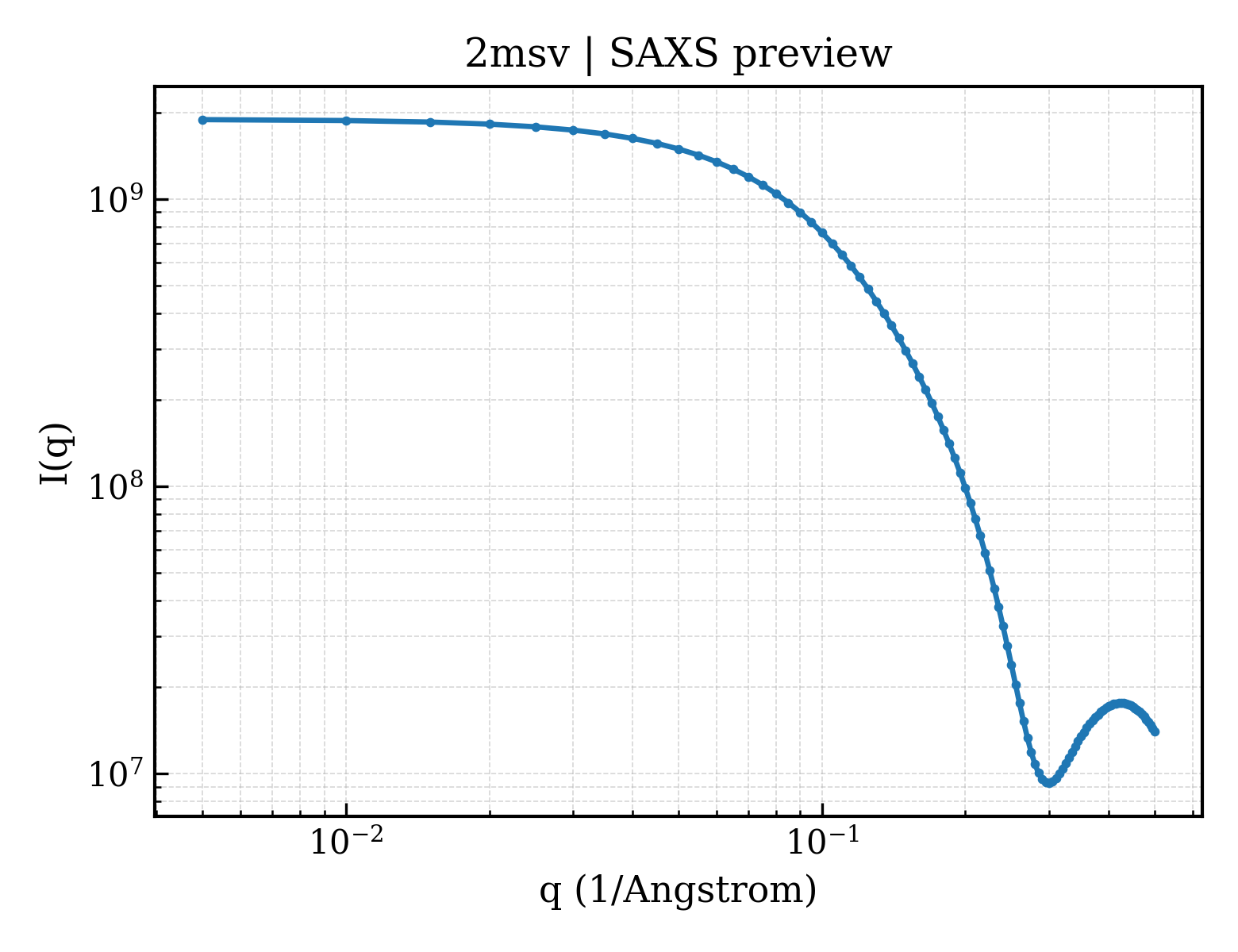

SAXS scattering curve SAXS Profile

SAXS profile for 2msv

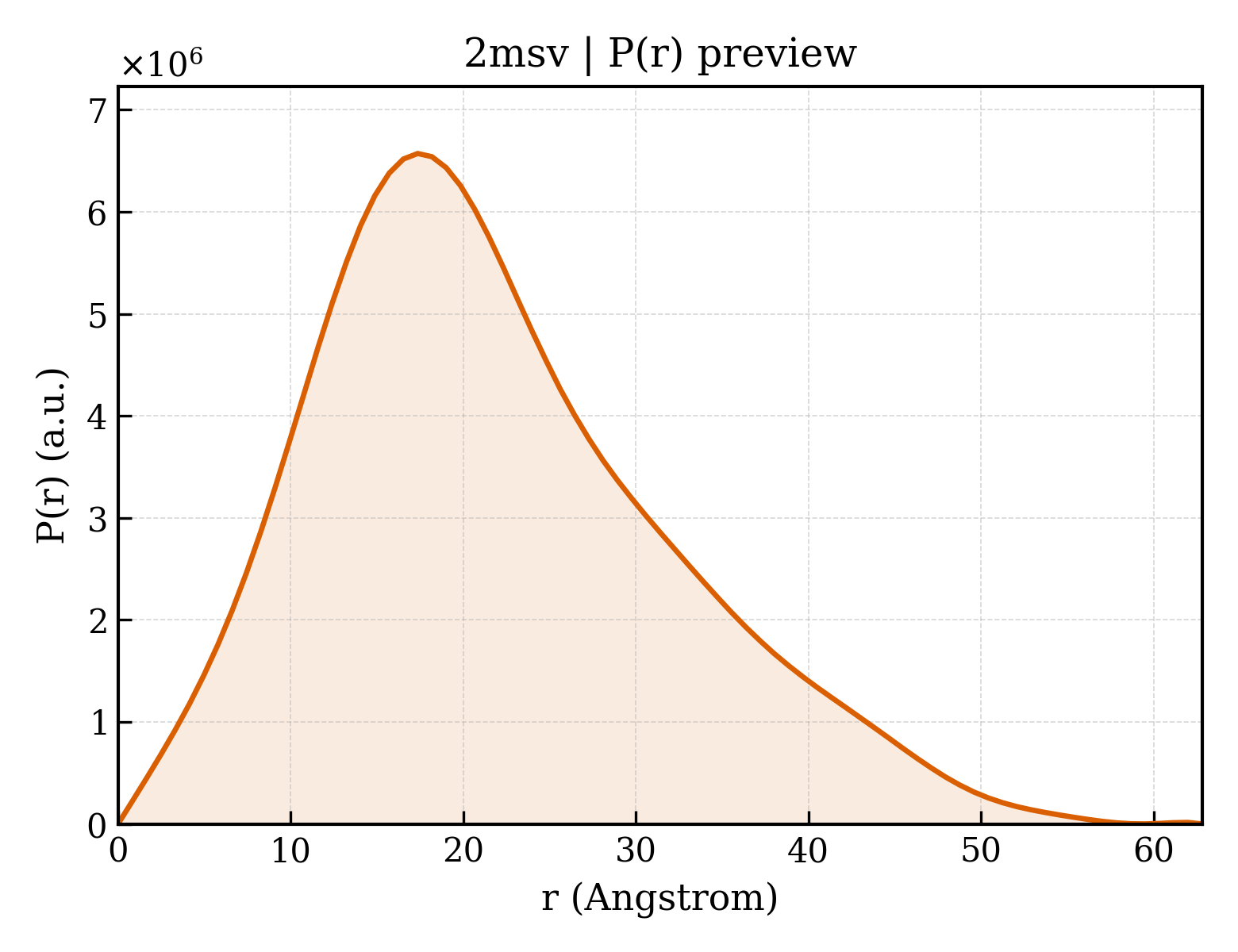

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2msv
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2msv
Deposition date deposition_date2014-08-07
Structure title titleSolution structure of the MLKL N-terminal domain
Keywords keywordsmembrane pore, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier16.86 Å
Radius of gyration Rg (electron density) rg_electron16.69 Å
Forward intensity I(0) i01892840000.00
Molecular weight molecular_weight359500.0 kDa
Excluded volume excluded_volume447100 ų
Envelope volume envelope_volume36144 ų
Hydration-shell volume shell_volume16698 ų
Envelope diameter envelope_diameter69.9 Å
Shell Rg shell_rg24.60 Å
Envelope Rg envelope_rg19.59 Å
Shape Rg shape_rg16.63 Å
Total Rg total_rg16.98 Å
Total atoms total_atoms50960
Residues n_residues3080
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax62.8 Å
Rg (real space) rg_real16.99 Å
Rg uncertainty (real space) rg_real_error0.58 Å
I(0) (real space) i0_real1.8930e+09
I(0) uncertainty (real space) i0_real_error2.5640e+07
Rg (reciprocal space) rg_reciprocal16.97 Å
I(0) (reciprocal space) i0_reciprocal1893000000.0000
Solution quality estimate total_estimate0.7778
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary17.4 Å
Skewness Skewness skewness0.588
Kurtosis Kurtosis kurtosis-0.018
Angular range angular_range— – 0.4700 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha1293000.0000
Real-space data points n_real_points77
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.475; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.690; Smooth: 0.991
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

9. Files and Curves (10)
