SAXSdb — 2na7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor necrosis factor receptor superfamily member 6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 171–198 Chain B； UniProt 171–198 Chain C； UniProt 171–198	Fragment：Helical transmembrane residues 171-198	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.8；303 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition：1 mM [U-100% 13C; U-100% 15N] Human Fas Transmembrane Domain, 60 mM [U-100% 2H] acyl chains DMPC, 120 mM [U-100% 2H] acyl chains DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition：1 mM [U-100% 13C; U-100% 15N; U-85% 2H] Human Fas Transmembrane Domain, 60 mM DMPC, 120 mM DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition：0.5 mM [U-100% 15N; U-100% 2H] Human Fas Transmembrane Domain, 0.5 mM [U-15% 13C] Human Fas Transmembrane Domain, 60 mM [U-100% 2H] acyl chains DMPC, 120 mM [U-100% 2H] acyl chains DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2NA7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DDF FAS DEATH DOMAIN, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1996-11-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 218–335（118 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4	Resolution not provided
3EWT Crystal Structure of calmodulin complexed with a peptide Deposited 2008-10-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 230–254（25 aa） Fragment：Helix(1+2) of death domain	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 5.5；293 K；25%(w/v) PEG8000, 0.2M Sodium Acetate, 0.1M Sodium cacodylate, pH 5.5, EVAPORATION, temperature 293K	Resolution 2.40 Å R-free 0.259
3EZQ Crystal Structure of the Fas/FADD Death Domain Complex Deposited 2008-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 223–335（113 aa） Fragment：Fas DD, UNP residues 223-335 Chain C 223–335（113 aa） Fragment：Fas DD, UNP residues 223-335	Not recorded	SO4 SULFATE ION × 2 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4；291 K；0.95M citric acid, 1.9M ammonium sulfate, pH4, EVAPORATION, temperature 291K	Resolution 2.73 Å R-free 0.278
3EZQ Crystal Structure of the Fas/FADD Death Domain Complex Deposited 2008-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 223–335（113 aa） Fragment：Fas DD, UNP residues 223-335 Chain G 223–335（113 aa） Fragment：Fas DD, UNP residues 223-335	Not recorded	SO4 SULFATE ION × 3 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4；291 K；0.95M citric acid, 1.9M ammonium sulfate, pH4, EVAPORATION, temperature 291K	Resolution 2.73 Å R-free 0.278
3EZQ Crystal Structure of the Fas/FADD Death Domain Complex Deposited 2008-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 223–335（113 aa） Fragment：Fas DD, UNP residues 223-335 Chain K 223–335（113 aa） Fragment：Fas DD, UNP residues 223-335	Not recorded	SO4 SULFATE ION × 4 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4；291 K；0.95M citric acid, 1.9M ammonium sulfate, pH4, EVAPORATION, temperature 291K	Resolution 2.73 Å R-free 0.278
3EZQ Crystal Structure of the Fas/FADD Death Domain Complex Deposited 2008-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 223–335（113 aa） Fragment：Fas DD, UNP residues 223-335 Chain O 223–335（113 aa） Fragment：Fas DD, UNP residues 223-335	Not recorded	SO4 SULFATE ION × 3 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4；291 K；0.95M citric acid, 1.9M ammonium sulfate, pH4, EVAPORATION, temperature 291K	Resolution 2.73 Å R-free 0.278
3THM Crystal structure of Fas receptor extracellular domain in complex with Fab EP6b_B01 Deposited 2011-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 17–172（156 aa） Fragment：extracellular domain	Not recorded	EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG4000, 10% isopropanol, 100 mM HEPES/NaOH, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.10 Å R-free 0.221
3TJE Crystal structure of Fas receptor extracellular domain in complex with Fab E09 Deposited 2011-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 17–172（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 5 CL CHLORIDE ION × 1 CD CADMIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；20% PEG4000, 5 mM CdCl2, 100 mM Tris/HOAc, pH 8.5, vapor diffusion, sitting drop, temperature 277K	Resolution 1.93 Å R-free 0.232
9NCQ Cryo-EM structure of Fas-FADD complex Deposited 2025-02-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric	Chain A 225–320（96 aa） Chain B 225–320（96 aa） Chain C 225–320（96 aa） Chain D 225–320（96 aa） Chain E 225–320（96 aa） Chain F 225–320（96 aa） Chain G 225–320（96 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å

6 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TNR6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–28； UniProt 171–198 Author chain B； PDBConstruct 1–28； UniProt 171–198 Author chain C； PDBConstruct 1–28； UniProt 171–198

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2na7
Deposition date deposition_date	2015-12-21
Structure title title	Transmembrane domain of human Fas/CD95 death receptor
Keywords keywords	;Transmembrane Helix Trimer, Transmembrane Domain, Proline-containing motif, APOPTOSIS, Structural Genomics, PSI-Biology, Membrane Protein Structures by Solution NMR, MPSbyNMR ;; APOPTOSIS
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.57 Å
Radius of gyration Rg (electron density) rg_electron	16.39 Å
Forward intensity I(0) i0	217851000.00
Molecular weight molecular_weight	148730.0 kDa
Excluded volume excluded_volume	197520 Å³
Envelope volume envelope_volume	41318 Å³
Hydration-shell volume shell_volume	17370 Å³
Envelope diameter envelope_diameter	66.3 Å
Shell Rg shell_rg	26.01 Å
Envelope Rg envelope_rg	20.92 Å
Shape Rg shape_rg	16.34 Å
Total Rg total_rg	17.03 Å
Total atoms total_atoms	22545
Residues n_residues	1260
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	64.7 Å
Rg (real space) rg_real	17.71 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	2.1790e+08
I(0) uncertainty (real space) i0_real_error	2.6970e+06
Rg (reciprocal space) rg_reciprocal	17.69 Å
I(0) (reciprocal space) i0_reciprocal	217800000.0000
Solution quality estimate total_estimate	0.6873
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.1 Å
Skewness Skewness skewness	0.433
Kurtosis Kurtosis kurtosis	-0.296
Angular range angular_range	— – 0.4550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	119400.0000
Real-space data points n_real_points	76
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.419; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.673; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	Tumor necrosis factor receptor superfamily member 6
Molecular weight formula_weight	3306.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	22545

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/na/2na7/2na7.fit
pddf	/app/data/pr_computation/na/2na7/2na7.pr.out
profile	/app/data/saxs_computation/na/2na7/2na7.dat

Transmembrane domain of human Fas/CD95 death receptor

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor necrosis factor receptor superfamily member 6

State in the Current Structure

Other States of the Same Protein in the Database

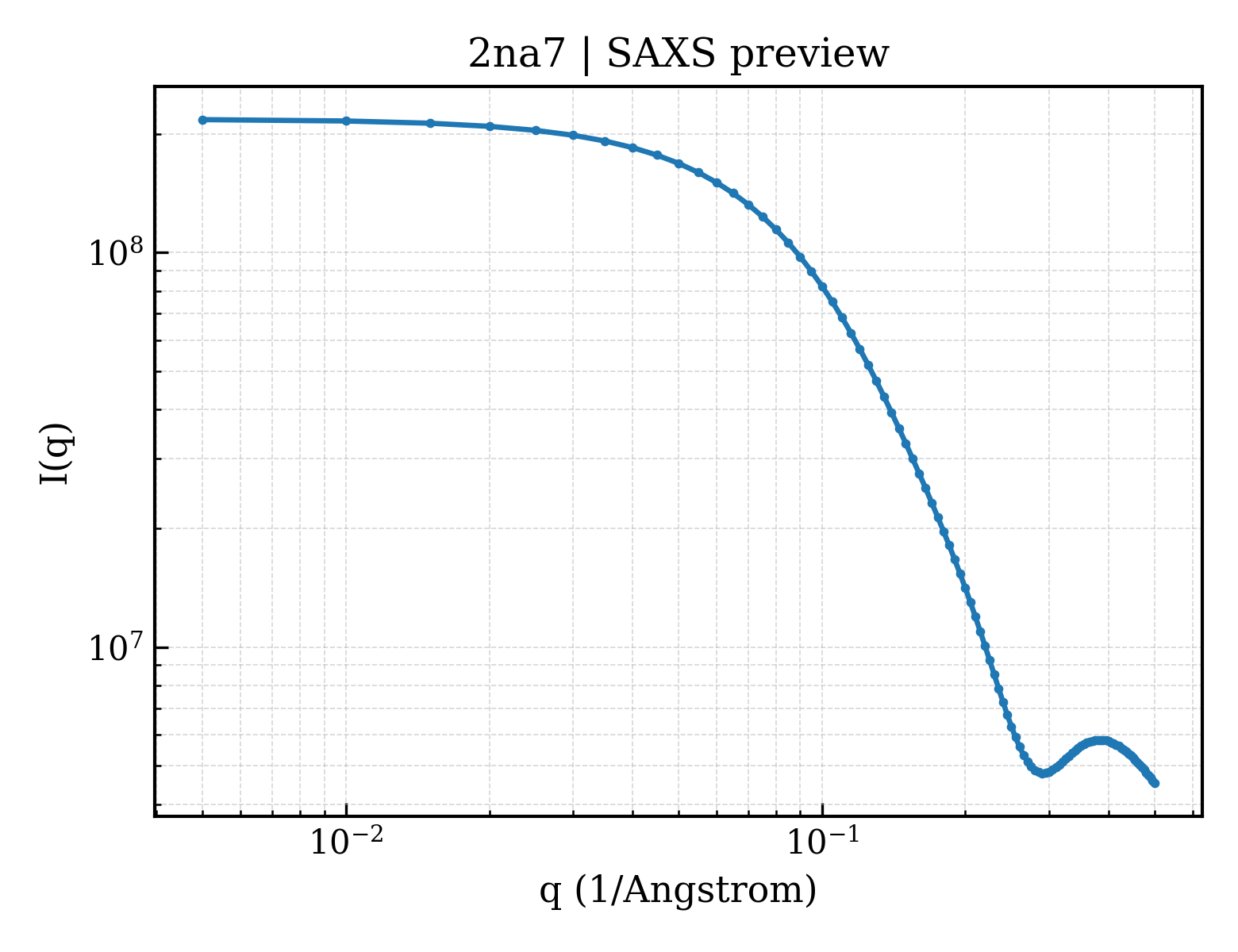

SAXS scattering curve SAXS Profile

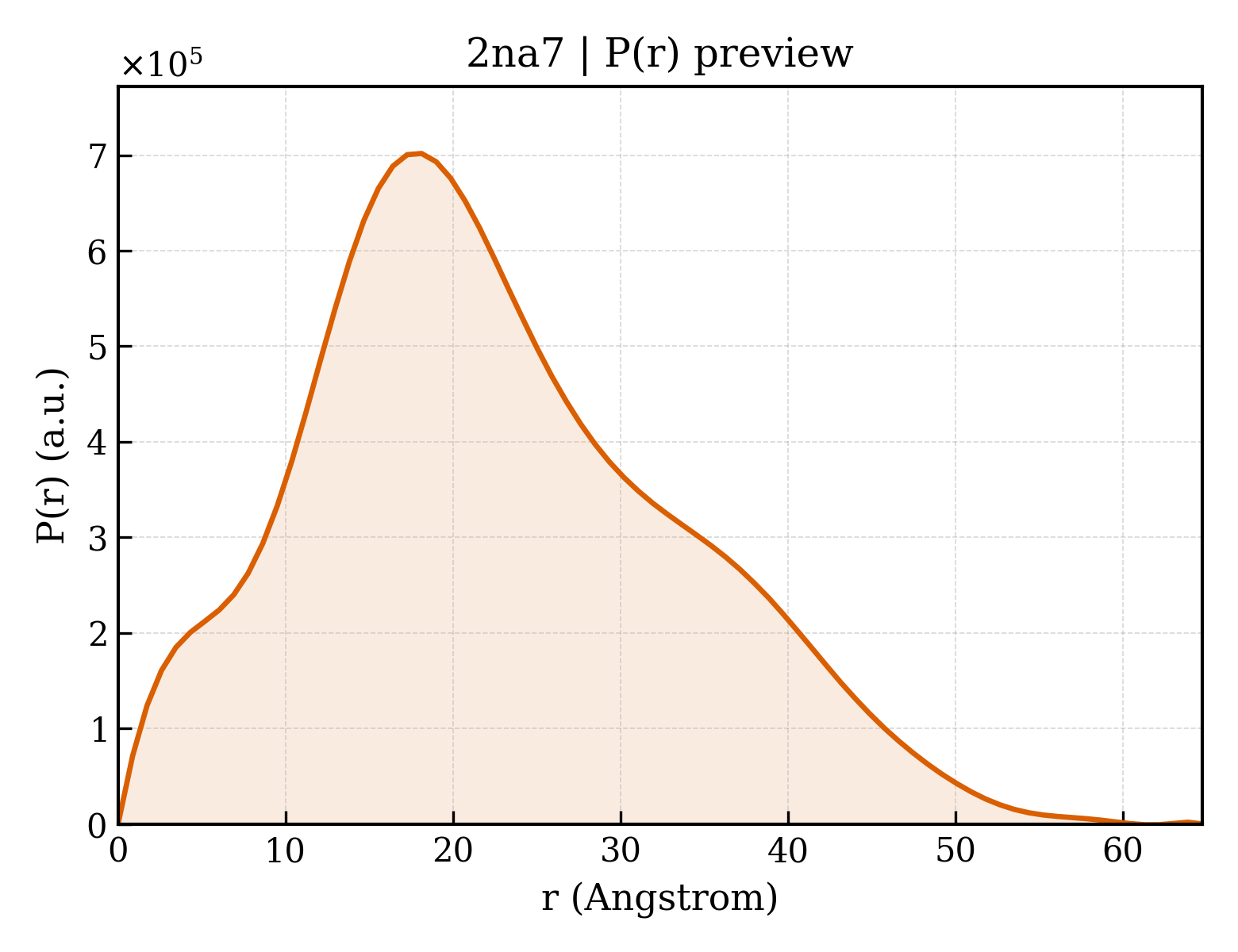

P(r) Distance Distribution P(r) Distribution
