SAXSdb — 2naj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tau-theraphotoxin-Hs1a

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 43–75	Fragment：K2 domain, UNP residues 43-75	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 4；298 K；Pressure ambient NMR sample composition：1 mM K2-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2NAJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2N9Z Solution structure of K1 lobe of double-knot toxin Deposited 2015-12-16	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–42（42 aa） Fragment：K1 domain, UNP residues 1-42	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4；298 K；Pressure ambient NMR sample composition 1 mM K1-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5IRX Structure of TRPV1 in complex with DkTx and RTX, determined in lipid nanodisc Deposited 2016-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–75（75 aa） Chain F 1–75（75 aa）	Not recorded	6O8 (4R,7S)-4-hydroxy-N,N,N-trimethyl-4,9-dioxo-7-[(pentanoyloxy)methyl]-3,5,8-trioxa-4lambda~5~-phosphatetradecan-1-aminium × 4 6OE (2S)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(hexanoyloxy)propyl hexanoate × 8 6EU resiniferatoxin × 4 6O9 (2S)-2-(acetyloxy)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}propyl pentanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；Blot for 6 seconds before plunging into liquid ethane (FEI VITROBOT MARK III).	Resolution 2.95 Å
6CUC Solution structure of double knot toxin (DkTx) Deposited 2018-03-25	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–79（79 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.8；298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 300 uM [U-13C; U-15N] DkTx, 20 mM sodium phosphate, 10 uM DSS, 0.02 % w/v sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
7L2M Cryo-EM structure of DkTx/RTX-bound full-length TRPV1 Deposited 2020-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–75（75 aa） Chain F 1–75（75 aa）	Not recorded	6EU resiniferatoxin × 4 NA SODIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.84 Å
7L2R Cryo-EM structure of DkTx-bound minimal TRPV1 at the pre-open state Deposited 2020-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–75（75 aa） Chain F 1–75（75 aa）	Not recorded	XJ7 (2S)-1-(butanoyloxy)-3-{[(R)-hydroxy{[(1r,2R,3S,4S,5R,6S)-2,3,4,5,6-pentahydroxycyclohexyl]oxy}phosphoryl]oxy}propan-2-yl tridecanoate × 4 65I (9R,12R)-15-amino-12-hydroxy-6,12-dioxo-7,11,13-trioxa-12lambda~5~-phosphapentadecan-9-yl undecanoate × 4 NA SODIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7L2T cryo-EM structure of DkTx-bound minimal TRPV1 in partial open state Deposited 2020-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–75（75 aa） Chain F 1–75（75 aa）	Not recorded	XJ7 (2S)-1-(butanoyloxy)-3-{[(R)-hydroxy{[(1r,2R,3S,4S,5R,6S)-2,3,4,5,6-pentahydroxycyclohexyl]oxy}phosphoryl]oxy}propan-2-yl tridecanoate × 4 NA SODIUM ION × 1 65I (9R,12R)-15-amino-12-hydroxy-6,12-dioxo-7,11,13-trioxa-12lambda~5~-phosphapentadecan-9-yl undecanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
7L2U cryo-EM structure of DkTx-bound minimal TRPV1 in open state Deposited 2020-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–75（75 aa） Chain F 1–75（75 aa）	Not recorded	XJ7 (2S)-1-(butanoyloxy)-3-{[(R)-hydroxy{[(1r,2R,3S,4S,5R,6S)-2,3,4,5,6-pentahydroxycyclohexyl]oxy}phosphoryl]oxy}propan-2-yl tridecanoate × 4 XKP (11R,14S)-17-amino-14-hydroxy-8,14-dioxo-9,13,15-trioxa-14lambda~5~-phosphaheptadecan-11-yl decanoate × 4 NA SODIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DKTX_HAPSC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–33； UniProt 43–75

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2naj
Deposition date deposition_date	2016-01-04
Structure title title	Solution structure of K2 lobe of double-knot toxin
Keywords keywords	trpv1, toxins, tarantula, spider, ICK, double-knot toxin, DkTx, K2, TOXIN; TOXIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	8.25 Å
Radius of gyration Rg (electron density) rg_electron	8.95 Å
Forward intensity I(0) i0	86661100.00
Molecular weight molecular_weight	73285.0 kDa
Excluded volume excluded_volume	89535 Å³
Envelope volume envelope_volume	9390 Å³
Hydration-shell volume shell_volume	7653 Å³
Envelope diameter envelope_diameter	35.8 Å
Shell Rg shell_rg	16.08 Å
Envelope Rg envelope_rg	11.38 Å
Shape Rg shape_rg	9.00 Å
Total Rg total_rg	9.06 Å
Total atoms total_atoms	9660
Residues n_residues	660
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	30.6 Å
Rg (real space) rg_real	8.25 Å
Rg uncertainty (real space) rg_real_error	0.41 Å
I(0) (real space) i0_real	8.6660e+07
I(0) uncertainty (real space) i0_real_error	9.4580e+05
Rg (reciprocal space) rg_reciprocal	8.25 Å
I(0) (reciprocal space) i0_reciprocal	86660000.0000
Solution quality estimate total_estimate	0.7369
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	9.7 Å
Skewness Skewness skewness	0.379
Kurtosis Kurtosis kurtosis	0.016
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	18200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.571; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.877; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	Tau-theraphotoxin-Hs1a
Molecular weight formula_weight	3686.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9660

fit	/app/data/saxs_computation/na/2naj/2naj.fit
pddf	/app/data/pr_computation/na/2naj/2naj.pr.out
profile	/app/data/saxs_computation/na/2naj/2naj.dat

Solution structure of K2 lobe of double-knot toxin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tau-theraphotoxin-Hs1a

State in the Current Structure

Other States of the Same Protein in the Database

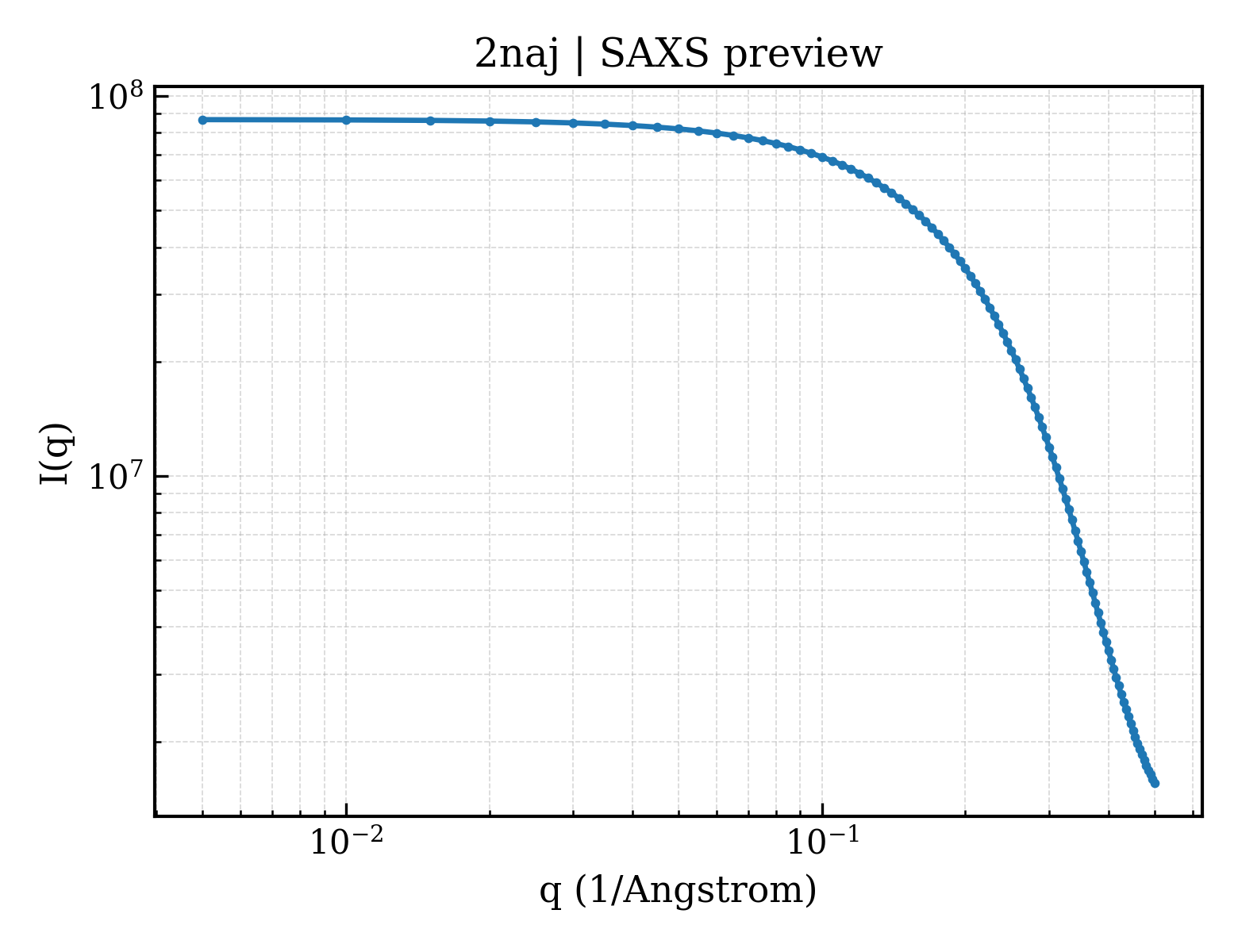

SAXS scattering curve SAXS Profile
