SAXSdb — 2od1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein CBFA2T1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 510–559	Fragment：MYND domain	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions：pH 6.8；303 K；Pressure 1 NMR sample composition：1-2mM protein, 25mM Bis-Tris, 5mM DTT, 50uM ZnCl2, 95% H20, 5% D2O \| 95% H20, 5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2OD1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WQ6 The tetramer structure of the nervy homolgy two (NHR2) domain of AML1-ETO is critical for AML1-ETO'S activity Deposited 2004-09-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 335–403（69 aa） Fragment：NHR2 domain Chain B 335–403（69 aa） Fragment：NHR2 domain	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；293 K；100mM Na citrate (pH 5.6), 100mM MgCl2, 30% MPD, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.270
2DJ8 Solution Structure of zf-MYND Domain of Protein CBFA2TI (Protein MTG8) Deposited 2006-03-31	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 449–450（2 aa） Fragment：zf-MYND	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 0.95mM zf-MYND domain, U-13C, 15N; 20mM d-Tris_HCl (pH 7.0); 100mM NaCl; 1mM d-DTT, 0.02% NaN3; 0.05mM ZnCl2; 1mM IDA; 90% H2O, 10% D20 \| 90% H2O, 10% D20	Resolution not provided
2KNH The Solution structure of the eTAFH domain of AML1-ETO complexed with HEB peptide Deposited 2009-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 119–216（98 aa） Fragment：eTAFH domain (UNP residues 119-216)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 350；Pressure ambient NMR sample composition 25 mM Bis-Tris, 1 mM EDTA, 350 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2KYG Structure of the AML1-ETO Nervy Domain - PKA(RIIa) complex and its contribution to AML1-ETO activity Deposited 2010-05-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 437–467（31 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4；303 K；Ionic strength (raw mmCIF value) 0.0；Pressure ambient NMR sample composition 2 mM [U-99% 13C; U-99% 15N] NHR3, 2 mM [U-99% 13C; U-99% 15N] PKA(RIIa), 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2ODD Solution structure of the MYND domain from AML1-ETO complexed with SMRT, a corepressor Deposited 2006-12-22	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 510–559（50 aa） Fragment：MYND domain (AML1-ETO, residues 658-707)	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 6.8；303 K；Pressure 1 NMR sample composition 2mM SMRT-MYND, 25mM Bis-Tris, pH 6.8, 50uM ZnCl2, 1mM DTT, 95%H2O, 5% D2O \| 95% H2O/5% D2O	Resolution not provided
2PP4 Solution Structure of ETO-TAFH refined in explicit solvent Deposited 2007-04-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 119–225（107 aa） Fragment：TAFH domain, residues 119-225	Mutation：F136Y	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；293 K；Pressure ambient NMR sample composition 1.1 mM protein, 200 mM phosphate buffer, 95% H2O, 5% D2O \| 95% H2O/5% D2O	Resolution not provided
4JOL Complex structure of AML1-ETO NHR2 domain with HEB fragment Deposited 2013-03-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 338–400（63 aa） Fragment：NHR2 domain of AML1-ETO (unp residues 338-400) Chain C 338–400（63 aa） Fragment：NHR2 domain of AML1-ETO (unp residues 338-400)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 mM Tris, 20% ETHANOL, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.91 Å R-free 0.252
4JOL Complex structure of AML1-ETO NHR2 domain with HEB fragment Deposited 2013-03-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 338–400（63 aa） Fragment：NHR2 domain of AML1-ETO (unp residues 338-400) Chain D 338–400（63 aa） Fragment：NHR2 domain of AML1-ETO (unp residues 338-400)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 mM Tris, 20% ETHANOL, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.91 Å R-free 0.252

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MTG8_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–60； UniProt 510–559

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2od1
Deposition date deposition_date	2006-12-21
Structure title title	Solution structure of the MYND domain from human AML1-ETO
Keywords keywords	zinc finger, cross-braced topology, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	11.71 Å
Radius of gyration Rg (electron density) rg_electron	11.93 Å
Forward intensity I(0) i0	667421000.00
Molecular weight molecular_weight	178620.0 kDa
Excluded volume excluded_volume	206400 Å³
Envelope volume envelope_volume	30304 Å³
Hydration-shell volume shell_volume	14543 Å³
Envelope diameter envelope_diameter	57.9 Å
Shell Rg shell_rg	23.73 Å
Envelope Rg envelope_rg	18.94 Å
Shape Rg shape_rg	11.97 Å
Total Rg total_rg	12.09 Å
Total atoms total_atoms	22692
Residues n_residues	1550
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

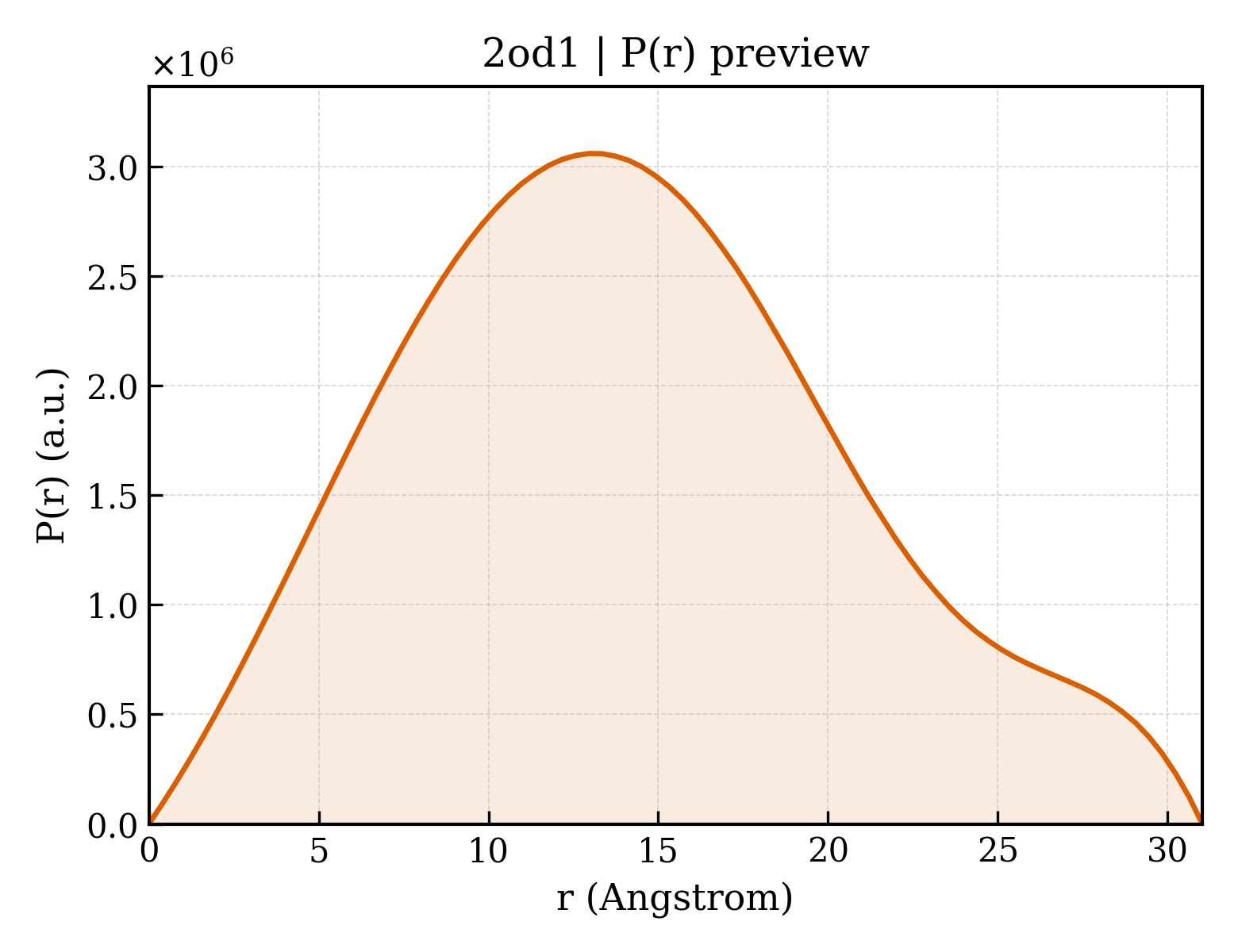

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	31.0 Å
Rg (real space) rg_real	10.96 Å
Rg uncertainty (real space) rg_real_error	0.04 Å
I(0) (real space) i0_real	6.3670e+08
I(0) uncertainty (real space) i0_real_error	4.8310e+06
Rg (reciprocal space) rg_reciprocal	11.89 Å
I(0) (reciprocal space) i0_reciprocal	667400000.0000
Solution quality estimate total_estimate	0.6859
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	13.0 Å
Skewness Skewness skewness	0.294
Kurtosis Kurtosis kurtosis	-0.448
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	4.4060
Highest regularization parameter α highest_alpha	34410.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.002; Oscil: 0.998; Stabil: 0.978; Sysdev: 0.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2od1a_
Class class	g — Small proteins
Fold Fold fold	g.85 — HIT/MYND zinc finger-like
Superfamily Superfamily superfamily	g.85.1 — HIT/MYND zinc finger-like
Family Family family	g.85.1.1 — MYND zinc finger

CATH v4.4 (1 domains)

Domain ID domain_id	2od1A00
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	2220 —

▶

8. Citations (1)

▶

Description description	Protein CBFA2T1
Molecular weight formula_weight	6542.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	22692

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

fit	/app/data/saxs_computation/od/2od1/2od1.fit
pddf	/app/data/pr_computation/od/2od1/2od1.pr.out
profile	/app/data/saxs_computation/od/2od1/2od1.dat
