2psn

Crystal structure of enolase1

Method: X-RAY DIFFRACTION D_max: 133.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-enolase

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–434 Chain B； UniProt 1–434	Not recorded	MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；20% to 24% (w/v) PEG 3350, 100 mM Tris-HCl (pH 7.5), 200 mM ammoniumsulfate, 1 mM DTT., VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.217
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–434 Chain D； UniProt 1–434	Not recorded	MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；20% to 24% (w/v) PEG 3350, 100 mM Tris-HCl (pH 7.5), 200 mM ammoniumsulfate, 1 mM DTT., VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.217

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2PSN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3B97 Crystal Structure of human Enolase 1 Deposited 2007-11-02	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–434（433 aa） Chain B 2–434（433 aa）	Not recorded	MG MAGNESIUM ION × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；100mM Tris-HCl, 20-24% (w/v) PEG 3350, 200mM ammonium sulfate, 1mM DTT, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.217
3B97 Crystal Structure of human Enolase 1 Deposited 2007-11-02	Different construct Different ligand/ion Different experimental conditions	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 2–434（433 aa） Chain D 2–434（433 aa）	Not recorded	MG MAGNESIUM ION × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；100mM Tris-HCl, 20-24% (w/v) PEG 3350, 200mM ammonium sulfate, 1mM DTT, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.217
5NI9 Crystal structure of HLA-DRB1*04:01 with the alpha-enolase peptide 326-340 Deposited 2017-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 326–340（15 aa） Fragment：UNP residues 326-340	Not recorded	MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 URE UREA × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M pH 6.5 10% (vol/vol) MPD 15% (vol/vol) PEG3350	Resolution 1.33 Å R-free 0.176
5NIG Crystal structure of HLA-DRB1*04:01 with modified alpha-enolase peptide 326-340 (arginine 327 to citrulline) Deposited 2017-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 326–340（15 aa） Fragment：UNP Residues 326-340	Non-standard monomer：Yes (specific site not provided by mmCIF)	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 3 URE UREA × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M MES pH 6.5 10% (vol/vol) MPD 15% (vol/vol) PEG 3350	Resolution 1.35 Å R-free 0.181

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ENOA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–434； UniProt 1–434 Author chain B； PDBConstruct 1–434； UniProt 1–434 Author chain C； PDBConstruct 1–434； UniProt 1–434 Author chain D； PDBConstruct 1–434； UniProt 1–434

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

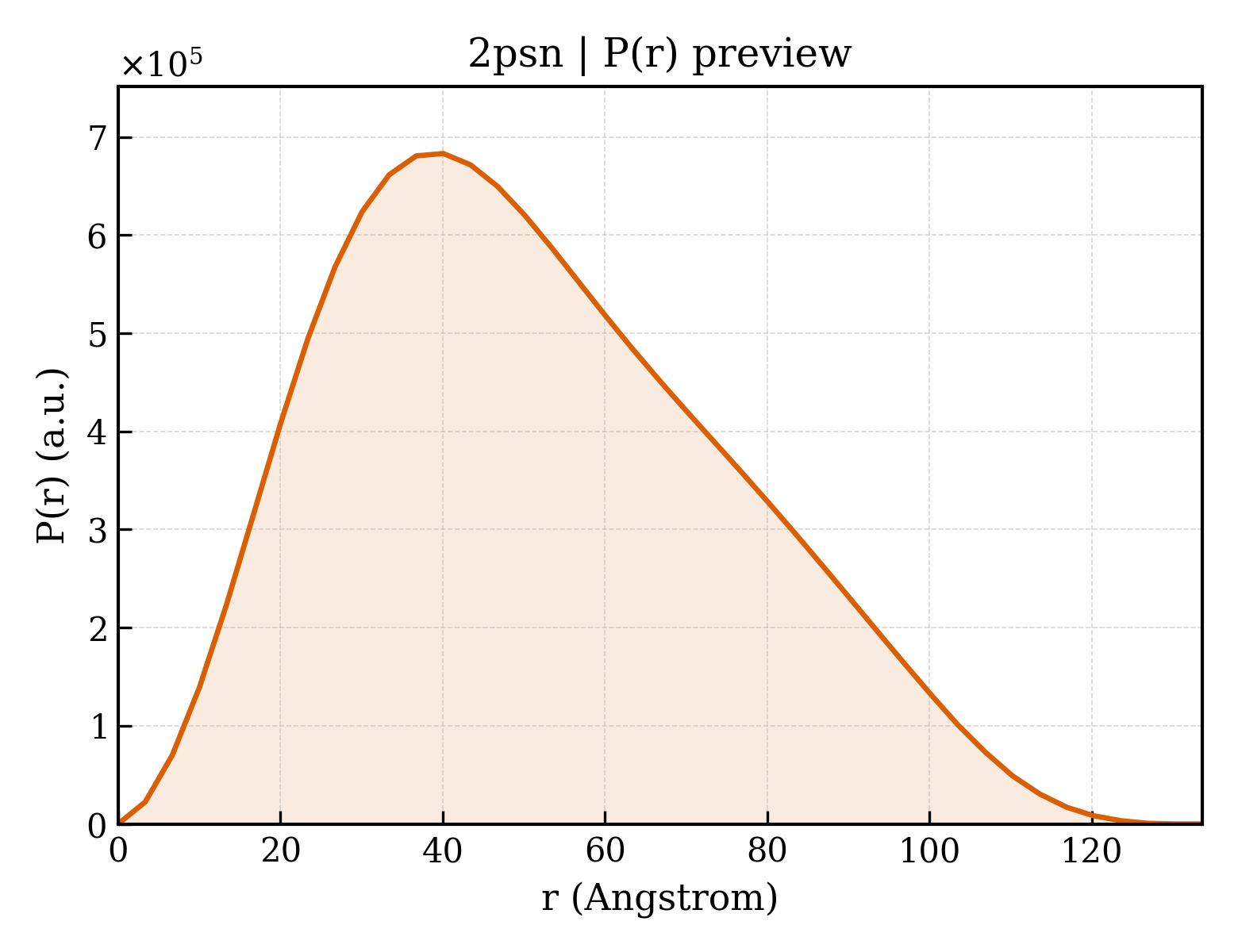

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2psn
Deposition date deposition_date	2007-05-07
Structure title title	Crystal structure of enolase1
Keywords keywords	Enolase1, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.87 Å
Radius of gyration Rg (electron density) rg_electron	39.94 Å
Forward intensity I(0) i0	523824000.00
Molecular weight molecular_weight	188220.0 kDa
Excluded volume excluded_volume	235830 Å³
Envelope volume envelope_volume	282560 Å³
Hydration-shell volume shell_volume	58908 Å³
Envelope diameter envelope_diameter	136.4 Å
Shell Rg shell_rg	45.58 Å
Envelope Rg envelope_rg	39.69 Å
Shape Rg shape_rg	39.93 Å
Total Rg total_rg	40.24 Å
Total atoms total_atoms	13221
Residues n_residues	1728
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	133.6 Å
Rg (real space) rg_real	40.04 Å
Rg uncertainty (real space) rg_real_error	1.27 Å
I(0) (real space) i0_real	5.2380e+08
I(0) uncertainty (real space) i0_real_error	1.0050e+07
Rg (reciprocal space) rg_reciprocal	39.94 Å
I(0) (reciprocal space) i0_reciprocal	523800000.0000
Solution quality estimate total_estimate	0.8033
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	40.1 Å
Skewness Skewness skewness	0.401
Kurtosis Kurtosis kurtosis	-0.517
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	180300000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.833; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Alpha-enolase
Molecular weight formula_weight	47229.9 kDa
EC 编号 ec_number	4.2.1.11
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13815

MSILKIHAREIFDSRGNPTVEVDLFTSKGLFRAAVPSGASTGIYEALELRDNDKTRYMGKGVSKAVEHINKTIAPALVSKKLNVTEQEKIDKLMIEMDGTENKSKFGANAILGVSLAVCKAGAVEKGVPLYRHIADLAGNSEVILPVPAFNVINGGSHAGNKLAMQEFMILPVGAANFREAMRIGAEVYHNLKNVIKEKYGKDATNVGDEGGFAPNILENKEGLELLKTAIGKAGYTDKVVIGMDVAASEFFRSGKYDLDFKSPDDPSRYISPDQLADLYKSFIKDYPVVSIEDPFDQDDWGAWQKFTASAGIQVVGDDLTVTNPKRIAKAVNEKSCNCLLLKVNQIGSVTESLQACKLAQANGWGVMVSHRSGETEDTFIADLVVGLCTGQIKTGAPCRSERLAKYNQLLRIEEELGSKAKFAGRNFRNPLAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	594

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2psna1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.0 — automated matches

Domain ID domain_id	d2psna2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.1 — Enolase

Domain ID domain_id	d2psnb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.0 — automated matches

Domain ID domain_id	d2psnb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.1 — Enolase

Domain ID domain_id	d2psnc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.0 — automated matches

Domain ID domain_id	d2psnc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.1 — Enolase

Domain ID domain_id	d2psnd1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.0 — automated matches

Domain ID domain_id	d2psnd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.1 — Enolase

CATH v4.4 (8 domains)

Domain ID domain_id	2psnA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	2psnA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	2psnB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	2psnB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	2psnC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	2psnC02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	2psnD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	2psnD02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	192.796 Å
Unit-cell length b length_b	192.796 Å
Unit-cell length c length_c	65.170 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 42
Space-group number int_tables_number	77
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1840
R_work r_work	0.1840
R_free r_free	0.2170
