SAXSdb — 2pux

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thrombin light chain

Mus musculus

UniProt P19221

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 317–360 Chain B； UniProt 361–618	Not recorded	Proteinase-activated receptor 3 × 1 （O08675） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；20% PEG 10000, 100 mM HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.225

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2PUX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2OCV Structural basis of Na+ activation mimicry in murine thrombin Deposited 2006-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 319–360（42 aa） Chain B 361–618（258 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；295 K；25% PEG 2000 MME, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K, pH 6.50	Resolution 2.20 Å R-free 0.246
2OCV Structural basis of Na+ activation mimicry in murine thrombin Deposited 2006-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 319–360（42 aa） Chain B 361–618（258 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；295 K；25% PEG 2000 MME, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K, pH 6.50	Resolution 2.20 Å R-free 0.246
2PV9 Crystal structure of murine thrombin in complex with the extracellular fragment of murine PAR4 Deposited 2007-05-09	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 317–360（44 aa） Chain B 361–618（258 aa）	Mutation：S195A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；295 K；20% PEG 3350, 200 mM MgSO4, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.50 Å R-free 0.319
2PV9 Crystal structure of murine thrombin in complex with the extracellular fragment of murine PAR4 Deposited 2007-05-09	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 317–360（44 aa） Chain B 361–618（258 aa）	Mutation：S195A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；295 K；20% PEG 3350, 200 mM MgSO4, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.50 Å R-free 0.319
3EDX Crystal structure of the W215A/E217A mutant of murine thrombin Deposited 2008-09-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 317–360（44 aa） Chain B 361–618（258 aa）	Mutation：W215A, E217A	SO4 SULFATE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；295 K；0.2M NA2SO4, 20 % PEG 3350, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.40 Å R-free 0.243
3EDX Crystal structure of the W215A/E217A mutant of murine thrombin Deposited 2008-09-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 317–360（44 aa） Chain D 361–618（258 aa）	Mutation：W215A, E217A	SO4 SULFATE ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；295 K；0.2M NA2SO4, 20 % PEG 3350, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.40 Å R-free 0.243
3EDX Crystal structure of the W215A/E217A mutant of murine thrombin Deposited 2008-09-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 317–360（44 aa） Chain F 361–618（258 aa）	Mutation：W215A, E217A	SO4 SULFATE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；295 K；0.2M NA2SO4, 20 % PEG 3350, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.40 Å R-free 0.243
3HK3 Crystal structure of murine thrombin mutant W215A/E217A (one molecule in the asymmetric unit) Deposited 2009-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 317–360（44 aa） Fragment：Light chain: UNP residues 317-360 Chain B 361–618（258 aa） Fragment：Heavy chain: UNP residues 361-618	Mutation：W215A, E217A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；200mM Ammonium chloride, 20% PEG 3350, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.94 Å R-free 0.235
3HK6 Crystal structure of murine thrombin mutant W215A/E217A (two molecules in the asymmetric unit) Deposited 2009-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 317–360（44 aa） Fragment：Light chain: UNP residues 317-360 Chain B 361–618（258 aa） Fragment：Heavy chain: UNP residues 361-618	Mutation：W215A, E217A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；295 K；200mM Ammonium dihydrogen phosphate, 14% PEG 3350, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.20 Å R-free 0.314
3HK6 Crystal structure of murine thrombin mutant W215A/E217A (two molecules in the asymmetric unit) Deposited 2009-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 317–360（44 aa） Fragment：Light chain: UNP residues 317-360 Chain D 361–618（258 aa） Fragment：Heavy chain: UNP residues 361-618	Mutation：W215A, E217A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；295 K；200mM Ammonium dihydrogen phosphate, 14% PEG 3350, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.20 Å R-free 0.314
3HKI Crystal structure of murine thrombin mutant W215A/E217A in complex with the extracellular fragment of human PAR1 Deposited 2009-05-23	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 317–360（44 aa） Fragment：Light chain: UNP residues 317-360 Chain B 361–618（258 aa） Fragment：Heavy chain: UNP residues 361-618	Mutation：W215A, E217A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；100mM Tris-HCl pH 8.5, 20% PEG 10000, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.20 Å R-free 0.261
3HKI Crystal structure of murine thrombin mutant W215A/E217A in complex with the extracellular fragment of human PAR1 Deposited 2009-05-23	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 317–360（44 aa） Fragment：Light chain: UNP residues 317-360 Chain E 361–618（258 aa） Fragment：Heavy chain: UNP residues 361-618	Mutation：W215A, E217A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；100mM Tris-HCl pH 8.5, 20% PEG 10000, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.20 Å R-free 0.261

6 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	THRB_MOUSE
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–44； UniProt 317–360 Author chain B； PDBConstruct 1–258； UniProt 361–618

Proteinase-activated receptor 3

OrganismNot specified

UniProt O08675

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 44–56	Not recorded	Thrombin light chain × 1 （P19221） Thrombin heavy chain × 1 （P19221） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；20% PEG 10000, 100 mM HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.225

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	PAR3_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–13； UniProt 44–56

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2pux
Deposition date deposition_date	2007-05-09
Structure title title	Crystal structure of murine thrombin in complex with the extracellular fragment of murine PAR3
Keywords keywords	SERINE PROTEASE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.82 Å
Radius of gyration Rg (electron density) rg_electron	18.55 Å
Forward intensity I(0) i0	22245300.00
Molecular weight molecular_weight	36544.0 kDa
Excluded volume excluded_volume	45975 Å³
Envelope volume envelope_volume	51965 Å³
Hydration-shell volume shell_volume	22418 Å³
Envelope diameter envelope_diameter	61.6 Å
Shell Rg shell_rg	25.84 Å
Envelope Rg envelope_rg	18.87 Å
Shape Rg shape_rg	18.54 Å
Total Rg total_rg	19.59 Å
Total atoms total_atoms	2577
Residues n_residues	257
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

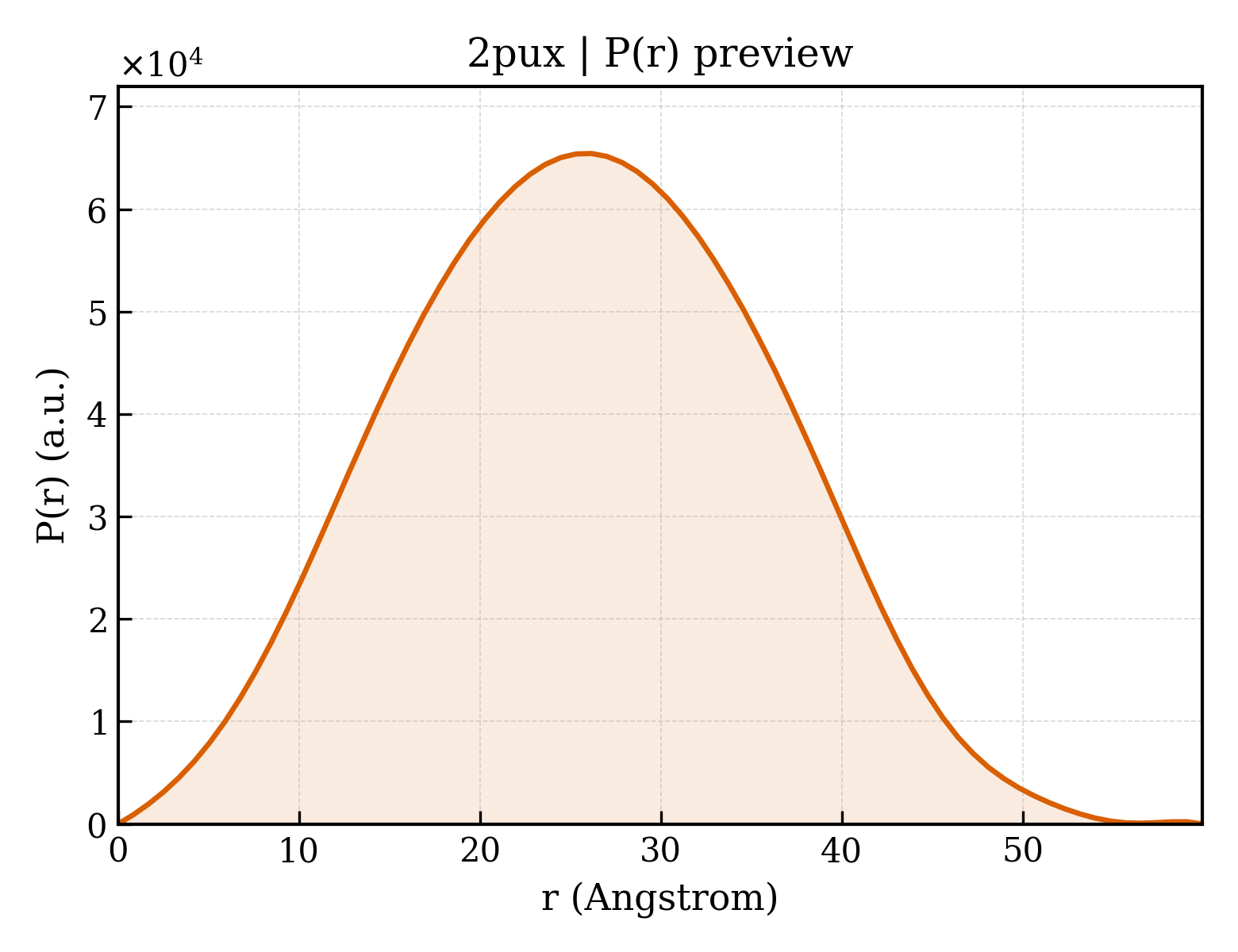

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	59.9 Å
Rg (real space) rg_real	19.63 Å
Rg uncertainty (real space) rg_real_error	0.23 Å
I(0) (real space) i0_real	2.2250e+07
I(0) uncertainty (real space) i0_real_error	2.6480e+05
Rg (reciprocal space) rg_reciprocal	19.66 Å
I(0) (reciprocal space) i0_reciprocal	22250000.0000
Solution quality estimate total_estimate	0.9003
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.2 Å
Skewness Skewness skewness	0.055
Kurtosis Kurtosis kurtosis	-0.491
Angular range angular_range	— – 0.4000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7168000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.992

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Thrombin light chain
Molecular weight formula_weight	5105.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2872

FHTFFNEKTFGLGEADCGLRPLFEKKSLKDTTEKELLDSYIDGR

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	Thrombin heavy chain
Molecular weight formula_weight	29952.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

IVEGWDAEKGIAPWQVMLFRKSPQELLCGASLISDRWVLTAAHCILYPPWDKNFTENDLLVRIGKHSRTRYERNVEKISMLEKIYVHPRYNWRENLDRDIALLKLKKPVPFSDYIHPVCLPDKQTVTSLLRAGYKGRVTGWGNLRETWTTNINEIQPSVLQVVNLPIVERPVCKASTRIRITDNMFCAGFKVNDTKRGDACEGDAGGPFVMKSPFNNRWYQMGIVSWGEGCDRKGKYGFYTHVFRLKRWIQKVIDQFG

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	Proteinase-activated receptor 3
Molecular weight formula_weight	1568.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

QNTFEEFPLSDIE

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	295

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	2puxA00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	140 — Epsilon-Thrombin; Chain L
Homologous superfamily homologous superfamily	10 — Thrombin light chain domain

Domain ID domain_id	2puxB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2puxB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

8. Citations (3)

▶

Unit-cell length a length_a	146.025 Å
Unit-cell length b length_b	48.188 Å
Unit-cell length c length_c	62.046 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.23 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	27.080 Å
R factor r_factor	0.1860
R_work r_work	0.1860
R_free r_free	0.2250

fit	/app/data/saxs_computation/pu/2pux/2pux.fit
pddf	/app/data/pr_computation/pu/2pux/2pux.pr.out
profile	/app/data/saxs_computation/pu/2pux/2pux.dat
