SAXSdb — 2vm5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BACULOVIRAL IAP REPEAT-CONTAINING PROTEIN 1

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 141–244	Fragment：BIR2 DOMAIN, RESIDUES 141-244	ZN ZINC ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5；0.1M CITRIC ACID, PH 5, 20% PEG 6000	Resolution 1.80 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2VM5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8FVU Cryo-EM structure of human Needle/NAIP/NLRC4 (R288A) Deposited 2023-01-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1403（1403 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIRC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–106； UniProt 141–244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2vm5
Deposition date deposition_date	2008-01-23
Structure title title	HUMAN BIR2 DOMAIN OF BACULOVIRAL INHIBITOR OF APOPTOSIS REPEAT- CONTAINING 1 (BIRC1)
Keywords keywords	APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.38 Å
Radius of gyration Rg (electron density) rg_electron	15.96 Å
Forward intensity I(0) i0	3253080.00
Molecular weight molecular_weight	12276.0 kDa
Excluded volume excluded_volume	15208 Å³
Envelope volume envelope_volume	19506 Å³
Hydration-shell volume shell_volume	11316 Å³
Envelope diameter envelope_diameter	69.8 Å
Shell Rg shell_rg	20.64 Å
Envelope Rg envelope_rg	17.61 Å
Shape Rg shape_rg	15.95 Å
Total Rg total_rg	16.97 Å
Total atoms total_atoms	859
Residues n_residues	103
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

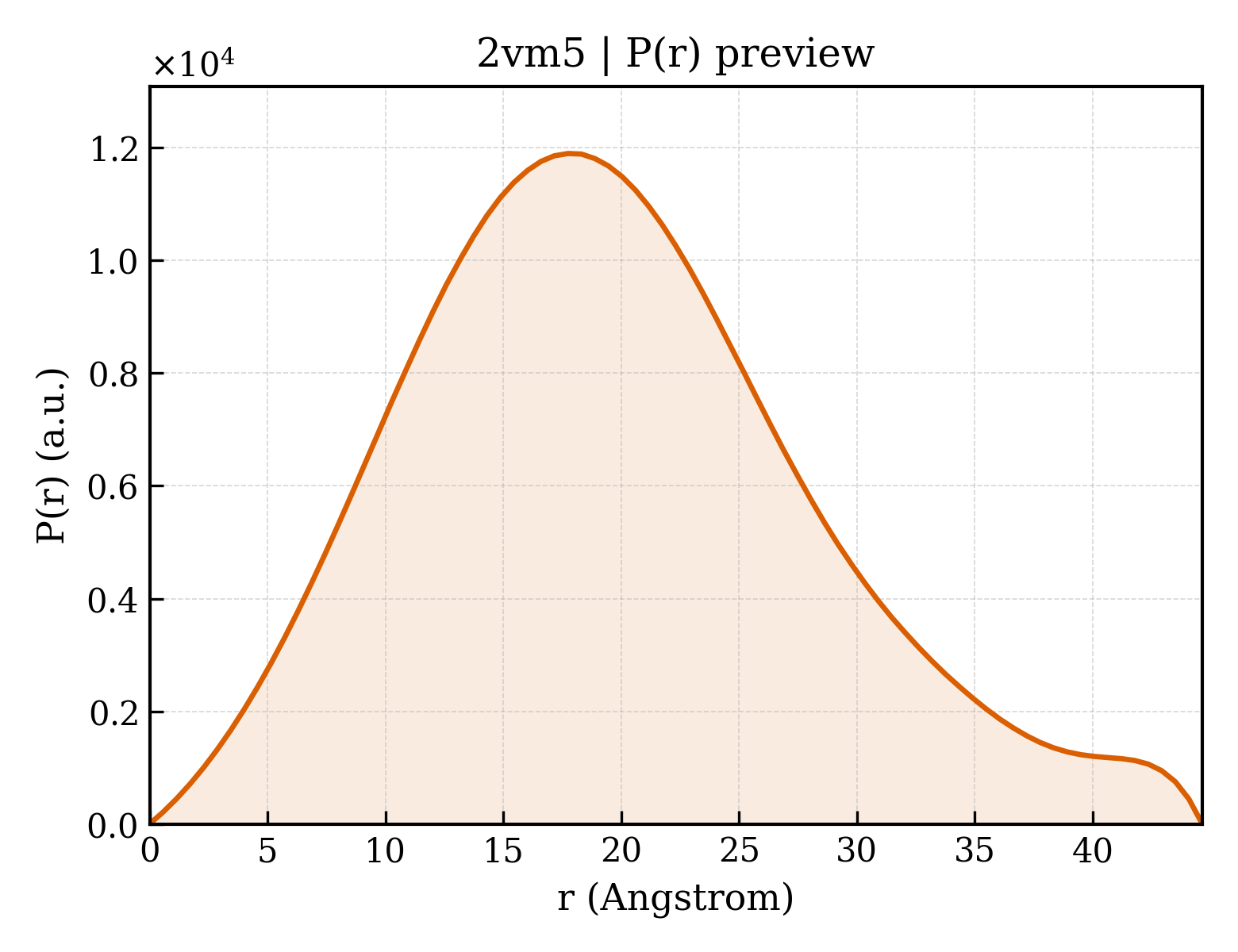

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	44.6 Å
Rg (real space) rg_real	15.03 Å
Rg uncertainty (real space) rg_real_error	0.09 Å
I(0) (real space) i0_real	3.0860e+06
I(0) uncertainty (real space) i0_real_error	3.3200e+04
Rg (reciprocal space) rg_reciprocal	16.66 Å
I(0) (reciprocal space) i0_reciprocal	3253000.0000
Solution quality estimate total_estimate	0.6737
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	17.8 Å
Skewness Skewness skewness	0.419
Kurtosis Kurtosis kurtosis	-0.099
Angular range angular_range	— – 0.4850 Å⁻¹
Current regularization parameter α current_alpha	2.0910
Highest regularization parameter α highest_alpha	768000.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.015; Oscil: 0.930; Stabil: 0.994; Sysdev: 0.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	BACULOVIRAL IAP REPEAT-CONTAINING PROTEIN 1
Molecular weight formula_weight	12376.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	916

SMRVKNLKSRLRGGKMRYQEEEARLASFRNWPFYVQGISPCVLSEAGFVFTGKQDTVQCFSCGGCLGNWEEGDDPWKEHAKWFPKCEFLRSKKSSEEITQYIQSYK

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	51

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2vm5a1
Class class	g — Small proteins
Fold Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family family	g.52.1.0 — automated matches

Domain ID domain_id	d2vm5a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2vm5A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

▶

8. Citations (1)

▶

Unit-cell length a length_a	36.500 Å
Unit-cell length b length_b	43.100 Å
Unit-cell length c length_c	57.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1810
R_work r_work	0.1780
R_free r_free	0.2200
