1. Protein Identity and Related Structures Protein Identity & Related Structures

RETINOL-BINDING PROTEIN 4

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 19–192	Fragment：RESIDUES 19-192	CL CHLORIDE ION × 5 OLA OLEIC ACID × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：3.5 TO 4.2 M NACL, 1M HEPES PH 7.2	Resolution 1.65 Å R-free 0.219

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2WQ9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BRP CRYSTAL STRUCTURE OF THE TRIGONAL FORM OF HUMAN PLASMA RETINOL-BINDING PROTEIN AT 2.5 ANGSTROMS RESOLUTION Deposited 1992-07-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 17–198（182 aa）	Not recorded	RTL RETINOL × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1BRQ CRYSTAL STRUCTURE OF THE TRIGONAL FORM OF HUMAN PLASMA RETINOL-BINDING PROTEIN AT 2.5 ANGSTROMS RESOLUTION Deposited 1992-07-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 17–198（182 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1JYD Crystal Structure of Recombinant Human Serum Retinol-Binding Protein at 1.7 A Resolution Deposited 2001-09-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 17–198（182 aa）	Not recorded	GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；289 K；Sodium cacodylate, sodium chloride, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.270
1JYJ Crystal Structure of a Double Variant (W67L/W91H) of Recombinant Human Serum Retinol-binding Protein at 2.0 A Resolution Deposited 2001-09-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 17–198（182 aa）	Mutation：W67L, W91H	GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.1；289 K；Sodium Chloride, Tris/HCl buffer, beta-octyl-glucoside, pH 9.1, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.00 Å R-free 0.229
1QAB The structure of human retinol binding protein with its carrier protein transthyretin reveals interaction with the carboxy terminus of RBP Deposited 1999-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 24–201（178 aa） Chain F 24–201（178 aa）	Not recorded	RTL RETINOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.403
1RBP CRYSTALLOGRAPHIC REFINEMENT OF HUMAN SERUM RETINOL BINDING PROTEIN AT 2 ANGSTROMS RESOLUTION Deposited 1990-04-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 17–198（182 aa）	Not recorded	RTL RETINOL × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1RLB RETINOL BINDING PROTEIN COMPLEXED WITH TRANSTHYRETIN Deposited 1995-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 17–190（174 aa） Chain F 17–190（174 aa）	Not recorded	REA RETINOIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.10 Å
2WQA Complex of TTR and RBP4 and Oleic Acid Deposited 2009-08-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 19–194（176 aa） Chain F 19–194（176 aa）	Not recorded	SO4 SULFATE ION × 11 OLA OLEIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.85 Å R-free 0.253
2WR6 Structure of the complex of RBP4 with linoleic acid Deposited 2009-08-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–192（174 aa） Fragment：RESIDUES 19-192	Not recorded	CL CHLORIDE ION × 1 ODT (11E,13E,15Z)-OCTADECA-11,13,15-TRIENOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions 3.5-4.2M NACL, 0.1M HEPES, PH 7.2	Resolution 1.80 Å R-free 0.227
3BSZ Crystal structure of the transthyretin-retinol binding protein-Fab complex Deposited 2007-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain E 19–194（176 aa） Chain F 19–194（176 aa）	Not recorded	RTL RETINOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；2.35M ammonium phosphate, 10mM sodium citrate, 10mM beta-mercaptoethanol, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.38 Å R-free 0.312
3FMZ Crystal Structure of Retinol-Binding Protein 4 (RBP4) in complex with non-retinoid ligand Deposited 2008-12-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–201（183 aa）	Not recorded	2T1 2-[({4-[2-(trifluoromethyl)phenyl]piperidin-1-yl}carbonyl)amino]benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；289 K；0.4M Mg formate, 0.1M GndHCl, 0.1M Bis-Tris 6.5, vapor diffusion, temperature 289K	Resolution 2.90 Å R-free 0.286
3FMZ Crystal Structure of Retinol-Binding Protein 4 (RBP4) in complex with non-retinoid ligand Deposited 2008-12-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–201（183 aa）	Not recorded	2T1 2-[({4-[2-(trifluoromethyl)phenyl]piperidin-1-yl}carbonyl)amino]benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；289 K；0.4M Mg formate, 0.1M GndHCl, 0.1M Bis-Tris 6.5, vapor diffusion, temperature 289K	Resolution 2.90 Å R-free 0.286
4O9S Crystal structure of Retinol-Binding Protein 4 (RBP4)in complex with a non-retinoid ligand Deposited 2014-01-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–201（183 aa）	Not recorded	2RY 1-[4-(7-thia-9,11-diazatricyclo[6.4.0.0^{2,6}]dodeca-1(12),2(6),8,10-tetraen-12-yl)piperazin-1-yl]-2-[2-(trifluoromethyl)phenyl]ethanone × 1 EDO 1,2-ETHANEDIOL × 13 CL CHLORIDE ION × 2 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；1M ammonium phosphate dibasic, 0.1M imidazole, 0.2M sodium chloride, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.30 Å R-free 0.261
4O9S Crystal structure of Retinol-Binding Protein 4 (RBP4)in complex with a non-retinoid ligand Deposited 2014-01-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–201（183 aa）	Not recorded	2RY 1-[4-(7-thia-9,11-diazatricyclo[6.4.0.0^{2,6}]dodeca-1(12),2(6),8,10-tetraen-12-yl)piperazin-1-yl]-2-[2-(trifluoromethyl)phenyl]ethanone × 1 EDO 1,2-ETHANEDIOL × 13 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；1M ammonium phosphate dibasic, 0.1M imidazole, 0.2M sodium chloride, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.30 Å R-free 0.261
4O9S Crystal structure of Retinol-Binding Protein 4 (RBP4)in complex with a non-retinoid ligand Deposited 2014-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 19–201（183 aa） Chain B 19–201（183 aa）	Not recorded	2RY 1-[4-(7-thia-9,11-diazatricyclo[6.4.0.0^{2,6}]dodeca-1(12),2(6),8,10-tetraen-12-yl)piperazin-1-yl]-2-[2-(trifluoromethyl)phenyl]ethanone × 2 EDO 1,2-ETHANEDIOL × 26 CL CHLORIDE ION × 3 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；1M ammonium phosphate dibasic, 0.1M imidazole, 0.2M sodium chloride, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.30 Å R-free 0.261
4PSQ Crystal Structure of Retinol-Binding Protein 4 (RBP4) in complex with a non-retinoid ligand Deposited 2014-03-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–201（183 aa） Fragment：UNP residues 19-201	Not recorded	2WL (1-benzyl-1H-imidazol-4-yl)[4-(2-chlorophenyl)piperazin-1-yl]methanone × 1 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；1 M ammonium phosphate dibasic, 0.1 M imidazole, pH 8.0, 200 mM sodium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.287
4PSQ Crystal Structure of Retinol-Binding Protein 4 (RBP4) in complex with a non-retinoid ligand Deposited 2014-03-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–201（183 aa） Fragment：UNP residues 19-201	Not recorded	2WL (1-benzyl-1H-imidazol-4-yl)[4-(2-chlorophenyl)piperazin-1-yl]methanone × 1 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；1 M ammonium phosphate dibasic, 0.1 M imidazole, pH 8.0, 200 mM sodium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.287
5NTY Structure of non-fluorescent human plasma RBP4 Deposited 2017-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–200（182 aa）	Not recorded	PLM PALMITIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICRODIALYSIS；279 K；4.5M NaCl, 20mM Na cacodylate, pH 6.8	Resolution 2.00 Å R-free 0.230
5NU2 Structure of non-fluorescent human urine RBP4 Deposited 2017-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–200（182 aa）	Not recorded	PLM PALMITIC ACID × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；4.3 M NaCl, 100 mM Hepes, pH 7.5	Resolution 1.50 Å R-free 0.184
5NU6 Structure of non-fluorescent human amniotic fluid RBP4 Deposited 2017-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–200（182 aa）	Not recorded	PLM PALMITIC ACID × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；4.3 M NaCl, 100 mM Hepes, pH 7.5	Resolution 1.68 Å R-free 0.197
5NU7 Structure of human holo plasma RBP4 Deposited 2017-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–200（182 aa）	Not recorded	RTL RETINOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICRODIALYSIS；277 K；4.5 M NaCl, 20 mM Na cacodylate, pH 6.8	Resolution 1.50 Å R-free 0.210
5NU8 Structure of human urine RBP4 saturated with palmitate Deposited 2017-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–200（182 aa）	Not recorded	PLM PALMITIC ACID × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；4.3 M NaCl, 100 mM Hepes, pH 7.5	Resolution 1.59 Å R-free 0.212
5NU9 Structure of human amniotic fluid RBP4 saturated with palmitate Deposited 2017-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–200（182 aa）	Not recorded	PLM PALMITIC ACID × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；4.3 M NaCl, 100 mM Hepes, pH 7.5	Resolution 1.50 Å R-free 0.195
5NUA Structure of human urine RBP4 saturated with laurate Deposited 2017-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–200（182 aa）	Not recorded	DAO LAURIC ACID × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；4.3 M NaCl, 100 mM Hepes, pH 7.5	Resolution 1.60 Å R-free 0.197
5NUB Structure of human amniotic fluid RBP4 saturated with laurate Deposited 2017-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–200（182 aa）	Not recorded	DAO LAURIC ACID × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；4.3 M NaCl, 100 mM Hepes, pH 7.5	Resolution 1.60 Å R-free 0.205
6QBA Crystal Structure of Retinol-Binding Protein 4 (RBP4) in complex with non-retinoid ligand A1120 and engineered binding scaffold Deposited 2018-12-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 19–201（183 aa）	Not recorded	2T1 2-[({4-[2-(trifluoromethyl)phenyl]piperidin-1-yl}carbonyl)amino]benzoic acid × 1 IMD IMIDAZOLE × 5 PEG DI(HYDROXYETHYL)ETHER × 1 ZN ZINC ION × 3 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295.15 K；0.2 M Zn acetate 0.1 M imidazole pH 8 20% PEG 3K	Resolution 1.80 Å R-free 0.221

22 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RET4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–174； UniProt 19–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wq9
Deposition date deposition_date	2009-08-14
Structure title title	Crystal Structure of RBP4 bound to Oleic Acid
Keywords keywords	DISEASE MUTATION, SENSORY TRANSDUCTION, SIGNALING PROTEIN, RETINOL-BINDING, VISION, VITAMIN A; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.83 Å
Radius of gyration Rg (electron density) rg_electron	15.50 Å
Forward intensity I(0) i0	8400370.00
Molecular weight molecular_weight	20631.0 kDa
Excluded volume excluded_volume	25540 Å³
Envelope volume envelope_volume	28603 Å³
Hydration-shell volume shell_volume	15296 Å³
Envelope diameter envelope_diameter	54.0 Å
Shell Rg shell_rg	21.71 Å
Envelope Rg envelope_rg	15.99 Å
Shape Rg shape_rg	15.45 Å
Total Rg total_rg	16.71 Å
Total atoms total_atoms	1442
Residues n_residues	173
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.0 Å
Rg (real space) rg_real	16.71 Å
Rg uncertainty (real space) rg_real_error	0.23 Å
I(0) (real space) i0_real	8.4000e+06
I(0) uncertainty (real space) i0_real_error	9.5370e+04
Rg (reciprocal space) rg_reciprocal	16.72 Å
I(0) (reciprocal space) i0_reciprocal	8400000.0000
Solution quality estimate total_estimate	0.8913
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	52.3 Å
Skewness Skewness skewness	0.085
Kurtosis Kurtosis kurtosis	-0.413
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1518000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.869; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.993

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	RETINOL-BINDING PROTEIN 4
Molecular weight formula_weight	20054.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1707

ERDCRVSSFRVKENFDKARFSGTWYAMAKKDPEGLFLQDNIVAEFSVDETGQMSATAKGRVRLLNNWDVCADMVGTFTDTEDPAKFKMKYWGVASFLQKGNDDHWIVDTDYDTYAVQYSCRLLNLDGTCADSYSFVFSRDPNGLPPEAQKIVRQRQEELCLARQYRLIVHNGYC

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	TRICHOPLUSIA NI

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	OLEIC ACID
Molecular weight formula_weight	282.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	233

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2wq9a_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

CATH v4.4 (1 domains)

Domain ID domain_id	2wq9A00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	103.060 Å
Unit-cell length b length_b	103.060 Å
Unit-cell length c length_c	72.710 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	9

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	56.340 Å
R factor r_factor	0.1892
R_work r_work	0.1877
R_free r_free	0.2192

fit	/app/data/saxs_computation/wq/2wq9/2wq9.fit
pddf	/app/data/pr_computation/wq/2wq9/2wq9.pr.out
profile	/app/data/saxs_computation/wq/2wq9/2wq9.dat

Crystal Structure of RBP4 bound to Oleic Acid

1. Protein Identity and Related Structures Protein Identity & Related Structures

RETINOL-BINDING PROTEIN 4

State in the Current Structure

Other States of the Same Protein in the Database

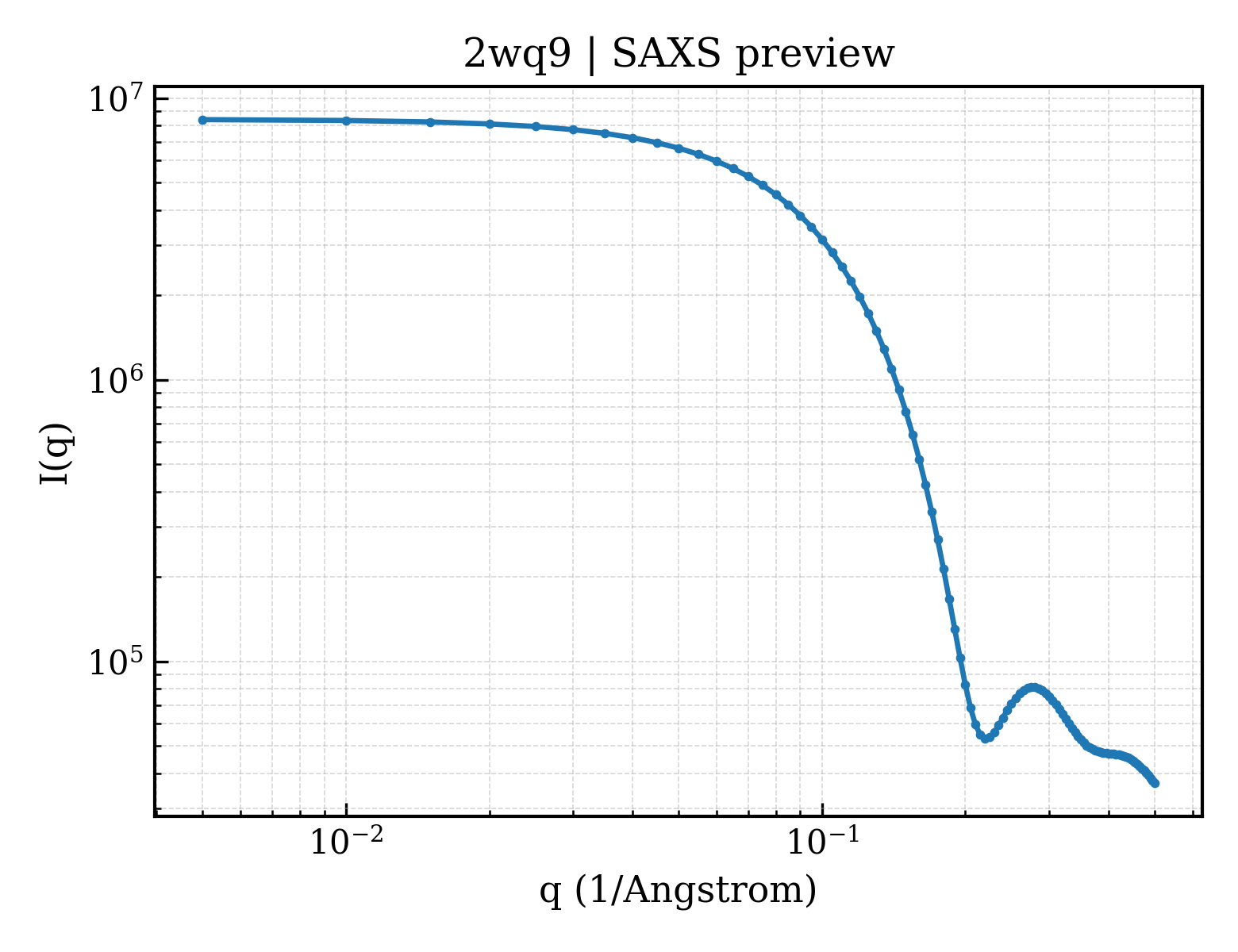

SAXS scattering curve SAXS Profile
