1. Protein Identity and Related Structures Protein Identity & Related Structures

CHROMO DOMAIN-CONTAINING PROTEIN 1

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain X； UniProt 1009–1274	Fragment：DNA BINDING DOMAIN, RESIDUES 1009-1274	GOL GLYCEROL × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；0.1 M TRIS, PH 8.5, 28% PEG 4K, 0.35 M MGCL2	Resolution 2.00 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2XB0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2DY7 Solution structure of the first chromodomain of yeast Chd1 Deposited 2006-09-07	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 172–252（81 aa） Fragment：chromodomain 1	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 300mM NaCl；Pressure ambient NMR sample composition 0.3-0.5mM chromodomain; 20mM potassium phosphate buffer; 30mM d-DTT; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3-0.5mM chromodomain; 20mM potassium phosphate buffer; 30mM d-DTT; 100% D2O \| 100% D2O NMR sample composition 0.3-0.5mM chromodomain U-15N; 20mM potassium phosphate buffer; 30mM d-DTT; 90% H2O, 10% D2O \| 290% H2O, 10% D2O NMR sample composition 0.3-0.5mM chromodomain U-13C,15N; 20mM potassium phosphate buffer; 30mM d-DTT; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3-0.5mM chromodomain U-13C,15N; 20mM potassium phosphate buffer; 30mM d-DTT; 100% D2O \| 100% D2O	Resolution not provided
2DY8 Solution structure of the second chromodomain of yeast Chd1 Deposited 2006-09-07	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–347（69 aa） Fragment：chromodomain 2	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；293 K；Ionic strength (raw mmCIF value) 300mM NaCl；Pressure ambient NMR sample composition 0.3-0.5mM chromodomain; 20mM potassium phosphate buffer; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3-0.5mM chromodomain; 20mM potassium phosphate buffer; 100% D2O \| 100% D2O NMR sample composition 0.3-0.5mM chromodomain U-15N; 20mM potassium phosphate buffer; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3-0.5mM chromodomain U-13C,15N; 20mM potassium phosphate buffer; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3-0.5mM chromodomain U-13C,15N; 20mM potassium phosphate buffer; 100% D2O \| 100% D2O	Resolution not provided
2H1E Tandem chromodomains of budding yeast CHD1 Deposited 2006-05-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 174–339（166 aa） Fragment：chromodomain, residues 174-339 Chain B 174–339（166 aa） Fragment：chromodomain, residues 174-339	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；283 K；10mM BTP, 12mM NaCl, 5mM TCEP, 0.9M ammonium sulfate, 3.75% isopropanol, 4.5mg/ml yeast CHD1 tandem chromodomains, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00	Resolution 2.20 Å R-free 0.246
2H1E Tandem chromodomains of budding yeast CHD1 Deposited 2006-05-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 174–339（166 aa） Fragment：chromodomain, residues 174-339 Chain B 174–339（166 aa） Fragment：chromodomain, residues 174-339	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；283 K；10mM BTP, 12mM NaCl, 5mM TCEP, 0.9M ammonium sulfate, 3.75% isopropanol, 4.5mg/ml yeast CHD1 tandem chromodomains, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00	Resolution 2.20 Å R-free 0.246
3MWY Crystal structure of the chromodomain-ATPase portion of the yeast Chd1 chromatin remodeler Deposited 2010-05-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain W 142–939（798 aa） Fragment：double chromodomains and ATPase motor (UNP residues 142-939)	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；18% PEG 3350; 400 mM K+/Na+ tartrate; 5% xylitol; 10 mM MgCl2; 1 mM ATPgammaS, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.70 Å R-free 0.318
3MWY Crystal structure of the chromodomain-ATPase portion of the yeast Chd1 chromatin remodeler Deposited 2010-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain W 142–939（798 aa） Fragment：double chromodomains and ATPase motor (UNP residues 142-939)	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；18% PEG 3350; 400 mM K+/Na+ tartrate; 5% xylitol; 10 mM MgCl2; 1 mM ATPgammaS, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.70 Å R-free 0.318
3TED Crystal structure of the Chd1 DNA-binding domain in complex with a DNA duplex Deposited 2011-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1006–1274（269 aa） Fragment：SANT/SLIDE DNA-binding domain, UNP residues 1006-1274	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；14-18% PEG 400 0.1 M BisTris, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.249
5J70 The Chd1 DNA-binding domain in complex with 17mer DNA duplex Deposited 2016-04-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1006–1274（269 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；277 K；14% PEG 4000, 0.2M ammonium acetate, 0.01M CaCl2, 0.05 M Na cacodylate, pH 5.5	Resolution 2.96 Å R-free 0.252
5J70 The Chd1 DNA-binding domain in complex with 17mer DNA duplex Deposited 2016-04-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 1006–1274（269 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；277 K；14% PEG 4000, 0.2M ammonium acetate, 0.01M CaCl2, 0.05 M Na cacodylate, pH 5.5	Resolution 2.96 Å R-free 0.252
5O9G Structure of nucleosome-Chd1 complex Deposited 2017-06-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain W 1–1468（1468 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
6G0L Structure of two molecules of the chromatin remodelling enzyme Chd1 bound to a nucleosome Deposited 2018-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain M 1–1468（1468 aa） Chain W 1–1468（1468 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 BEF BERYLLIUM TRIFLUORIDE ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.00 Å
7NKX RNA polymerase II-Spt4/5-nucleosome-Chd1 structure Deposited 2021-02-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric	Chain W 1–1468（1468 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7TN2 Composite model of a Chd1-nucleosome complex in the nucleotide-free state derived from 2.3A and 2.7A Cryo-EM maps Deposited 2022-01-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain W 118–1274（1157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7；20 mM HEPES, pH 7.0, 60 mM KCl, 1.5 mM DTT, 1 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å
9GD1 Structure of Chd1 bound to a hexasome-nucleosome complex with a dyad-to-dyad distance of 103 bp. Deposited 2024-08-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: 17-meric	Chain W 1–1468（1468 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9GD2 Structure of Chd1 bound to a dinucleosome with a dyad-to-dyad distance of 103 bp. Deposited 2024-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric	Chain S 1–1468（1468 aa） Chain T 1–1468（1468 aa） Chain W 1–1468（1468 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
9GD3 Structure of a mononucleosome bound by one copy of Chd1 with the DBD on the exit-side DNA. Deposited 2024-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain T 1–1468（1468 aa） Chain W 1–1468（1468 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9N6H 2.54 A S.cerevisiae Chd1[L886G/L889G/L891G]-nucleosome 1:1 complex Deposited 2025-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain K 122–956（835 aa） Fragment：residues 122-956	Mutation：L886G, L889G, L891G	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.54 Å
9N6I 2.61 A S.cerevisiae Chd1[L886G/L889G/L891G]-nucleosome 2:1 complex Deposited 2025-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain K 122–956（835 aa） Chain L 122–956（835 aa）	Mutation：L886G, L889G, L891G Mutation：L886G, L889G, L891G	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.61 Å
9N6K 2.88 A S.cerevisiae Chd1[L886G/L889G/L891G]-nucleosome 2:1 complex with DNA-binding domain Deposited 2025-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain K 122–1265（1144 aa） Chain L 122–1265（1144 aa）	Mutation：L886G, L889G, L891G Mutation：L886G, L889G, L891G	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9R5S Structural characterisation of chromatin remodelling intermediates supports linker DNA dependent product inhibition as a mechanism for nucleosome spacing. Deposited 2025-05-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric	Chain W 2–1468（1467 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20mM Hepes, 120mM Nacl cryo-EM vitrification conditions Cryogen ETHANE；Vitrified carried out in climate chamber with 100% humidity	Resolution 3.80 Å

17 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CHD1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 5–270； UniProt 1009–1274

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2xb0
Deposition date deposition_date	2010-04-01
Structure title title	DNA-binding domain from Saccharomyces cerevisiae chromatin- remodelling protein Chd1
Keywords keywords	HYDROLASE, DNA-BINDING PROTEIN, TRANSCRIPTION, CHROMATIN REGULATOR; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.17 Å
Radius of gyration Rg (electron density) rg_electron	23.47 Å
Forward intensity I(0) i0	11620300.00
Molecular weight molecular_weight	26324.0 kDa
Excluded volume excluded_volume	33346 Å³
Envelope volume envelope_volume	45750 Å³
Hydration-shell volume shell_volume	17707 Å³
Envelope diameter envelope_diameter	85.6 Å
Shell Rg shell_rg	28.03 Å
Envelope Rg envelope_rg	23.63 Å
Shape Rg shape_rg	23.44 Å
Total Rg total_rg	24.24 Å
Total atoms total_atoms	3741
Residues n_residues	233
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	81.9 Å
Rg (real space) rg_real	24.29 Å
Rg uncertainty (real space) rg_real_error	0.69 Å
I(0) (real space) i0_real	1.1620e+07
I(0) uncertainty (real space) i0_real_error	1.6030e+05
Rg (reciprocal space) rg_reciprocal	24.26 Å
I(0) (reciprocal space) i0_reciprocal	11620000.0000
Solution quality estimate total_estimate	0.8669
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.0 Å
Skewness Skewness skewness	0.400
Kurtosis Kurtosis kurtosis	-0.365
Angular range angular_range	— – 0.3300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2087000.0000
Real-space data points n_real_points	65
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.843; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.834; Smooth: 0.901

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CHROMO DOMAIN-CONTAINING PROTEIN 1
Molecular weight formula_weight	30314.7 kDa
EC 编号 ec_number	3.6.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	3892

GPLGSIGESEVRALYKAILKFGNLKEILDELIADGTLPVKSFEKYGETYDEMMEAAKDCVHEEEKNRKEILEKLEKHATAYRAKLKSGEIKAENQPKDNPLTRLSLKKREKKAVLFNFKGVKSLNAESLLSRVEDLKYLKNLINSNYKDDPLKFSLGNNTPKPVQNWSSNWTKEEDEKLLIGVFKYGYGSWTQIRDDPFLGITDKIFLNEVHNPVAKKSASSSDTTPTPSKKGKGITGSSKKVPGAIHLGRRVDYLLSFLRGGLNTKSPS

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	109

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2xb0X01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	1440 —

Domain ID domain_id	2xb0X02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.450 Å
Unit-cell length b length_b	91.120 Å
Unit-cell length c length_c	98.510 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	49.255 Å
R factor r_factor	0.2093
R_work r_work	0.2050
R_free r_free	0.2479

fit	/app/data/saxs_computation/xb/2xb0/2xb0.fit
pddf	/app/data/pr_computation/xb/2xb0/2xb0.pr.out
profile	/app/data/saxs_computation/xb/2xb0/2xb0.dat

DNA-binding domain from Saccharomyces cerevisiae chromatin- remodelling protein Chd1

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHROMO DOMAIN-CONTAINING PROTEIN 1

State in the Current Structure

Other States of the Same Protein in the Database

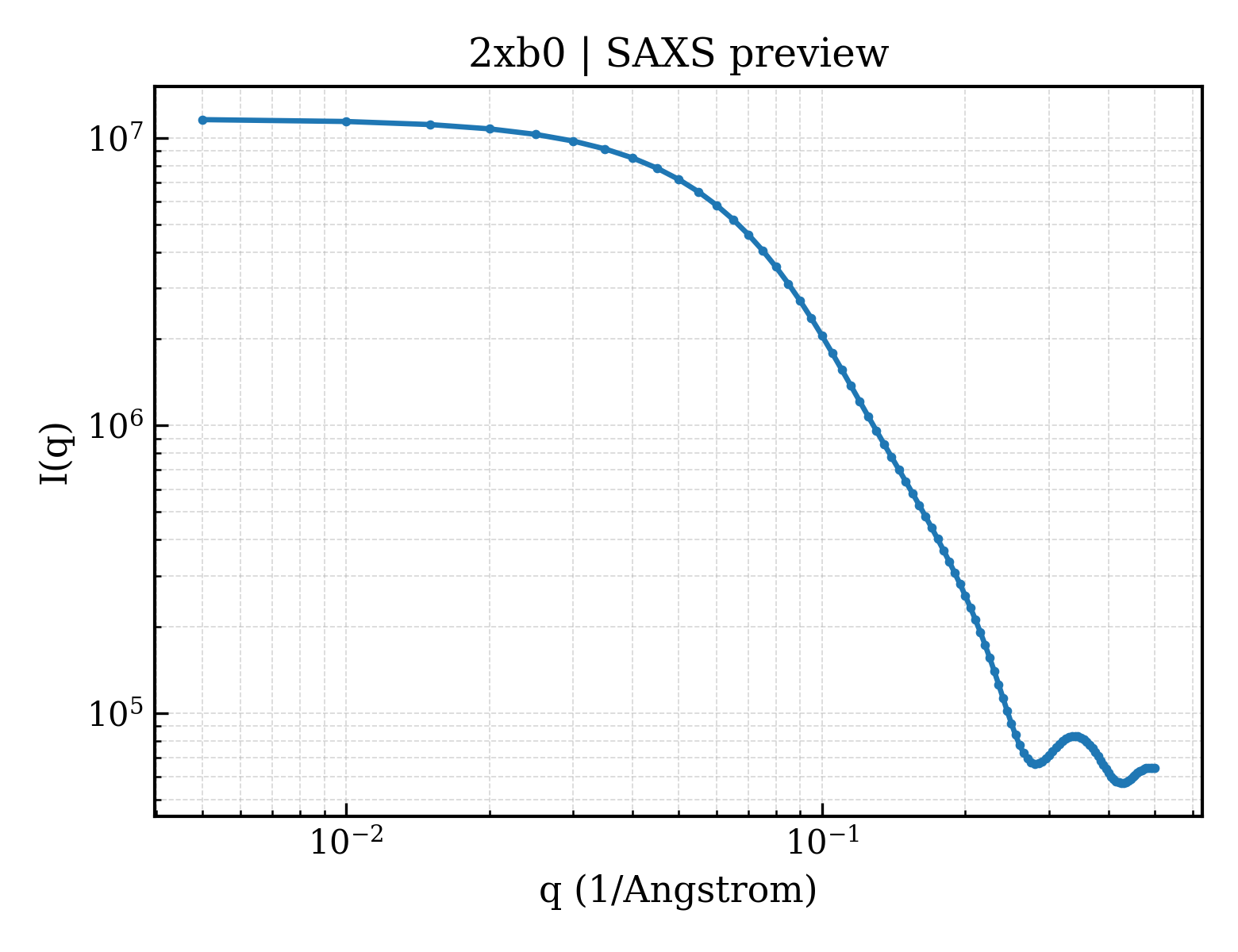

SAXS scattering curve SAXS Profile

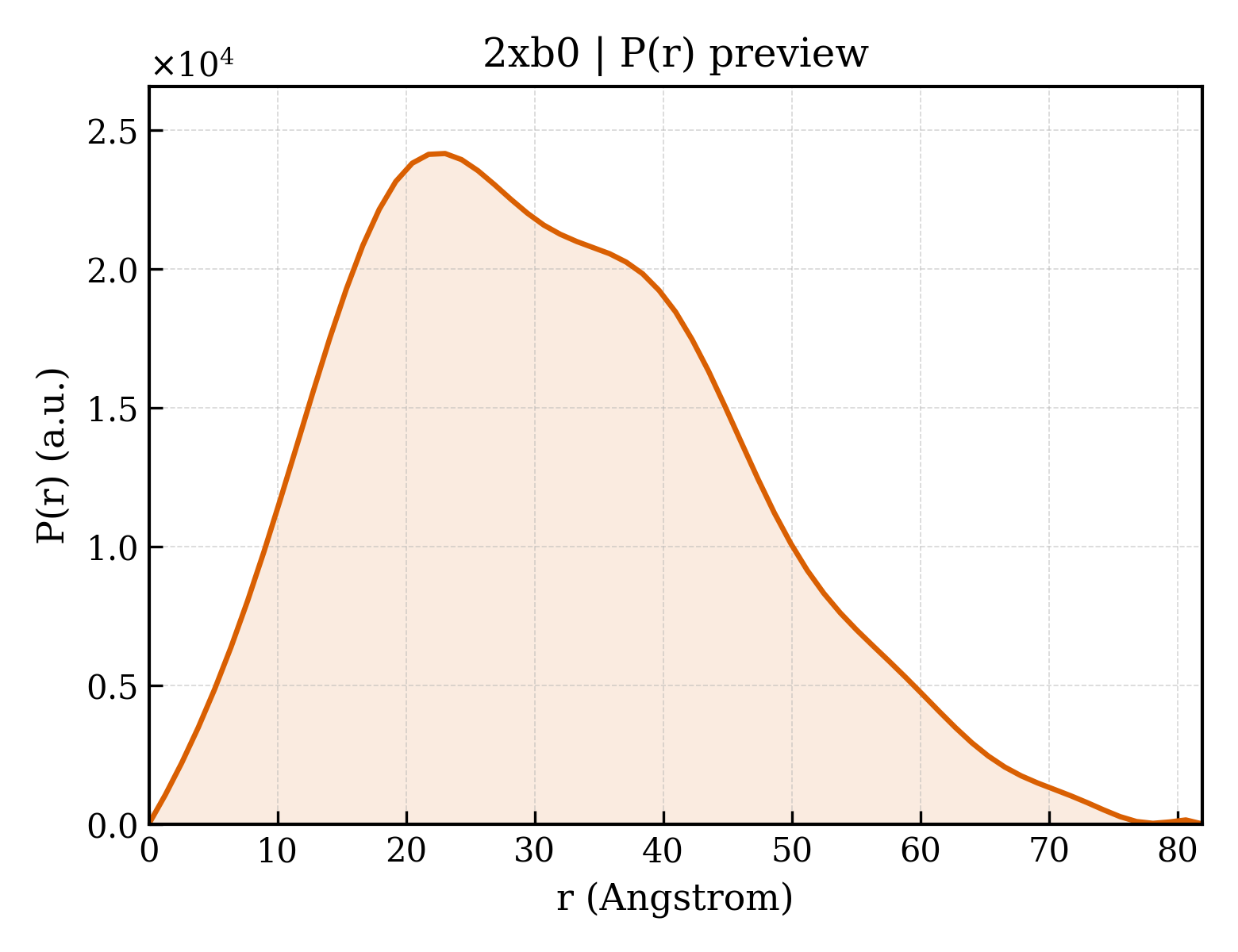

P(r) Distance Distribution P(r) Distribution
