SAXSdb — 2z5d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-conjugating enzyme E2 H

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–160 Chain B； UniProt 1–160	Fragment：residues 1-179	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；290 K；25% PEG 3350, 0.2N NaCl, 0.1M bis-Tris, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 290K	Resolution 2.10 Å R-free 0.223

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2Z5D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8PJN Catalytic module of human CTLH E3 ligase bound to multiphosphorylated UBE2H~ubiquitin Deposited 2023-06-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain 2 1–183（183 aa）	Mutation：C87K Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UBE2H_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 20–179； UniProt 1–160 Author chain B； PDBConstruct 20–179； UniProt 1–160

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2z5d
Deposition date deposition_date	2007-07-06
Structure title title	Human ubiquitin-conjugating enzyme E2 H
Keywords keywords	UBIQUITIN, UBIQUITIN-CONJUGATING ENZYME, UBE2H, SGC, LIGASE, Structural Genomics, Structural Genomics Consortium; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.31 Å
Radius of gyration Rg (electron density) rg_electron	21.48 Å
Forward intensity I(0) i0	18722800.00
Molecular weight molecular_weight	34577.0 kDa
Excluded volume excluded_volume	43964 Å³
Envelope volume envelope_volume	52270 Å³
Hydration-shell volume shell_volume	20721 Å³
Envelope diameter envelope_diameter	77.4 Å
Shell Rg shell_rg	27.56 Å
Envelope Rg envelope_rg	21.59 Å
Shape Rg shape_rg	21.44 Å
Total Rg total_rg	22.46 Å
Total atoms total_atoms	2445
Residues n_residues	303
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

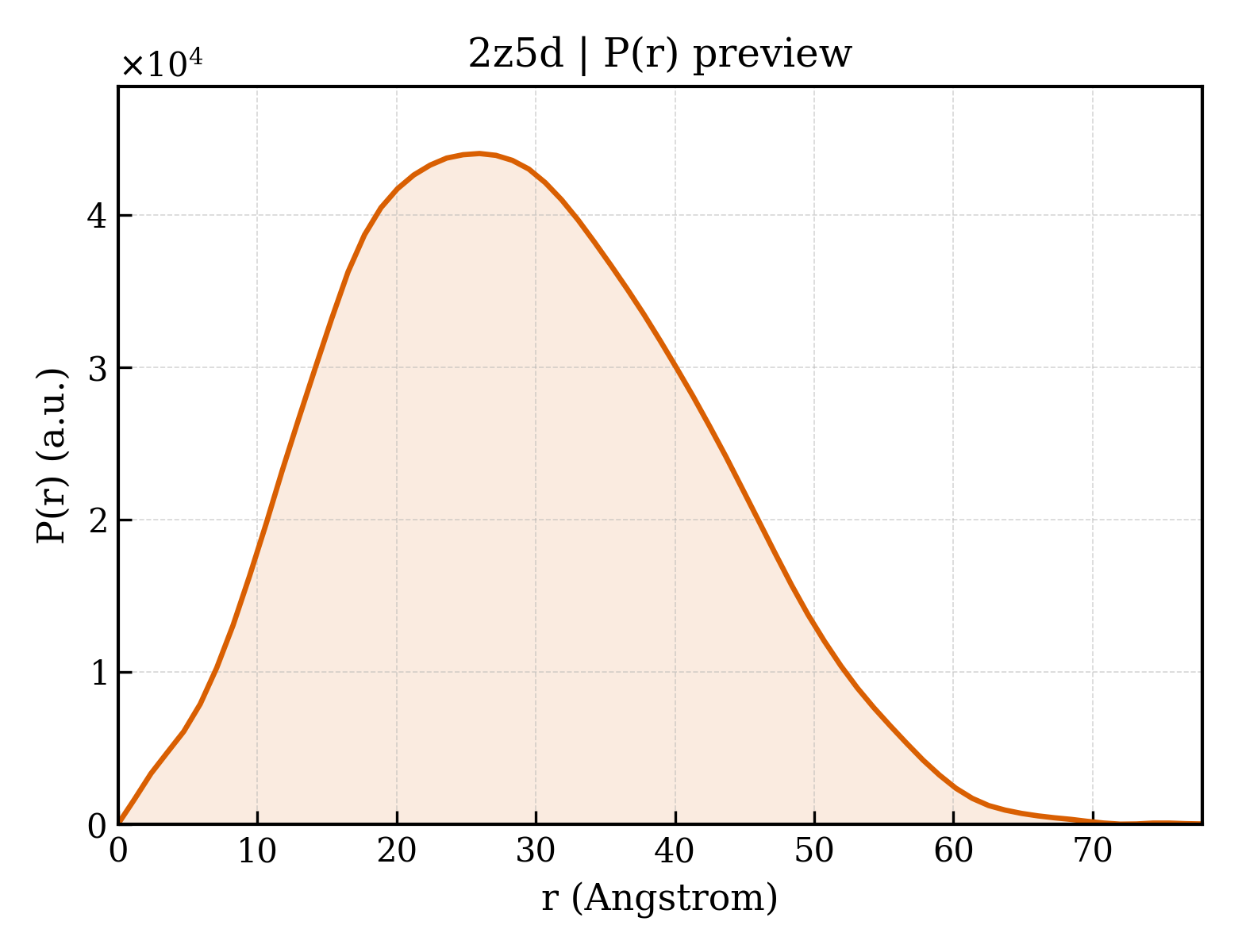

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	77.9 Å
Rg (real space) rg_real	22.27 Å
Rg uncertainty (real space) rg_real_error	0.76 Å
I(0) (real space) i0_real	1.8720e+07
I(0) uncertainty (real space) i0_real_error	2.5070e+05
Rg (reciprocal space) rg_reciprocal	22.28 Å
I(0) (reciprocal space) i0_reciprocal	18720000.0000
Solution quality estimate total_estimate	0.8714
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.0 Å
Skewness Skewness skewness	0.269
Kurtosis Kurtosis kurtosis	-0.434
Angular range angular_range	— – 0.3550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4195000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.788; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.991

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Ubiquitin-conjugating enzyme E2 H
Molecular weight formula_weight	20255.9 kDa
EC 编号 ec_number	6.3.2.19
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2635

MGSSHHHHHHSSGLVPRGSMSSPSPGKRRMDTDVIKLIESKHEVTILGGLNEFVVKFYGPQGTPYEGGVWKVRVDLPDKYPFKSPSIGFMNKIFHPNIDEASGTVCLDVINQTWTALYDLTNIFESFLPQLLAYPNPIDPLNGDAAAMYLHRPEEYKQKIKEYIQKYATEEALKEQEEG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	190

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2z5da1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d2z5db_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

CATH v4.4 (2 domains)

Domain ID domain_id	2z5dA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	2z5dB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

▶

8. Citations (1)

▶

Unit-cell length a length_a	42.959 Å
Unit-cell length b length_b	85.861 Å
Unit-cell length c length_c	102.558 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	65.800 Å
R factor r_factor	0.1835
R_work r_work	0.1813
R_free r_free	0.2225

fit	/app/data/saxs_computation/z5/2z5d/2z5d.fit
pddf	/app/data/pr_computation/z5/2z5d/2z5d.pr.out
profile	/app/data/saxs_computation/z5/2z5d/2z5d.dat
