SAXSdb — 3bp5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Programmed cell death protein 1

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 34–150	Fragment：Extrocellular domain Mutation：C50S	Programmed cell death 1 ligand 2 × 1 （Q9WUL5） GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：Sitting drop；pH 8.5；291 K；20% PEG 6000, 0.1 M Tris pH 8.5, Sitting drop, temperature 291K	Resolution 1.80 Å R-free 0.228

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3BP5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1NPU CRYSTAL STRUCTURE OF THE EXTRACELLULAR DOMAIN OF MURINE PD-1 Deposited 2003-01-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–150（117 aa） Fragment：Ig V-type domain	Mutation：C50S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG8000, NaAc, NaCacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.228
3BIK Crystal Structure of the PD-1/PD-L1 Complex Deposited 2007-11-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 25–157（133 aa） Fragment：EXTRACELLULAR DOMAIN	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；20% PEG 3350, 200MM NH4H2PO4, pH 6.00, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.65 Å R-free 0.268
3BIK Crystal Structure of the PD-1/PD-L1 Complex Deposited 2007-11-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 25–157（133 aa） Fragment：EXTRACELLULAR DOMAIN	Mutation：YES	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；20% PEG 3350, 200MM NH4H2PO4, pH 6.00, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.65 Å R-free 0.268
3BP6 Crystal structure of the mouse PD-1 Mutant and PD-L2 complex Deposited 2007-12-18	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 34–150（117 aa） Fragment：Extrocellular domain	Mutation：C50S, A99L	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions Sitting drop；pH 8.5；291 K；20% PEG 6000, 0.1 M Tris pH 8.5, Sitting drop, temperature 291K	Resolution 1.60 Å R-free 0.218
3RNK Crystal structure of the complex between mouse PD-1 mutant and PD-L2 IgV domain Deposited 2011-04-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 34–150（117 aa） Fragment：Residues 34-150	Mutation：C83S, A132L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M HEPES pH 7, 0.1M Magnesium chloride, 15% PEG 4000, Vapor diffusion, Sitting drop, temperature 291K	Resolution 1.74 Å R-free 0.247
3RNQ Crystal structure of the complex between the extracellular domains of mouse PD-1 mutant and PD-L2 Deposited 2011-04-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 34–150（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；0.1M Tris pH 8, 17.5% PEG 6000, Vapor diffusion, Sitting drop, temperature 298K	Resolution 1.60 Å R-free 0.207
3SBW Crystal structure of the complex between the extracellular domains of mouse PD-1 mutant and human PD-L1 Deposited 2011-06-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 34–150（117 aa） Fragment：UNP residues 34-150	Mutation：C83S, A132L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；277 K；0.1M Sodium citrate pH 5, 20% PEG 8000, Vapor diffusion, Sitting drop, temperature 277K	Resolution 2.28 Å R-free 0.270
3SBW Crystal structure of the complex between the extracellular domains of mouse PD-1 mutant and human PD-L1 Deposited 2011-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–150（117 aa） Fragment：UNP residues 34-150	Mutation：C83S, A132L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；277 K；0.1M Sodium citrate pH 5, 20% PEG 8000, Vapor diffusion, Sitting drop, temperature 277K	Resolution 2.28 Å R-free 0.270

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PDCD1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–117； UniProt 34–150

Programmed cell death 1 ligand 2

Mus musculus

UniProt Q9WUL5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 20–220	Fragment：Extrocellular domain	Programmed cell death protein 1 × 1 （Q02242） GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：Sitting drop；pH 8.5；291 K；20% PEG 6000, 0.1 M Tris pH 8.5, Sitting drop, temperature 291K	Resolution 1.80 Å R-free 0.228

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3BP5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3BOV Crystal structure of the receptor binding domain of mouse PD-L2 Deposited 2007-12-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–123（104 aa） Fragment：Immunoglobulin-like V-type: residues 20-123	Not recorded	NA SODIUM ION × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.4 M Magnesium Formate, 0.1 M Tris-HCl pH 8.5, Vapor diffusion, Sitting drop, temperature 277K, VAPOR DIFFUSION, SITTING DROP	Resolution 1.77 Å R-free 0.223
3BP6 Crystal structure of the mouse PD-1 Mutant and PD-L2 complex Deposited 2007-12-18	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–220（201 aa） Fragment：Extrocellular domain	Not recorded	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions Sitting drop；pH 8.5；291 K；20% PEG 6000, 0.1 M Tris pH 8.5, Sitting drop, temperature 291K	Resolution 1.60 Å R-free 0.218
3RNK Crystal structure of the complex between mouse PD-1 mutant and PD-L2 IgV domain Deposited 2011-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–123（104 aa） Fragment：Rsidues 20-123	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M HEPES pH 7, 0.1M Magnesium chloride, 15% PEG 4000, Vapor diffusion, Sitting drop, temperature 291K	Resolution 1.74 Å R-free 0.247
3RNQ Crystal structure of the complex between the extracellular domains of mouse PD-1 mutant and PD-L2 Deposited 2011-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–220（201 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；0.1M Tris pH 8, 17.5% PEG 6000, Vapor diffusion, Sitting drop, temperature 298K	Resolution 1.60 Å R-free 0.207

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PD1L2_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–202； UniProt 20–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3bp5
Deposition date deposition_date	2007-12-18
Structure title title	Crystal structure of the mouse PD-1 and PD-L2 complex
Keywords keywords	PD-1, PD-L2, Complex, Costimulation, Glycoprotein, Immunoglobulin domain, Membrane, Transmembrane, Receptor, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

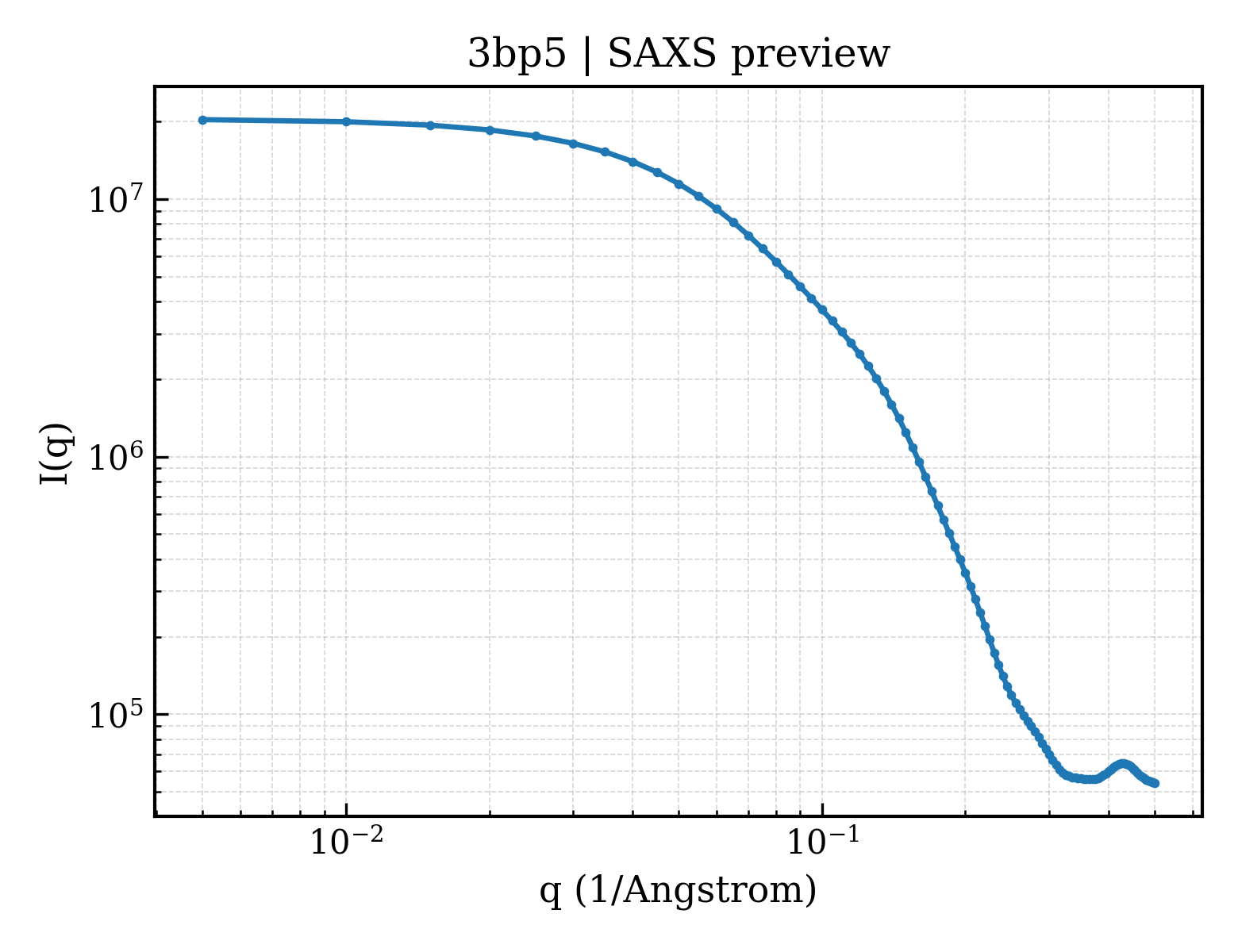

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.82 Å
Radius of gyration Rg (electron density) rg_electron	26.78 Å
Forward intensity I(0) i0	20436600.00
Molecular weight molecular_weight	34338.0 kDa
Excluded volume excluded_volume	42782 Å³
Envelope volume envelope_volume	54660 Å³
Hydration-shell volume shell_volume	18904 Å³
Envelope diameter envelope_diameter	92.9 Å
Shell Rg shell_rg	30.64 Å
Envelope Rg envelope_rg	27.09 Å
Shape Rg shape_rg	26.78 Å
Total Rg total_rg	27.22 Å
Total atoms total_atoms	2412
Residues n_residues	305
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

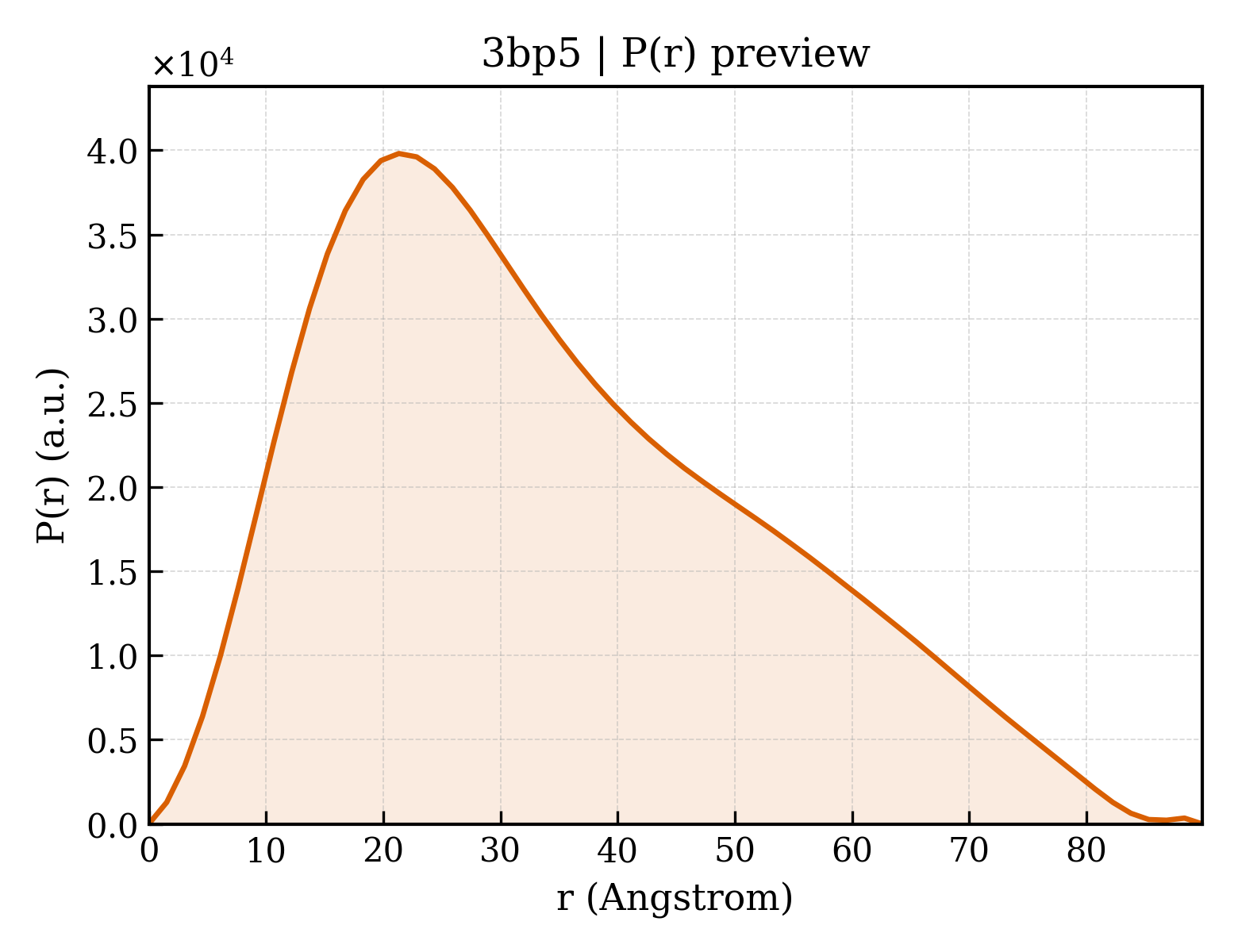

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	89.9 Å
Rg (real space) rg_real	27.20 Å
Rg uncertainty (real space) rg_real_error	0.89 Å
I(0) (real space) i0_real	2.0440e+07
I(0) uncertainty (real space) i0_real_error	3.1290e+05
Rg (reciprocal space) rg_reciprocal	27.09 Å
I(0) (reciprocal space) i0_reciprocal	20430000.0000
Solution quality estimate total_estimate	0.7826
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.3 Å
Skewness Skewness skewness	0.552
Kurtosis Kurtosis kurtosis	-0.489
Angular range angular_range	— – 0.2950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4107000.0000
Real-space data points n_real_points	60
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.679; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.401; Smooth: 0.731

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Programmed cell death protein 1
Molecular weight formula_weight	13176.7 kDa
Mutation mutation	C50S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2623

SLTFYPAWLTVSEGANATFTCSLSNWSEDLMLNWNRLSPSNQTEKQAAFSNGLSQPVQDARFQIIQLPNRHDFHMNILDTRRNDSGIYLCGAISLHPKAKIEESPGAELVVTERILE

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Programmed cell death 1 ligand 2
Molecular weight formula_weight	22797.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MLFTVTAPKEVYTVDVGSSVSLECDFDRRECTELEGIRASLQKVENDTSLQSERATLLEEQLPLGKALFHIPSVQVRDSGQYRCLVICGAAWDYKYLTVKVKASYMRIDTRILEVPGTGEVQLTCQARGYPLAEVSWQNVSVPANTSHIRTPEGLYQVTSVLRLKPQPSRNFSCMFWNAHMKELTSAIIDPLSRMEPKVPRT

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	149

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3bp5a_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

CATH v4.4 (3 domains)

Domain ID domain_id	3bp5A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3bp5B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3bp5B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	43.933 Å
Unit-cell length b length_b	84.056 Å
Unit-cell length c length_c	52.108 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.88 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	24.950 Å
R factor r_factor	0.1917
R_work r_work	0.1897
R_free r_free	0.2285

fit	/app/data/saxs_computation/bp/3bp5/3bp5.fit
pddf	/app/data/pr_computation/bp/3bp5/3bp5.pr.out
profile	/app/data/saxs_computation/bp/3bp5/3bp5.dat

Crystal structure of the mouse PD-1 and PD-L2 complex
