SAXSdb — 3bqv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plastocyanin

Phormidium laminosum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 35–139	Fragment：UNP residues 35-139 Mutation：D44A, D45A	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30% PEG 8000, 0.1 M Sodium cacodylate, 0.2 M Sodium acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.50 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3BQV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BAW PLASTOCYANIN FROM PHORMIDIUM LAMINOSUM Deposited 1998-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 35–139（105 aa） Chain B 35–139（105 aa） Chain C 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 6 ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.80 Å R-free 0.258
1BAW PLASTOCYANIN FROM PHORMIDIUM LAMINOSUM Deposited 1998-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 35–139（105 aa） Chain B 35–139（105 aa） Chain C 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 3 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.80 Å R-free 0.258
2Q5B High resolution structure of Plastocyanin from Phormidium laminosum Deposited 2007-05-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 1 ZN ZINC ION × 1 K POTASSIUM ION × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M NA CACODYLATE BUFFER (PH 6), 0.2 M ZN ACETATE, 15% PEG 8000 , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.45 Å R-free 0.210
2Q5B High resolution structure of Plastocyanin from Phormidium laminosum Deposited 2007-05-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 1 ZN ZINC ION × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M NA CACODYLATE BUFFER (PH 6), 0.2 M ZN ACETATE, 15% PEG 8000 , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.45 Å R-free 0.210
2Q5B High resolution structure of Plastocyanin from Phormidium laminosum Deposited 2007-05-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 1 ZN ZINC ION × 2 K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M NA CACODYLATE BUFFER (PH 6), 0.2 M ZN ACETATE, 15% PEG 8000 , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.45 Å R-free 0.210
2Q5B High resolution structure of Plastocyanin from Phormidium laminosum Deposited 2007-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 35–139（105 aa） Chain B 35–139（105 aa） Chain C 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 3 ZN ZINC ION × 4 K POTASSIUM ION × 5 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M NA CACODYLATE BUFFER (PH 6), 0.2 M ZN ACETATE, 15% PEG 8000 , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.45 Å R-free 0.210
2Q5B High resolution structure of Plastocyanin from Phormidium laminosum Deposited 2007-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 35–139（105 aa） Chain B 35–139（105 aa） Chain C 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 3 ZN ZINC ION × 4 K POTASSIUM ION × 5 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M NA CACODYLATE BUFFER (PH 6), 0.2 M ZN ACETATE, 15% PEG 8000 , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.45 Å R-free 0.210
2W88 Plastocyanin variant with N-terminal Methionine - open structure Deposited 2009-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 35–139（105 aa） Chain B 35–139（105 aa） Chain C 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 6 ZN ZINC ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M ZINC ACETATE, 0.4 M SODIUM ACETATE	Resolution 2.89 Å R-free 0.223
2W8C Plastocyanin variant with N-terminal Methionine - closed structure Deposited 2009-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 3 ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions 5% PEG 8K, 0.1M ZINC ACETATE, 0.2 M SODIUM ACETATE	Resolution 1.80 Å R-free 0.224
2W8C Plastocyanin variant with N-terminal Methionine - closed structure Deposited 2009-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 3 ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions 5% PEG 8K, 0.1M ZINC ACETATE, 0.2 M SODIUM ACETATE	Resolution 1.80 Å R-free 0.224
2W8C Plastocyanin variant with N-terminal Methionine - closed structure Deposited 2009-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 35–139（105 aa） Chain B 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 6 ZN ZINC ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions 5% PEG 8K, 0.1M ZINC ACETATE, 0.2 M SODIUM ACETATE	Resolution 1.80 Å R-free 0.224
3CVB Regulation of Protein Function: Crystal Packing Interfaces and Conformational Dimerization Deposited 2008-04-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–139（105 aa）	Not recorded	CU1 COPPER (I) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.40 Å R-free 0.183
3CVB Regulation of Protein Function: Crystal Packing Interfaces and Conformational Dimerization Deposited 2008-04-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 35–139（105 aa）	Not recorded	CU1 COPPER (I) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.40 Å R-free 0.183
3CVC Regulation of Protein Function: Crystal Packing Interfaces and Conformational Dimerization Deposited 2008-04-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–139（105 aa）	Not recorded	CU COPPER (II) ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.72 Å R-free 0.192
3CVD Regulation of Protein Function: Crystal Packing Interfaces and Conformational Dimerization Deposited 2008-04-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–139（105 aa）	Not recorded	CU1 COPPER (I) ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.50 Å R-free 0.184
3CVD Regulation of Protein Function: Crystal Packing Interfaces and Conformational Dimerization Deposited 2008-04-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 35–139（105 aa）	Not recorded	CU1 COPPER (I) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.50 Å R-free 0.184
3CVD Regulation of Protein Function: Crystal Packing Interfaces and Conformational Dimerization Deposited 2008-04-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 35–139（105 aa）	Not recorded	CU1 COPPER (I) ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.50 Å R-free 0.184
4R0O Crystal structure of PEGylated plastocyanin at 4.2 A resolution Deposited 2014-08-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–139（105 aa） Fragment：UNP residues 35-139	Not recorded	CU COPPER (II) ION × 1 LCY 1-methylpyrrolidine-2,5-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293.15 K；48 % AMMONIUM SULPHATE, 30 mM POTASSIUM FERRICYANIDE, 100 mM SODIUM ACETATE, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 4.20 Å R-free 0.270
4R0O Crystal structure of PEGylated plastocyanin at 4.2 A resolution Deposited 2014-08-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 35–139（105 aa） Fragment：UNP residues 35-139	Not recorded	CU COPPER (II) ION × 1 LCY 1-methylpyrrolidine-2,5-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293.15 K；48 % AMMONIUM SULPHATE, 30 mM POTASSIUM FERRICYANIDE, 100 mM SODIUM ACETATE, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 4.20 Å R-free 0.270
4R0O Crystal structure of PEGylated plastocyanin at 4.2 A resolution Deposited 2014-08-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 35–139（105 aa） Fragment：UNP residues 35-139	Not recorded	CU COPPER (II) ION × 1 LCY 1-methylpyrrolidine-2,5-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293.15 K；48 % AMMONIUM SULPHATE, 30 mM POTASSIUM FERRICYANIDE, 100 mM SODIUM ACETATE, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 4.20 Å R-free 0.270
4R0O Crystal structure of PEGylated plastocyanin at 4.2 A resolution Deposited 2014-08-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 35–139（105 aa） Fragment：UNP residues 35-139	Not recorded	CU COPPER (II) ION × 1 LCY 1-methylpyrrolidine-2,5-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293.15 K；48 % AMMONIUM SULPHATE, 30 mM POTASSIUM FERRICYANIDE, 100 mM SODIUM ACETATE, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 4.20 Å R-free 0.270

8 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLAS_PHOLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–105； UniProt 35–139

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3bqv
Deposition date deposition_date	2007-12-20
Structure title title	Crystal Structure of the double mutant D44A D45A Plastocyanin from Phormidium laminosum
Keywords keywords	PLASTOCYANIN, ELECTRON TRANSPORT, PHOTOSYSTEM 1, Copper, Metal-binding; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.03 Å
Radius of gyration Rg (electron density) rg_electron	12.78 Å
Forward intensity I(0) i0	2675580.00
Molecular weight molecular_weight	11393.0 kDa
Excluded volume excluded_volume	14236 Å³
Envelope volume envelope_volume	15459 Å³
Hydration-shell volume shell_volume	10407 Å³
Envelope diameter envelope_diameter	41.9 Å
Shell Rg shell_rg	18.33 Å
Envelope Rg envelope_rg	13.15 Å
Shape Rg shape_rg	12.75 Å
Total Rg total_rg	14.09 Å
Total atoms total_atoms	800
Residues n_residues	105
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	44.8 Å
Rg (real space) rg_real	13.95 Å
Rg uncertainty (real space) rg_real_error	0.24 Å
I(0) (real space) i0_real	2.6760e+06
I(0) uncertainty (real space) i0_real_error	2.7770e+04
Rg (reciprocal space) rg_reciprocal	13.96 Å
I(0) (reciprocal space) i0_reciprocal	2676000.0000
Solution quality estimate total_estimate	0.8980
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.6 Å
Skewness Skewness skewness	0.159
Kurtosis Kurtosis kurtosis	-0.414
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	437800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.970

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Plastocyanin
Molecular weight formula_weight	11343.8 kDa
Mutation mutation	D44A, D45A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	959

ETFTVKMGADSGLLQFEPANVTVHPGDTVKWVNNKLPPHNILFAAKQVPGASKELADKLSHSQLMFSPGESYEITFSSDFPAGTYTYYCAPHRGAGMVGKITVEG

来源 Source

来源生物 organism	Phormidium laminosum
NCBI Class编号 ncbi_taxonomy_id	32059
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	154

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3bqva_
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.1 — Plastocyanin/azurin-like

CATH v4.4 (1 domains)

Domain ID domain_id	3bqvA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

8. Citations (1)

▶

Unit-cell length a length_a	33.322 Å
Unit-cell length b length_b	33.778 Å
Unit-cell length c length_c	78.026 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1876
R_work r_work	0.1847
R_free r_free	0.2446

fit	/app/data/saxs_computation/bq/3bqv/3bqv.fit
pddf	/app/data/pr_computation/bq/3bqv/3bqv.pr.out
profile	/app/data/saxs_computation/bq/3bqv/3bqv.dat

Crystal Structure of the double mutant D44A D45A Plastocyanin from Phormidium laminosum

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plastocyanin

State in the Current Structure

Other States of the Same Protein in the Database

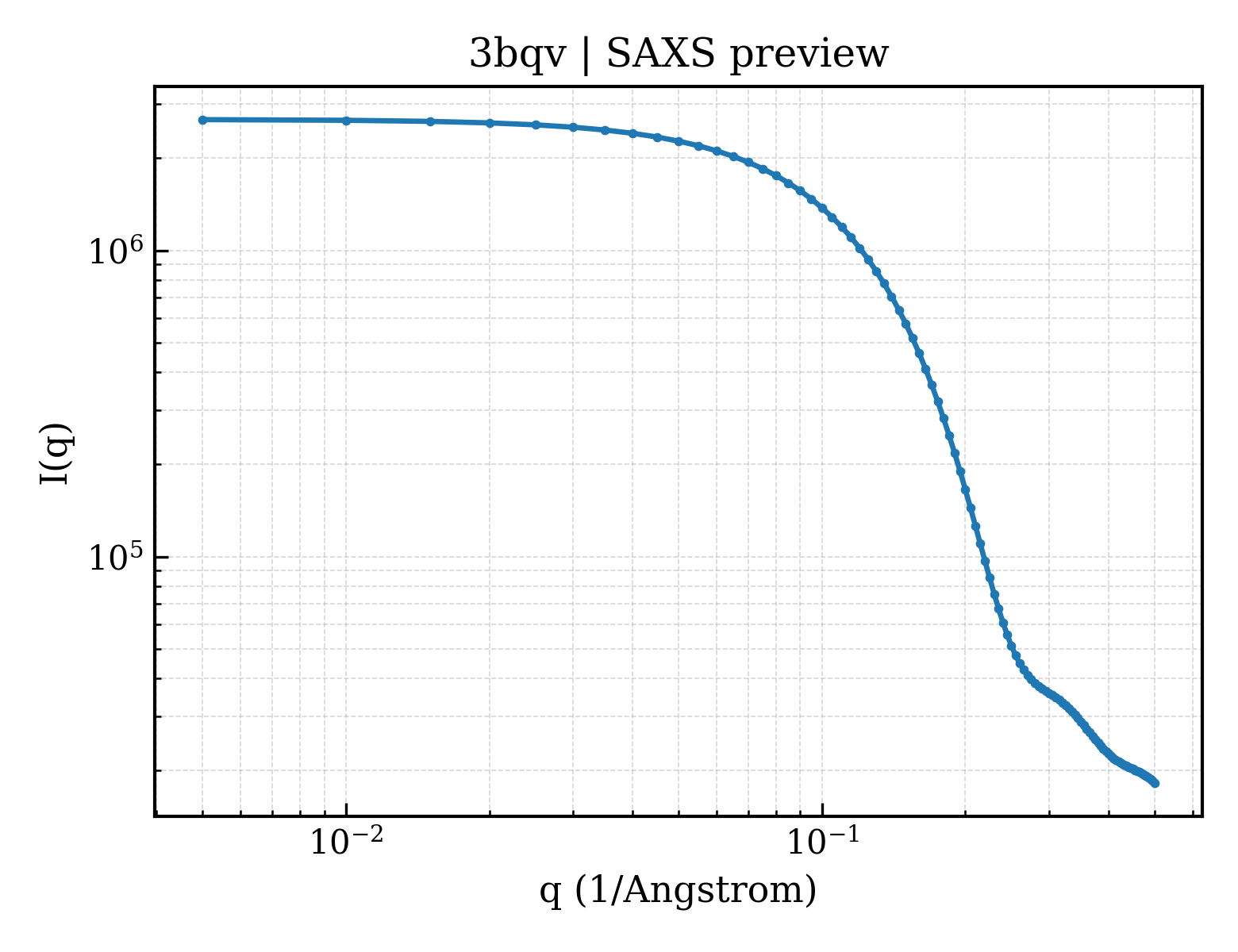

SAXS scattering curve SAXS Profile
