SAXSdb — 3brl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dynein light chain 1, cytoplasmic

Drosophila melanogaster

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–89	Mutation：S88E	Protein swallow 10-resiude peptide × 2 （P40688）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；Calcium acetate 0.2M, sodium cacodylate 0.1M, 15% PEG8000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.254

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3BRL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1RHW The solution structure of the pH-induced monomer of dynein light chain LC8 from Drosophila Deposited 2003-11-14	Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–89（89 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3；303 K；Ionic strength (raw mmCIF value) 50mM NaCl；Pressure ambient NMR sample composition 0.8-1.4mM LC8 protein \| 50mM citrate phosphate, pH 3.0, 50mM NaCl, 1mM sodium Azide, 10%D20, 3% glycerol	Resolution not provided
2P2T Crystal structure of dynein light chain LC8 bound to residues 123-138 of intermediate chain IC74 Deposited 2007-03-07	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–89（89 aa）	Not recorded	ACT ACETATE ION × 2 NA SODIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.296
2PG1 Structural analysis of a cytoplasmic dynein Light Chain-Intermediate Chain complex Deposited 2007-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–89（89 aa） Chain B 1–89（89 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.8 M - 2.2 M Ammonium Sulfate, 0 - 20 % glycerol, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.253
2PG1 Structural analysis of a cytoplasmic dynein Light Chain-Intermediate Chain complex Deposited 2007-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–89（89 aa） Chain D 1–89（89 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.8 M - 2.2 M Ammonium Sulfate, 0 - 20 % glycerol, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.253
2PG1 Structural analysis of a cytoplasmic dynein Light Chain-Intermediate Chain complex Deposited 2007-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–89（89 aa） Chain B 1–89（89 aa） Chain C 1–89（89 aa） Chain D 1–89（89 aa）	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.8 M - 2.2 M Ammonium Sulfate, 0 - 20 % glycerol, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.253
3BRI Crystal Structure of apo-LC8 Deposited 2007-12-21	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–89（89 aa）	Not recorded	ACT ACETATE ION × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；Potassium tartrate 0.2M, sodium citrate 0.1M, ammonium sulfate 2.0M, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.212
3DVH LC8 Point mutant K36P Deposited 2008-07-18	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–89（89 aa）	Mutation：K36P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；50 mM CaCl2, 100 mM HEPES, 28% (w/v) PEG MME 2000, 10% glycerol, 10 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.244
3DVH LC8 Point mutant K36P Deposited 2008-07-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–89（89 aa） Chain B 1–89（89 aa）	Mutation：K36P Mutation：K36P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；50 mM CaCl2, 100 mM HEPES, 28% (w/v) PEG MME 2000, 10% glycerol, 10 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.244
3DVP Pak1 peptide bound LC8 Deposited 2008-07-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–89（89 aa） Chain B 1–89（89 aa）	Mutation：K36P Mutation：K36P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM MES, 200 mM NaCl, 27% (w/v) PEG 4000, and 10% 0.1 M (NH4)6CoCl3, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 273K, temperature 293K	Resolution 2.50 Å R-free 0.263
3DVT Biochemical and structural characterization of the PAK1- LC8 interaction Deposited 2008-07-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1–89（89 aa） Chain F 1–89（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；50 mM MgCl2, 100 mM MES, 32% (w/v) PEG 4000, and 20% xylitol, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.258
3DVT Biochemical and structural characterization of the PAK1- LC8 interaction Deposited 2008-07-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–89（89 aa） Chain D 1–89（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；50 mM MgCl2, 100 mM MES, 32% (w/v) PEG 4000, and 20% xylitol, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.258
3DVT Biochemical and structural characterization of the PAK1- LC8 interaction Deposited 2008-07-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–89（89 aa） Chain B 1–89（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；50 mM MgCl2, 100 mM MES, 32% (w/v) PEG 4000, and 20% xylitol, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.258
3E2B Crystal structure of Dynein Light chain LC8 in complex with a peptide derived from Swallow Deposited 2008-08-05	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–89（89 aa）	Not recorded	ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.2M sodium potassium tartrate, 0.1M sodium citrate, 2.0M ammonium sulfate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.266
3FM7 Quaternary Structure of Drosophila melanogaster IC/Tctex-1/LC8; Allosteric Interactions of Dynein Light Chains with Dynein Intermediate Chain Deposited 2008-12-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–89（89 aa） Chain F 1–89（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions Hanging Drop；pH 6.5；277.15 K；16% PEG 8K, 100 mM sodium cacodylate, 200 mM calcium acetate, pH 6.5, Hanging Drop, temperature 277.15K	Resolution 3.50 Å R-free 0.275
3GLW Quaternary Structure of Drosophila melanogaster IC/Tctex-1/LC8; Allosteric Interactions of Dynein Light Chains with Dynein Intermediate Chain Deposited 2009-03-12	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–89（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；30% PEG 400, 100 mM Hepes, 200 mM magnesium chloride at pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277.15K	Resolution 3.15 Å R-free 0.271
4QH7 LC8 - Ana2 (159-168) Complex Deposited 2014-05-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–89（89 aa） Fragment：LC8 Chain B 1–89（89 aa） Fragment：LC8	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293.15 K；0.3M magnesium acetate, 0.1M sodium cacodylate, 26% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 1.83 Å R-free 0.207
4QH7 LC8 - Ana2 (159-168) Complex Deposited 2014-05-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–89（89 aa） Fragment：LC8 Chain F 1–89（89 aa） Fragment：LC8	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293.15 K；0.3M magnesium acetate, 0.1M sodium cacodylate, 26% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 1.83 Å R-free 0.207
4QH8 LC8 - Ana2 (237-246) Complex Deposited 2014-05-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–89（89 aa） Fragment：LC8 Chain B 1–89（89 aa） Fragment：LC8	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293.15 K；0.19M ammonium acetate, 0.1M sodium acetate, 0.1% beta-mercaptoethanol, and 27% PEG 4000, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 1.90 Å R-free 0.236
4QH8 LC8 - Ana2 (237-246) Complex Deposited 2014-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1–89（89 aa） Fragment：LC8 Chain F 1–89（89 aa） Fragment：LC8	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293.15 K；0.19M ammonium acetate, 0.1M sodium acetate, 0.1% beta-mercaptoethanol, and 27% PEG 4000, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 1.90 Å R-free 0.236
4QH8 LC8 - Ana2 (237-246) Complex Deposited 2014-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 1–89（89 aa） Fragment：LC8 Chain H 1–89（89 aa） Fragment：LC8	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293.15 K；0.19M ammonium acetate, 0.1M sodium acetate, 0.1% beta-mercaptoethanol, and 27% PEG 4000, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 1.90 Å R-free 0.236
5E0L LC8 - Chica (415-424) Complex Deposited 2015-09-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 3–89（87 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.1 M calcium acetate, 0.1 M sodium cacodylate, 15% polyethylene glycol 8000	Resolution 1.31 Å R-free 0.202
5E0M LC8 - Chica (468-476) Complex Deposited 2015-09-29	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–89（89 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.2 M lithium sulfate, 0.1 M Bis-Tris, 25% polyethylene glycol 3350	Resolution 1.65 Å R-free 0.232
7K3J Crystal structure of dLC8 in complex with Panoramix TQT+TQ peptide Deposited 2020-09-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–89（89 aa） Chain G 1–89（89 aa） Chain I 1–89（89 aa） Chain K 1–89（89 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.2 M Li2SO4, 0.1 M Tris pH 8.5, 40% (v/v) PEG 400	Resolution 2.50 Å R-free 0.272
7K3J Crystal structure of dLC8 in complex with Panoramix TQT+TQ peptide Deposited 2020-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–89（89 aa） Chain E 1–89（89 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.2 M Li2SO4, 0.1 M Tris pH 8.5, 40% (v/v) PEG 400	Resolution 2.50 Å R-free 0.272
7K3K Crystal structure of dLC8 in complex with Panoramix TQT peptide Deposited 2020-09-11	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–89（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M NH4Ac, 0.1 M Bis-Tris pH 5.5, 17% (w/v) PEG 10000	Resolution 1.42 Å R-free 0.201
7K3L Crystal structure of dLC8 in complex with Panoramix TQ peptide Deposited 2020-09-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–89（89 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M KSCN, 30% (w/v) PEG 2000 MME	Resolution 1.79 Å R-free 0.209

17 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DYL1_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–89； UniProt 1–89

Protein swallow 10-resiude peptide

OrganismNot specified

UniProt P40688

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 287–296	Not recorded	Dynein light chain 1, cytoplasmic × 2 （Q24117）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；Calcium acetate 0.2M, sodium cacodylate 0.1M, 15% PEG8000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.254

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3BRL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3E2B Crystal structure of Dynein Light chain LC8 in complex with a peptide derived from Swallow Deposited 2008-08-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 281–296（16 aa）	Not recorded	ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.2M sodium potassium tartrate, 0.1M sodium citrate, 2.0M ammonium sulfate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.266
6XOR Structure of the Self-Association Domain of Swallow Deposited 2020-07-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 205–275（71 aa） Chain B 205–275（71 aa）	Mutation：R224E, K244I, C253D, C265A Mutation：R224E, K244I, C253D, C265A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.6；313 K；Ionic strength (raw mmCIF value) 30；Pressure 1 NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N] Residues 205-275 of Swallow, 10 mM sodium chloride, 20 mM MES, 1 mM sodium azide, 0.2 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.4 mM [U-99% 13C; U-99% 15N] Residues 205-275 of Swallow, 10 mM sodium chloride, 20 mM MES, 1 mM sodium azide, 0.2 mM DSS, 0.4 mM unlabeled Residues 205-275 of Swallow, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SWA_DROME
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–10； UniProt 287–296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3brl
Deposition date deposition_date	2007-12-21
Structure title title	Crystal Structure of LC8 S88E / Swa
Keywords keywords	;protein-peptide complex, Cytoplasm, Dynein, Microtubule, Motor protein, Cell cycle, Cell division, Developmental protein, Mitosis, Nucleus ;; MOTOR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

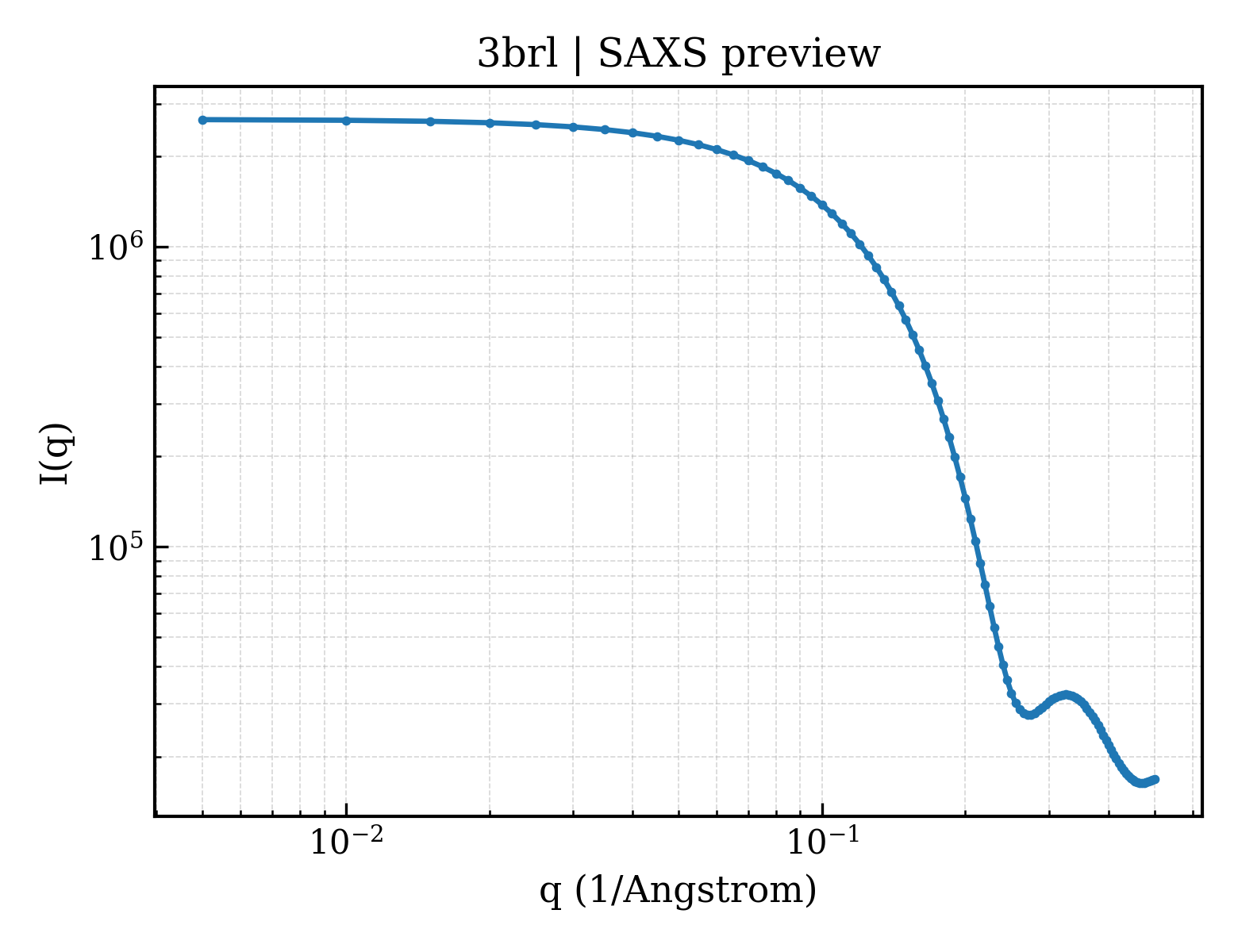

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.89 Å
Radius of gyration Rg (electron density) rg_electron	12.38 Å
Forward intensity I(0) i0	2656050.00
Molecular weight molecular_weight	11260.0 kDa
Excluded volume excluded_volume	14068 Å³
Envelope volume envelope_volume	15143 Å³
Hydration-shell volume shell_volume	10387 Å³
Envelope diameter envelope_diameter	41.5 Å
Shell Rg shell_rg	18.17 Å
Envelope Rg envelope_rg	12.76 Å
Shape Rg shape_rg	12.36 Å
Total Rg total_rg	13.77 Å
Total atoms total_atoms	793
Residues n_residues	98
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

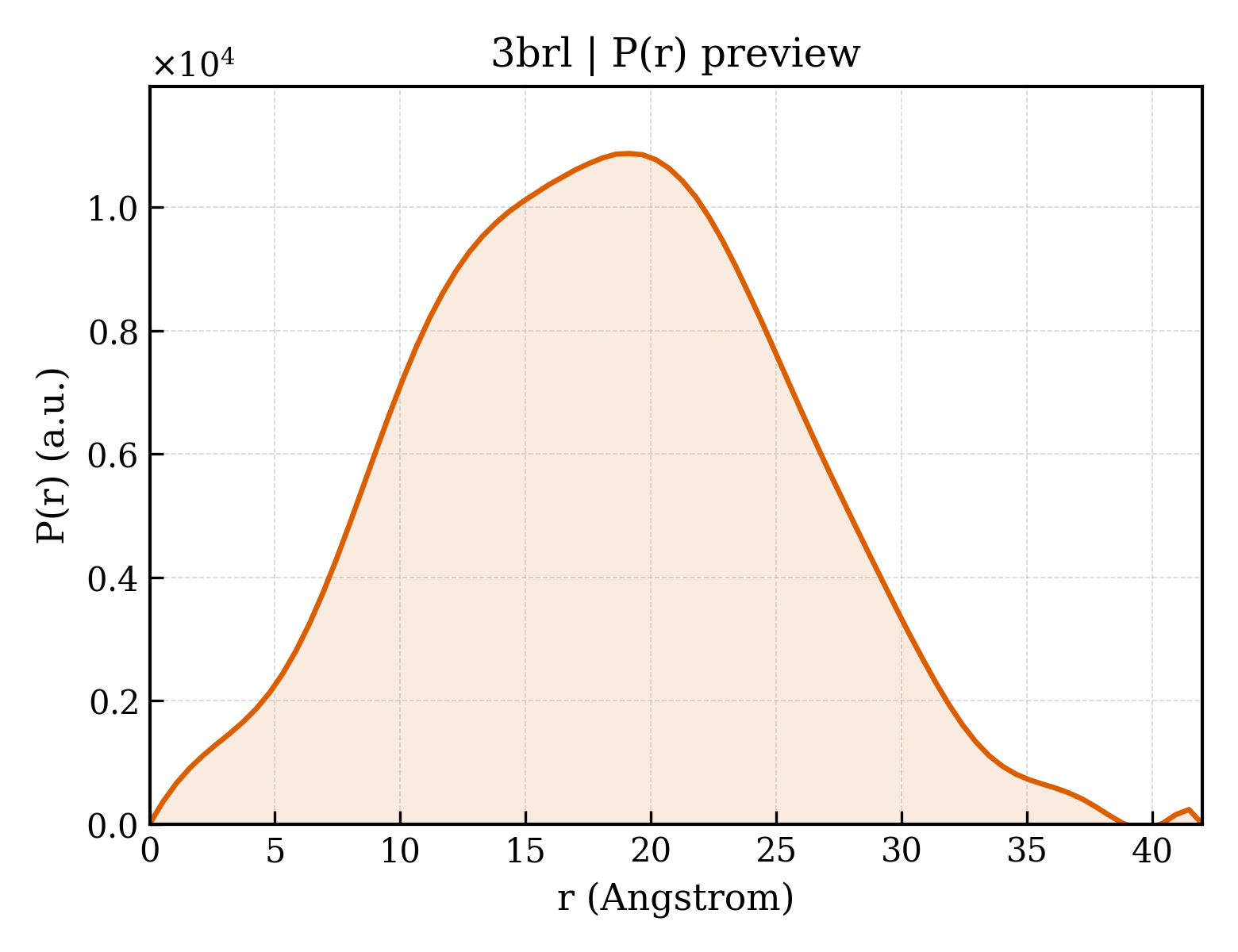

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	42.0 Å
Rg (real space) rg_real	13.79 Å
Rg uncertainty (real space) rg_real_error	0.24 Å
I(0) (real space) i0_real	2.6560e+06
I(0) uncertainty (real space) i0_real_error	2.7750e+04
Rg (reciprocal space) rg_reciprocal	13.80 Å
I(0) (reciprocal space) i0_reciprocal	2656000.0000
Solution quality estimate total_estimate	0.8228
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.1 Å
Skewness Skewness skewness	0.083
Kurtosis Kurtosis kurtosis	-0.400
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	533600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Dynein light chain 1, cytoplasmic
Molecular weight formula_weight	10430.9 kDa
Mutation mutation	S88E
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	880

MSDRKAVIKNADMSEEMQQDAVDCATQALEKYNIEKDIAAYIKKEFDKKYNPTWHCIVGRNFGSYVTHETRHFIYFYLGQVAILLFKEG

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	Fruit fly
NCBI Class编号 ncbi_taxonomy_id	7227

Entity 2 Entity 2 polymer

Description description	Protein swallow 10-resiude peptide
Molecular weight formula_weight	994.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

ATSAKATQTD

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	79

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3brla_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.39 — DLC
Superfamily Superfamily superfamily	d.39.1 — DLC
Family Family family	d.39.1.1 — DLC

CATH v4.4 (1 domains)

Domain ID domain_id	3brlA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	740 — Protein Inhibitor Of Neuronal Nitric Oxide Synthase
Homologous superfamily homologous superfamily	10 — Protein Inhibitor Of Neuronal Nitric Oxide Synthase;

▶

8. Citations (1)

▶

Unit-cell length a length_a	44.194 Å
Unit-cell length b length_b	44.194 Å
Unit-cell length c length_c	203.218 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.570 Å
R factor r_factor	0.1940
R_work r_work	0.1910
R_free r_free	0.2540

fit	/app/data/saxs_computation/br/3brl/3brl.fit
pddf	/app/data/pr_computation/br/3brl/3brl.pr.out
profile	/app/data/saxs_computation/br/3brl/3brl.dat
