SAXSdb — 3cfp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase

Bacteriophage RB69

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Monomer	Protein 1 DNA 2	;DNA (5'-D(DAPDCPDAPDGPDGPDTPDAPDAPDGPDCPDAPDGPDTPDCPDCPDGPDCPDG)-3') ; × 1 ;DNA (5'-D(DGPDCPDGPDGPDAPDCPDTPDGPDCPDTPDTPDAPDCP(DOC))-3') ; × 1 CALCIUM ION × 4 CHLORIDE ION × 1 THYMIDINE-5'-TRIPHOSPHATE × 1 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPOL_BPR69
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–903； UniProt 1–903

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3cfp
Deposition date deposition_date	2008-03-04
Structure title title	Structure of the replicating complex of a POL Alpha family DNA Polymerase, ternary complex 1
Keywords keywords	;DNA POLYMERASE, CATALYTIC COMPLEX, FIDELITY, TWO METAL ION MECHANISM, DNA replication, DNA-binding, DNA-directed DNA polymerase, Exonuclease, Hydrolase, Nuclease, Nucleotidyltransferase, Transferase, Transferase-DNA COMPLEX ;; Transferase/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3cfp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3cfp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

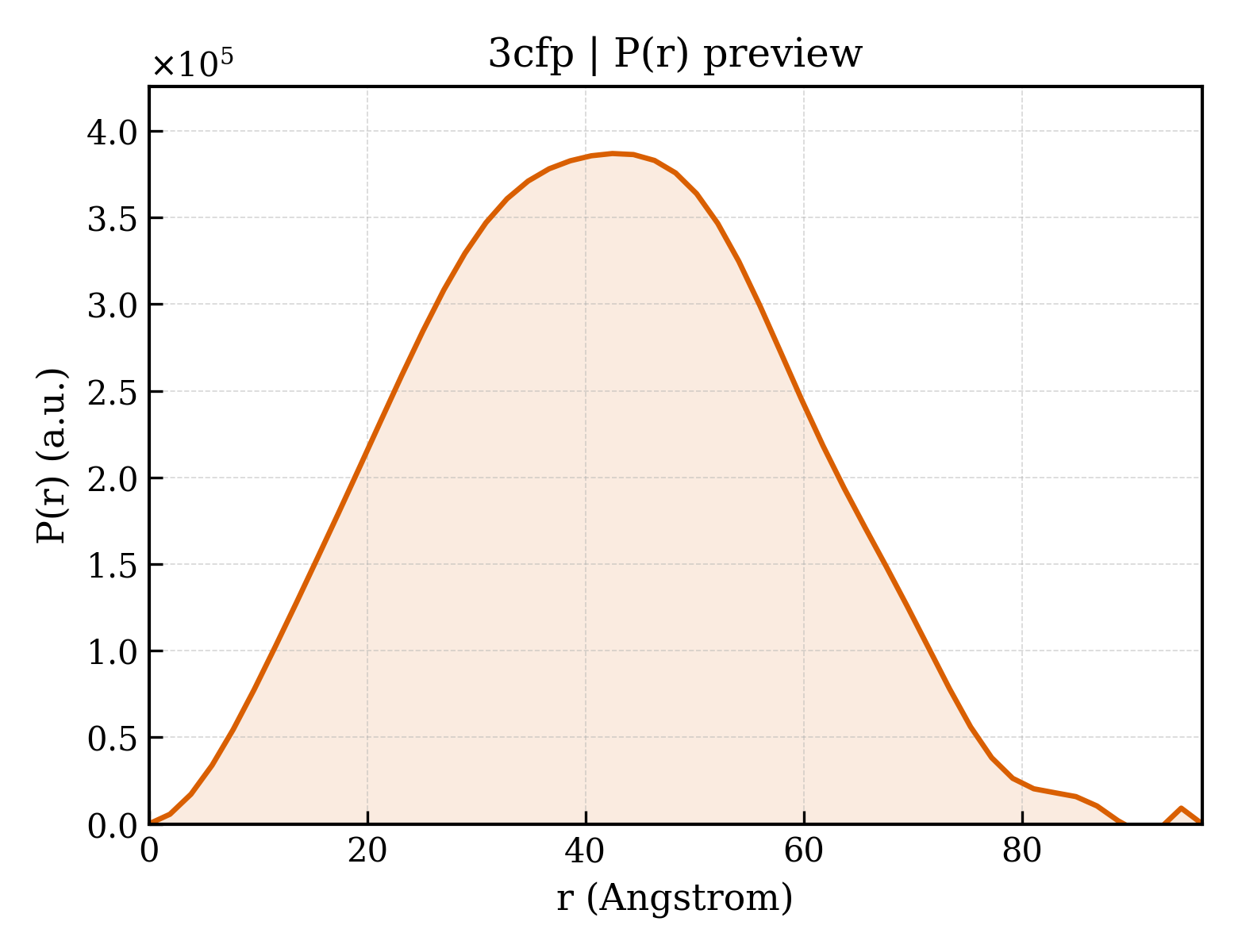

3cfp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.92 Å
Rg (electron density)	30.90 Å
Total Rg	31.59 Å
Atom count	8027
Residues	932
Excluded volume	141150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3cfp__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(DAPDCPDAPDGPDGPDTPDAPDAPDGPDCPDAPDGPDTPDCPDCPDGPDCPDG)-3') ;
Molecular weight formula_weight	5550.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T
Atom count atom_count	8326

ACAGGTAAGCAGTCCGCG

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(DGPDCPDGPDGPDAPDCPDTPDGPDCPDTPDTPDAPDCP(DOC))-3') ;
Molecular weight formula_weight	4240.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P

GCGGACTGCTTACC

Entity 3 Entity 3 polymer

Description description	DNA polymerase
Molecular weight formula_weight	105407.9 kDa
EC 编号 ec_number	2.7.7.7
Mutation mutation	L561A, S565G, Y567A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MKEFYLTVEQIGDSIFERYIDSNGRERTREVEYKPSLFAHCPESQATKYFDIYGKPCTRKLFANMRDASQWIKRMEDIGLEALGMDDFKLAYLSDTYNYEIKYDHTKIRVANFDIEVTSPDGFPEPSQAKHPIDAITHYDSIDDRFYVFDLLNSPYGNVEEWSIEIAAKLQEQGGDEVPSEIIDKIIYMPFDNEKELLMEYLNFWQQKTPVILTGWNVESFDIPYVYNRIKNIFGESTAKRLSPHRKTRVKVIENMYGSREIITLFGISVLDYIDLYKKFSFTNQPSYSLDYISEFELNVGKLKYDGPISKLRESNHQRYISYNIIDVYRVLQIDAKRQFINLSLDMGYYAKIQIQSVFSPIKTWDAIIFNSLKEQNKVIPQGRSHPVQPYPGAFVKEPIPNRYKYVMSFDLTSLYPSIIRQVNISPETIAGTFKVAPLHDYINAVAERPSDVYSCSPNGMMYYKDRDGVVPTEITKVFNQRKEHKGYMLAAQRNGEIIKEALHNPNLSVDEPLDVDYRFDFSDEIKEKIKKLSAKSLNEMLFRAQRTEVAGMTAQINRKALINGLAGALGNVWFRYYDLRNATAITTFGQMALQWIERKVNEYLNEVCGTEGEAFVLYGDTDSIYVSADKIIDKVGESKFRDTNHWVDFLDKFARERMEPAIDRGFREMCEYMNNKQHLMFMDREAIAGPPLGSKGIGGFWTGKKRYALNVWDMEGTRYAEPKLKIMGLETQKSSTPKAVQKALKECIRRMLQEGEESLQEYFKEFEKEFRQLNYISIASVSSANNIAKYDVGGFPGPKCPFHIRGILTYNRAIKGNIDAPQVVEGEKVYVLPLREGNPFGDKCIAWPSGTEITDLIKDDVLHWMDYTVLLEKTFIKPLEGFTSAAKLDYEKKASLFDMFDFHHHHHH

Source Source

Source organism organism	Bacteriophage RB69
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	THYMIDINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	482.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	299

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	3cfpA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	342 — DNA Polymerase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — DNA Polymerase, chain B, domain 1

Domain ID domain_id	3cfpA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	3cfpA03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1600 — Palm domain of DNA polymerase
Homologous superfamily homologous superfamily	10 — B family DNA polymerase, palm domain

Domain ID domain_id	3cfpA04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	690 — B family DNA polymerase, finger domain

Domain ID domain_id	3cfpA05
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	300 —

Domain ID domain_id	3cfpA06
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1820 — Ribonuclease H-like motif
Homologous superfamily homologous superfamily	10 — DnaQ-like 3'-5' exonuclease

▶

Unit-cell length a length_a	80.726 Å
Unit-cell length b length_b	117.281 Å
Unit-cell length c length_c	126.813 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2005
R_work r_work	0.1969
R_free r_free	0.2666
