3iei

Crystal structure of human leucine carboxylmethyltransferase-1 in complex with S-adenosyl homocysteine

Method: X-RAY DIFFRACTION D_max: 151.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Leucine carboxyl methyltransferase 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–334	Mutation：C19M, A21E, D22N, P115S	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Protein solution (10 mg/ml LCMT-1, 5 mM SAH) was mixed with an equal volume of reservoir solution containing 17-19% v/v PEG MME 2000, 150 mM Triethylamine N-oxide, 5 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.232
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–334	Mutation：C19M, A21E, D22N, P115S	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Protein solution (10 mg/ml LCMT-1, 5 mM SAH) was mixed with an equal volume of reservoir solution containing 17-19% v/v PEG MME 2000, 150 mM Triethylamine N-oxide, 5 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.232
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–334	Mutation：C19M, A21E, D22N, P115S	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Protein solution (10 mg/ml LCMT-1, 5 mM SAH) was mixed with an equal volume of reservoir solution containing 17-19% v/v PEG MME 2000, 150 mM Triethylamine N-oxide, 5 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.232
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 1–334	Mutation：C19M, A21E, D22N, P115S	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Protein solution (10 mg/ml LCMT-1, 5 mM SAH) was mixed with an equal volume of reservoir solution containing 17-19% v/v PEG MME 2000, 150 mM Triethylamine N-oxide, 5 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.232
5	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain E； UniProt 1–334	Mutation：C19M, A21E, D22N, P115S	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Protein solution (10 mg/ml LCMT-1, 5 mM SAH) was mixed with an equal volume of reservoir solution containing 17-19% v/v PEG MME 2000, 150 mM Triethylamine N-oxide, 5 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.232
6	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain F； UniProt 1–334	Mutation：C19M, A21E, D22N, P115S	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Protein solution (10 mg/ml LCMT-1, 5 mM SAH) was mixed with an equal volume of reservoir solution containing 17-19% v/v PEG MME 2000, 150 mM Triethylamine N-oxide, 5 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.232
7	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain G； UniProt 1–334	Mutation：C19M, A21E, D22N, P115S	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Protein solution (10 mg/ml LCMT-1, 5 mM SAH) was mixed with an equal volume of reservoir solution containing 17-19% v/v PEG MME 2000, 150 mM Triethylamine N-oxide, 5 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.232
8	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain H； UniProt 1–334	Mutation：C19M, A21E, D22N, P115S	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；Protein solution (10 mg/ml LCMT-1, 5 mM SAH) was mixed with an equal volume of reservoir solution containing 17-19% v/v PEG MME 2000, 150 mM Triethylamine N-oxide, 5 mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3IEI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3O7W The Crystal Structure of Human Leucine Carboxyl Methyltransferase 1 Deposited 2010-08-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–334（312 aa） Fragment：UNP residues 23-334 with deletion of residues 233-258	Not recorded	GOL GLYCEROL × 1 SAM S-ADENOSYLMETHIONINE × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；0.05 M Ammonium Sulfate, 0.05M Bis Tris (pH6.5), 30% Pentaerythritol Ethoxylate, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.00 Å R-free 0.265
3P71 Crystal structure of the complex of LCMT-1 and PP2A Deposited 2010-10-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 1–334（334 aa）	Mutation：C19M, A21E, D22N, P115S	PEG DI(HYDROXYETHYL)ETHER × 1 AN6 5'-{[(3S)-3-amino-3-carboxypropyl](ethyl)amino}-5'-deoxyadenosine × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；291 K；PROTEIN COMPLEX (~5 MG/ML), 100MM TRIS-HCL, 22-26% V/V PEG 4000, 200 MM SODIUM ACETATE, 5 MM DTT, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.70 Å R-free 0.249

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LCMT1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–334； UniProt 1–334 Author chain B； PDBConstruct 1–334； UniProt 1–334 Author chain C； PDBConstruct 1–334； UniProt 1–334 Author chain D； PDBConstruct 1–334； UniProt 1–334 Author chain E； PDBConstruct 1–334； UniProt 1–334 Author chain F； PDBConstruct 1–334； UniProt 1–334 Author chain G； PDBConstruct 1–334； UniProt 1–334 Author chain H； PDBConstruct 1–334； UniProt 1–334

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3iei
Deposition date deposition_date	2009-07-22
Structure title title	Crystal structure of human leucine carboxylmethyltransferase-1 in complex with S-adenosyl homocysteine
Keywords keywords	LCMT-1, Methyltransferase, S-adenosyl-L-methionine, Transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	46.66 Å
Radius of gyration Rg (electron density) rg_electron	46.02 Å
Forward intensity I(0) i0	1265190000.00
Molecular weight molecular_weight	290990.0 kDa
Excluded volume excluded_volume	362820 Å³
Envelope volume envelope_volume	497060 Å³
Hydration-shell volume shell_volume	88861 Å³
Envelope diameter envelope_diameter	159.9 Å
Shell Rg shell_rg	52.04 Å
Envelope Rg envelope_rg	44.85 Å
Shape Rg shape_rg	46.00 Å
Total Rg total_rg	46.29 Å
Total atoms total_atoms	20344
Residues n_residues	2480
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

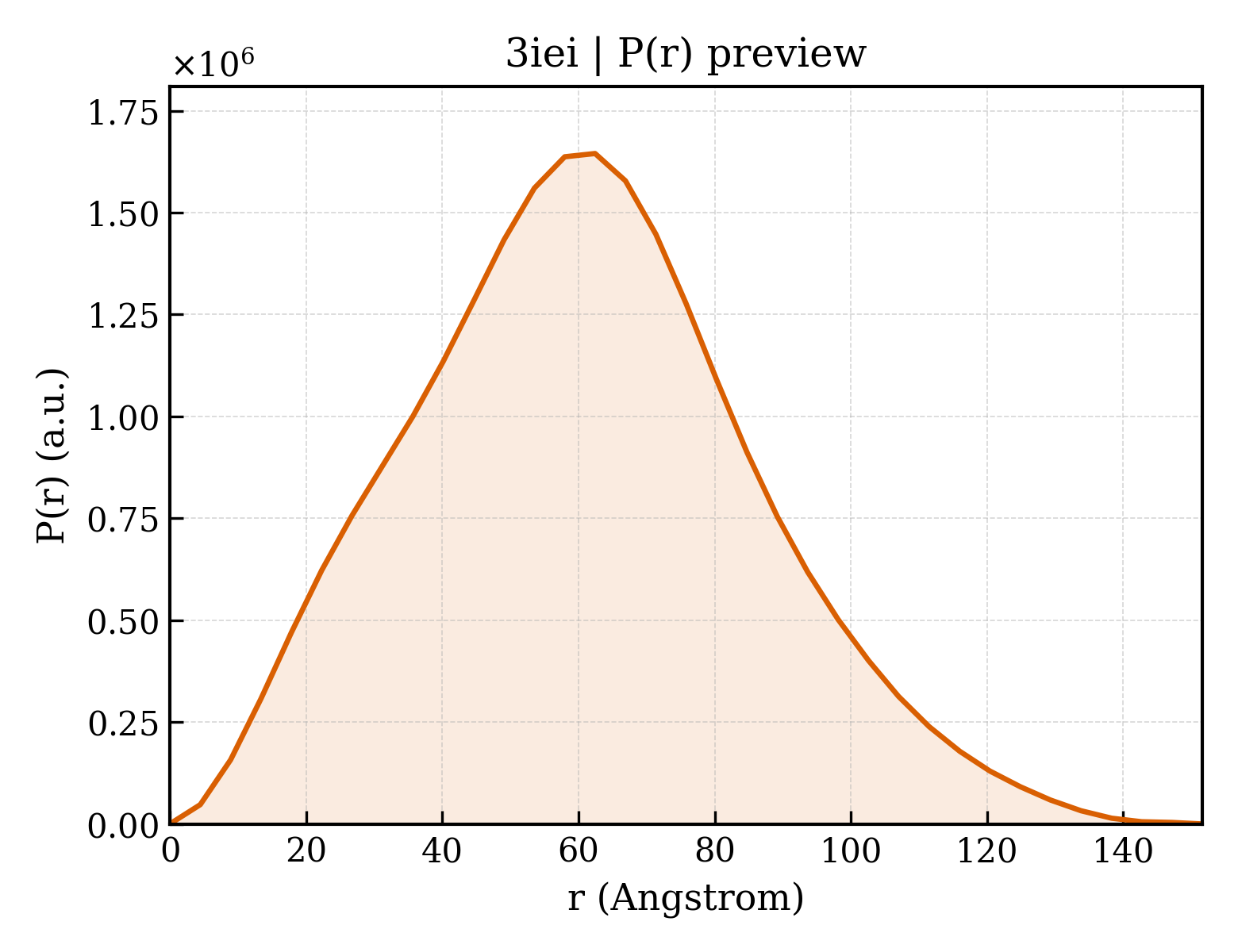

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	151.6 Å
Rg (real space) rg_real	46.47 Å
Rg uncertainty (real space) rg_real_error	1.05 Å
I(0) (real space) i0_real	1.2650e+09
I(0) uncertainty (real space) i0_real_error	2.2400e+07
Rg (reciprocal space) rg_reciprocal	46.66 Å
I(0) (reciprocal space) i0_reciprocal	1265000000.0000
Solution quality estimate total_estimate	0.8567
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	62.4 Å
Skewness Skewness skewness	0.240
Kurtosis Kurtosis kurtosis	-0.227
Angular range angular_range	— – 0.1700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	144500000.0000
Real-space data points n_real_points	35
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.787; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.800

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Leucine carboxyl methyltransferase 1
Molecular weight formula_weight	38504.2 kDa
EC 编号 ec_number	2.1.1.-
Mutation mutation	C19M, A21E, D22N, P115S
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	22201

MATRQRESSITSCCSTSSMDENDEGVRGTCEDASLCKRFAVSIGYWHDPYIQHFVRLSKERKAPEINRGYFARVHGVSQLIKAFLRKTECHCQIVNLGAGMDTTFWRLKDEDLLSSKYFEVDFPMIVTRKLHSIKCKPPLSSPILELHSEDTLQMDGHILDSKRYAVIGADLRDLSELEEKLKKCNMNTQLPTLLIAECVLVYMTPEQSANLLKWAANSFERAMFINYEQVNMGDRFGQIMIENLRRRQCDLAGVETCKSLESQKERLLSNGWETASAVDMMELYNRLPRAEVSRIESLEFLDEMELLEQLMRHYCLCWATKGGNELGLKEITY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	S-ADENOSYL-L-HOMOCYSTEINE
Molecular weight formula_weight	384.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1851

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d3ieia_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.0 — automated matches

Domain ID domain_id	d3ieib_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.0 — automated matches

Domain ID domain_id	d3ieic_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.0 — automated matches

Domain ID domain_id	d3ieid_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.0 — automated matches

Domain ID domain_id	d3ieie_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.0 — automated matches

Domain ID domain_id	d3ieif_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.0 — automated matches

Domain ID domain_id	d3ieig_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.0 — automated matches

Domain ID domain_id	d3ieih_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	3ieiA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	3ieiB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	3ieiC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	3ieiD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	3ieiE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	3ieiF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	3ieiG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	3ieiH00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

8. Citations (1)

▶

Unit-cell length a length_a	106.036 Å
Unit-cell length b length_b	81.127 Å
Unit-cell length c length_c	82.816 Å
Unit-cell angle α angle_alpha	105.41 °
Unit-cell angle β angle_beta	93.97 °
Unit-cell angle γ angle_gamma	104.29 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	29.970 Å
R factor r_factor	0.1860
R_work r_work	0.1836
R_free r_free	0.2322
