3ikl

Crystal structure of Pol gB delta-I4.

Method: X-RAY DIFFRACTION D_max: 82.2 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase subunit gamma-2, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–146 Chain A； UniProt 181–485 Chain B； UniProt 1–146 Chain B； UniProt 181–485	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；VAPOR DIFFUSION	Resolution 3.10 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3IKL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2G4C Crystal Structure of human DNA polymerase gamma accessory subunit Deposited 2006-02-22	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 26–485（460 aa） Chain C 26–485（460 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；10%PEG 8000, 100 mM Tris-Cl, pH 8.0, VAPOR DIFFUSION, temperature 298.0K	Resolution 3.15 Å R-free 0.285
2G4C Crystal Structure of human DNA polymerase gamma accessory subunit Deposited 2006-02-22	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 26–485（460 aa） Chain D 26–485（460 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；10%PEG 8000, 100 mM Tris-Cl, pH 8.0, VAPOR DIFFUSION, temperature 298.0K	Resolution 3.15 Å R-free 0.285
3IKM Crystal structure of human mitochondrial DNA polymerase holoenzyme Deposited 2009-08-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 59–485（427 aa） Fragment：UNP residues 59-485 Chain C 59–485（427 aa） Fragment：UNP residues 59-485	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；VAPOR DIFFUSION	Resolution 3.24 Å R-free 0.303
3IKM Crystal structure of human mitochondrial DNA polymerase holoenzyme Deposited 2009-08-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 59–485（427 aa） Fragment：UNP residues 59-485 Chain F 59–485（427 aa） Fragment：UNP residues 59-485	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；VAPOR DIFFUSION	Resolution 3.24 Å R-free 0.303
4ZTU Structural basis for processivity and antiviral drug toxicity in human mitochondrial DNA replicase Deposited 2015-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Not recorded	MG MAGNESIUM ION × 2 DCT 2',3'-DIDEOXYCYTIDINE 5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；PEG8000, KCl, CaCl2	Resolution 3.30 Å R-free 0.316
4ZTZ Structural basis for processivity and antiviral drug toxicity in human mitochondrial DNA replicase Deposited 2015-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Not recorded	MG MAGNESIUM ION × 2 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；297 K；PEG8000, KCl, CaCl2	Resolution 3.44 Å R-free 0.320
5C51 Probing the Structural and Molecular Basis of Nucleotide Selectivity by Human Mitochondrial DNA Polymerase gamma Deposited 2015-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	MG MAGNESIUM ION × 2 1RY [[(2R,5S)-5-(4-azanyl-5-fluoranyl-2-oxidanylidene-pyrimidin-1-yl)-1,3-oxathiolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；PEG4000, KCl, HEPES	Resolution 3.43 Å R-free 0.345
5C52 Probing the Structural and Molecular Basis of Nucleotide Selectivity by Human Mitochondrial DNA Polymerase gamma Deposited 2015-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	1RY [[(2R,5S)-5-(4-azanyl-5-fluoranyl-2-oxidanylidene-pyrimidin-1-yl)-1,3-oxathiolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；PEG4000, KCl, HEPES	Resolution 3.64 Å R-free 0.314
8D33 Human mitochondrial DNA polymerase gamma ternary complex with GC basepair Deposited 2022-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.46 Å
8D37 Human mitochondrial DNA polymerase gamma ternary complex with GT basepair in replication conformer Deposited 2022-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å
8D3R Human mitochondrial DNA polymerase gamma ternary complex with GT basepair in intermediate conformer Deposited 2022-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
8D42 Human mitochondrial DNA polymerase gamma ternary complex with GT basepair in editing conformer (composite) Deposited 2022-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	CA CALCIUM ION × 3 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.91 Å
8G5I Cryo-EM structure of the Mismatch Sensing Complex (I) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris, pH 7.9, 100 mM NaCl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.75 Å
8G5J Cryo-EM structure of the Mismatch Uncoupling Complex (II) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris-Hcl pH 7.9, 100 mM Nacl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.63 Å
8G5K Cryo-EM structure of the Wedge Alignment Complex (VIII) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris pH 7.9, 100 mM NaCl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8G5L Cryo-EM structure of the Primer Separation Complex (IX) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris pH 7.9, 100 mM NaCl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8G5M Cryo-EM structure of the Mismatch Locking Complex (III) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris pH 7.9, 100 mM NaCl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.58 Å
8G5N Cryo-EM structure of the Guide loop Engagement Complex (VI) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris pH 7.9, 100 mM NaCl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.73 Å
8G5O Cryo-EM structure of the Guide loop Engagement Complex (IV) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris-Hcl pH 7.9, 100 mM Nacl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.61 Å
8G5P Cryo-EM structure of the Guide loop Engagement Complex (V) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris-Hcl pH 7.9, 100 mM Nacl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.78 Å
8T7E Cryo-EM structure of the Backtracking Initiation Complex (VII) of Human Mitochondrial DNA Polymerase Gamma Deposited 2023-06-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9；10 mM Tris, pH 7.9, 100 mM NaCl, 10 mM DTT, and 2 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
8UDK Human Mitochondrial DNA Polymerase gamma R853A Ternary Complex Deposited 2023-09-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: heptameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；100 mM MES (pH 6.0), 150 mM NaCl, 10 mM CaCl2, 50 mM BME, 3% PEG 8000, 1-8% sucrose, 2% Jeffamine, 0.8 M NDSB	Resolution 3.43 Å R-free 0.234
8UDL Human Mitochondrial DNA Polymerase Gamma Binary Complex Deposited 2023-09-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.37 Å
8V54 Engaged conformation of the human mitochondrial DNA polymerase gamma bound to DNA Deposited 2023-11-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8V55 Human mitochondrial DNA polymerase gamma bound to a replication fork in an open conformation Deposited 2023-11-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8V5R Active conformation of DNA polymerase gamma bound to DNA Deposited 2023-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Not recorded	MG MAGNESIUM ION × 1 D3T 2',3'-DIDEOXY-THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9GGB Structure of the G848S mutant of human mitochondrial DNA polymerase gamma in complex with PZL-A Deposited 2024-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Mutation：A169T Mutation：A169T	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1 A1IK1 1-[(4S)-8-chloranyl-3,4-dihydro-2H-chromen-4-yl]-3-(1-phenylpyrazol-3-yl)urea × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.63 Å
9GGC Structure of the G848S mutant of human mitochondrial DNA polymerase gamma Deposited 2024-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Mutation：A169T Mutation：A169T	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.39 Å
9GGD Structure of the A467T mutant of human mitochondrial DNA polymerase gamma in complex with PZL-A Deposited 2024-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Mutation：A169T Mutation：A169T	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1 A1IK1 1-[(4S)-8-chloranyl-3,4-dihydro-2H-chromen-4-yl]-3-(1-phenylpyrazol-3-yl)urea × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.67 Å
9GGE Structure of the A467T mutant of human mitochondrial DNA polymerase gamma Deposited 2024-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Mutation：A169T Mutation：A169T	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.69 Å
9GGF Structure of WT human mitochondrial DNA polymerase gamma Deposited 2024-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Mutation：A169T Mutation：A169T	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å
9IBX Chimeric mitochondrial DNA polymerase gamma ternary complex (mAhB) in replication conformer Deposited 2025-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Mutation：A169T Mutation：A169T	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.54 Å
9IBZ Chimeric mitochondrial DNA polymerase gamma ternary complex (mAhB) in human-like error-editing conformer (composite) Deposited 2025-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Mutation：A169T Mutation：A169T	CA CALCIUM ION × 2 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9IC0 Chimeric mitochondrial DNA polymerase gamma ternary complex (mAhB) in mouse-like error-editing conformer (composite) Deposited 2025-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 26–485（460 aa） Chain C 26–485（460 aa）	Mutation：A169T Mutation：A169T	CA CALCIUM ION × 2 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
9Y4C Strand displacement state I of Human mitochondrial DNA polymerase gamma ternary complex Deposited 2025-09-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: tetrameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	CA CALCIUM ION × 1 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.23 Å
9Y4D Strand displacement state II of Human mitochondrial DNA polymerase gamma ternary complex Deposited 2025-09-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: tetrameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	CA CALCIUM ION × 1 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å
9Y4E Strand displacement state III of Human mitochondrial DNA polymerase gamma ternary complex Deposited 2025-09-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: tetrameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	CA CALCIUM ION × 1 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.05 Å
9Y4F Strand displacement state IV of Human mitochondrial DNA polymerase gamma ternary complex Deposited 2025-09-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: tetrameric	Chain B 1–485（485 aa） Chain C 1–485（485 aa）	Not recorded	CA CALCIUM ION × 1 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.62 Å

36 other PDB entries and 38 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DPOG2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–146； UniProt 1–146 Author chain A； PDBConstruct 149–453； UniProt 181–485 Author chain B； PDBConstruct 1–146； UniProt 1–146 Author chain B； PDBConstruct 149–453； UniProt 181–485

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

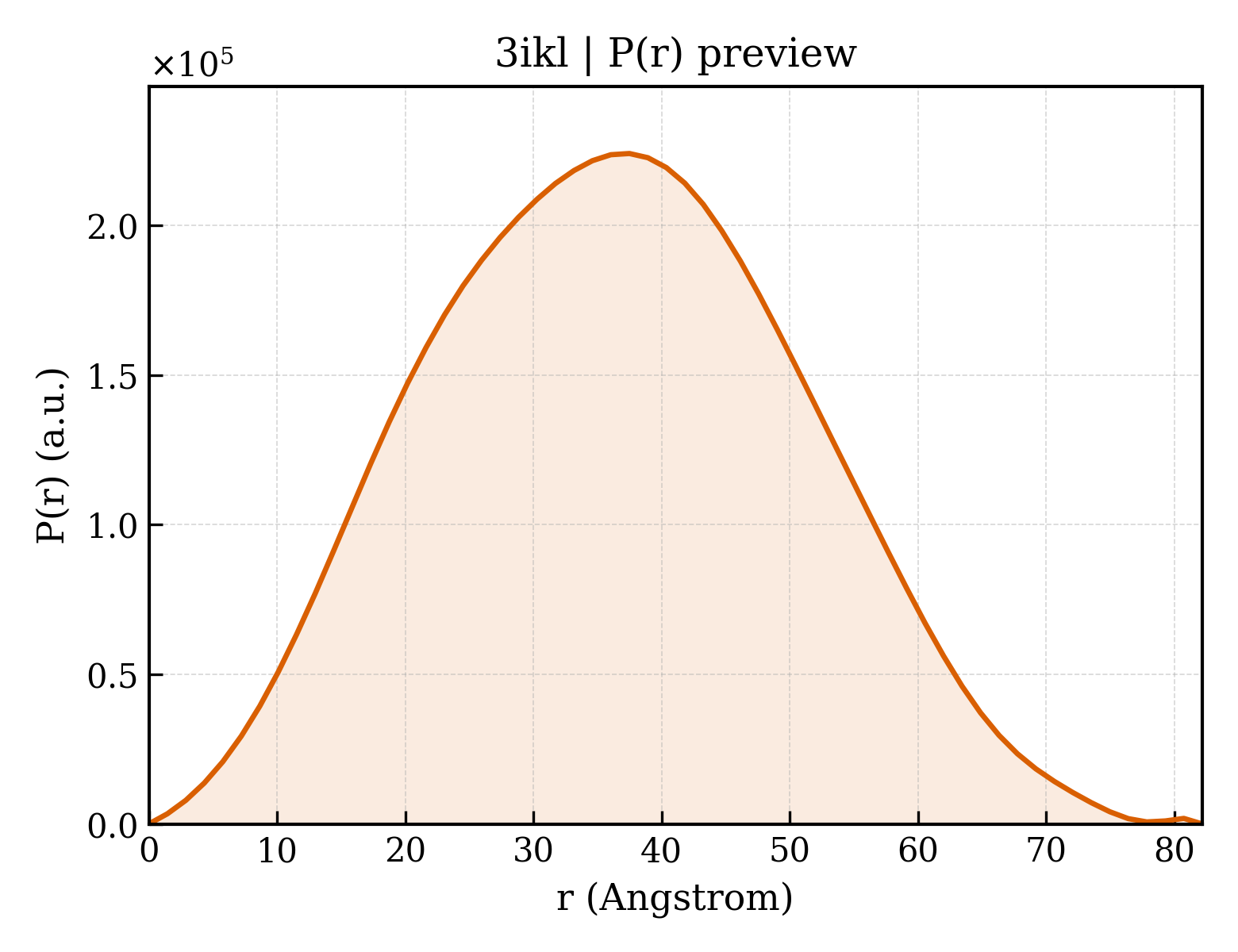

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3ikl
Deposition date deposition_date	2009-08-06
Structure title title	Crystal structure of Pol gB delta-I4.
Keywords keywords	TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.89 Å
Radius of gyration Rg (electron density) rg_electron	26.51 Å
Forward intensity I(0) i0	109331000.00
Molecular weight molecular_weight	83212.0 kDa
Excluded volume excluded_volume	104650 Å³
Envelope volume envelope_volume	129710 Å³
Hydration-shell volume shell_volume	39146 Å³
Envelope diameter envelope_diameter	86.3 Å
Shell Rg shell_rg	35.27 Å
Envelope Rg envelope_rg	26.49 Å
Shape Rg shape_rg	26.46 Å
Total Rg total_rg	27.57 Å
Total atoms total_atoms	5866
Residues n_residues	728
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	82.2 Å
Rg (real space) rg_real	27.67 Å
Rg uncertainty (real space) rg_real_error	0.35 Å
I(0) (real space) i0_real	1.0930e+08
I(0) uncertainty (real space) i0_real_error	1.3610e+06
Rg (reciprocal space) rg_reciprocal	27.74 Å
I(0) (reciprocal space) i0_reciprocal	109300000.0000
Solution quality estimate total_estimate	0.7125
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	37.5 Å
Skewness Skewness skewness	0.099
Kurtosis Kurtosis kurtosis	-0.510
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	47230000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.957; Stabil: 1.000; Sysdev: 0.177; Positv: 1.000; Valcen: 0.977; Smooth: 0.879

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3ikla1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d3iklb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

CATH v4.4 (4 domains)

Domain ID domain_id	3iklA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	3iklA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

Domain ID domain_id	3iklB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	3iklB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	64.430 Å
Unit-cell length b length_b	64.430 Å
Unit-cell length c length_c	260.704 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	45.820 Å
R factor r_factor	0.2570
R_work r_work	0.2570
R_free r_free	0.2940

Description description	DNA polymerase subunit gamma-2, mitochondrial
Molecular weight formula_weight	52116.6 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5866

Crystal structure of Pol gB delta-I4.

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase subunit gamma-2, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606

fit	/app/data/saxs_computation/ik/3ikl/3ikl.fit
pddf	/app/data/pr_computation/ik/3ikl/3ikl.pr.out
profile	/app/data/saxs_computation/ik/3ikl/3ikl.dat
