SAXSdb — 3jr3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NAD-dependent deacetylase

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Acetylated Peptide × 1 ZINC ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NPD_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–246； UniProt 1–246

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3jr3
Deposition date deposition_date	2009-09-08
Structure title title	Sir2 bound to acetylated peptide
Keywords keywords	Sir2, deacetylation, NAD+, ribosylation, Hydrolase, Metal-binding, NAD; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3jr3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

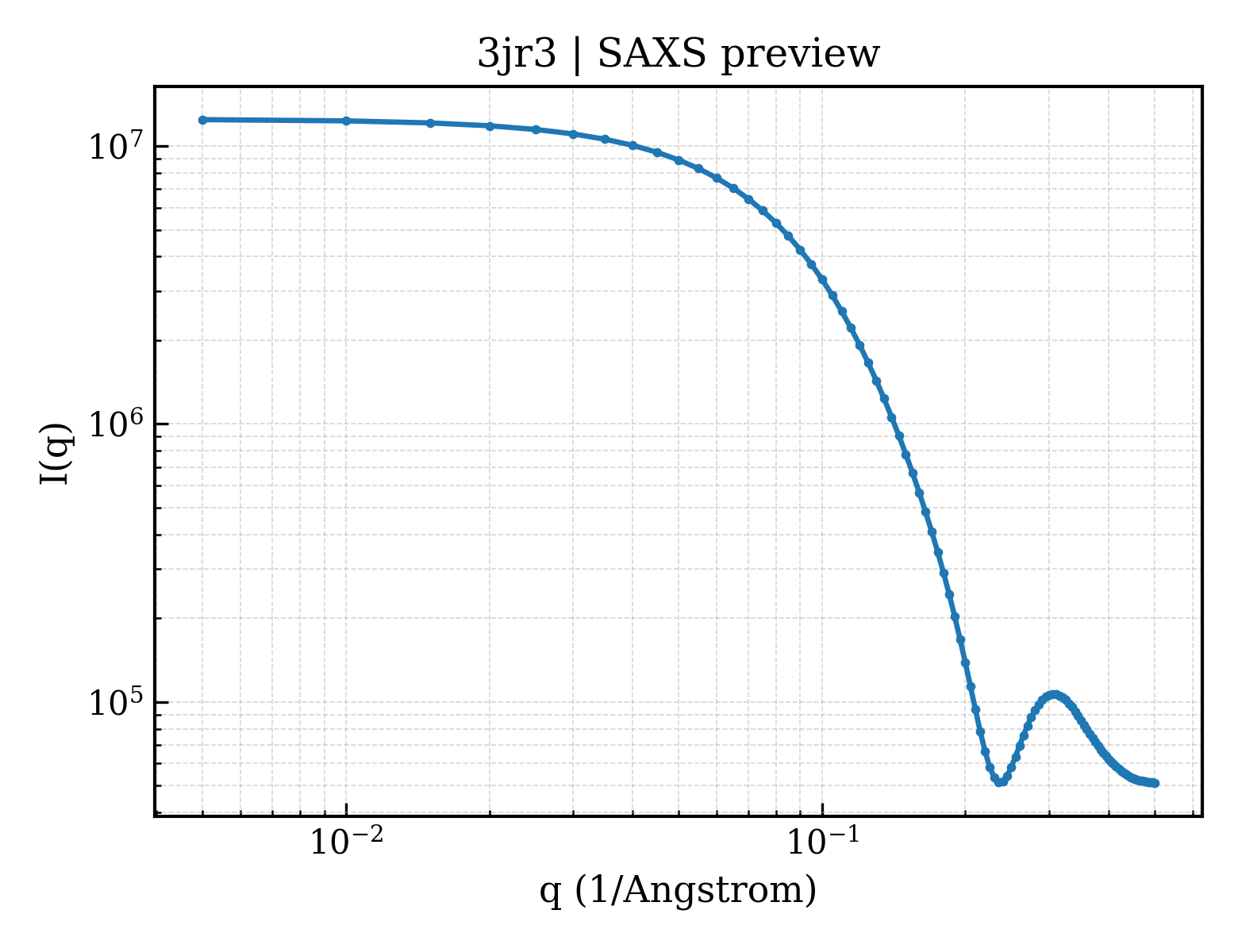

3jr3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

3jr3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.13 Å
Rg (electron density)	19.00 Å
Total Rg	20.03 Å
Atom count	1918
Residues	243
Excluded volume	34607 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3jr3__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NAD-dependent deacetylase
Molecular weight formula_weight	27502.7 kDa
EC 编号 ec_number	3.5.1.-
Mutation mutation	H116A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2146

MKMKEFLDLLNESRLTVTLTGAGISTPSGIPDFRGPNGIYKKYSQNVFDIDFFYSHPEEFYRFAKEGIFPMLQAKPNLAHVLLAKLEEKGLIEAVITQNIDRLHQRAGSKKVIELAGNVEEYYCVRCEKKYTVEDVIKKLESSDVPLCDDCNSLIRPNIVFFGENLPQDALREAIGLSSRASLMIVLGSSLVVYPAAELPLITVRSGGKLVIVNLGETPFDDIATLKYNMDVVEFARRVMEEGGIS

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Acetylated Peptide
Molecular weight formula_weight	2165.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

KKGQSTSRHKKLRFKTEG

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	228

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3jr3a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.5 — Sir2 family of transcriptional regulators

CATH v4.4 (2 domains)

Domain ID domain_id	3jr3A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	3jr3A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1600 — SIR2/SIRT2 'Small Domain'
Homologous superfamily homologous superfamily	10 — SIR2/SIRT2 'Small Domain'

▶

Unit-cell length a length_a	45.717 Å
Unit-cell length b length_b	58.382 Å
Unit-cell length c length_c	106.516 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	22.550 Å
R factor r_factor	0.2058
R_work r_work	0.2046
R_free r_free	0.2279
