SAXSdb — 3n7m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neurotoxin

Clostridium botulinum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 862–1285	Fragment：Receptor Binding Domain (UNP residues 862-1285) Mutation：W1252A	SO4 SULFATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；0.1M Hepes pH 7.5, 4% PEG400, 45% ammonium sulfate, 250mM NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.60 Å R-free 0.270

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3N7M	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3N7L Crystal structure of botulinum neurotoxin serotype D/C VPI 5993 binding domain Deposited 2010-05-27	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 862–1285（424 aa） Fragment：Receptor Binding Domain (UNP residues 862-1285)	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；292 K；0.1M MES pH 6.0, 5% PEG400, 1.8 M ammonium, 250 mM NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.00 Å R-free 0.257
4FVV Crystal structure of HCR/D-Sa-GBL1/C Deposited 2012-06-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 862–1285（424 aa） Fragment：receptor binding domain, UNP residues 862-1285	Mutation：loop of KLGDDYWFN(1246-1254) mutated to RLGGDWYR	SO4 SULFATE ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；292 K；16% PEG5K-MME, 50 mM MgSO4, 0.1 M HEPPs buffer, pH 8.5, EVAPORATION, temperature 292K	Resolution 2.70 Å R-free 0.263
4FVV Crystal structure of HCR/D-Sa-GBL1/C Deposited 2012-06-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 862–1285（424 aa） Fragment：receptor binding domain, UNP residues 862-1285	Mutation：loop of KLGDDYWFN(1246-1254) mutated to RLGGDWYR	GOL GLYCEROL × 2 SIA N-acetyl-alpha-neuraminic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；292 K；16% PEG5K-MME, 50 mM MgSO4, 0.1 M HEPPs buffer, pH 8.5, EVAPORATION, temperature 292K	Resolution 2.70 Å R-free 0.263
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 864–1285（422 aa） Fragment：Hc domain (unp residues 864-1285)	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 864–1285（422 aa） Fragment：Hc domain (unp residues 864-1285)	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4ISQ Binding domain of Botulinum neurotoxin DC in complex with human synaptotagmin I Deposited 2013-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 864–1285（422 aa） Fragment：Hc domain (unp residues 864-1285)	Not recorded	SO4 SULFATE ION × 8 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.65 Å R-free 0.220
4ISR Binding domain of Botulinum neurotoxin DC in complex with rat synaptotagmin II Deposited 2013-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 864–1285（422 aa） Fragment：Hc domain (unp residues 864-1285)	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.59 Å R-free 0.235
4ISR Binding domain of Botulinum neurotoxin DC in complex with rat synaptotagmin II Deposited 2013-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 864–1285（422 aa） Fragment：Hc domain (unp residues 864-1285)	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.59 Å R-free 0.235
4ISR Binding domain of Botulinum neurotoxin DC in complex with rat synaptotagmin II Deposited 2013-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 864–1285（422 aa） Fragment：Hc domain (unp residues 864-1285)	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.0 M NaSO4, 0.1 M Na-cacodylate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.59 Å R-free 0.235

4 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q9LBR1_CLOBO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–424； UniProt 862–1285

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3n7m
Deposition date deposition_date	2010-05-27
Structure title title	Crystal structure of W1252A mutant of HCR D/C VPI 5995
Keywords keywords	Botulinum neurotoxin, W1252A mutant, GM1a, Ganglioside binding loop, TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.70 Å
Radius of gyration Rg (electron density) rg_electron	24.68 Å
Forward intensity I(0) i0	37978600.00
Molecular weight molecular_weight	48404.0 kDa
Excluded volume excluded_volume	60874 Å³
Envelope volume envelope_volume	71936 Å³
Hydration-shell volume shell_volume	25056 Å³
Envelope diameter envelope_diameter	92.1 Å
Shell Rg shell_rg	31.19 Å
Envelope Rg envelope_rg	25.05 Å
Shape Rg shape_rg	24.63 Å
Total Rg total_rg	25.61 Å
Total atoms total_atoms	3414
Residues n_residues	418
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	86.1 Å
Rg (real space) rg_real	25.80 Å
Rg uncertainty (real space) rg_real_error	0.62 Å
I(0) (real space) i0_real	3.7980e+07
I(0) uncertainty (real space) i0_real_error	5.8130e+05
Rg (reciprocal space) rg_reciprocal	25.77 Å
I(0) (reciprocal space) i0_reciprocal	37980000.0000
Solution quality estimate total_estimate	0.8637
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.4 Å
Skewness Skewness skewness	0.478
Kurtosis Kurtosis kurtosis	-0.305
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7752000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.771; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.951

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Neurotoxin
Molecular weight formula_weight	48923.0 kDa
Mutation mutation	W1252A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3470

NSINDSKILSLQNKKNTLMDTSGYNAEVRVEGNVQLNPIFPFDFKLGSSGDDRGKVIVTQNENIVYNAMYESFSISFWIRINKWVSNLPGYTIIDSVKNNSGWSIGIISNFLVFTLKQNENSEQDINFSYDISKNAAGYNKWFFVTITTNMMGNMMIYINGKLIDTIKVKELTGINFSKTITFQMNKIPNTGLITSDSDNINMWIRDFYIFAKELDDKDINILFNSLQYTNVVKDYWGNDLRYDKEYYMINVNYMNRYMSKKGNGIVFNTRKNNNDFNEGYKIIIKRIRGNTNDTRVRGENVLYFNTTIDNKQYSLGMYKPSRNLGTDLVPLGALDQPMDEIRKYGSFIIQPCNTFDYYASQLFLSSNATTNRLGILSIGSYSFKLGDDYAFNHEYLIPVIKIEHYASLLESTSTHWVFVPASE

来源 Source

来源生物 organism	Clostridium botulinum
NCBI Class编号 ncbi_taxonomy_id	1491
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	56

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3n7ma1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.0 — automated matches

Domain ID domain_id	d3n7ma2
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.4 — STI-like
Family Family family	b.42.4.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	3n7mA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	3n7mA02
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	57.389 Å
Unit-cell length b length_b	57.795 Å
Unit-cell length c length_c	184.664 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	28.550 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2700

fit	/app/data/saxs_computation/n7/3n7m/3n7m.fit
pddf	/app/data/pr_computation/n7/3n7m/3n7m.pr.out
profile	/app/data/saxs_computation/n7/3n7m/3n7m.dat

Crystal structure of W1252A mutant of HCR D/C VPI 5995

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neurotoxin

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

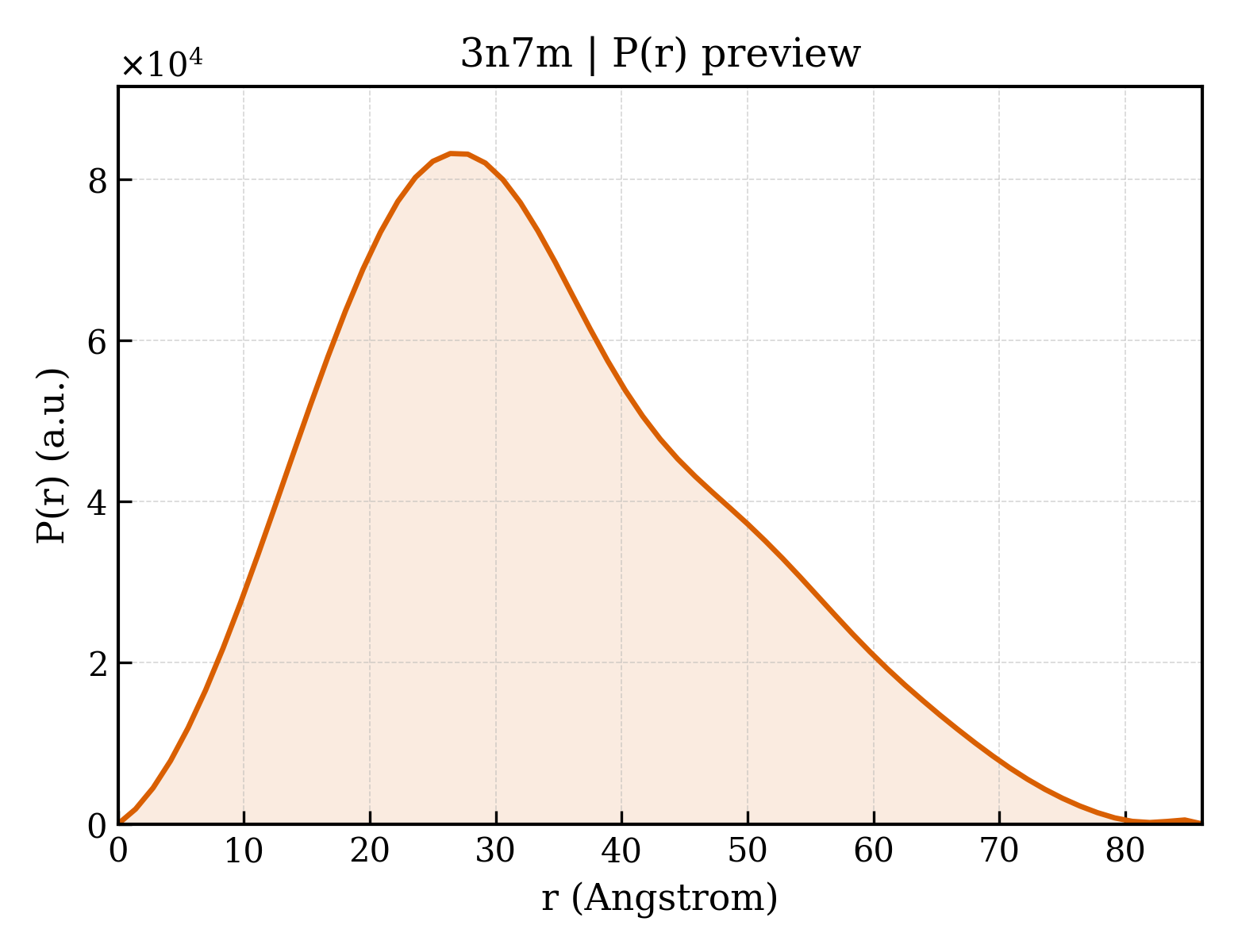

P(r) Distance Distribution P(r) Distribution
