3n81

T244A mutant of Human mitochondrial aldehyde dehydrogenase, apo form

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aldehyde dehydrogenase, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SODIUM ION × 4 GUANIDINE × 10 1,2-ETHANEDIOL × 13 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	SODIUM ION × 4 GUANIDINE × 11 1,2-ETHANEDIOL × 14 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ALDH2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–500； UniProt 18–517 Author chain B； PDBConstruct 1–500； UniProt 18–517 Author chain C； PDBConstruct 1–500； UniProt 18–517 Author chain D； PDBConstruct 1–500； UniProt 18–517 Author chain E； PDBConstruct 1–500； UniProt 18–517 Author chain F； PDBConstruct 1–500； UniProt 18–517 Author chain G； PDBConstruct 1–500； UniProt 18–517 Author chain H； PDBConstruct 1–500； UniProt 18–517

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3n81
Deposition date deposition_date	2010-05-27
Structure title title	T244A mutant of Human mitochondrial aldehyde dehydrogenase, apo form
Keywords keywords	oxidoreductase, ALDH, Rossmann fold; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3n81__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3n81__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

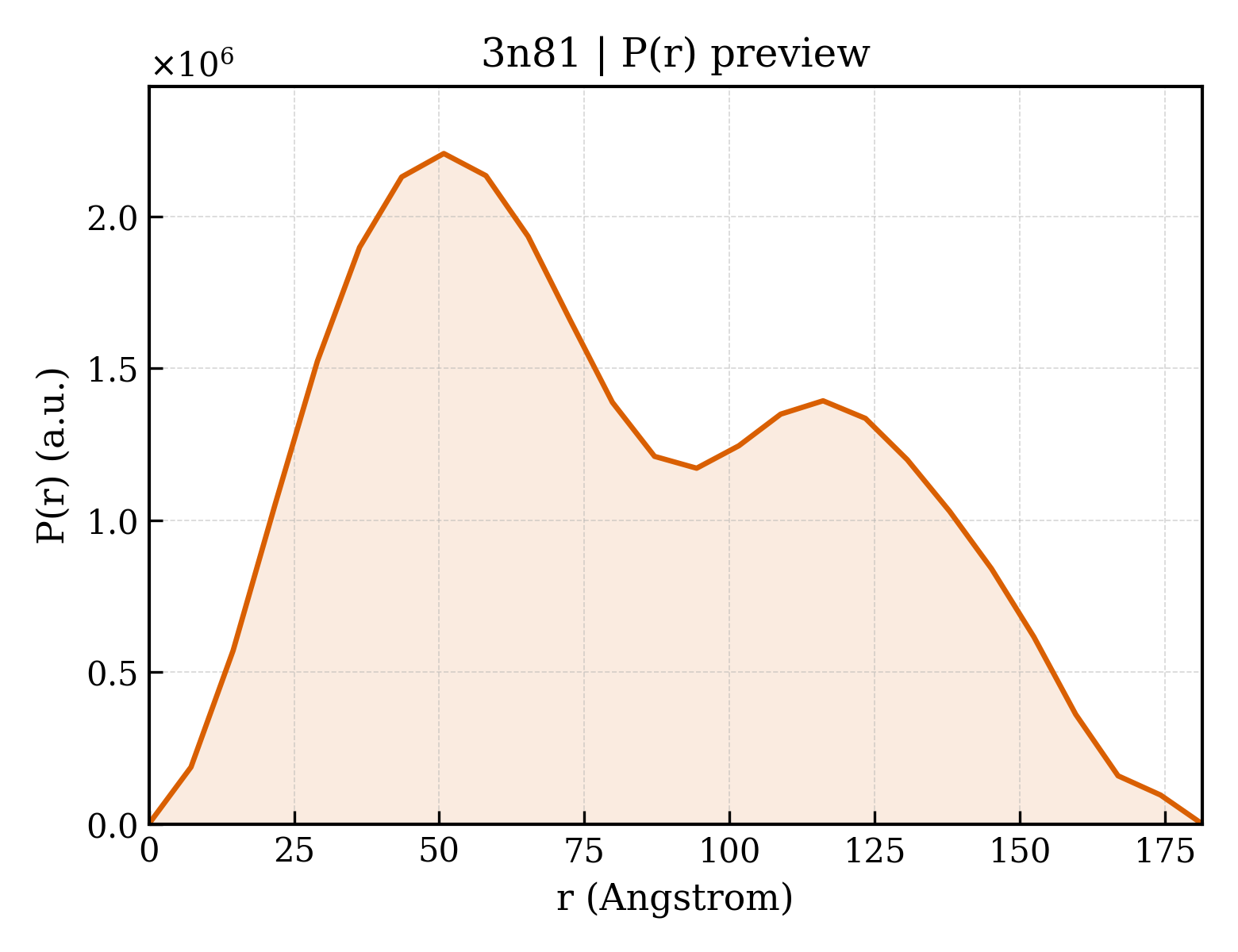

3n81__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.65 Å
Rg (electron density)	35.92 Å
Total Rg	36.51 Å
Atom count	15280
Residues	1976
Excluded volume	271930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3n81__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3n81__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Aldehyde dehydrogenase, mitochondrial
Molecular weight formula_weight	54469.6 kDa
EC 编号 ec_number	1.2.1.3
Mutation mutation	T244A
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	34624

SAAATQAVPAPNQQPEVFCNQIFINNEWHDAVSRKTFPTVNPSTGEVICQVAEGDKEDVDKAVKAARAAFQLGSPWRRMDASHRGRLLNRLADLIERDRTYLAALETLDNGKPYVISYLVDLDMVLKCLRYYAGWADKYHGKTIPIDGDFFSYTRHEPVGVCGQIIPWNFPLLMQAWKLGPALATGNVVVMKVAEQTPLTALYVANLIKEAGFPPGVVNIVPGFGPTAGAAIASHEDVDKVAFAGSTEIGRVIQVAAGSSNLKRVTLELGGKSPNIIMSDADMDWAVEQAHFALFFNQGQCCCAGSRTFVQEDIYDEFVERSVARAKSRVVGNPFDSKTEQGPQVDETQFKKILGYINTGKQEGAKLLCGGGIAADRGYFIQPTVFGDVQDGMTIAKEEIFGPVMQILKFKTIEEVVGRANNSTYGLAAAVFTKDLDKANYLSQALQAGTVWVNCYDVFGAQSPFGGYKMSGSGRELGEYGLQAYTEVKTVTVKVPQKNS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	GUANIDINE
Molecular weight formula_weight	59.1 kDa
Source method src_method	syn
Copy count entity_count	21

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	27

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3398

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d3n81a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d3n81b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d3n81c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d3n81d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d3n81e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d3n81f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d3n81g_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d3n81h_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

CATH v4.4 (16 domains)

Domain ID domain_id	3n81A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	3n81A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	3n81B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	3n81B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	3n81C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	3n81C02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	3n81D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	3n81D02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	3n81E01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	3n81E02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	3n81F01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	3n81F02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	3n81G01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	3n81G02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	3n81H01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	3n81H02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

▶

Unit-cell length a length_a	141.750 Å
Unit-cell length b length_b	152.194 Å
Unit-cell length c length_c	177.292 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	42.070 Å
R factor r_factor	0.1820
R_work r_work	0.1810
R_free r_free	0.2170

T244A mutant of Human mitochondrial aldehyde dehydrogenase, apo form

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aldehyde dehydrogenase, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3n81__assembly_1__model_1

3n81__assembly_1__model_1 | I(q)

3n81__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (3)

T244A mutant of Human mitochondrial aldehyde dehydrogenase, apo form

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aldehyde dehydrogenase, mitochondrial

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3n81__assembly_1__model_1

3n81__assembly_1__model_1 | I(q)

3n81__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (3)
