SAXSdb — 3nul

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROFILIN I

Arabidopsis thaliana

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–131	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5；2.0 M AMMONIUM SULFATE, 0.1 M CITRATE, PH 5.0, 10 mM DTT, 0.2 mM EDTA	Resolution 1.60 Å R-free 0.204

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3NUL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A0K PROFILIN I FROM ARABIDOPSIS THALIANA Deposited 1997-12-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–131（131 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；2.0 M AMMONIUM SULFATE, 0.1 M CITRATE PH 5.0, 10 MM DTT, 0.2 MM EDTA	Resolution 2.20 Å R-free 0.238

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PROF1_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–130； UniProt 2–131

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3nul
Deposition date deposition_date	1996-11-27
Structure title title	Profilin I from Arabidopsis thaliana
Keywords keywords	PROFILIN, CYTOSKELETON, ACTIN BINDING PROTEIN; ACTIN BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.10 Å
Radius of gyration Rg (electron density) rg_electron	13.57 Å
Forward intensity I(0) i0	4329290.00
Molecular weight molecular_weight	14552.0 kDa
Excluded volume excluded_volume	18051 Å³
Envelope volume envelope_volume	19841 Å³
Hydration-shell volume shell_volume	12298 Å³
Envelope diameter envelope_diameter	44.6 Å
Shell Rg shell_rg	19.47 Å
Envelope Rg envelope_rg	13.87 Å
Shape Rg shape_rg	13.55 Å
Total Rg total_rg	14.82 Å
Total atoms total_atoms	1225
Residues n_residues	127
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

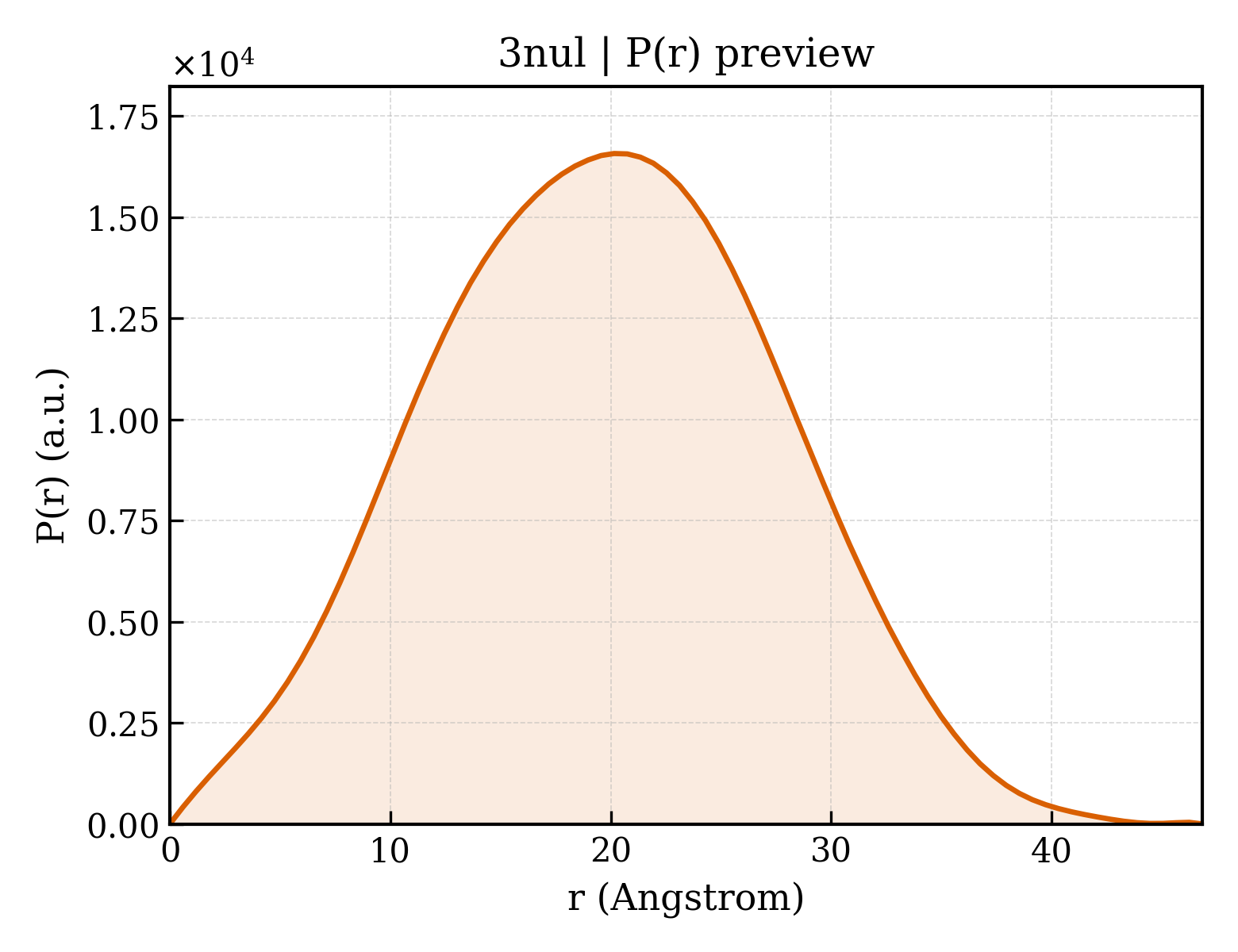

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	46.8 Å
Rg (real space) rg_real	14.97 Å
Rg uncertainty (real space) rg_real_error	0.18 Å
I(0) (real space) i0_real	4.3290e+06
I(0) uncertainty (real space) i0_real_error	4.0920e+04
Rg (reciprocal space) rg_reciprocal	14.99 Å
I(0) (reciprocal space) i0_reciprocal	4329000.0000
Solution quality estimate total_estimate	0.8955
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.1 Å
Skewness Skewness skewness	0.048
Kurtosis Kurtosis kurtosis	-0.431
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	696100.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.887; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.990

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROFILIN I
Molecular weight formula_weight	14288.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1574

SWQSYVDDHLMCDVEGNHLTAAAILGQDGSVWAQSAKFPQLKPQEIDGIKKDFEEPGFLAPTGLFLGGEKYMVIQGEQGAVIRGKKGPGGVTIKKTNQALVFGFYDEPMTGGQCNLVVERLGDYLIESEL

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	MOUSE EAR CRESS
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	99

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3nula_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.1 — Profilin (actin-binding protein)
Family Family family	d.110.1.1 — Profilin (actin-binding protein)

CATH v4.4 (1 domains)

Domain ID domain_id	3nulA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	30 — Dynein light chain 2a, cytoplasmic

▶

8. Citations (4)

▶

Unit-cell length a length_a	42.040 Å
Unit-cell length b length_b	43.070 Å
Unit-cell length c length_c	59.450 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1808
R_work r_work	0.1808
R_free r_free	0.2040

fit	/app/data/saxs_computation/nu/3nul/3nul.fit
pddf	/app/data/pr_computation/nu/3nul/3nul.pr.out
profile	/app/data/saxs_computation/nu/3nul/3nul.dat
