3s33

Structure of Thermus thermophilus cytochrome ba3 oxidase 10s after Xe depressurization

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome c oxidase subunit 1

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Cytochrome c oxidase subunit 2 × 1 （Q5SJ80） Cytochrome c oxidase polypeptide 2A × 1 （P82543） COPPER (II) ION × 1 PROTOPORPHYRIN IX CONTAINING FE × 1 HEME-AS × 1 XENON × 5 DINUCLEAR COPPER ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COX1_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–568； UniProt 2–562

Cytochrome c oxidase subunit 2

Thermus thermophilus

UniProt Q5SJ80

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Cytochrome c oxidase subunit 1 × 1 （Q5SJ79） Cytochrome c oxidase polypeptide 2A × 1 （P82543） COPPER (II) ION × 1 PROTOPORPHYRIN IX CONTAINING FE × 1 HEME-AS × 1 XENON × 5 DINUCLEAR COPPER ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COX2_THET8
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–166； UniProt 3–168

Cytochrome c oxidase polypeptide 2A

Thermus thermophilus

UniProt P82543

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Cytochrome c oxidase subunit 1 × 1 （Q5SJ79） Cytochrome c oxidase subunit 2 × 1 （Q5SJ80） COPPER (II) ION × 1 PROTOPORPHYRIN IX CONTAINING FE × 1 HEME-AS × 1 XENON × 5 DINUCLEAR COPPER ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COXA_THET8
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–33； UniProt 2–34

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3s33
Deposition date deposition_date	2011-05-17
Structure title title	Structure of Thermus thermophilus cytochrome ba3 oxidase 10s after Xe depressurization
Keywords keywords	oxidoreductase, xenon; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3s33__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3s33__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

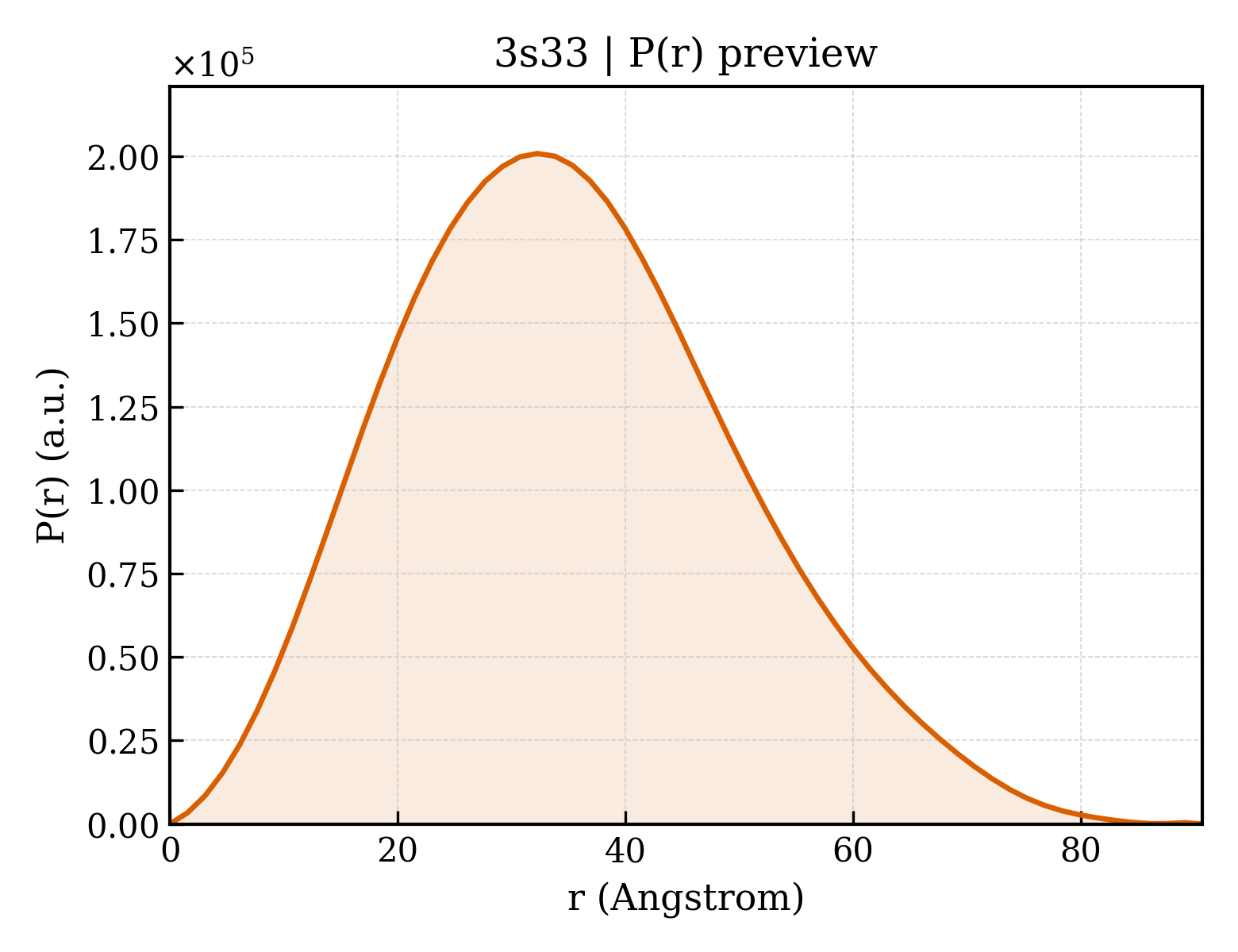

3s33__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.96 Å
Rg (electron density)	25.76 Å
Total Rg	26.59 Å
Atom count	6080
Residues	756
Excluded volume	111500 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3s33__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Cytochrome c oxidase subunit 1
Molecular weight formula_weight	63402.0 kDa
EC 编号 ec_number	1.9.3.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6080

MHHHHHHAVRASEISRVYEAYPEKKATLYFLVLGFLALIVGSLFGPFQALNYGNVDAYPLLKRLLPFVQSYYQGLTLHGVLNAIVFTQLFAQAIMVYLPARELNMRPNMGLMWLSWWMAFIGLVVAALPLLANEATVLYTFYPPLKGHWAFYLGASVFVLSTWVSIYIVLDLWRRWKAANPGKVTPLVTYMAVVFWLMWFLASLGLVLEAVLFLLPWSFGLVEGVDPLVARTLFWWTGHPIVYFWLLPAYAIIYTILPKQAGGKLVSDPMARLAFLLFLLLSTPVGFHHQFADPGIDPTWKMIHSVLTLFVAVPSLMTAFTVAASLEFAGRLRGGRGLFGWIRALPWDNPAFVAPVLGLLGFIPGGAGGIVNASFTLDYVVHNTAWVPGHFHLQVASLVTLTAMGSLYWLLPNLTGKPISDAQRRLGLAVVWLWFLGMMIMAVGLHWAGLLNVPRRAYIAQVPDAYPHAAVPMVFNVLAGIVLLVALLLFIYGLFSVLLSRERKPELAEAPLPFAEVISGPEDRRLVLAMDRIGFWFAVAAILVVLAYGPTLVQLFGHLNPVPGWRLW

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Thermus thermophilus

Entity 2 Entity 2 polymer

Description description	Cytochrome c oxidase subunit 2
Molecular weight formula_weight	18351.0 kDa
EC 编号 ec_number	1.9.3.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DEHKAHKAILAYEKGWLAFSLAMLFVFIALIAYTLATHTAGVIPAGKLERVDPTTVRQEGPWADPAQAVVQTGPNQYTVYVLAFAFGYQPNPIEVPQGAEIVFKITSPDVIHGFHVEGTNINVEVLPGEVSTVRYTFKRPGEYRIICNQYCGLGHQNMFGTIVVKE

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Thermus thermophilus

Entity 3 Entity 3 polymer

Description description	Cytochrome c oxidase polypeptide 2A
Molecular weight formula_weight	3638.4 kDa
EC 编号 ec_number	1.9.3.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

EEKPKGALAVILVLTLTILVFWLGVYAVFFARG

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Thermus thermophilus

Entity 4 Entity 4 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	HEME-AS
Molecular weight formula_weight	921.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	XENON
Molecular weight formula_weight	131.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 8 Entity 8 non-polymer

Description description	DINUCLEAR COPPER ION
Molecular weight formula_weight	127.1 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	108.250 Å
Unit-cell length b length_b	108.250 Å
Unit-cell length c length_c	162.640 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	4.450 Å
Low-resolution limit resolution_low	45.060 Å
R factor r_factor	0.3074
R_work r_work	0.3053
R_free r_free	0.3504
