3t9k

Crystal Structure of ACAP1 C-portion mutant S554D fused with integrin beta1 peptide

Method: X-RAY DIFFRACTION D_max: 96.7 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Arf-GAP with coiled-coil, ANK repeat and PH domain-containing protein 1,Peptide from Integrin beta-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 758–769	Mutation：S554D	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；289 K；0.2M ammonium sulfate, 14% PEG 3350, 0.1M Sodium Citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.225
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 758–769	Mutation：S554D	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；289 K；0.2M ammonium sulfate, 14% PEG 3350, 0.1M Sodium Citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.225

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3T9K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3G9W Crystal Structure of Talin2 F2-F3 in Complex with the Integrin Beta1D Cytoplasmic Tail Deposited 2009-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 752–801（50 aa） Fragment：Cytoplasmic Tail	Not recorded	GOL GLYCEROL × 2 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1M ammonium acetate, 0.02M magnesium chloride, 0.05M HEPES, 5% PEG 8k, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.17 Å R-free 0.248
3G9W Crystal Structure of Talin2 F2-F3 in Complex with the Integrin Beta1D Cytoplasmic Tail Deposited 2009-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 752–801（50 aa） Fragment：Cytoplasmic Tail	Not recorded	GOL GLYCEROL × 4 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1M ammonium acetate, 0.02M magnesium chloride, 0.05M HEPES, 5% PEG 8k, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.17 Å R-free 0.248
3VI3 Crystal structure of alpha5beta1 integrin headpiece (ligand-free form) Deposited 2011-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 21–465（445 aa） Fragment：UNP residues 21-465	Not recorded	CA CALCIUM ION × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M Bis-tris (pH6.5), 20%(w/v) PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.267
3VI3 Crystal structure of alpha5beta1 integrin headpiece (ligand-free form) Deposited 2011-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 21–465（445 aa） Fragment：UNP residues 21-465	Not recorded	CA CALCIUM ION × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M Bis-tris (pH6.5), 20%(w/v) PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.267
3VI4 Crystal structure of alpha5beta1 integrin headpiece in complex with RGD peptide Deposited 2011-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 21–465（445 aa）	Not recorded	CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M Bis-tris (pH6.5), 20%(w/v) PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.275
3VI4 Crystal structure of alpha5beta1 integrin headpiece in complex with RGD peptide Deposited 2011-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 21–465（445 aa）	Not recorded	CA CALCIUM ION × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M Bis-tris (pH6.5), 20%(w/v) PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.275
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain V 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 13 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Z 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 14 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain b 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 15 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain d 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 16 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain f 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 17 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain h 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 18 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain j 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 19 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain l 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 20 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain n 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 21 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain p 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 22 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain r 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 23 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain t 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 24 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain v 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 25 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain x 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 26 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain z 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 27 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain 8 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 28 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain 6 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 29 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain 9 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 30 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain 7 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain N 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4DX9 ICAP1 in complex with integrin beta 1 cytoplasmic tail Deposited 2012-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain R 784–798（15 aa） Fragment：Cytoplasmic tail	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；1.2M sodium citrate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.99 Å R-free 0.312
4WJK Metal Ion and Ligand Binding of Integrin Deposited 2014-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–465（445 aa） Fragment：UNP residues 21-465	Not recorded	CA CALCIUM ION × 6 MG MAGNESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.1 M HEPES 7.2, 16% PEG 6000	Resolution 1.85 Å R-free 0.238
4WK0 Metal Ion and Ligand Binding of Integrin Deposited 2014-10-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–465（445 aa） Fragment：UNP residues 21-465	Not recorded	CA CALCIUM ION × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.1 M HEPES 7.2, 16% PEG 6000	Resolution 1.78 Å R-free 0.223
4WK2 Metal Ion and Ligand Binding of Integrin Deposited 2014-10-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–465（445 aa） Fragment：UNP residues 21-465	Not recorded	CA CALCIUM ION × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.1 M HEPES 7.2, 16% PEG 6000	Resolution 2.50 Å R-free 0.254
4WK4 Metal Ion and Ligand Binding of Integrin Deposited 2014-10-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–465（445 aa） Fragment：UNP residues 21-465	Not recorded	CA CALCIUM ION × 6 MG MAGNESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.1 M HEPES 7.2, 16% PEG 6000	Resolution 2.50 Å R-free 0.236
7CEB Crystal structure of alpha6beta1 integrin headpiece Deposited 2020-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 21–465（445 aa）	Not recorded	CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23% PEG1000, 0.2 M NaCl, 0.1 M Na/K phosphate, pH 6.5	Resolution 2.89 Å R-free 0.249
7CEC Structure of alpha6beta1 integrin in complex with laminin-511 Deposited 2020-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 21–465（445 aa）	Not recorded	CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 MN MANGANESE (II) ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7NWL Cryo-EM structure of human integrin alpha5beta1 (open form) in complex with fibronectin and TS2/16 Fv-clasp Deposited 2021-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 21–798（778 aa）	Not recorded	MN MANGANESE (II) ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.10 Å
7NXD Cryo-EM structure of human integrin alpha5beta1 in the half-bent conformation Deposited 2021-03-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–798（778 aa）	Not recorded	CA CALCIUM ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.60 Å
8RPQ Solution NMR structure of Integrin beta-1 TMD Deposited 2024-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 726–761（36 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition 0.5 uM NA Itgb1, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
8W30 Crystal structure of alpha-V beta-1 integrin headpiece in complex with TR01225179 Deposited 2024-02-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–465（445 aa）	Not recorded	CA CALCIUM ION × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 A1AFA N-(2,4-dichlorobenzoyl)-L-phenylalanine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；28% pentaerythritol ethoxylate (15/4_EO/OH), 0.05M ammonium sulfate, 0.05M Bis Tris pH 6.5	Resolution 2.45 Å R-free 0.275
9B9J Integrin alpha-5 beta-1 in complex with BIIG2 Fab Deposited 2024-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–728（728 aa）	Not recorded	CA CALCIUM ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20mM Tris-HCL, 150mM NaCl, 5mM CaCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
9B9K Integrin alpha-5 beta-1 in complex with MINT1526A Fab Deposited 2024-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–728（728 aa）	Not recorded	CA CALCIUM ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9CKV Cryo-EM structure of alpha5beta1 integrin in complex with NeoNectin Deposited 2024-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–728（728 aa）	Not recorded	CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MN MANGANESE (II) ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
9DIA Cryo-EM structure of alpha5beta1 integrin in complex with NeoNectin candidate 2 Deposited 2024-09-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–728（728 aa）	Not recorded	CA CALCIUM ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.97 Å
9EF2 Cryo-EM structure of alpha5beta1 integrin in complex with NeoNectin candidate 2, open conformation Deposited 2024-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–728（728 aa）	Not recorded	CA CALCIUM ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 MN MANGANESE (II) ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.36 Å
9NAB Cryo-EM structure of the alpha5beta1 integrin headpiece with OS2966 Fab Deposited 2025-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 21–465（445 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.54 Å
9P6S Cryo-EM structure of human integrin alpha5beta1 in complex with fibronectin (FN 7-10) Deposited 2025-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 26–465（440 aa）	Not recorded	MN MANGANESE (II) ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.61 Å

21 other PDB entries and 53 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ITB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 379–390； UniProt 758–769 Author chain B； PDBConstruct 379–390； UniProt 758–769

Arf-GAP with coiled-coil, ANK repeat and PH domain-containing protein 1,Peptide from Integrin beta-1

Homo sapiens

UniProt Q15027

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 378–740	Mutation：S554D	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；289 K；0.2M ammonium sulfate, 14% PEG 3350, 0.1M Sodium Citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.225
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 378–740	Mutation：S554D	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；289 K；0.2M ammonium sulfate, 14% PEG 3350, 0.1M Sodium Citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.225

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3T9K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3JUE Crystal Structure of ArfGAP and ANK repeat domain of ACAP1 Deposited 2009-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 378–740（363 aa） Fragment：ArfGAP and ANK repeat domain, residues 378-740	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；289 K；0.2M ammonium sulfate, 14% PEG 3350, 0.1M Sodium Citrate, pH 5.1, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.219
3JUE Crystal Structure of ArfGAP and ANK repeat domain of ACAP1 Deposited 2009-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 378–740（363 aa） Fragment：ArfGAP and ANK repeat domain, residues 378-740	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；289 K；0.2M ammonium sulfate, 14% PEG 3350, 0.1M Sodium Citrate, pH 5.1, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.219
4CKG Helical reconstruction of ACAP1(BAR-PH domain) decorated membrane tubules by cryo-electron microscopy Deposited 2014-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 40 PDB declaration: 40-meric	Chain A 1–377（377 aa） Fragment：BAR-PH DOMAIN, RESIDUES 1-377 Chain B 1–377（377 aa） Fragment：BAR-PH DOMAIN, RESIDUES 1-377 Chain C 1–377（377 aa） Fragment：BAR-PH DOMAIN, RESIDUES 1-377 Chain D 1–377（377 aa） Fragment：BAR-PH DOMAIN, RESIDUES 1-377	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50MM HEPES, PH7.4, 100MM NACL；pH 7.4；50MM HEPES, PH7.4, 100MM NACL cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 15.00 Å
4CKH Helical reconstruction of ACAP1(BAR-PH domain) decorated membrane tubules by cryo-electron microscopy Deposited 2014-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 40 PDB declaration: 40-meric	Chain A 1–377（377 aa） Fragment：BAR-PH DOMAIN, RESIDUES 1-377 Chain B 1–377（377 aa） Fragment：BAR-PH DOMAIN, RESIDUES 1-377 Chain C 1–377（377 aa） Fragment：BAR-PH DOMAIN, RESIDUES 1-377 Chain D 1–377（377 aa） Fragment：BAR-PH DOMAIN, RESIDUES 1-377	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 50MM HEPES, PH7.4, 100MM NACL；pH 7.4；50MM HEPES, PH7.4, 100MM NACL cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 17.00 Å
4F1P Crystal Structure of mutant S554D for ArfGAP and ANK repeat domain of ACAP1 Deposited 2012-05-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 378–740（363 aa） Fragment：ArfGAP and ANK repeat domains, UNP residues 378-740	Mutation：S554D	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；289 K；0.2M ammonium sulfate, 12-14% PEG 3350, 0.1M Sodium Citrate, pH 5.1, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.235
4F1P Crystal Structure of mutant S554D for ArfGAP and ANK repeat domain of ACAP1 Deposited 2012-05-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 378–740（363 aa） Fragment：ArfGAP and ANK repeat domains, UNP residues 378-740	Mutation：S554D	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；289 K；0.2M ammonium sulfate, 12-14% PEG 3350, 0.1M Sodium Citrate, pH 5.1, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.30 Å R-free 0.235
4NSW Crystal structure of the BAR-PH domain of ACAP1 Deposited 2013-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–377（377 aa） Fragment：UNP residues 1-377 Chain B 1–377（377 aa） Fragment：UNP residues 1-377	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；0.2M AMMONIUM CITRATE, 10% PEG3350, 6.0MM OCTYL BETA-THIOGLUCOPYRANOSIDE, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.20 Å R-free 0.266
5H3D Helical structure of membrane tubules decorated by ACAP1 (BARPH doamin) protein by cryo-electron microscopy and MD simulation Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 36 PDB declaration: 36-meric	Chain A 1–377（377 aa） Chain B 1–377（377 aa） Chain C 1–377（377 aa） Chain D 1–377（377 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；50mM HEPES, pH7.4, 100mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 14.00 Å
5H3D Helical structure of membrane tubules decorated by ACAP1 (BARPH doamin) protein by cryo-electron microscopy and MD simulation Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–377（377 aa） Chain B 1–377（377 aa） Chain C 1–377（377 aa） Chain D 1–377（377 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；50mM HEPES, pH7.4, 100mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 14.00 Å
5H3D Helical structure of membrane tubules decorated by ACAP1 (BARPH doamin) protein by cryo-electron microscopy and MD simulation Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–377（377 aa） Chain B 1–377（377 aa） Chain C 1–377（377 aa） Chain D 1–377（377 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；50mM HEPES, pH7.4, 100mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 14.00 Å

6 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACAP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–368； UniProt 378–740 Author chain B； PDBConstruct 6–368； UniProt 378–740

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

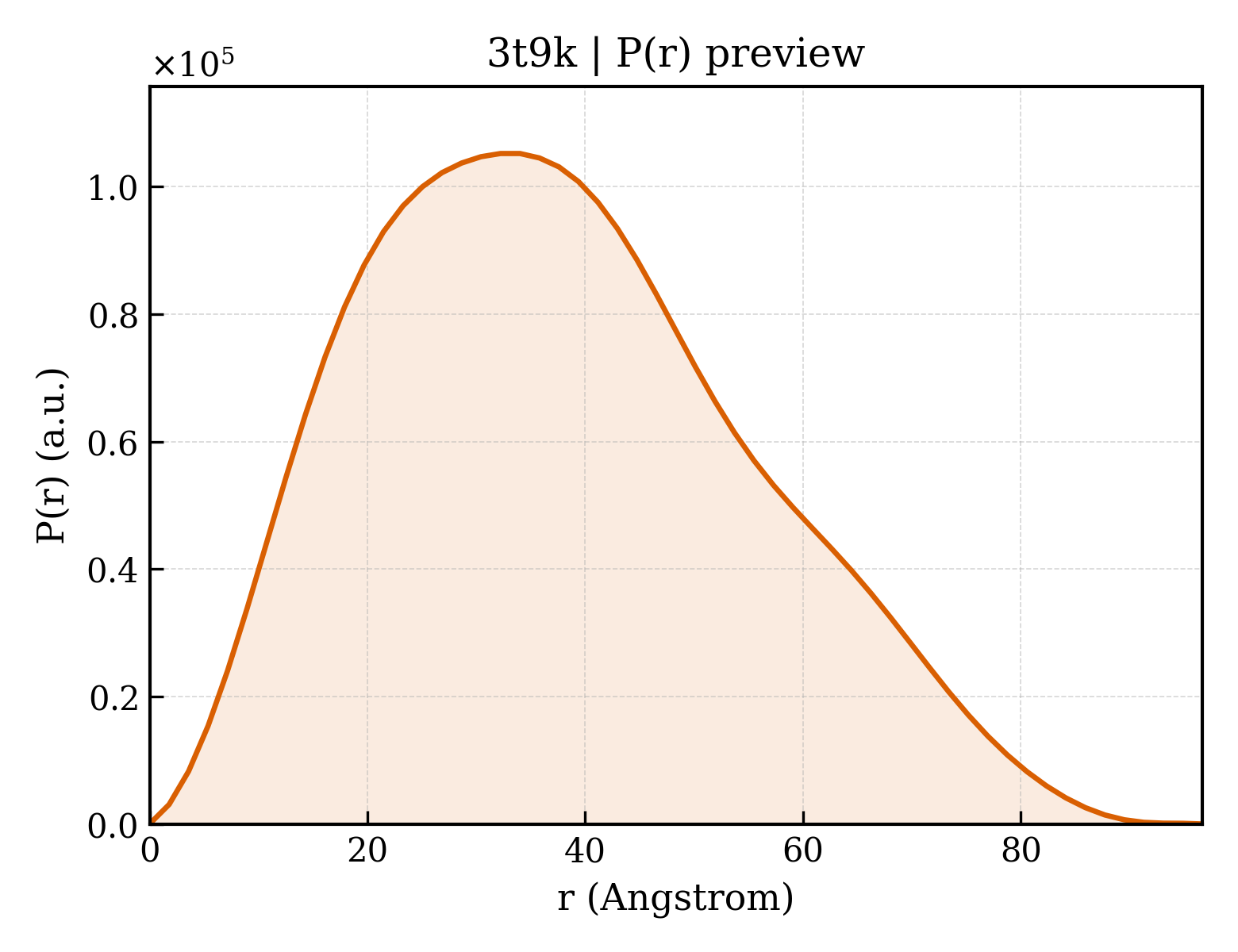

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3t9k
Deposition date deposition_date	2011-08-03
Structure title title	Crystal Structure of ACAP1 C-portion mutant S554D fused with integrin beta1 peptide
Keywords keywords	ArfGAP domain, ANK repeat, zinc-binding module, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.26 Å
Radius of gyration Rg (electron density) rg_electron	28.59 Å
Forward intensity I(0) i0	61747500.00
Molecular weight molecular_weight	58991.0 kDa
Excluded volume excluded_volume	72870 Å³
Envelope volume envelope_volume	93667 Å³
Hydration-shell volume shell_volume	28608 Å³
Envelope diameter envelope_diameter	97.1 Å
Shell Rg shell_rg	34.39 Å
Envelope Rg envelope_rg	28.34 Å
Shape Rg shape_rg	28.62 Å
Total Rg total_rg	29.09 Å
Total atoms total_atoms	4126
Residues n_residues	554
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.7 Å
Rg (real space) rg_real	29.34 Å
Rg uncertainty (real space) rg_real_error	0.79 Å
I(0) (real space) i0_real	6.1750e+07
I(0) uncertainty (real space) i0_real_error	9.7420e+05
Rg (reciprocal space) rg_reciprocal	29.31 Å
I(0) (reciprocal space) i0_reciprocal	61750000.0000
Solution quality estimate total_estimate	0.8903
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	0
Primary peak position r_peak_primary	— Å
Skewness Skewness skewness	0.366
Kurtosis Kurtosis kurtosis	-0.491
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9793000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.939; Smooth: 0.930

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Arf-GAP with coiled-coil, ANK repeat and PH domain-containing protein 1,Peptide from Integrin beta-1
Molecular weight formula_weight	41602.0 kDa
Mutation mutation	S554D
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4301

GPLGSGSGHLAIGSAATLGSGGMARGREPGGVGHVVAQVQSVDGNAQCCDCREPAPEWASINLGVTLCIQCSGIHRSLGVHFSKVRSLTLDSWEPELVKLMCELGNVIINQIYEARVEAMAVKKPGPSCSRQEKEAWIHAKYVEKKFLTKLPEIRGRRGGRGRPRGQPPVPPKPSIRPRPGDLRSKPEPPSEDLGSLHPGALLFRASGHPPSLPTMADALAHGADVNWVNGGQDNATPLIQATAANSLLACEFLLQNGANVNQADSAGRGPLHHATILGHTGLACLFLKRGADLGARDSEGRDPLTIAMETANADIVTLLRLAKMREAEAAQGQAGDETYLDIFRDFSLMASDDPEKLSRRSHDLHTLGSSNSGSNSGHDRREFAKFEKE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	175

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	3t9kA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	150 — Arf GTPase activating protein

Domain ID domain_id	3t9kA02
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	20 — Ankyrin repeat-containing domain

Domain ID domain_id	3t9kB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	220 — Annexin V; domain 1
Homologous superfamily homologous superfamily	150 — Arf GTPase activating protein

Domain ID domain_id	3t9kB02
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	20 — Ankyrin repeat-containing domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	108.258 Å
Unit-cell length b length_b	164.871 Å
Unit-cell length c length_c	41.665 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1906
R_work r_work	0.1887
R_free r_free	0.2254

fit	/app/data/saxs_computation/t9/3t9k/3t9k.fit
pddf	/app/data/pr_computation/t9/3t9k/3t9k.pr.out
profile	/app/data/saxs_computation/t9/3t9k/3t9k.dat

Crystal Structure of ACAP1 C-portion mutant S554D fused with integrin beta1 peptide

1. Protein Identity and Related Structures Protein Identity & Related Structures

Arf-GAP with coiled-coil, ANK repeat and PH domain-containing protein 1,Peptide from Integrin beta-1

State in the Current Structure

Other States of the Same Protein in the Database

Arf-GAP with coiled-coil, ANK repeat and PH domain-containing protein 1,Peptide from Integrin beta-1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
