3u5m

Crystal structure of TRIM33 PHD-Bromo in the free state

Method: X-RAY DIFFRACTION D_max: 161.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase TRIM33

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
10	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain J； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
11	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain K； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
12	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain L； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
5	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain E； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
6	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain F； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
7	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain G； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
8	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain H； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293
9	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain I； UniProt 882–1087	Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	ZN ZINC ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；273 K；0.2M CaCl2, 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.08 Å R-free 0.293

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3U5M	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3U5N Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-20)K9me3K14ac histone peptide Deposited 2011-10-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 882–1087（206 aa） Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M ammonium tartrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.256
3U5N Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-20)K9me3K14ac histone peptide Deposited 2011-10-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 882–1087（206 aa） Fragment：The C-terminal PHD and Bromo dual domains of TRIM33, UNP residues 882-1087	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M ammonium tartrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.256
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.280
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 882–1087（206 aa） Fragment：The PHD and Bromo domain of TRIM33	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.265
5MR8 Crystal structure of TRIM33 PHD-Bromodomain isoform B in complex with H3K9ac histone peptide Deposited 2016-12-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 882–1073（192 aa） Fragment：UNP residues 882-1073	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；0.1 M Tris pH 8.5, 25% PEG3350	Resolution 1.74 Å R-free 0.286
7ZDD Crystal structure of TRIM33 PHD-Bromodomain isoform B in complex with H3K10ac histone peptide. Deposited 2022-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 882–1073（192 aa） Fragment：UNP residues 882-1073	Not recorded	EDO 1,2-ETHANEDIOL × 2 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295.15 K；0.2 M ammonium chloride, 0.1 M sodium acetate pH 5.0, 20% w/v PEG 6000	Resolution 1.62 Å R-free 0.250
8BD8 Crystal structure of TRIM33 alpha PHD-Bromo domain in complex with 8 Deposited 2022-10-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 882–1087（206 aa）	Not recorded	QCU 1,3-dimethylbenzimidazol-2-one × 1 ZN ZINC ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281 K；0.2 M calcium chloride and 20 % wt/vol PEG-3350	Resolution 3.10 Å R-free 0.338
8BD9 Crystal structure of TRIM33 alpha PHD-Bromo domain in complex with 10 Deposited 2022-10-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 882–1087（206 aa）	Not recorded	QCU 1,3-dimethylbenzimidazol-2-one × 1 ZN ZINC ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.2 M calcium chloride and 20 % wt/vol PEG-3350	Resolution 3.20 Å R-free 0.349
8BDY Crystal structure of TRIM33 alpha PHD-Bromo domain in complex with 9 Deposited 2022-10-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 882–1087（206 aa）	Not recorded	QCU 1,3-dimethylbenzimidazol-2-one × 1 CA CALCIUM ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；0.2 M calcium chloride and 20 % wt/vol PEG-3350	Resolution 3.05 Å R-free 0.334

8 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRI33_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–207； UniProt 882–1087 Author chain B； PDBConstruct 2–207； UniProt 882–1087 Author chain C； PDBConstruct 2–207； UniProt 882–1087 Author chain D； PDBConstruct 2–207； UniProt 882–1087 Author chain E； PDBConstruct 2–207； UniProt 882–1087 Author chain F； PDBConstruct 2–207； UniProt 882–1087 Author chain G； PDBConstruct 2–207； UniProt 882–1087 Author chain H； PDBConstruct 2–207； UniProt 882–1087 Author chain I； PDBConstruct 2–207； UniProt 882–1087 Author chain J； PDBConstruct 2–207； UniProt 882–1087 Author chain K； PDBConstruct 2–207； UniProt 882–1087 Author chain L； PDBConstruct 2–207； UniProt 882–1087

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3u5m
Deposition date deposition_date	2011-10-11
Structure title title	Crystal structure of TRIM33 PHD-Bromo in the free state
Keywords keywords	TRIM33, PHD, Bromodomain, TGF-beta, epigenetics, histone, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	48.17 Å
Radius of gyration Rg (electron density) rg_electron	48.09 Å
Forward intensity I(0) i0	879680000.00
Molecular weight molecular_weight	245870.0 kDa
Excluded volume excluded_volume	307700 Å³
Envelope volume envelope_volume	481090 Å³
Hydration-shell volume shell_volume	85779 Å³
Envelope diameter envelope_diameter	168.7 Å
Shell Rg shell_rg	51.13 Å
Envelope Rg envelope_rg	46.27 Å
Shape Rg shape_rg	48.08 Å
Total Rg total_rg	48.26 Å
Total atoms total_atoms	17117
Residues n_residues	2114
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

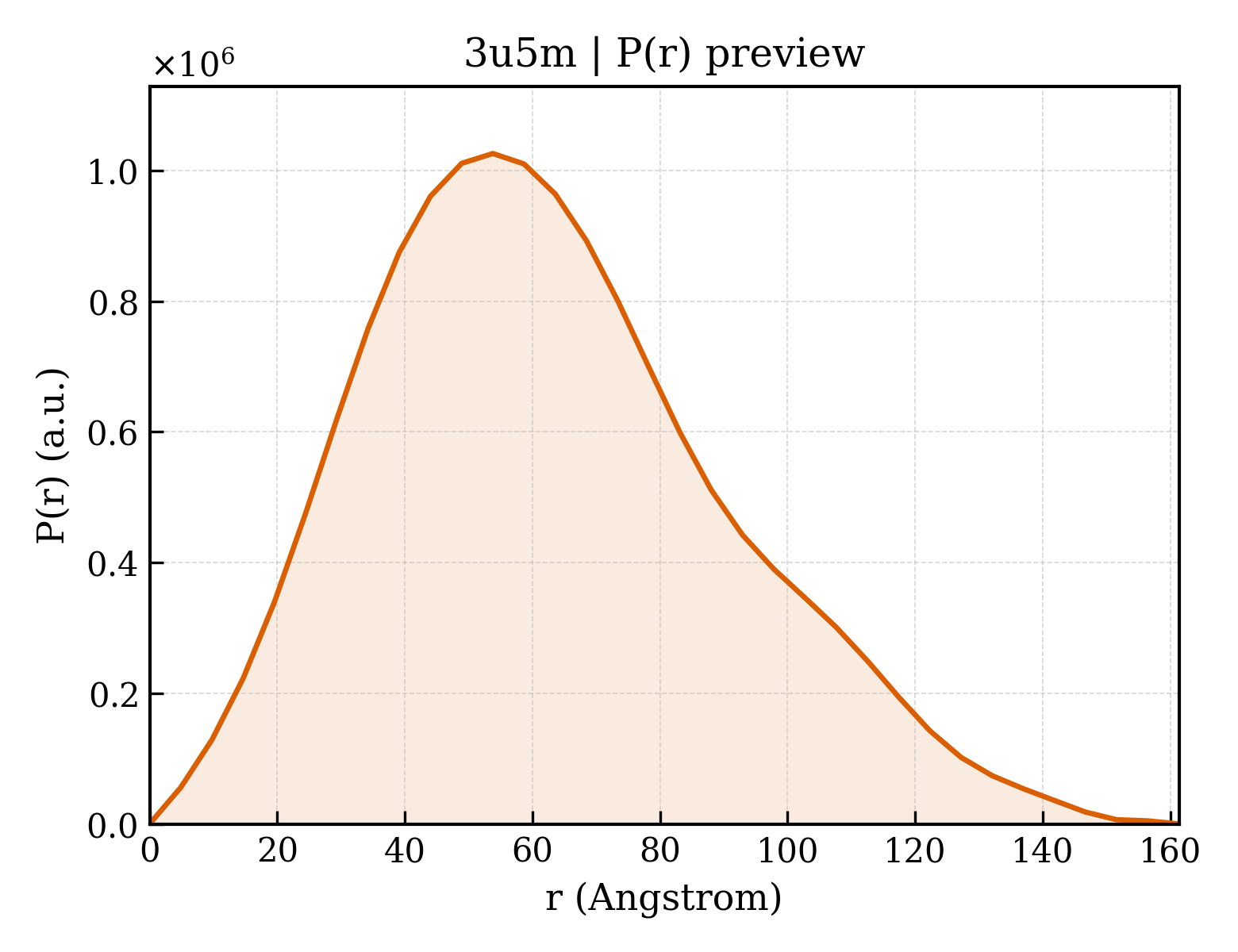

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	161.4 Å
Rg (real space) rg_real	48.29 Å
Rg uncertainty (real space) rg_real_error	1.37 Å
I(0) (real space) i0_real	8.7970e+08
I(0) uncertainty (real space) i0_real_error	1.6710e+07
Rg (reciprocal space) rg_reciprocal	48.18 Å
I(0) (reciprocal space) i0_reciprocal	879500000.0000
Solution quality estimate total_estimate	0.8468
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	53.8 Å
Skewness Skewness skewness	0.456
Kurtosis Kurtosis kurtosis	-0.188
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	138300000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.793; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.628

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase TRIM33
Molecular weight formula_weight	23830.3 kDa
EC 编号 ec_number	6.3.2.-
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	17117

SDDDPNEDWCAVCQNGGDLLCCEKCPKVFHLTCHVPTLLSFPSGDWICTFCRDIGKPEVEYDCDNLQHSKKGKTAQGLSPVDQRKCERLLLYLYCHELSIEFQEPVPASIPNYYKIIKKPMDLSTVKKKLQKKHSQHYQIPDDFVADVRLIFKNCERFNEMMKVVQVYADTQEINLKADSEVAQAGKAVALYFEDKLTEIYSDRTFA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	24

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	12

▼

7. Fold Classification (SCOP + CATH) 24 domains

CATH v4.4 (24 domains)

Domain ID domain_id	3u5mA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mD02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mE02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mF02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mG02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mH02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mI01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mI02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mJ01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mJ02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mK01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mK02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

Domain ID domain_id	3u5mL01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	3u5mL02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	920 — Histone Acetyltransferase; Chain A
Homologous superfamily homologous superfamily	10 — Bromodomain-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	79.527 Å
Unit-cell length b length_b	79.781 Å
Unit-cell length c length_c	134.160 Å
Unit-cell angle α angle_alpha	89.90 °
Unit-cell angle β angle_beta	89.96 °
Unit-cell angle γ angle_gamma	59.97 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.080 Å
Low-resolution limit resolution_low	27.360 Å
R factor r_factor	0.2106
R_work r_work	0.2074
R_free r_free	0.2935

fit	/app/data/saxs_computation/u5/3u5m/3u5m.fit
pddf	/app/data/pr_computation/u5/3u5m/3u5m.pr.out
profile	/app/data/saxs_computation/u5/3u5m/3u5m.dat
