SAXSdb — 3u5v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein max, Transcription factor E2-alpha chimera

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 560–610	Fragment：SEE REMARK 999	NO3 NITRATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；5% glycerol, 3.2-3.5 M sodium nitrate, 0.1 M sodium acetate anhydrous, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.235

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3U5V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2MH0 Solution NMR structure of the p300 Taz2:ETAD1 complex Deposited 2013-11-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–37（37 aa） Fragment：Activation domain 1 (ETAD1), E2A residues 1-37	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；288 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 1.4 mM [U-99% 13C; U-99% 15N] ETAD1, 2 mM Taz2, 20 mM MES, 1 mM sodium azide, 5 mM beta-mercaptoethanol, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 3078 uM ETAD1, 1038 uM [U-99% 13C; U-99% 15N] Taz2, 20 mM MES, 1 mM sodium azide, 5 mM beta-mercaptoethanol, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2YPA Structure of the SCL:E47:LMO2:LDB1 complex bound to DNA Deposited 2012-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 535–613（79 aa） Fragment：RESIDUES 535-613	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；5 % (V/V) 2-METHYL-2, 4-PENTANEDIOL (MPD), 40 MM MAGNESIUM CHLORIDE, 50 MM SODIUM CACODYLATE PH 6.0 AND 2MM GLUTATHIONE	Resolution 2.80 Å R-free 0.269
2YPB Structure of the SCL:E47 complex bound to DNA Deposited 2012-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain B 535–613（79 aa） Fragment：RESIDUES 535-613	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；5 % (V/V) 2-METHYL-2, 4-PENTANEDIOL (MPD), 40 MM MAGNESIUM CHLORIDE, 50 MM SODIUM CACODYLATE PH 6.0 AND 2MM GLUTATHIONE	Resolution 2.87 Å R-free 0.288
6MGN mouse Id1 (51-104) - human hE47 (348-399) complex Deposited 2018-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 558–609（52 aa） Fragment：unp residues 558-609	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；0.1 M potassium phosphate (pH 6.0), 0.25 M NaCl, 22.5% PEG8000.	Resolution 1.90 Å R-free 0.217

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TFE2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 18–68； UniProt 560–610

Protein max, Transcription factor E2-alpha chimera

Homo sapiens

UniProt P28574

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 22–36	Fragment：SEE REMARK 999	NO3 NITRATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；5% glycerol, 3.2-3.5 M sodium nitrate, 0.1 M sodium acetate anhydrous, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.235

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3U5V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A93 NMR SOLUTION STRUCTURE OF THE C-MYC-MAX HETERODIMERIC LEUCINE ZIPPER, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-04-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 74–102（29 aa） Fragment：HETERODIMERIC LEUCINE ZIPPER	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.8；298 K；Ionic strength (raw mmCIF value) 10mM；Pressure 1 NMR sample composition WATER	Resolution not provided
2A93 NMR SOLUTION STRUCTURE OF THE C-MYC-MAX HETERODIMERIC LEUCINE ZIPPER, 40 STRUCTURES Deposited 1998-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 74–102（29 aa） Fragment：LEUCINE ZIPPER	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.8；298 K；Ionic strength (raw mmCIF value) 100 mM；Pressure 1 NMR sample composition WATER	Resolution not provided

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MAX_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–17； UniProt 22–36

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3u5v
Deposition date deposition_date	2011-10-11
Structure title title	Crystal structure of Max-E47
Keywords keywords	basic helix-loop-helix (bHLH), transcription factor, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

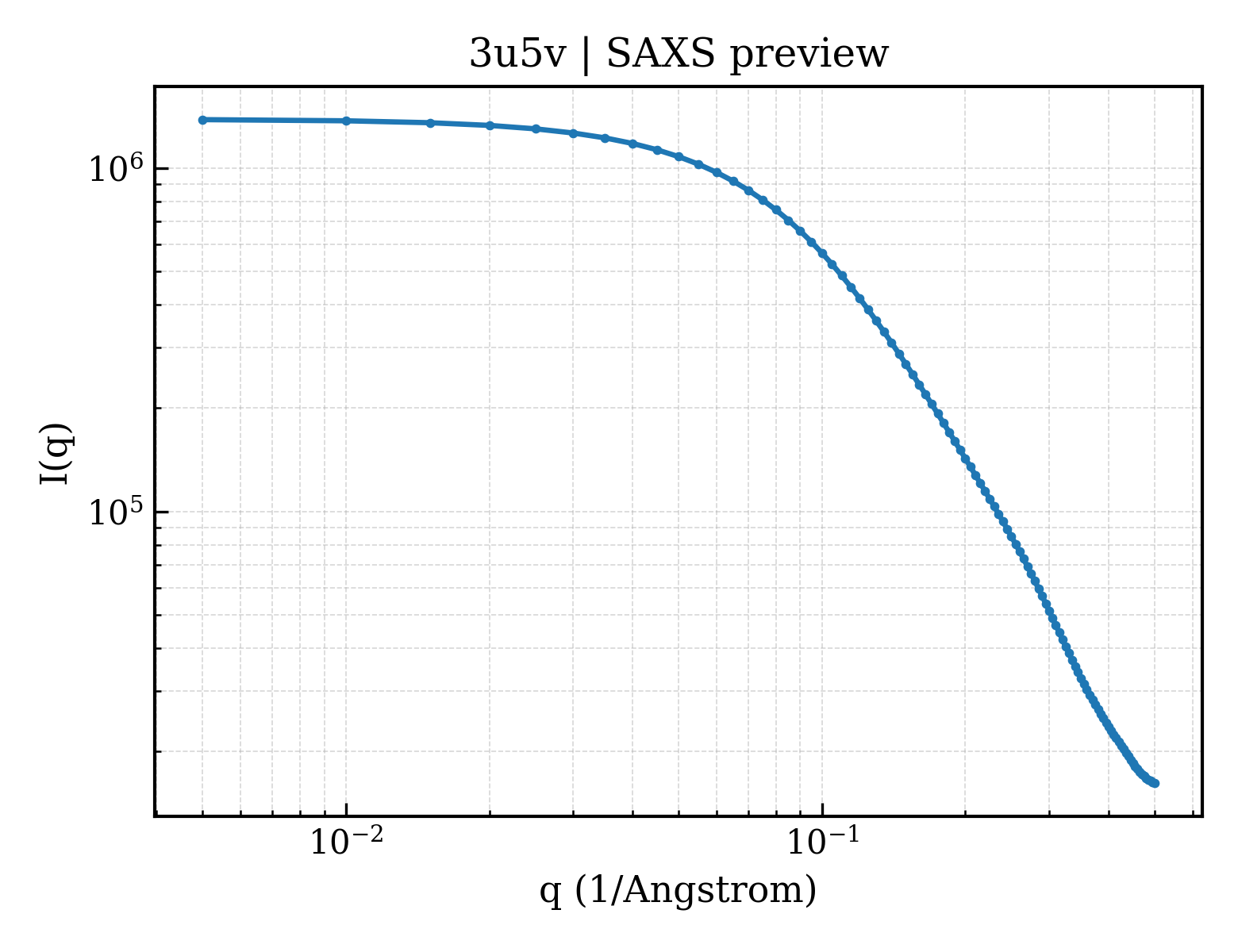

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.28 Å
Radius of gyration Rg (electron density) rg_electron	16.48 Å
Forward intensity I(0) i0	1386200.00
Molecular weight molecular_weight	7364.0 kDa
Excluded volume excluded_volume	9022 Å³
Envelope volume envelope_volume	12419 Å³
Hydration-shell volume shell_volume	7688 Å³
Envelope diameter envelope_diameter	66.2 Å
Shell Rg shell_rg	19.51 Å
Envelope Rg envelope_rg	17.55 Å
Shape Rg shape_rg	16.51 Å
Total Rg total_rg	17.10 Å
Total atoms total_atoms	514
Residues n_residues	62
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

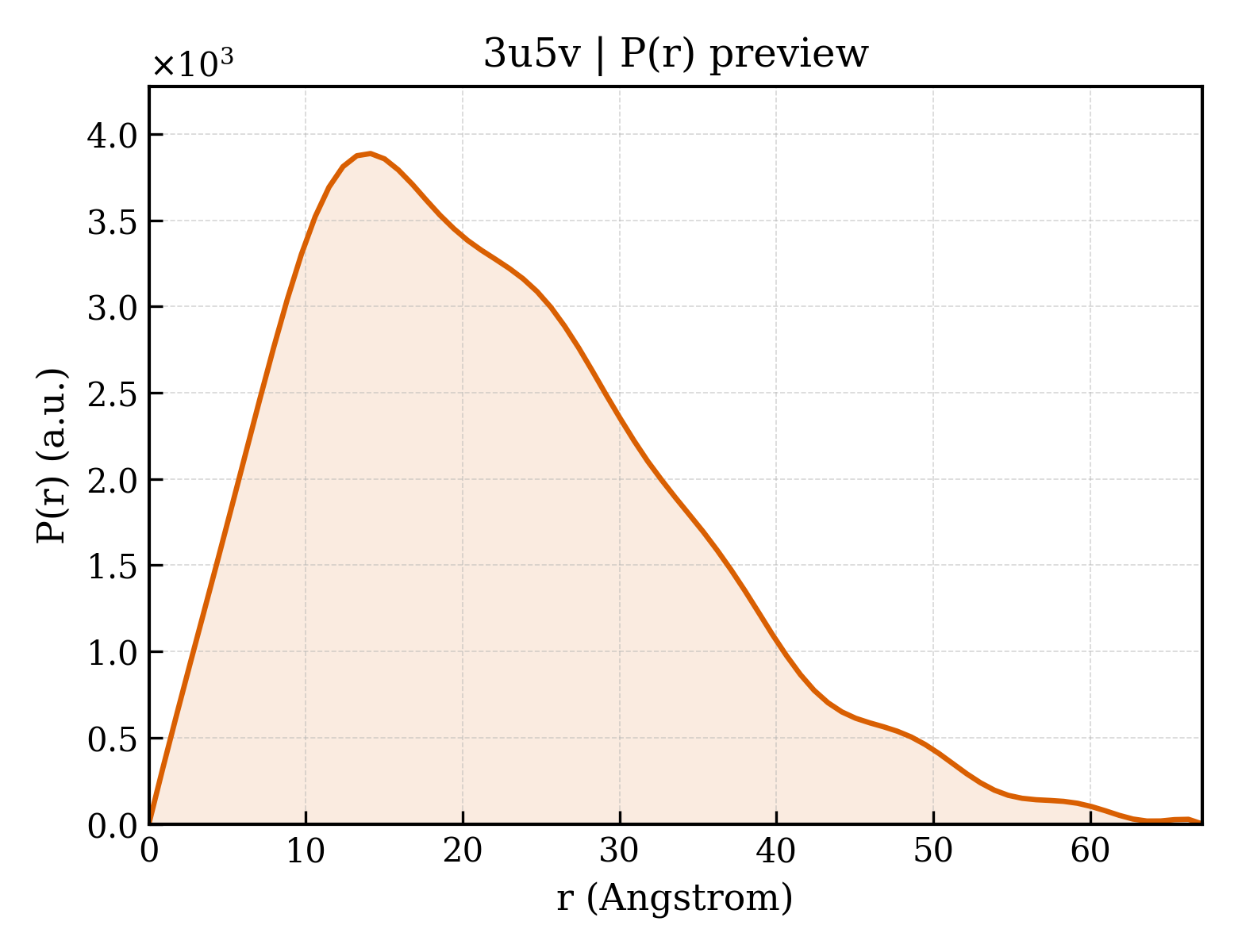

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	67.1 Å
Rg (real space) rg_real	17.62 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	1.3860e+06
I(0) uncertainty (real space) i0_real_error	2.0260e+04
Rg (reciprocal space) rg_reciprocal	17.58 Å
I(0) (reciprocal space) i0_reciprocal	1386000.0000
Solution quality estimate total_estimate	0.7483
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	14.1 Å
Skewness Skewness skewness	0.658
Kurtosis Kurtosis kurtosis	0.061
Angular range angular_range	— – 0.4600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	130500.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.536; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.140; Smooth: 0.976

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Protein max, Transcription factor E2-alpha chimera
Molecular weight formula_weight	9075.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	548

MGADKRAHHNALERKRRRDINEAFRELGRMCQMHLKSDKAQTKLLILQQAVQVILGLEQQVRERNLNPLNHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	mouse, human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	NITRATE ION
Molecular weight formula_weight	62.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	34

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3u5vA01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	280 — MYOD Basic-Helix-Loop-Helix Domain, subunit B
Homologous superfamily homologous superfamily	10 — Helix-loop-helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.480 Å
Unit-cell length b length_b	49.466 Å
Unit-cell length c length_c	74.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 21 21 21
Space-group number int_tables_number	24
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	23.256 Å
R factor r_factor	0.2082
R_work r_work	0.2070
R_free r_free	0.2350

fit	/app/data/saxs_computation/u5/3u5v/3u5v.fit
pddf	/app/data/pr_computation/u5/3u5v/3u5v.pr.out
profile	/app/data/saxs_computation/u5/3u5v/3u5v.dat
