3v5v

UNLIGANDED E.CLOACAE C115D MURA

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UDP-N-acetylglucosamine 1-carboxyvinyltransferase

Enterobacter cloacae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	DI(HYDROXYETHYL)ETHER × 4 1,2-ETHANEDIOL × 33 ACETATE ION × 2 TRIETHYLENE GLYCOL × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MURA_ENTCC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–419； UniProt 1–419 Author chain B； PDBConstruct 1–419； UniProt 1–419 Author chain C； PDBConstruct 1–419； UniProt 1–419 Author chain D； PDBConstruct 1–419； UniProt 1–419

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3v5v
Deposition date deposition_date	2011-12-16
Structure title title	UNLIGANDED E.CLOACAE C115D MURA
Keywords keywords	MURA, OPEN ENZYME STATE, CELL WALL, BIOGENESIS/DEGRADATION, PEPTIDOGLYCAN SYNTHESIS, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3v5v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3v5v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

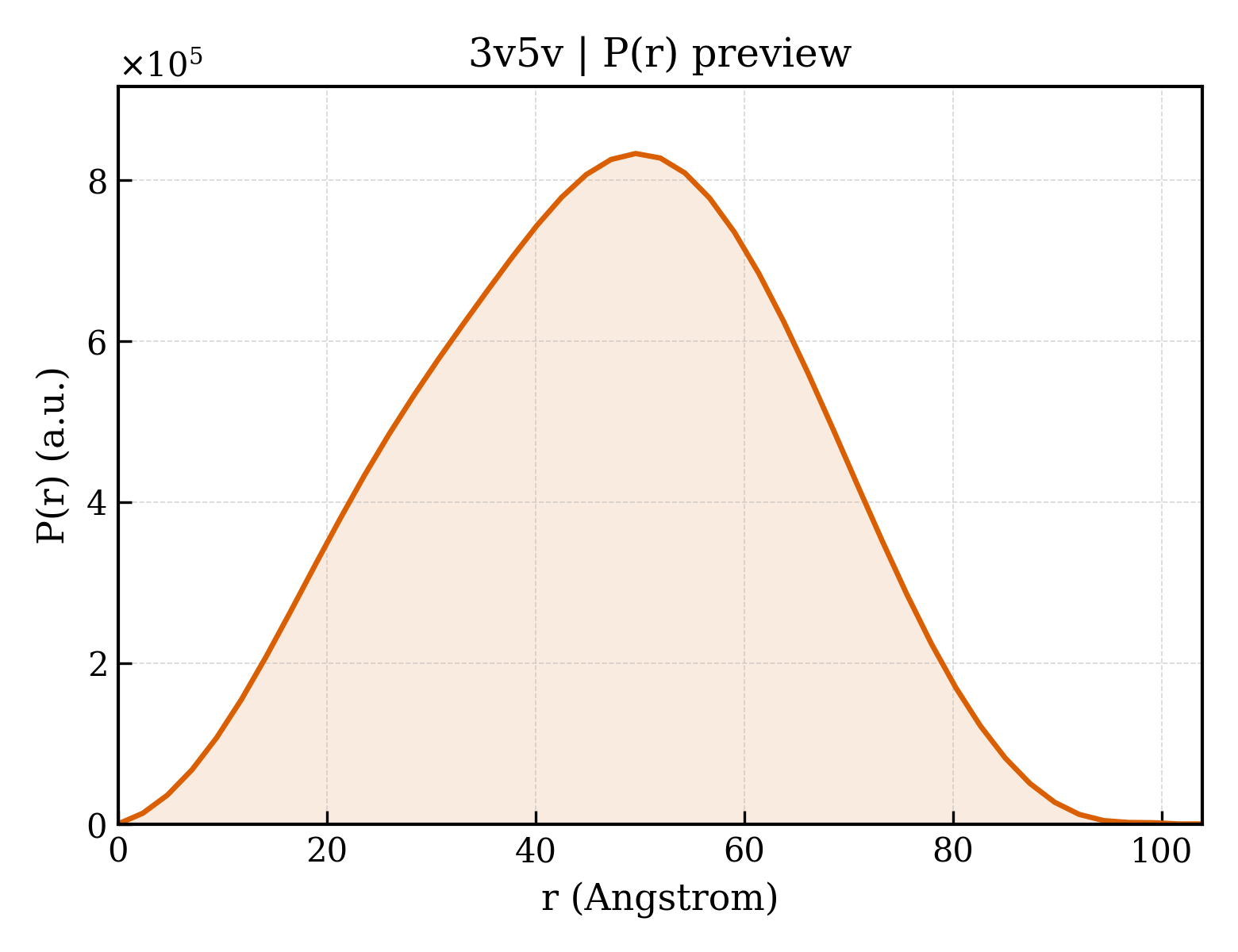

3v5v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.85 Å
Rg (electron density)	34.63 Å
Total Rg	35.21 Å
Atom count	12754
Residues	1672
Excluded volume	228570 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3v5v__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
Molecular weight formula_weight	44841.4 kDa
EC 编号 ec_number	2.5.1.7
Mutation mutation	C115D
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13230

MDKFRVQGPTRLQGEVTISGAKNAALPILFAALLAEEPVEIQNVPKLKDIDTTMKLLTQLGTKVERDGSVWIDASNVNNFSAPYDLVKTMRASIWALGPLVARFGQGQVSLPGGDAIGARPVDLHIFGLEKLGAEIKLEEGYVKASVNGRLKGAHIVMDKVSVGATVTIMSAATLAEGTTIIENAAREPEIVDTANFLVALGAKISGQGTDRITIEGVERLGGGVYRVLPDRIETGTFLVAAAISGGKIVCRNAQPDTLDAVLAKLREAGADIETGEDWISLDMHGKRPKAVTVRTAPHPAFPTDMQAQFTLLNLVAEGTGVITETIFENRFMHVPELIRMGAHAEIESNTVICHGVEKLSGAQVMATDLRASASLVLAGCIAEGTTVVDRIYHIDRGYERIEDKLRALGANIERVKGE

Source Source

Source organism organism	Enterobacter cloacae
Common name common_name	550
NCBI taxonomy ID ncbi_taxonomy_id	550
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	33

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	TRIETHYLENE GLYCOL
Molecular weight formula_weight	150.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	476

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d3v5va_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.68 — IF3-like
Superfamily Superfamily superfamily	d.68.2 — EPT/RTPC-like
Family Family family	d.68.2.2 — Enolpyruvate transferase, EPT

Domain ID domain_id	d3v5vb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.68 — IF3-like
Superfamily Superfamily superfamily	d.68.2 — EPT/RTPC-like
Family Family family	d.68.2.2 — Enolpyruvate transferase, EPT

Domain ID domain_id	d3v5vc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.68 — IF3-like
Superfamily Superfamily superfamily	d.68.2 — EPT/RTPC-like
Family Family family	d.68.2.2 — Enolpyruvate transferase, EPT

Domain ID domain_id	d3v5vd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.68 — IF3-like
Superfamily Superfamily superfamily	d.68.2 — EPT/RTPC-like
Family Family family	d.68.2.2 — Enolpyruvate transferase, EPT

CATH v4.4 (8 domains)

Domain ID domain_id	3v5vA01
Class class	3 — Alpha Beta
Architecture architecture	65 — Alpha-beta prism
Topology topology	10 — UDP-n-acetylglucosamine1-carboxyvinyl-transferase; Chain
Homologous superfamily homologous superfamily	10 — Enolpyruvate transferase domain

Domain ID domain_id	3v5vA02
Class class	3 — Alpha Beta
Architecture architecture	65 — Alpha-beta prism
Topology topology	10 — UDP-n-acetylglucosamine1-carboxyvinyl-transferase; Chain
Homologous superfamily homologous superfamily	10 — Enolpyruvate transferase domain

Domain ID domain_id	3v5vB01
Class class	3 — Alpha Beta
Architecture architecture	65 — Alpha-beta prism
Topology topology	10 — UDP-n-acetylglucosamine1-carboxyvinyl-transferase; Chain
Homologous superfamily homologous superfamily	10 — Enolpyruvate transferase domain

Domain ID domain_id	3v5vB02
Class class	3 — Alpha Beta
Architecture architecture	65 — Alpha-beta prism
Topology topology	10 — UDP-n-acetylglucosamine1-carboxyvinyl-transferase; Chain
Homologous superfamily homologous superfamily	10 — Enolpyruvate transferase domain

Domain ID domain_id	3v5vC01
Class class	3 — Alpha Beta
Architecture architecture	65 — Alpha-beta prism
Topology topology	10 — UDP-n-acetylglucosamine1-carboxyvinyl-transferase; Chain
Homologous superfamily homologous superfamily	10 — Enolpyruvate transferase domain

Domain ID domain_id	3v5vC02
Class class	3 — Alpha Beta
Architecture architecture	65 — Alpha-beta prism
Topology topology	10 — UDP-n-acetylglucosamine1-carboxyvinyl-transferase; Chain
Homologous superfamily homologous superfamily	10 — Enolpyruvate transferase domain

Domain ID domain_id	3v5vD01
Class class	3 — Alpha Beta
Architecture architecture	65 — Alpha-beta prism
Topology topology	10 — UDP-n-acetylglucosamine1-carboxyvinyl-transferase; Chain
Homologous superfamily homologous superfamily	10 — Enolpyruvate transferase domain

Domain ID domain_id	3v5vD02
Class class	3 — Alpha Beta
Architecture architecture	65 — Alpha-beta prism
Topology topology	10 — UDP-n-acetylglucosamine1-carboxyvinyl-transferase; Chain
Homologous superfamily homologous superfamily	10 — Enolpyruvate transferase domain

▶

Unit-cell length a length_a	81.140 Å
Unit-cell length b length_b	101.690 Å
Unit-cell length c length_c	213.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	19.890 Å
R factor r_factor	0.1910
R_work r_work	0.1910
R_free r_free	0.2640
