3zhp

Human MST3 (STK24) in complex with MO25beta

Method: X-RAY DIFFRACTION D_max: 146.0 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CALCIUM-BINDING PROTEIN 39-LIKE

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 5–337	Fragment：RESIDUES 5-337	SERINE/THREONINE-PROTEIN KINASE 24 × 1 （Q9Y6E0） SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；0.2M NA/KPO4, 10% PEG 3350, 10% ETHYLENE GLYCOL, pH 7.5	Resolution 2.90 Å R-free 0.261
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 5–337	Fragment：RESIDUES 5-337	SERINE/THREONINE-PROTEIN KINASE 24 × 1 （Q9Y6E0） SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；0.2M NA/KPO4, 10% PEG 3350, 10% ETHYLENE GLYCOL, pH 7.5	Resolution 2.90 Å R-free 0.261

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	CB39L_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–340； UniProt 5–337 Author chain B； PDBConstruct 8–340； UniProt 5–337

SERINE/THREONINE-PROTEIN KINASE 24

HOMO SAPIENS

UniProt Q9Y6E0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 19–289	Fragment：KINASE DOMAIN, RESIDUES 19-289	CALCIUM-BINDING PROTEIN 39-LIKE × 1 （Q9H9S4） SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；0.2M NA/KPO4, 10% PEG 3350, 10% ETHYLENE GLYCOL, pH 7.5	Resolution 2.90 Å R-free 0.261
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 19–289	Fragment：KINASE DOMAIN, RESIDUES 19-289	CALCIUM-BINDING PROTEIN 39-LIKE × 1 （Q9H9S4） SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；0.2M NA/KPO4, 10% PEG 3350, 10% ETHYLENE GLYCOL, pH 7.5	Resolution 2.90 Å R-free 0.261

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3ZHP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3CKW Crystal structure of sterile 20-like kinase 3 (MST3, STK24) Deposited 2008-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–323（293 aa）	Not recorded	HG MERCURY (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；292 K；22% PEG 4000, 100 mM Tris-HCl, 200 mM Sodium acetate, pH 8.5, VAPOR DIFFUSION, temperature 292K	Resolution 1.96 Å R-free 0.265
3CKX Crystal structure of sterile 20-like kinase 3 (MST3, STK24) in complex with staurosporine Deposited 2008-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–323（293 aa） Fragment：Residues 31-323	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；292 K；22% PEG 4000, 100 mM Tris-HCl, 200 mM Sodium acetate, pH 8.5, VAPOR DIFFUSION, temperature 292K	Resolution 2.70 Å R-free 0.268
4O27 Crystal structure of MST3-MO25 complex with WIF motif Deposited 2013-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 30–309（280 aa） Fragment：Kinase domain, UNP residues 30-309 Chain C 336–340（5 aa） Fragment：WIF motif, UNP residues 336-340	Mutation：T190E Mutation：T340E	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；0.1M Tris pH 8.5, 2.0M Ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.19 Å R-free 0.260
4QML MST3 in complex with AMP-PNP Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM ANP-PNP, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.88 Å R-free 0.230
4QMM MST3 IN COMPLEX WITH AT-9283, 4-[(2-{4-[(CYCLOPROPYLCARBAMOYL)AMINO]-1H-PYRAZOL-3-YL}-1H-BENZIMIDAZOL-6-YL)METHYL]MORPHOLIN-4-IUM Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	35R 1-cyclopropyl-3-{3-[5-(morpholin-4-ylmethyl)-1H-benzimidazol-2-yl]-1H-pyrazol-4-yl}urea × 1 ACT ACETATE ION × 2 EDO 1,2-ETHANEDIOL × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM AT-9283, 25 mM TRIS, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.85 Å R-free 0.198
4QMN MST3 in complex with BOSUTINIB Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–315（289 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	DB8 4-[(2,4-dichloro-5-methoxyphenyl)amino]-6-methoxy-7-[3-(4-methylpiperazin-1-yl)propoxy]quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM BOSUTINIB, 25 mM TRIS, PH 8.0, 50 MM HEPES, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.09 Å R-free 0.227
4QMO MST3 IN COMPLEX WITH Imidazolo-oxindole PKR inhibitor C16 Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：RESIDUES 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 34L (8Z)-8-(1H-imidazol-5-ylmethylidene)-6,8-dihydro-7H-[1,3]thiazolo[5,4-e]indol-7-one × 1 PG4 TETRAETHYLENE GLYCOL × 1 DMS DIMETHYL SULFOXIDE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM C16, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.90 Å R-free 0.204
4QMP MST3 IN COMPLEX WITH CDK1/2 INHIBITOR III, 5-AMINO-3-{[4-(AMINOSULFONYL)PHENYL]AMINO}-N-(2,6-DIFLUOROPHENYL)-1H-1,2,4-TRIAZOLE-1-CARBOTHIOAMIDE Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：RESIDUES 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 DKI 5-AMINO-3-{[4-(AMINOSULFONYL)PHENYL]AMINO}-N-(2,6-DIFLUOROPHENYL)-1H-1,2,4-TRIAZOLE-1-CARBOTHIOAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；12.5 mg/mL MST3, 1 mM CDK2 Inhibitor III, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.00 Å R-free 0.228
4QMQ MST3 in complex with CP-673451 Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	34U 1-{2-[5-(2-methoxyethoxy)-1H-benzimidazol-1-yl]quinolin-8-yl}piperidin-4-amine × 1 EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM CP-673451, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.77 Å R-free 0.215
4QMS MST3 in complex with DASATINIB Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	1N1 N-(2-CHLORO-6-METHYLPHENYL)-2-({6-[4-(2-HYDROXYETHYL)PIPERAZIN-1-YL]-2-METHYLPYRIMIDIN-4-YL}AMINO)-1,3-THIAZOLE-5-CARBOXAMIDE × 1 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM DASATINIB, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.88 Å R-free 0.214
4QMT MST3 in complex with HESPERADIN Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	H1N N-[2-OXO-3-((E)-PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]IMINO}METHYL)-2,6-DIHYDRO-1H-INDOL-5-YL]ETHANESULFONAMIDE × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM HESPERADIN, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.50 Å R-free 0.185
4QMU MST3 IN COMPLEX WITH JNJ-7706621, 4-({5-AMINO-1-[(2,6-DIFLUOROPHENYL)CARBONYL]-1H-1,2,4-TRIAZOL-3-YL}AMINO)BENZENESULFONAMIDE Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	SKE 4-({5-amino-1-[(2,6-difluorophenyl)carbonyl]-1H-1,2,4-triazol-3-yl}amino)benzenesulfonamide × 1 MG MAGNESIUM ION × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM JNJ-7706621, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.55 Å R-free 0.206
4QMV MST3 IN COMPLEX WITH PF-03814735, N-{2-[(1S,4R)-6-{[4-(CYCLOBUTYLAMINO)-5-(TRIFLUOROMETHYL)PYRIMIDIN-2-YL]AMINO}-1,2,3,4-TETRAHYDRO-1,4-EPIMINONAPHTHALEN-9-YL]-2-OXOETHYL}ACETAMIDE Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：RESIDUES 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	34W N-{2-[(1S,4R)-6-{[4-(cyclobutylamino)-5-(trifluoromethyl)pyrimidin-2-yl]amino}-1,2,3,4-tetrahydro-1,4-epiminonaphthalen-9-yl]-2-oxoethyl}acetamide × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM PF-03814735, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.40 Å R-free 0.226
4QMW MST3 IN COMPLEX WITH PP-121, 1-CYCLOPENTYL-3-(1H-PYRROLO[2,3-B]PYRIDIN-5-YL)-1H-PYRAZOLO[3,4-D]PYRIMIDIN-4-AMINE Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	KS1 1-cyclopentyl-3-(1H-pyrrolo[2,3-b]pyridin-5-yl)-1H-pyrazolo[3,4-d]pyrimidin-4-amine × 1 EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM PP-121, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.60 Å R-free 0.211
4QMX MST3 in complex with SARACATINIB Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	H8H N-(5-CHLORO-1,3-BENZODIOXOL-4-YL)-7-[2-(4-METHYLPIPERAZIN-1-YL)ETHOXY]-5-(TETRAHYDRO-2H-PYRAN-4-YLOXY)QUINAZOLIN-4-AMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM SARACATINIB,25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM, CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.88 Å R-free 0.218
4QMY MST3 IN COMPLEX WITH STAUROSPORINE Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	STU STAUROSPORINE × 1 CL CHLORIDE ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM STAUROSPORINE, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM, CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.88 Å R-free 0.220
4QMZ MST3 IN COMPLEX WITH SUNITINIB Deposited 2014-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：unp residues 1-303	Non-standard monomer：Yes (specific site not provided by mmCIF)	B49 N-[2-(diethylamino)ethyl]-5-[(Z)-(5-fluoro-2-oxo-1,2-dihydro-3H-indol-3-ylidene)methyl]-2,4-dimethyl-1H-pyrrole-3-carbo xamide × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM SUNITINIB, 25 mM TRIS, PH 8.0, 50 MM HEPES, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.88 Å R-free 0.224
4QO9 MST3 IN COMPLEX WITH Danusertib Deposited 2014-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：RESIDUES 1-303	Mutation：NO Non-standard monomer：Yes (specific site not provided by mmCIF)	PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1 627 N-[(3E)-5-[(2R)-2-METHOXY-2-PHENYLACETYL]PYRROLO[3,4-C]PYRAZOL-3(5H)-YLIDENE]-4-(4-METHYLPIPERAZIN-1-YL)BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM Danusertib, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.218
4QO9 MST3 IN COMPLEX WITH Danusertib Deposited 2014-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–303（303 aa） Fragment：RESIDUES 1-303	Mutation：NO Non-standard monomer：Yes (specific site not provided by mmCIF)	PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1 627 N-[(3E)-5-[(2R)-2-METHOXY-2-PHENYLACETYL]PYRROLO[3,4-C]PYRAZOL-3(5H)-YLIDENE]-4-(4-METHYLPIPERAZIN-1-YL)BENZAMIDE × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM Danusertib, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.218
4QO9 MST3 IN COMPLEX WITH Danusertib Deposited 2014-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–303（303 aa） Fragment：RESIDUES 1-303 Chain B 1–303（303 aa） Fragment：RESIDUES 1-303	Mutation：NO Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：NO Non-standard monomer：Yes (specific site not provided by mmCIF)	PGE TRIETHYLENE GLYCOL × 2 EDO 1,2-ETHANEDIOL × 2 CL CHLORIDE ION × 1 627 N-[(3E)-5-[(2R)-2-METHOXY-2-PHENYLACETYL]PYRROLO[3,4-C]PYRAZOL-3(5H)-YLIDENE]-4-(4-METHYLPIPERAZIN-1-YL)BENZAMIDE × 2 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；12.5 mg/mL MST3, 1 mM Danusertib, 25 mM TRIS, PH 8.0, 50 MM HEPES pH 7.5, 125 mM SODIUM CHLORIDE, 100 mM MAGNESIUM CHLORIDE, 15% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.218
4U8Z Crystal structure of MST3 with a pyrrolopyrimidine inhibitor (PF-06447475) Deposited 2014-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–298（290 aa） Fragment：UNP residues 9-298	Non-standard monomer：Yes (specific site not provided by mmCIF)	MN MANGANESE (II) ION × 1 3FE 3-[4-(morpholin-4-yl)-7H-pyrrolo[2,3-d]pyrimidin-5-yl]benzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1M Tris-HCl (pH 8.5), 180mM MgCl2, 5mM Manganese (II) acetate, 10-17% PEG3350	Resolution 1.63 Å R-free 0.222
4W8D Crystal structure of MST3 with a pyrrolopyrimidine inhibitor (PF-06454589). Deposited 2014-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–298（290 aa） Fragment：UNP residues 9-298	Non-standard monomer：Yes (specific site not provided by mmCIF)	3JA 5-(1-methyl-1H-pyrazol-4-yl)-4-(morpholin-4-yl)-7H-pyrrolo[2,3-d]pyrimidine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1M Tris-HCL (pH 8.5), 180mM MgCl2, 5mM Manganese acetate, 10-17% PEG 3350	Resolution 1.77 Å R-free 0.182
4W8E Structure of MST3 with a pyrrolopyrimidine inhibitor (PF-06645342) Deposited 2014-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–299（291 aa） Fragment：UNP residues 9-298	Non-standard monomer：Yes (specific site not provided by mmCIF)	3JB 3-{4-[(2R)-2-(5-methyl-1,2,4-oxadiazol-3-yl)morpholin-4-yl]-7H-pyrrolo[2,3-d]pyrimidin-5-yl}benzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1M Tris-HCl (pH 8.5), 180mM MgCl2, 5mM Manganese acetate, 10-17% PEG3350	Resolution 1.79 Å R-free 0.212
7B30 MST3 in complex with compound G-5555 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	59T 8-[(trans-5-amino-1,3-dioxan-2-yl)methyl]-6-[2-chloro-4-(6-methylpyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7(8H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 10 mg/ml in buffer 25 mM HEPES pH 7.5, 200 mM NaCl, 5% glycerol and 0.5 mM TCEP. Reservoir: 10% PEG 6000, 0.1M HEPES pH 7.0.	Resolution 2.10 Å R-free 0.196
7B31 MST3 in complex with compound MRIA9 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	SQ8 1-[(5-azanyl-1,3-dioxan-2-yl)methyl]-3-[2-chloranyl-4-(3-fluoranylpyridin-2-yl)phenyl]-7-(methylamino)-1,6-naphthyridin-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 10 mg/ml in buffer 25 mM HEPES pH 7.5, 200 mM NaCl, 5% glycerol, 0.5 mM TCEP. Reservoir: 16% PEG 6000, 0.1M HEPES pH 7.0.	Resolution 1.80 Å R-free 0.212
7B32 MST3 in complex with MRIA7 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	SQQ 8-[(5-azanyl-1,3-dioxan-2-yl)methyl]-6-[2-chloranyl-4-(6-methylpyridin-2-yl)phenyl]-2-[(2-methoxyphenyl)amino]pyrido[2,3-d]pyrimidin-7-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 10 mg/ml in buffer 25 mM HEPES pH 7.5, 200 mM NaCl, 5% glycerol, 0.5mM TCEP. Reservoir: 20% PEG 3350, 0.1M bis-tris pH 6.5.	Resolution 1.75 Å R-free 0.203
7B33 MST3 in complex with MRIA11 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4 SQE 8-[(5-azanyl-1,3-dioxan-2-yl)methyl]-6-[4-[6-[bis(fluoranyl)methyl]pyridin-2-yl]-2-chloranyl-phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 10 mg/ml in buffer 25 mM HEPES pH 7.5, 200 mM NaCl, 5% glycerol, 0.5 mM TCEP. Reservoir: 19% PEG 3350, 0.1M bis-tris pH 6.8.	Resolution 1.90 Å R-free 0.208
7B34 MST3 in complex with compound MRIA12 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 7 SQK 8-[(5-azanyl-1,3-dioxan-2-yl)methyl]-6-[2-chloranyl-4-(3-fluoranyl-6-methyl-pyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 10 mg/ml in buffer 25 mM HEPES pH 7.5, 200 mM NaCl, 5% glycerol, 0.5 mM TCEP. Reservoir: 14% PEG 6000, 0.1M HEPES pH 7.2.	Resolution 2.10 Å R-free 0.215
7B35 MST3 in complex with compound MRIA13 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	SQB 8-[(5-azanyl-1,3-dioxan-2-yl)methyl]-6-[2-chloranyl-4-(3-methoxy-6-methyl-pyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 10 mg/ml in buffer 25 mM HEPES pH 7.5, 200 mM NaCl, 5% glycerol, 0.5 mM TCEP. reservoir: 24% PEG 3550, 0.1M citrate pH 5.6.	Resolution 2.40 Å R-free 0.263
7B35 MST3 in complex with compound MRIA13 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 4–301（298 aa）	Not recorded	SQB 8-[(5-azanyl-1,3-dioxan-2-yl)methyl]-6-[2-chloranyl-4-(3-methoxy-6-methyl-pyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 10 mg/ml in buffer 25 mM HEPES pH 7.5, 200 mM NaCl, 5% glycerol, 0.5 mM TCEP. reservoir: 24% PEG 3550, 0.1M citrate pH 5.6.	Resolution 2.40 Å R-free 0.263
8BZI Human MST3 (STK24) kinase in complex with inhibitor MR39 Deposited 2022-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	SJL 8-(4-azanylbutyl)-6-[2,5-bis(fluoranyl)-4-(6-methylpyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7-one × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 11 mg/mL MST3 in 25 mM HEPES pH 7.5, 200 mM NaCl, 0.5 mM TCEP, 5% glycerol, with 1 mM inhibitor). Crystallization buffer: 20% PEG 3350, 0.1 M bis-tris pH 6.5.	Resolution 1.72 Å R-free 0.196
8BZJ Human MST3 (STK24) kinase in complex with inhibitor MRLW5 Deposited 2022-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	SJX 8-(4-azanylbutyl)-6-[2-chloranyl-4-(6-methylpyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 11 mg/mL MST3 in 25 mM HEPES pH 7.5, 200 mM NaCl, 0.5 mM TCEP, 5% glycerol, with 1 mM inhibitor). Crystallization buffer: 12% PEG 6000, 0.1 M HEPES pH 7.4.	Resolution 2.52 Å R-free 0.250
8BZJ Human MST3 (STK24) kinase in complex with inhibitor MRLW5 Deposited 2022-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 4–301（298 aa）	Not recorded	SJX 8-(4-azanylbutyl)-6-[2-chloranyl-4-(6-methylpyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7-one × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 11 mg/mL MST3 in 25 mM HEPES pH 7.5, 200 mM NaCl, 0.5 mM TCEP, 5% glycerol, with 1 mM inhibitor). Crystallization buffer: 12% PEG 6000, 0.1 M HEPES pH 7.4.	Resolution 2.52 Å R-free 0.250
8QLQ Human MST3 (STK24) kinase in complex with macrocyclic inhibitor JA310 Deposited 2023-09-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	VY0 macrocyclic inhibitor × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 11 mg/mL MST3 in 25 mM HEPES pH 7.5, 200 mM NaCl, 0.5 mM TCEP, 5% glycerol) with 3 mM macrocyclic inhibitor JA310. Reservoir solution: 14% PEG 6K, 0.1 M HEPES pH 7.2. Drop ratio 1:2.	Resolution 1.64 Å R-free 0.227
8QLR Human MST3 (STK24) kinase in complex with inhibitor MR24 Deposited 2023-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 4–301（298 aa） Chain B 4–301（298 aa）	Not recorded	VYN 8-(4-azanylbutyl)-2-[1,3-bis(oxidanyl)propan-2-ylamino]-6-[2-chloranyl-4-(6-methylpyridin-2-yl)phenyl]pyrido[2,3-d]pyrimidin-7-one × 2 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 11 mg/mL MST3 in 25 mM HEPES pH 7.5, 200 mM NaCl, 0.5 mM TCEP, 5% glycerol) with 1 mM compound MR24. Reservoir solution: 28% PEG 3350, 0.1 M citrate pH 5.6	Resolution 1.85 Å R-free 0.217
8QLS Human MST3 (STK24) kinase in complex with inhibitor MR26 Deposited 2023-09-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	VYH 8-(4-azanylbutyl)-6-[2-chloranyl-4-(6-methylpyridin-2-yl)phenyl]-2-(3-morpholin-4-ylpropylamino)pyrido[2,3-d]pyrimidin-7-one × 1 EDO 1,2-ETHANEDIOL × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 11 mg/mL MST3 in 25 mM HEPES pH 7.5, 200 mM NaCl, 0.5 mM TCEP, 5% glycerol) with 1 mM compound MR26. Reservoir solution: 10% PEG 6000, 0.1 M HEPES pH 7.2	Resolution 1.61 Å R-free 0.184
8QLT Human MST3 (STK24) kinase in complex with inhibitor MR30 Deposited 2023-09-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–301（298 aa）	Not recorded	VZ2 8-(4-azanylbutyl)-6-[2-chloranyl-4-(6-methylpyridin-2-yl)phenyl]-2-[3-(2-oxidanylidenepyrrolidin-1-yl)propylamino]pyrido[2,3-d]pyrimidin-7-one × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Protein solution: 11 mg/mL MST3 in 25 mM HEPES pH 7.5, 200 mM NaCl, 0.5 mM TCEP, 5% glycerol) with 1 mM compound MR30. Reservoir solution: 24% PEG 3350, 0.1M citrate pH 5.2	Resolution 1.47 Å R-free 0.176

33 other PDB entries and 37 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	STK24_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 24–294； UniProt 19–289 Author chain D； PDBConstruct 24–294； UniProt 19–289

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

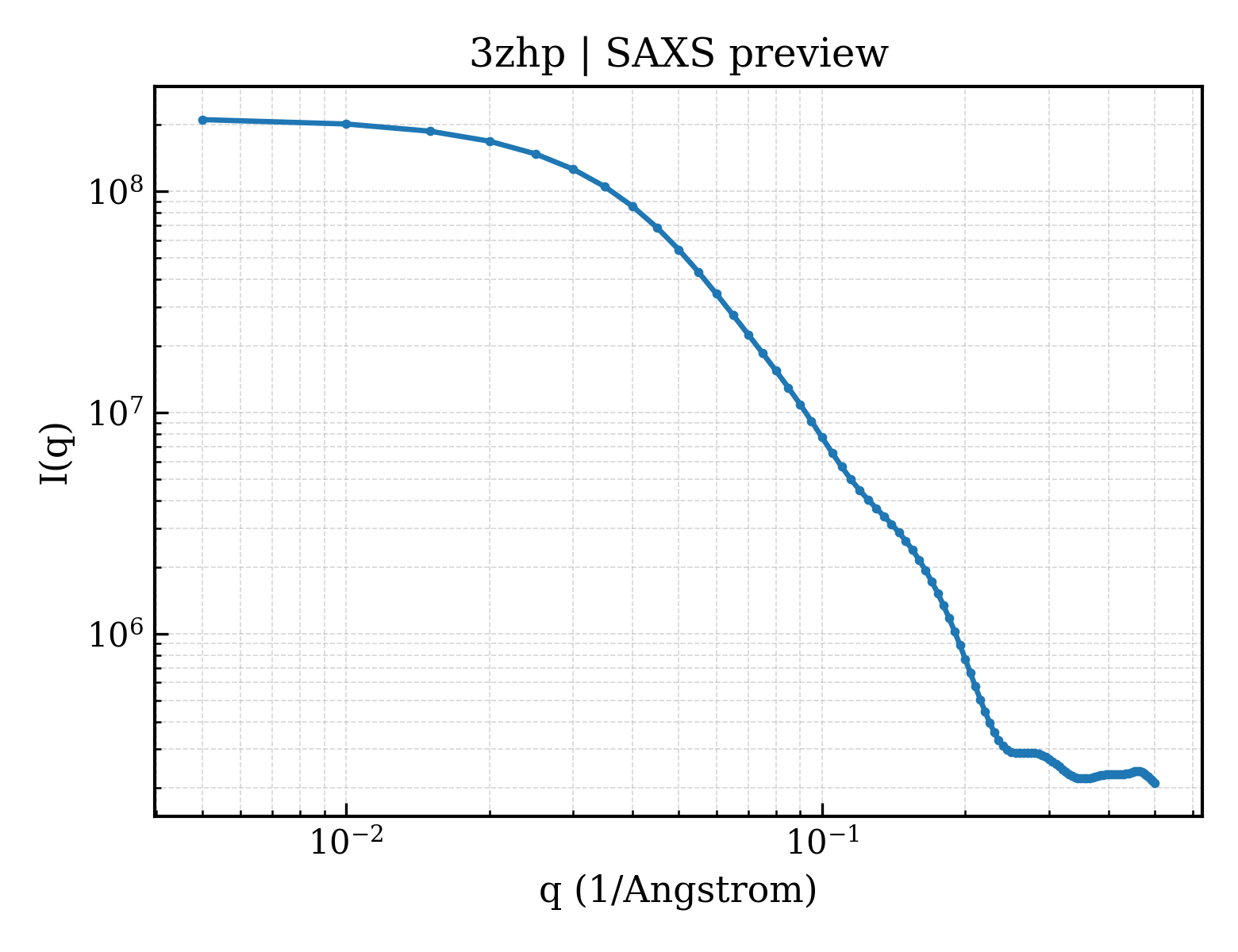

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3zhp
Deposition date deposition_date	2012-12-24
Structure title title	Human MST3 (STK24) in complex with MO25beta
Keywords keywords	CELL CYCLE, MO25; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.36 Å
Radius of gyration Rg (electron density) rg_electron	42.51 Å
Forward intensity I(0) i0	214168000.00
Molecular weight molecular_weight	124680.0 kDa
Excluded volume excluded_volume	158120 Å³
Envelope volume envelope_volume	227360 Å³
Hydration-shell volume shell_volume	46462 Å³
Envelope diameter envelope_diameter	155.0 Å
Shell Rg shell_rg	45.80 Å
Envelope Rg envelope_rg	41.20 Å
Shape Rg shape_rg	42.52 Å
Total Rg total_rg	42.66 Å
Total atoms total_atoms	8807
Residues n_residues	1166
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	146.0 Å
Rg (real space) rg_real	42.55 Å
Rg uncertainty (real space) rg_real_error	1.64 Å
I(0) (real space) i0_real	2.1420e+08
I(0) uncertainty (real space) i0_real_error	3.9280e+06
Rg (reciprocal space) rg_reciprocal	42.36 Å
I(0) (reciprocal space) i0_reciprocal	214100000.0000
Solution quality estimate total_estimate	0.8662
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	47.4 Å
Skewness Skewness skewness	0.416
Kurtosis Kurtosis kurtosis	-0.403
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15720000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.850; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.929; Smooth: 0.778

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CALCIUM-BINDING PROTEIN 39-LIKE
Molecular weight formula_weight	39279.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8807

GPLGSMLPLFSKSHKNPAEIVKILKDNLAILEKQDKKTDKASEEVSKSLQAMKEILCGTNEKEPPTEAVAQLAQELYSSGLLVTLIADLQLIDFEGKKDVTQIFNNILRRQIGTRSPTVEYISAHPHILFMLLKGYEAPQIALRCGIMLRECIRHEPLAKIILFSNQFRDFFKYVELSTFDIASDAFATFKDLLTRHKVLVADFLEQNYDTIFEDYEKLLQSENYVTKRQSLKLLGELILDRHNFAIMTKYISKPENLKLMMNLLRDKSPNIQFEAFHVFKVFVASPHKTQPIVEILLKNQPKLIEFLSSFQKERTDDEQFADEKNYLIKQIRDLKKTAP

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	SERINE/THREONINE-PROTEIN KINASE 24
Molecular weight formula_weight	33303.0 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MHHHHHHSSGVDLGTENLYFQSMDPEELFTKLEKIGKGSFGEVFKGIDNRTQKVVAIKIIDLEEAEDEIEDIQQEITVLSQCDSPYVTKYYGSYLKDTKLWIIMEYLGGGSALDLLEPGPLDETQIATILREILKGLDYLHSEKKIHRDIKAANVLLSEHGEVKLADFGVAGQLTDTQIKRNTFVGTPFWMAPEVIKQSAYDSKADIWSLGITAIELARGEPPHSELHPMKVLFLIPKNNPPTLEGNYSKPLKEFVEACLNKEPSFRPTAKELLKHKFILRNAKKTSYLTELID

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

▼

7. Fold Classification (SCOP + CATH) 11 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d3zhpa_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.15 — Mo25 protein

Domain ID domain_id	d3zhpb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.15 — Mo25 protein

Domain ID domain_id	d3zhpc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.0 — automated matches

Domain ID domain_id	d3zhpc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3zhpd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.0 — automated matches

CATH v4.4 (6 domains)

Domain ID domain_id	3zhpA01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	3zhpB01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	3zhpC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	3zhpC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	3zhpD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	3zhpD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	64.800 Å
Unit-cell length b length_b	120.340 Å
Unit-cell length c length_c	98.910 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.69 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	51.880 Å
R factor r_factor	0.2284
R_work r_work	0.2267
R_free r_free	0.2612

fit	/app/data/saxs_computation/zh/3zhp/3zhp.fit
pddf	/app/data/pr_computation/zh/3zhp/3zhp.pr.out
profile	/app/data/saxs_computation/zh/3zhp/3zhp.dat

Human MST3 (STK24) in complex with MO25beta

1. Protein Identity and Related Structures Protein Identity & Related Structures

CALCIUM-BINDING PROTEIN 39-LIKE

State in the Current Structure

Other States of the Same Protein in the Database

SERINE/THREONINE-PROTEIN KINASE 24

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

7. Fold Classification (SCOP + CATH) 11 domains

SCOP 2.08 (5 domains)

CATH v4.4 (6 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
