SAXSdb — 3zoy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME C-552

NITROSOMONAS EUROPAEA

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 23–103	Mutation：YES	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；0.1 M TRIS-HCL PH 8.5, 3.1 M AMMONIUM SULFATE	Resolution 2.30 Å R-free 0.226
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 23–103	Mutation：YES	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；0.1 M TRIS-HCL PH 8.5, 3.1 M AMMONIUM SULFATE	Resolution 2.30 Å R-free 0.226
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 23–103	Mutation：YES	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；0.1 M TRIS-HCL PH 8.5, 3.1 M AMMONIUM SULFATE	Resolution 2.30 Å R-free 0.226
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 23–103	Mutation：YES	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；0.1 M TRIS-HCL PH 8.5, 3.1 M AMMONIUM SULFATE	Resolution 2.30 Å R-free 0.226

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3ZOY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A56 PRIMARY SEQUENCE AND SOLUTION CONFORMATION OF FERRICYTOCHROME C-552 FROM NITROSOMONAS EUROPAEA, NMR, MEAN STRUCTURE REFINED WITH EXPLICIT HYDROGEN BOND CONSTRAINTS Deposited 1998-02-20	Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–103（81 aa）	Not recorded	HEC HEME C × 1	SOLUTION NMR NMR measurement conditions pH 6.9；323 K；Ionic strength (raw mmCIF value) 0.05；Pressure 1 NMR sample composition WATER	Resolution not provided
1A8C PRIMARY SEQUENCE AND SOLUTION CONFORMATION OF FERROCYTOCHROME C-552 FROM NITROSOMONAS EUROPAEA, NMR, MEAN STRUCTURE REFINED WITHOUT HYDROGEN BOND CONSTRAINTS Deposited 1998-03-23	Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–103（81 aa）	Not recorded	HEC HEME C × 1	SOLUTION NMR NMR measurement conditions pH 6.9；323 K；Ionic strength (raw mmCIF value) 0.05；Pressure 1 NMR sample composition WATER	Resolution not provided
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 10 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 11 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain K 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 12 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain L 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 13 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain M 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 14 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain N 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 15 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain O 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 16 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain P 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 17 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain Q 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 18 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain R 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOW Crystal Structure of Wild Type Nitrosomonas europaea Cytochrome c552 Deposited 2013-02-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 9 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 23–103（81 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；3 M AMMONIUM SULFATE, 10 MM TRIS-HCL PH 8	Resolution 2.35 Å R-free 0.258
3ZOX Crystal Structure of N64Del Mutant of Nitrosomonas europaea Cytochrome c552 (monoclinic space group) Deposited 2013-02-26	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–103（81 aa）	Mutation：YES	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；0.1 M CHES PH 9.5, 30% (W/V) PEG 8000	Resolution 2.10 Å R-free 0.274
3ZOX Crystal Structure of N64Del Mutant of Nitrosomonas europaea Cytochrome c552 (monoclinic space group) Deposited 2013-02-26	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 23–103（81 aa）	Mutation：YES	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；0.1 M CHES PH 9.5, 30% (W/V) PEG 8000	Resolution 2.10 Å R-free 0.274
3ZOX Crystal Structure of N64Del Mutant of Nitrosomonas europaea Cytochrome c552 (monoclinic space group) Deposited 2013-02-26	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 23–103（81 aa）	Mutation：YES	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；0.1 M CHES PH 9.5, 30% (W/V) PEG 8000	Resolution 2.10 Å R-free 0.274
3ZOX Crystal Structure of N64Del Mutant of Nitrosomonas europaea Cytochrome c552 (monoclinic space group) Deposited 2013-02-26	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 23–103（81 aa）	Mutation：YES	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；0.1 M CHES PH 9.5, 30% (W/V) PEG 8000	Resolution 2.10 Å R-free 0.274
4JCG Recombinant wild type Nitrosomonas europaea cytochrome c552 Deposited 2013-02-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–103（81 aa） Fragment：Cyt C552 (UNP Residues 23-103)	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；19% (w/v) PEG 6000, 0.2 M LiCl, 0.1 M Tris-HCl pH 7.4 at 7-8 mM protein concentration., VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.63 Å R-free 0.234

5 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CY552_NITEU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–80； UniProt 23–103 Author chain B； PDBConstruct 1–80； UniProt 23–103 Author chain C； PDBConstruct 1–80； UniProt 23–103 Author chain D； PDBConstruct 1–80； UniProt 23–103

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3zoy
Deposition date deposition_date	2013-02-26
Structure title title	Crystal Structure of N64Del Mutant of Nitrosomonas europaea Cytochrome c552 (hexagonal space group)
Keywords keywords	HEMEPROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.40 Å
Radius of gyration Rg (electron density) rg_electron	21.66 Å
Forward intensity I(0) i0	20606300.00
Molecular weight molecular_weight	35614.0 kDa
Excluded volume excluded_volume	45010 Å³
Envelope volume envelope_volume	52472 Å³
Hydration-shell volume shell_volume	20973 Å³
Envelope diameter envelope_diameter	81.9 Å
Shell Rg shell_rg	27.82 Å
Envelope Rg envelope_rg	21.80 Å
Shape Rg shape_rg	21.61 Å
Total Rg total_rg	22.63 Å
Total atoms total_atoms	2498
Residues n_residues	318
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

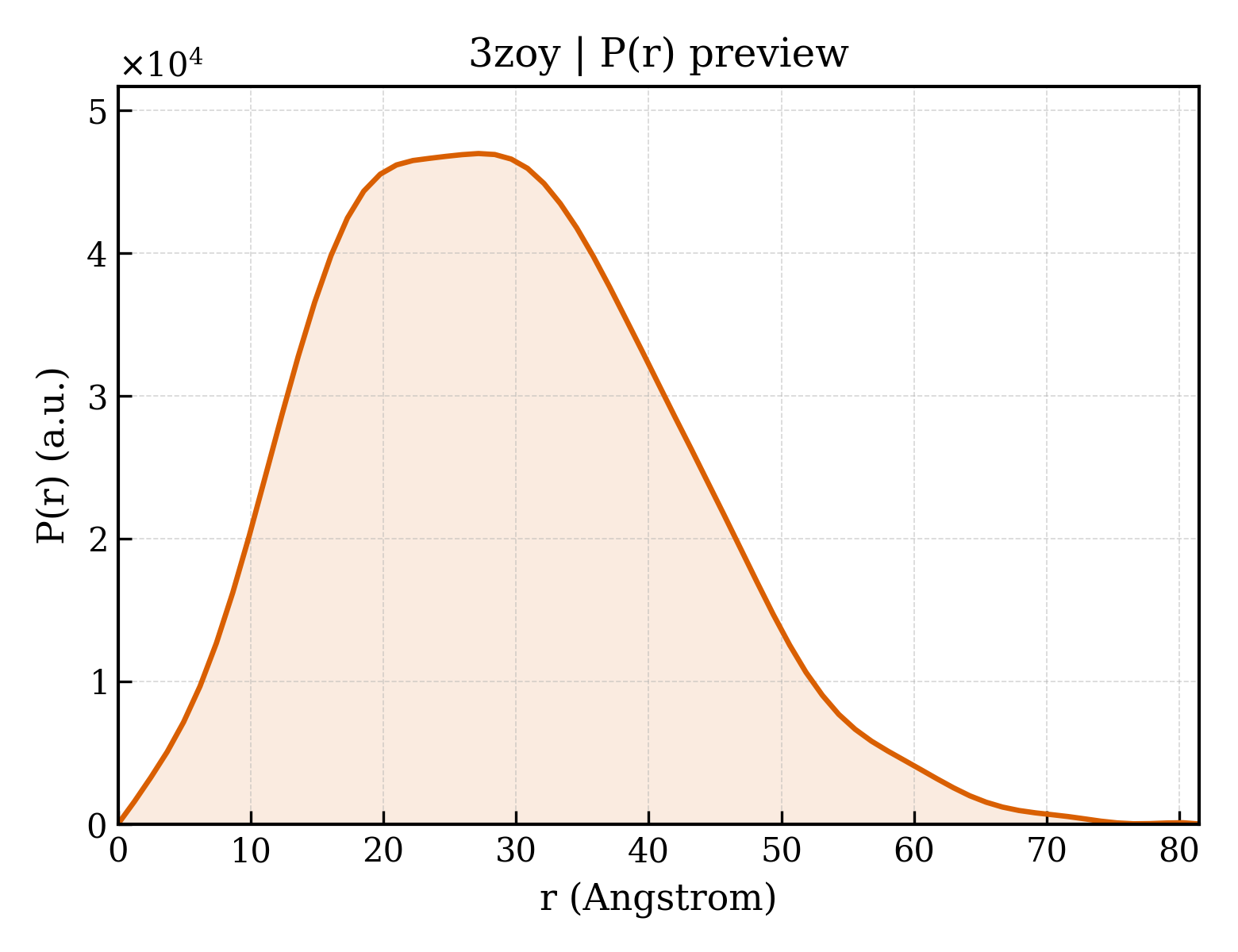

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	81.5 Å
Rg (real space) rg_real	22.42 Å
Rg uncertainty (real space) rg_real_error	0.71 Å
I(0) (real space) i0_real	2.0610e+07
I(0) uncertainty (real space) i0_real_error	2.8680e+05
Rg (reciprocal space) rg_reciprocal	22.42 Å
I(0) (reciprocal space) i0_reciprocal	20610000.0000
Solution quality estimate total_estimate	0.8432
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.2 Å
Skewness Skewness skewness	0.386
Kurtosis Kurtosis kurtosis	-0.202
Angular range angular_range	— – 0.3550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10360000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.691; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.890; Smooth: 0.995

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CYTOCHROME C-552
Molecular weight formula_weight	8377.6 kDa
EC 编号 ec_number	1.7.2.2
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	2691

DADLAKKNNCIACHQVETKVVGPALKDIAAKYADKDDAATYLAGKIKGGSSGVWGQIPMPPVNVSDADAKALADWILTLK

来源 Source

来源生物 organism	NITROSOMONAS EUROPAEA
NCBI Class编号 ncbi_taxonomy_id	915
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	193

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d3zoya_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.0 — automated matches

Domain ID domain_id	d3zoyb_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.0 — automated matches

Domain ID domain_id	d3zoyc_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.0 — automated matches

Domain ID domain_id	d3zoyd_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	3zoyA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	3zoyB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	3zoyC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	3zoyD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	137.668 Å
Unit-cell length b length_b	137.668 Å
Unit-cell length c length_c	88.830 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	119.220 Å
R factor r_factor	0.1773
R_work r_work	0.1747
R_free r_free	0.2257

fit	/app/data/saxs_computation/zo/3zoy/3zoy.fit
pddf	/app/data/pr_computation/zo/3zoy/3zoy.pr.out
profile	/app/data/saxs_computation/zo/3zoy/3zoy.dat
